DGE-660TD Copper Gigabit CardBus Adapter

DGE-660TD

  • Product Status (Revision A): End of Life

The DGE-660TD CardBus Adapter is designed to bring high-performance Gigabit network speed to you laptop computer. This PC card simply plugs to a 32-bit PCMCIA slot of your computer and connects an Ethernet network through an RJ-45 copper twisted-pair connector. This card turns your laptop computer into a high-bandwidth Gigabit workstation for high-speed network connection

High-performance Gigabit Speed

The DGE-660TD adapter gives your laptop computer Gigabit transmission on your existing Cat. 5 twisted-pair network cable. As an inexpensive alternative solution to fiber-optic, this card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. The card supports 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation

Powerful Performance

To take full advantage of the Gigabit network bandwidth, this adapter uses 32-bit high-speed CardBus design to transfer network data with the computer host. This ensures that no bottlenecks take place between your computer's CPU and your network wireless frequency. A transmit 8KByte/receive 64KByte RAM data buffer is built into the card to enhance the adapter's performance.

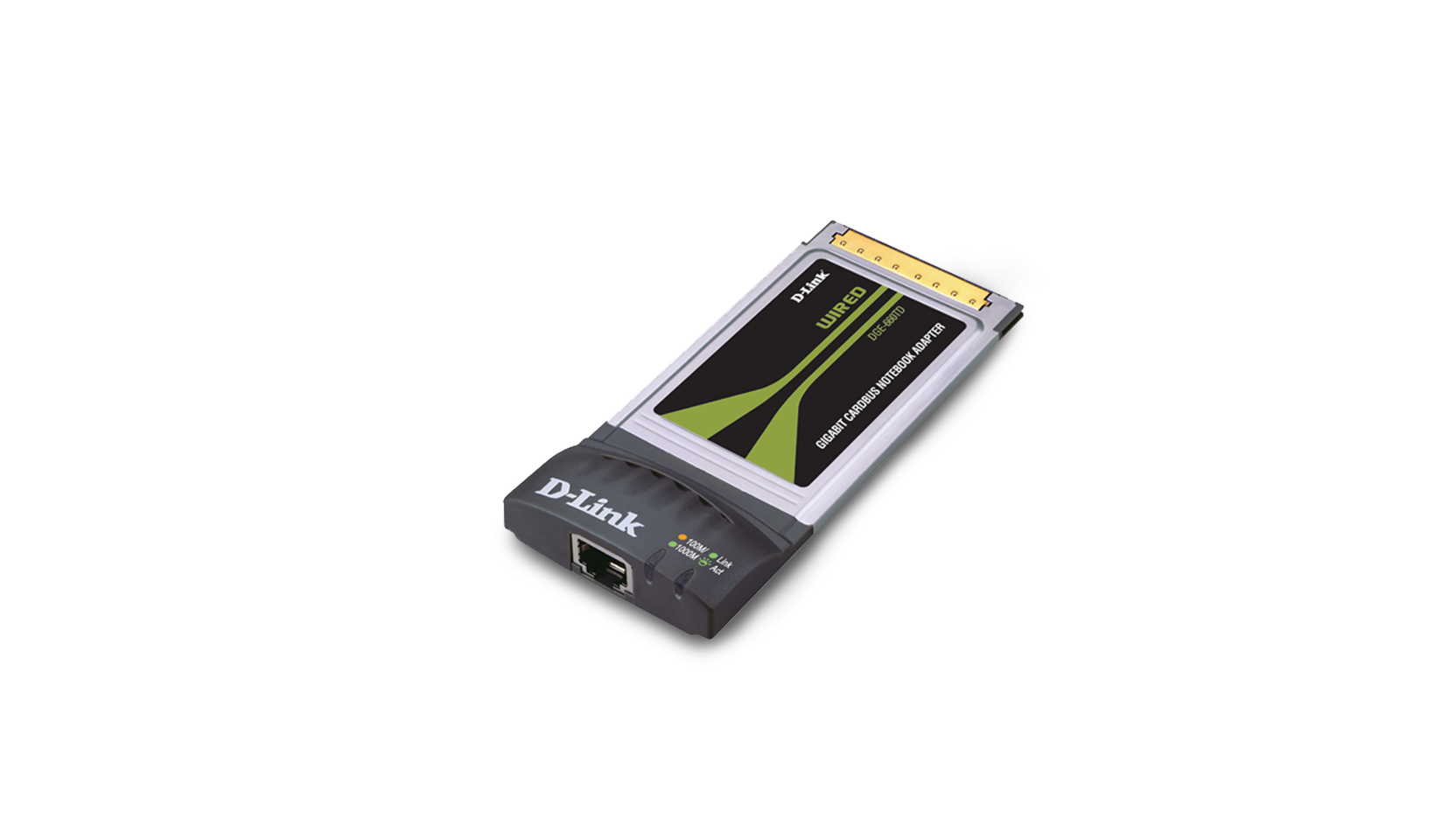

Actual product appearance may differ from the image displayed on this page

  • PCMCIA CardBus standard compliant
  • 32-bit bus-mastering data transfer
  • 68-pin connector to PC's CardBus Type II slot
  • 10/100/1000Mbps auto-negotiation operation
  • Full-duplex rates to 20/200/2000Mbps
  • Built-in transmit 8K/receive 64KBytes RAM data buffer
  • Single shielded RJ-45 connector
  • UTP/STP cabling support
  • 32-bit high-speed data transfer to computer host
  • Minimal power consumption
  • PCMCIA hot swappable
  • Extensive diagnostic LEDs
  • Operates in Windows, NetWare environments
This product was phased out on: 15/08/2012
This product's last date of support is on: 15/08/2014
Version Date Type File Size
Datasheet (English) - PDF 0.17mb Download
Version Description Date Type File Size
Manual v1.10 (English) Manual v1.10 (English) 10. 1. 2012. PDF 2.78mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 0.50mb Download
Version Description Date
DEU_Drivers_v5_00_RevA DGE-660TD Drivers v5.00 25. 2. 2010. Download
DEU_Drivers_revAll_v4_00_RevA DGE-660TD Drivers v4.00 5. 4. 2007. Download
DEU_Drivers_revAx_v5_61_54_RevA DGE-660TD Drivers v5.61.54 18. 10. 2004. Download
Version Description Date
DEU_CE_A2_EN_FR_RevA Certificate of Declaration A2 27. 5. 2009. Download
DEU_CE_A1_RevA Certificate of Declaration A1 13. 10. 2005. Download
