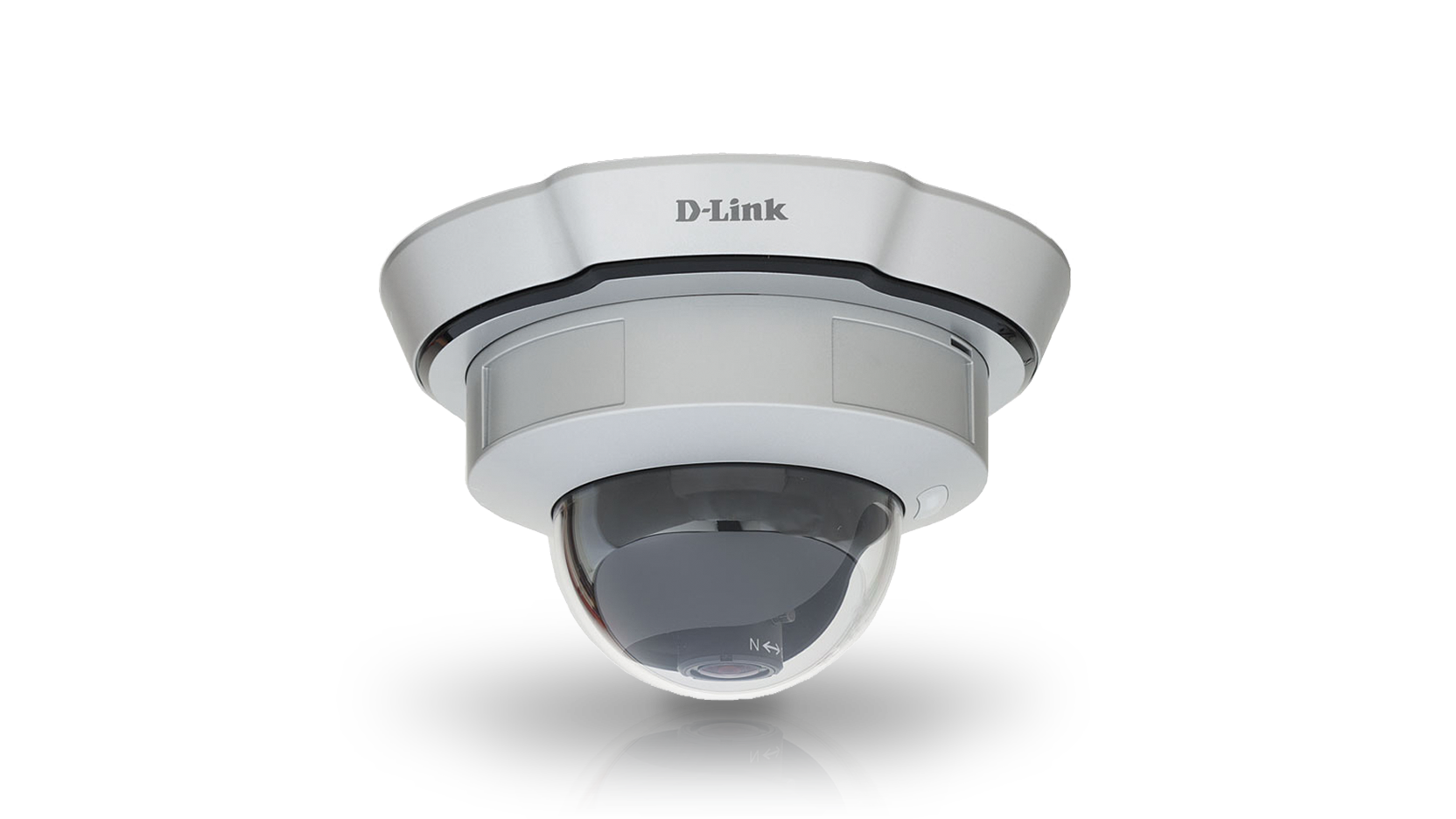

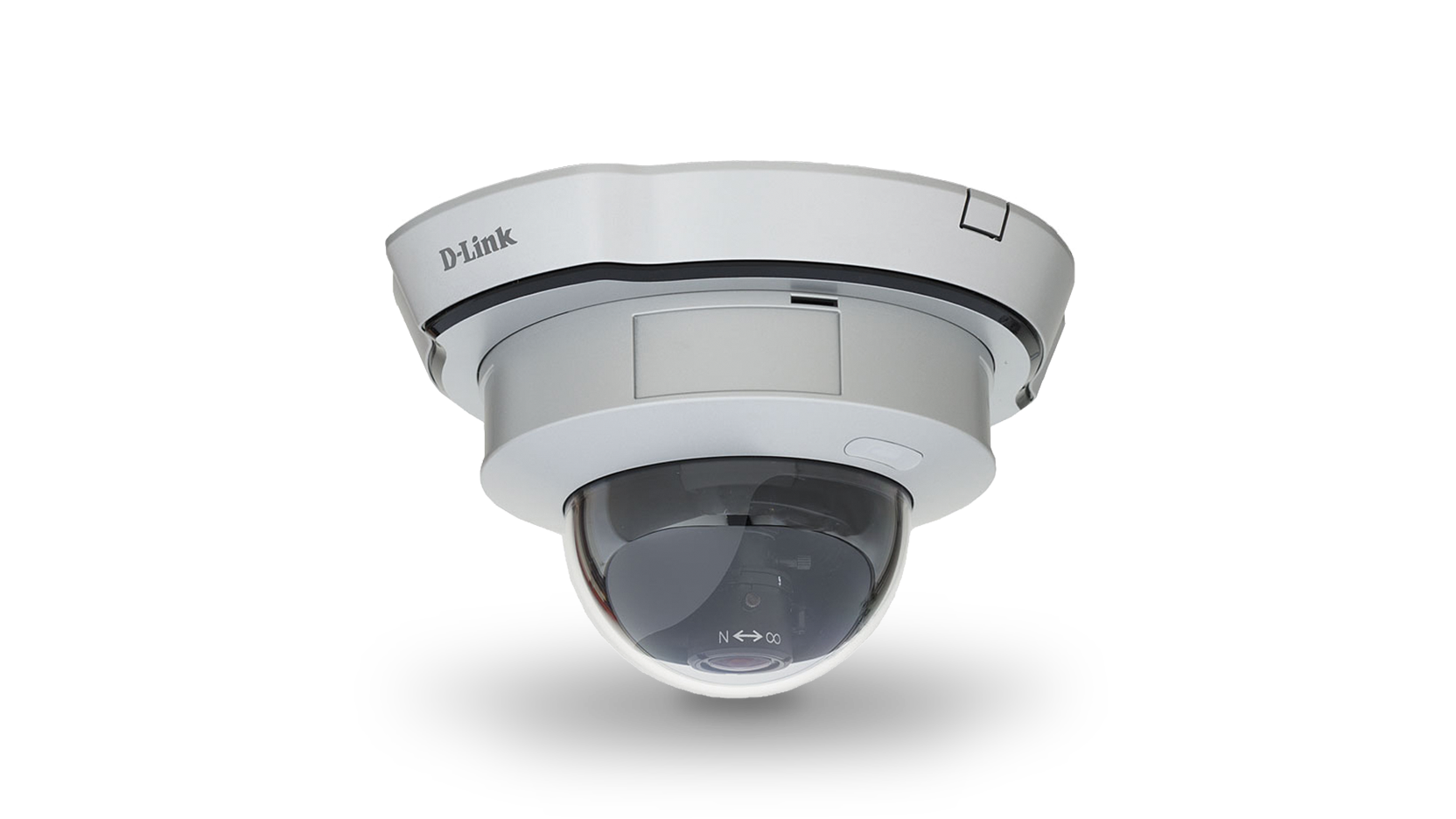

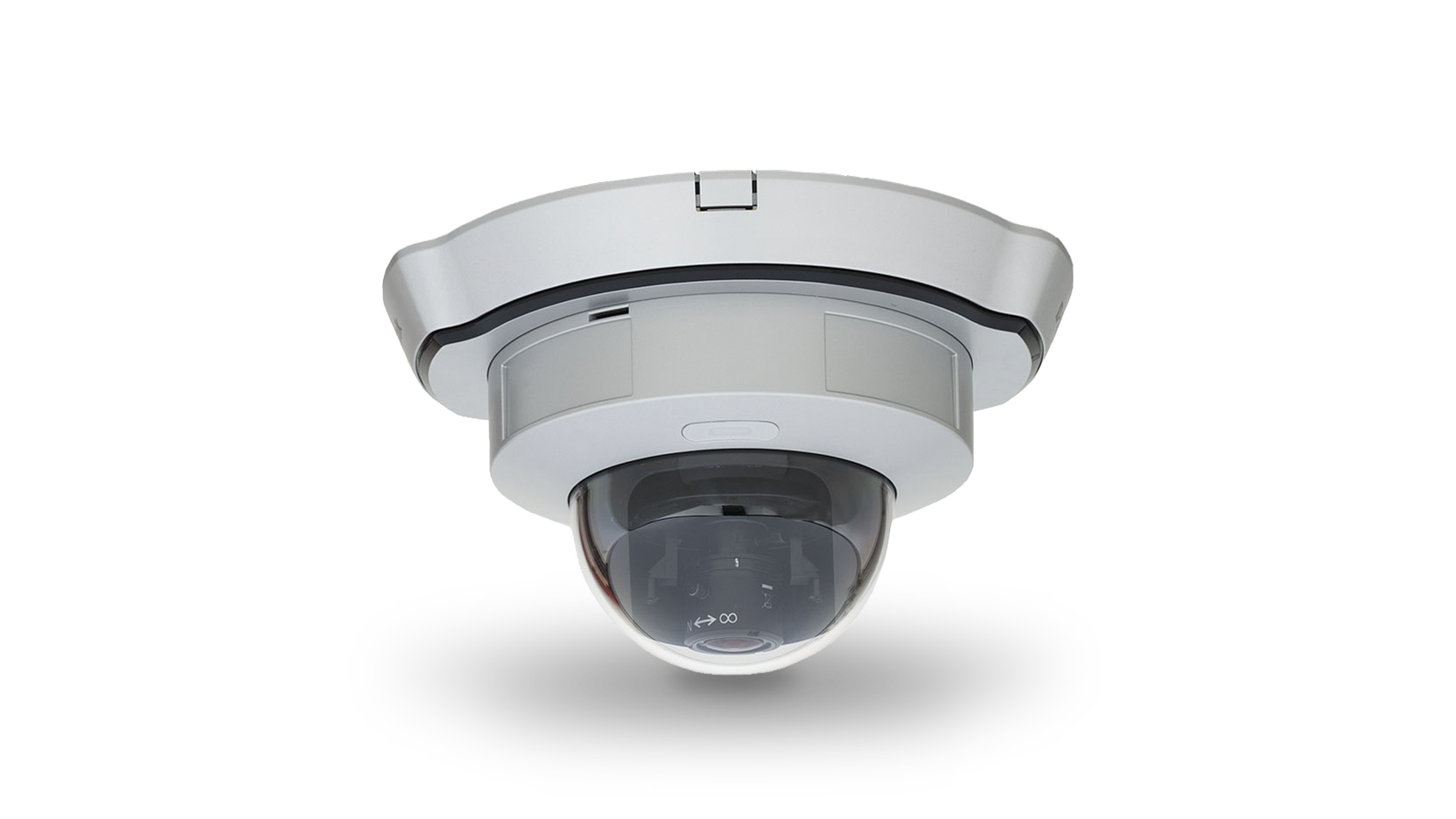

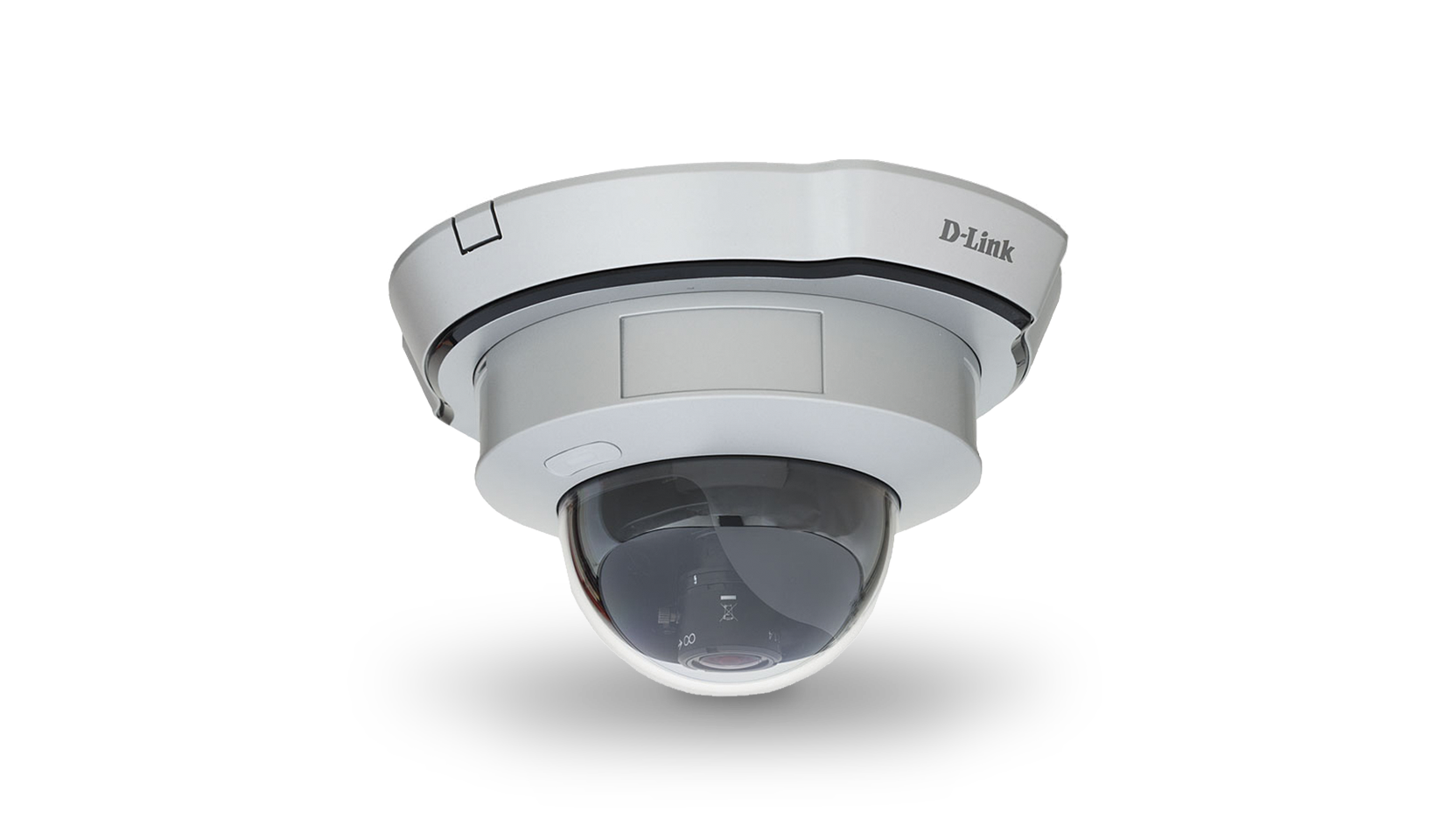

Fixed Dome PoE Network Camera

DCS-6110

  • Product Status: End of Life
D-Link’s DCS-6110 is a high-performance fixed dome IP camera, ideal for home or business. Dome type cameras are very popular in CCTV system. The VGA Progressive CMOS technology delivers exceptional picture quality. Use D-Link's SoC (system-on-chip) products to provide high quality real-time video compression in MPEG-4 and Motion JPEG formats. DCS-6110 supports simultaneous dual-streaming for live monitoring and recording.

With a built-in Samba client for NAS, DCS-6110 IP camera does not need a direct connection to a PC or any other hardware or software to capture and transfer images.

For effective surveillance in and around a building, this camera comes with a built-in 802.3af compliant Power Over Ethernet (PoE) module, which eases the installation process and also gives you the freedom to place the camera where it's needed. The camera can be accessed and viewed from any network place as a device on the network.

With the free-bundled 32-channel recording software, the DCS-6110 is an ideal solution for high quality viewing and reliable recording.

  •     VGA Progressive CMOS sensor
  •     3.7-12mm vari-Focal lens
  •     Real-time MPEG-4 and Motion JPEG compression
  •     Power over Ethernet (PoE) built-in
  •     Simultaneous dual-stream support
  •     3GPP mobile surveillance
  •     Samba client built-in for NAS
  •     Power over Ethernet (PoE) built-in
  •     Simultaneous dual-stream support
  •     DI / DO interface
  •     F/W:
  •     Samba Client
  •     PPPoE
  •     UPnP Port Forwarding
  •     IP filtering
  •     Event (Server/Media/Event/Recording) management
  •


Actual product appearance may differ from the image displayed on this page

Network Protocol Support

  • TCP/IP, RTSP, RTP, RTCP, HTTP, SMTP, FTP, NTP, DNS, DHCP,
  • UPnP, DDNS, PPPoE, ICMP, Samba client, IP Filtering, 3GPP

 Built-in Network Interface

  • 10/100BASE-TX Ethernet port

 Video ALlgorithm Support

  • JPEG for still image
  • MPEG4/MJPEG dual format compression

 Video Resolution

  • Up to 30fps at 176 x 144
  • Up to 30fps at 320 x 240
  • Up to 30fps at 640 x 480

 Video Features

  • Adjustable image size and quality
  • Time stamp and text overlays
  • 3 configurable motion detection windows
  • Flip & mirror

 Video Bit Rate

  • 20K to 4M

 Camera Specifications

  • VGA Progressive CMOS Sensor
  • 1.5 Lux @ F1.4
  • Electronic rolling shutter
  • 3.7-12mm vari-focal lens, F1.4-F2.8

 LAN

  • IEEE 802.3 compliance
  • IEEE 802.3u compliance
  • Support Full-Duplex operations
  • 802.3x Flow Control support for Full-Duplex mode
  • Supported IEEE 802.3af standard (PoE)

Physical & Environmental

Diagnostic LED

  • 2 color LED
  • 3-AXIS ANGLE
  • X : 350˚, Y : 45˚, Z : 350˚

 Power Input

  • 100-240VAC, 50/60Hz

 Power Consumption

  • Max 3.6 W

 Dimensions

  • 194 (W) X 180 (D) X 107 (H) (mm)

 Weight

  • 630 gm

 Security

  • Administrator and user group protected
  • Password authentication

 Surveillance Software Functions

  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions provided in web
  • interface
  • Scheduled motion triggered, or manual recording options

 Remote Management

  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or
  • NAS via web browser

 Surveillance

  • (Motion detection weekly schedule)
  • Upload snapshots/video clips via email
  • Upload snapshots/video clips via FTP

 System Requirements

  • Operating System: Microsoft Windows 2000, XP, Vista
  • Browser: Internet Explorer, Firefox, Netscape, Mozilla, Opera
  • Browser

 Supported PDA, Mobile Phones & Software

  • Handsets with 3GPP player
  • Packet Video Player 3.0
  • QuickTime 6.5
  • Real Player 10.5
  • Windows 2000, XP

 Operation Temperature

  • 0o to 40o C (32o to 104o F)

 Storage Temperature

  • -20o to 70o C (-4o to 158o F)

 Humidity

  • 20% to 80% non-condensing

 Emission (EMI), Safety & Other Certifications

  • FCC
  • CE
  • C-Tick
  • LVD
This product was phased out on: 13/01/2013
This product's last date of support is on: 13/01/2015
