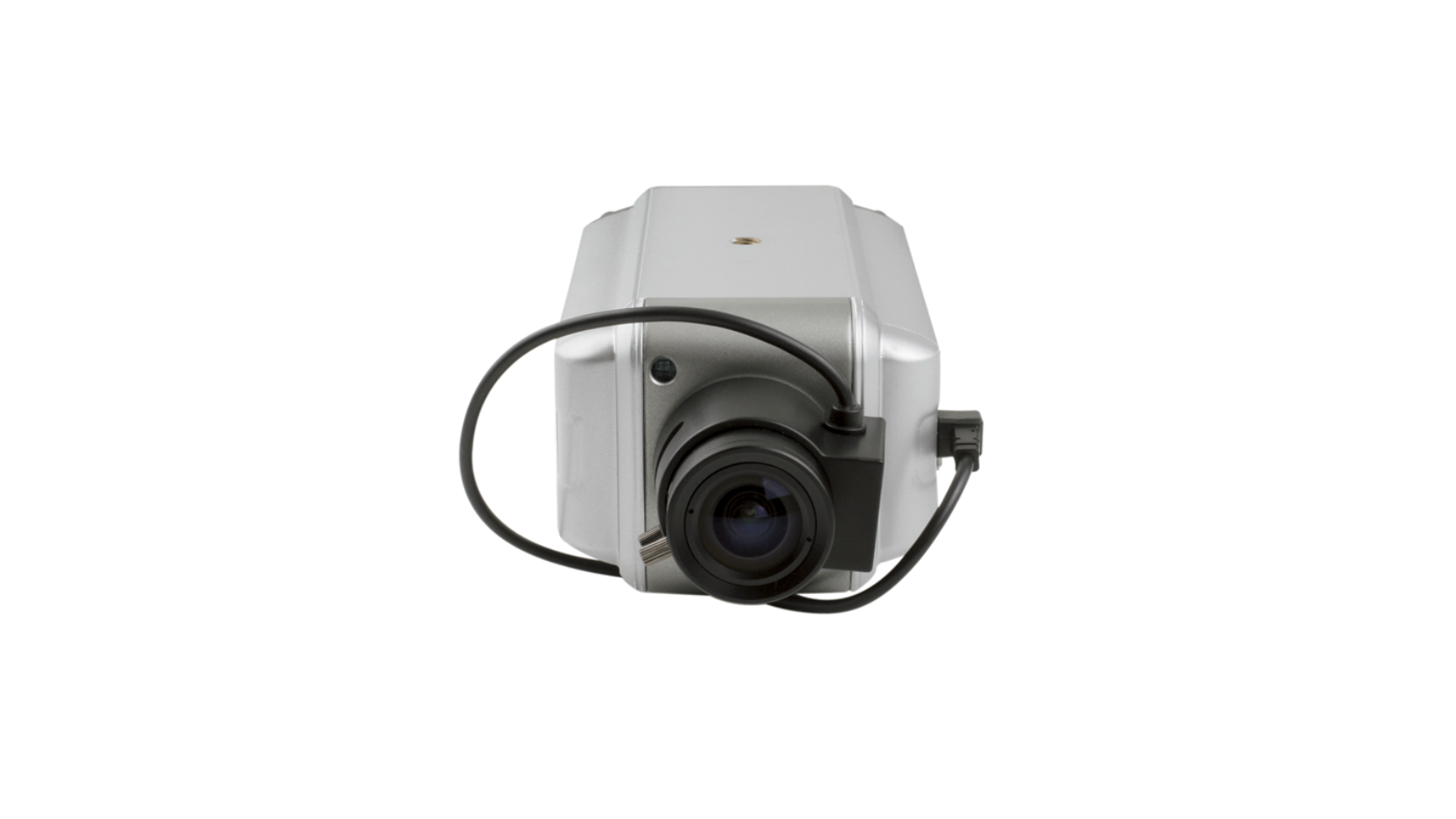

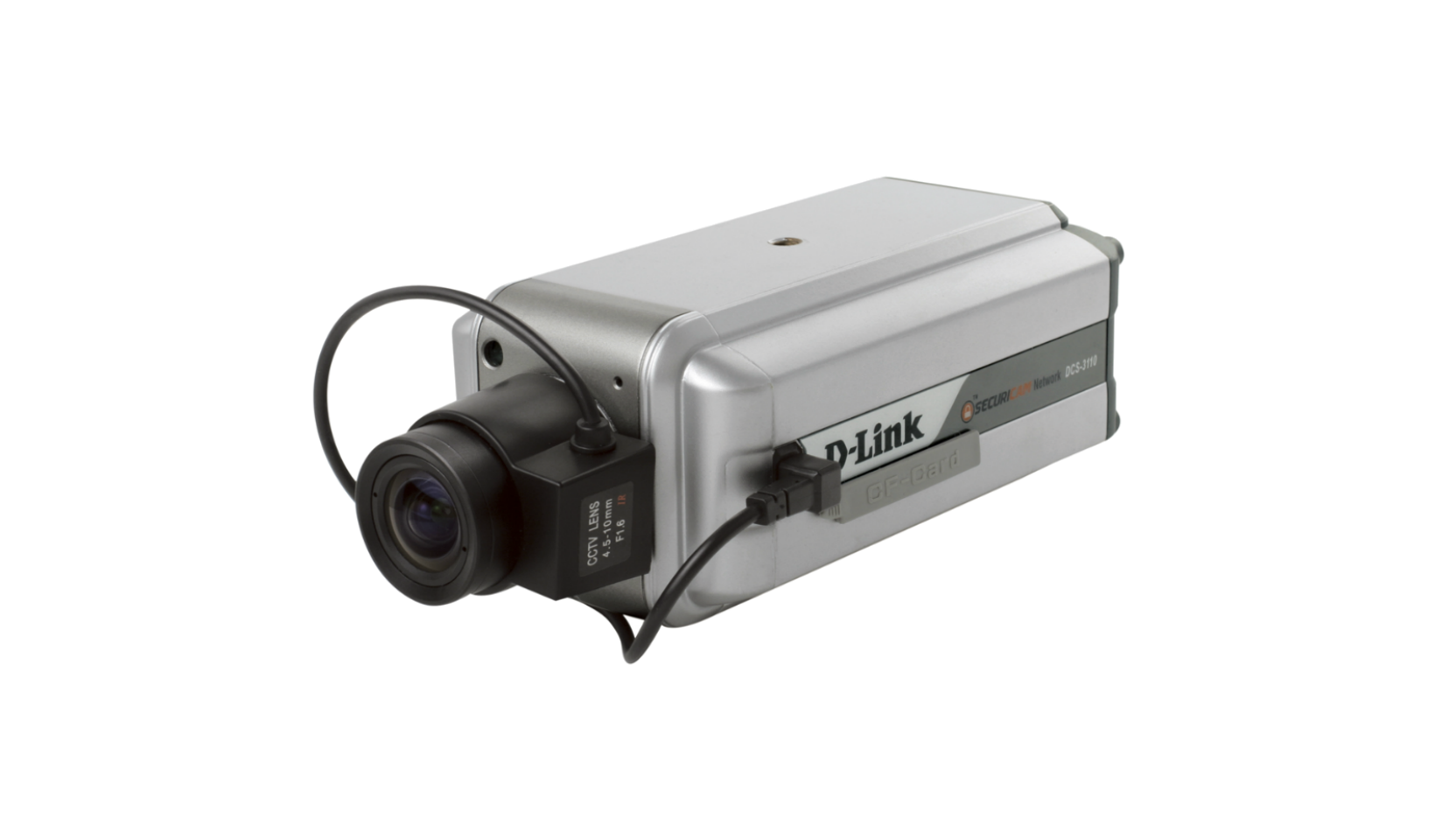

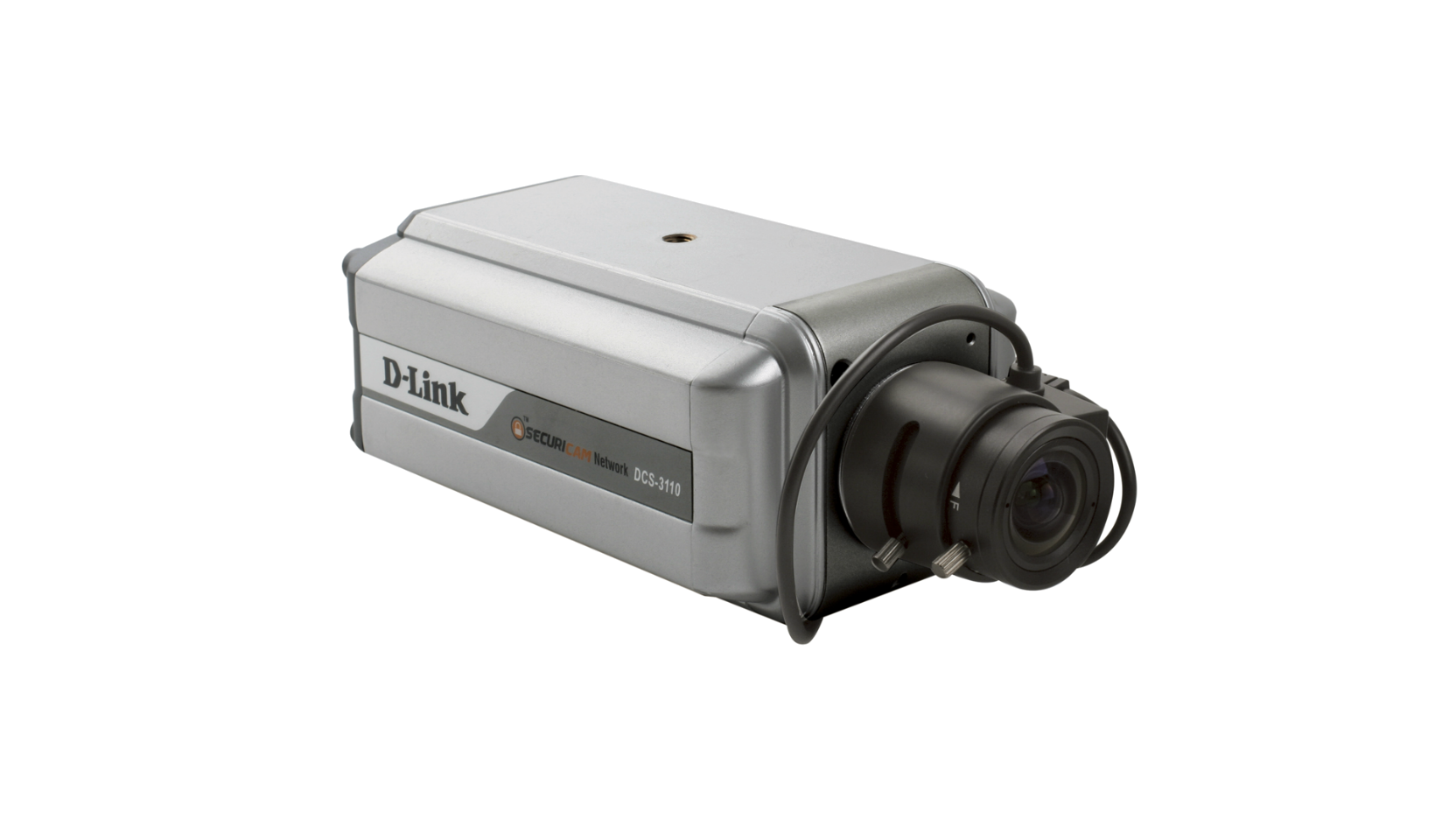

The D-Link DCS-3110 is a network camera for professional surveillance and security. It features a 1.3 mega-pixel progressive scan CMOS sensor and the motion JPEG stream covers performs more than three times better than an analogue CCTV camera.
Two video streams with different configurations can be activated simultaneously to address the different requirements for live viewing and recording. Multicast video/audio stream helps to reduce the network transmission load. When multicast-enabled router is used, the network camera can serve multiple clients at the same time.
The camera is designed for both indoor and outdoor (with enclosure) day/night applications and has a built-in removable IR-cut filter. It is also equipped with one digital input and one digital output. An RS-485 port is designed for external pan/tilt/zoom devices. An 802.3af compliant power over Ethernet (PoE) module is also built-in to ease the installation process.
With D-ViewCam, D-Link's channel recording software, bundled free-of-charge, this network camera provides a total solution for high quality live viewing and reliable recording.
Actual product appearance may differ from the image displayed on this page
Two video streams with different configurations can be activated simultaneously to address the different requirements for live viewing and recording. Multicast video/audio stream helps to reduce the network transmission load. When multicast-enabled router is used, the network camera can serve multiple clients at the same time.
The camera is designed for both indoor and outdoor (with enclosure) day/night applications and has a built-in removable IR-cut filter. It is also equipped with one digital input and one digital output. An RS-485 port is designed for external pan/tilt/zoom devices. An 802.3af compliant power over Ethernet (PoE) module is also built-in to ease the installation process.
With D-ViewCam, D-Link's channel recording software, bundled free-of-charge, this network camera provides a total solution for high quality live viewing and reliable recording.
- IR cut Removable(ICR) filter for day/night feature
- 1.3 mega-pixel progressive scan CMOS module
- 6mm megapixel lens, F1.6
- Power over Ethernet (PoE) built-in
- Switch for audio on/off
- DI/DO support for external device
- RS-485 for external PTZ connection
- Support DC12V output for external device (like IR light)
- Real-time MPEG-4 and Motion JPEG compression with VGA/QVGA/QQVGA resolution, 30 frames per second
- Motion JPEG with SXGA(1280x1024) @8fps.
- Simultaneous dual-stream support
- Multicast video/audio stream
- 3GPP mobile surveillance
- Samba client built-in for NAS
- Motion detection recording
- Support CF card for local storage
Actual product appearance may differ from the image displayed on this page
Specs
Indoor/outdoor
|
Indoor |
---|---|
Connectivity
|
Wired PoE |
Resolution
|
HD 1 megapixel |
Image sensor
|
1/4" 1.3 megapixel progressive scan CMOS |
Maximum Video Resolution
|
1280 x 1024 (other) |
Lens
|
4_5_10 mm F1.6 Varifocal |
Infrared-Cut Removable Filter
|
Supported
|
Optical Zoom
|
2.2x |
2-way audio
|
Supported
|
Built-in Microphone
|
Supported
|
External Microphone Input
|
Supported
|
External Speaker Output
|
Supported
|
Digital Input/Output(DI/DO)
|
1/1 |
External Card Slot
|
CF (max 8 GB) |
Video Format
|
MJPEG MPEG-4 |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
4x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
This product was phased out on: 26/10/2014
This product's last date of support is on: 25/10/2016
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Quick Installation Guide (English) | - | 3.22mb | Download |
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | Type | |
---|---|---|---|---|
Firmware 1.02 | Firmware | 9. 12. 2008. | - | Download |
