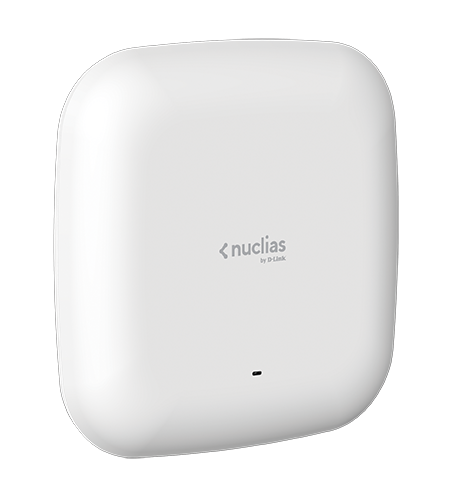

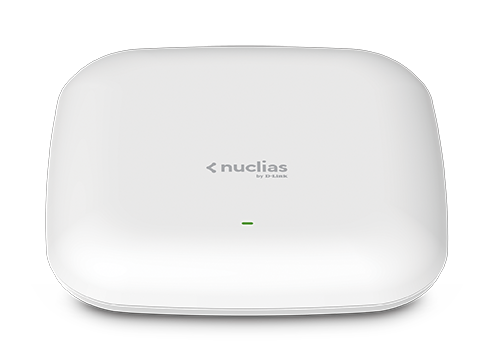

Nuclias Wireless AC1300 Wave 2 Cloud-Managed Access Point
DBA-1210P
- Product Status: Live
- Nuclias Cloud-based management (1-year license included)
- AC1300 Wave 2, MU-MIMO
- Zero-Touch Provisioning, Cloud-based auto-configuration.
- Register for Limited Lifetime Warranty
Where to buy
Key Features
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_01_cenralisedmanagement.png)
Nuclias cloud-based network management
Manage your network from one place from a browser or through the tablet app, anywhere, anytime.1
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_licence.png)
License included
1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_02_zerotouch.png)
Zero-Touch Provisioning
Plug and play, cloud-based auto-configuration.
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_03_scalability.png)
Unlimited scalability
Easy to add or scale back in line with demand.
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_04_interface.png)
Intuitive web and app-based interface
Easy to use, multi-lingual user interface
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_07_throughput.png)
Up to 1.3 Gbps<sup>2</sup> wireless throughput
High combined data rates of up to 1300 Mbps.
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_05_wave.png)
Wi-Fi AC Wave 2
Reliable and efficient wireless technology.
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_06_mumimo.png)
2 x 2 MU-MIMO
Fast and efficient data streams to multiple devices.
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_08_ethernet.png)
Gigabit PoE Ethernet LAN Port
Power the device over Ethernet without the need for nearby power outlets.
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_10_steering.png)
Band steering
Dual-band concurrent 2.4 GHz and 5 GHz radios, with the best band selected to suit device and usage.
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_11_balancing.png)
Load balancing
Evenly distributes your wireless traffic to optimise the efficiency of your network.
![](/ba/hr/-/media/product-pages/dba/1210p/assets/icon_12_accesspoints.png)
Up to 16 Virtual Access Points
Segment users on the network by using multiple virtual access points with individual SSIDs.
Wireless Extenders
Budget-friendly renewals
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
We're here to help.
![](/ba/hr/-/media/product-pages/common/callouts/icon_35years.png?h=113&w=142&la=hr-BA&hash=4D5583AE374F00597657375294B78902)
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
![](/ba/hr/-/media/product-pages/common/callouts/icon_support.png?h=113&w=86&la=hr-BA&hash=CE428F4B9670DEE6C1F815906B3E20D1)
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
![](/ba/hr/-/media/product-pages/common/callouts/icon_limitedlifetime_warranty.png?h=113&w=108&la=hr-BA&hash=C7F382CE0484C256B844BDF5E35FF872)
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
![](/ba/hr/-/media/product-pages/dba/1510p/dba1510pa1image-lfront1.png?h=100&w=100&la=hr-BA&hash=017002D056DC12D160DF0B71494DA656)
![](/ba/hr/-/media/product-pages/dba/2820p/dba_2820p_a1_side.png?h=100&w=92&la=hr-BA&hash=E4F1C8E13AC6259899758FDA45C6AD9A)
![](/ba/hr/-/media/product-pages/dbs/2000/dbs_2000_series_a1_image_l_front.png?h=100&w=131&la=hr-BA&hash=6010688C4AB500B8597C3B258DE47979)
![](/ba/hr/-/media/product-pages/dba/2520p/dba_2520p_a1_front.png?h=100&w=100&la=hr-BA&hash=F58DC351CB3A455F08C9F6772A73D5F5)
![](/ba/hr/-/media/product-pages/dba/x1230p/assets/dba_x1230p_a1_side.png?h=100&w=87&la=hr-BA&hash=765B88FDA3D7F51C16A5743C300DAD66)
Specs
Type
|
Cloud-managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
400 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
3 dBi for 2.4 GHz 3 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
1 x Gigabit Ethernet LAN |
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Wireless modes
|
Access Point (AP) |
Advanced features
|
802.11k/r Roaming MU-MIMO |
Maximum number of SSIDs
|
16 |
Auto channel selection
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
Auto-channel, auto-RF management Captive portal |
IPv6
|
Supported
|
Management platform
|
Nuclias Cloud Networking Solution |
FAQ
- Can I customise the captive portal with my own HTML code? How? Read Answer
- What will happen to the statistics if I move a device from one Site to another? Read Answer
- What will happen if the clock time on the devices is not synchronised with the NTP server? Read Answer
- Nuclias Cloud Tutorial Video - Getting Started with Nuclias Read Answer
Support
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet EN | - | 1.02mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual 1.10 RevA1 | Product Manual | 2. 12. 2020. | - | - | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | |
---|---|---|---|
CE doc UKCA 1.10 RevA1 | CE document | 2. 11. 2021. | Download |
CE doc UKCA 1.00 Revision A1 | CE document | 14. 5. 2021. | Download |
CE doc 1.40 RevA1 | CE document | 6. 8. 2020. | Download |
CE doc 1.20 RevA1 | CE document | 9. 3. 2020. | Download |
CE doc 1.30 RevA1 | CE document | 9. 3. 2020. | Download |
CE doc 1.10 Revision A1 | CE document | 28. 6. 2019. | Download |
