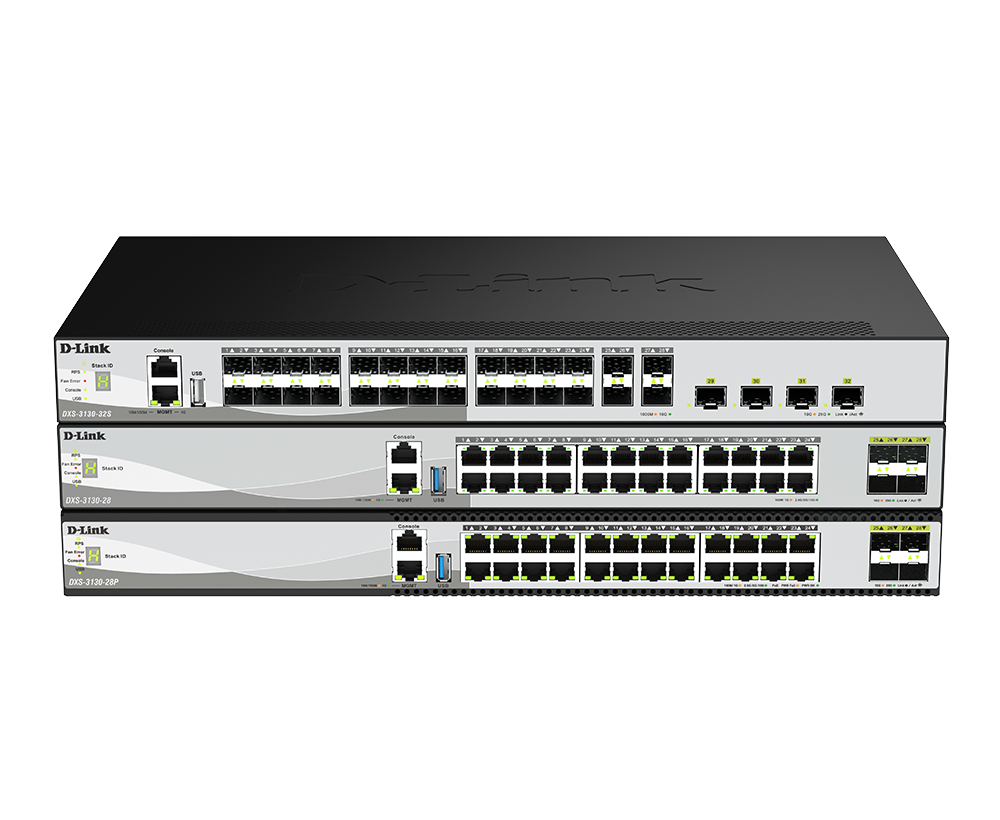

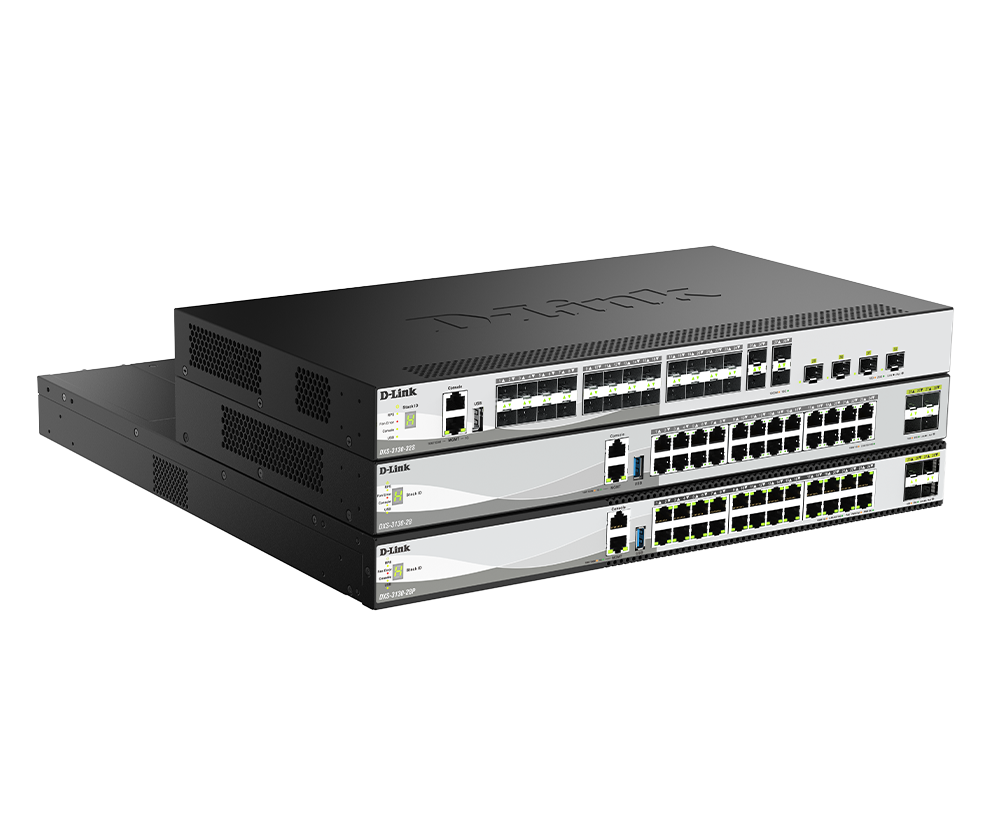

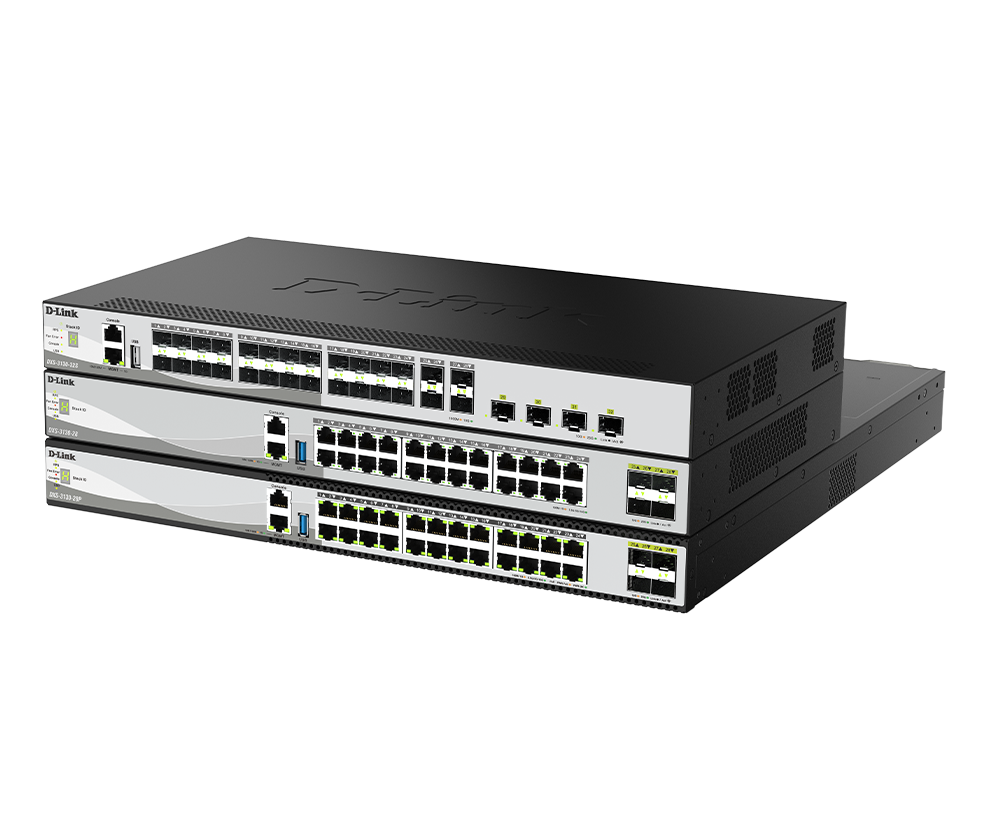

10G L3 Stackable Managed 核心/匯聚可堆疊網管交換器

DXS-3130系列

  • Product Status: Live
  • 具10G光纖/Base-T/PoE供電介面機種
  • 內建4埠10/25G SFP28 高速上行連接和堆疊
  • 內建5速智慧風扇智能調節
  • 支援實體堆疊數量9台、200G堆疊頻寬
  • HA高可用性支援備援電源 (RPS)
  • L3靈活網路管理 進階安全配置
  • 完整L3路由配置功能 RIP/RIPng, OSPFv2/v3,VRRP
  • 乙太網埠內建6kV surge protection突波防護
  • PoE支援 802.3af/at/bt 單埠60瓦輸出
  • PoE機種支援熱插拔電源模組
Where to buy

Why You Need It​

10 Gbps Ports

Connect to areas of your network at 10G speeds, increasing port density and operational efficiency

Physical Stacking

Up to 9 units via four 25G ports with 200 Gbps per device physical stacking bandwidth

Solidly Reliable

Supports versatile functions from VRRP, ERPS, STP and Physical Stacking to enhance network resilience

Security Controls

Including Storm Control, LBD, Multi-layer ACL and IMPB with DHCP Snooping to protect the access

Redundant Power

Improves reliability by preventing power outages with redundant RPS AC/DC power options

Rich OAM Support

Supports advanced OAM like 802.3ah, Y.1731, and Dying Gasp , ensuring better monitoring and reliability

DXS-3130 Series Comparison

Products DXS-3130-28DXS-3130-28PDXS-3130-32S


 Interface

 24 x 10GE
 4 x 25G SFP28

 24 x 10GE PoE++
 4 x 25G SFP28

 28 x 10G SFP+
 4 x 25G SFP28
 PoE - PoE++
 Up to 1440W Power Budget w/ 2 PSU		 -
Learn MoreLearn MoreLearn More

Related Products

L3 Gigabit可堆疊網管交換器
DGS-3130系列
Find out more

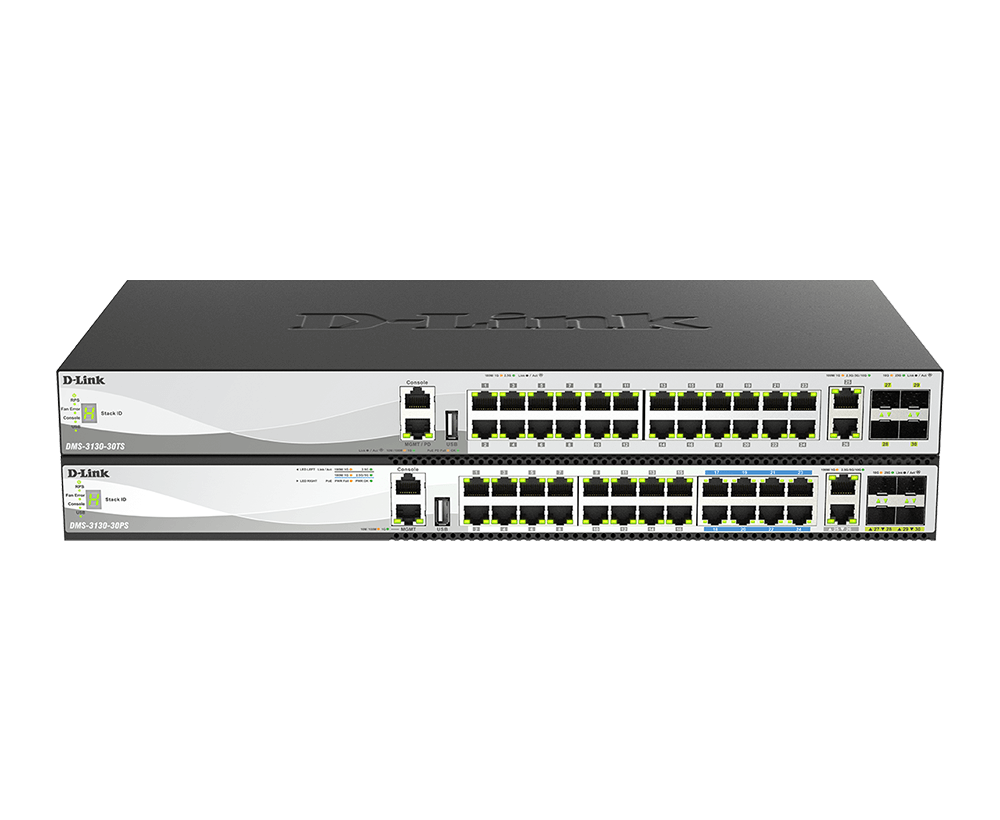

2.5G L3 Stackable Managed 核心/匯聚可堆疊網管交換器
DMS-3130系列
Find out more

　

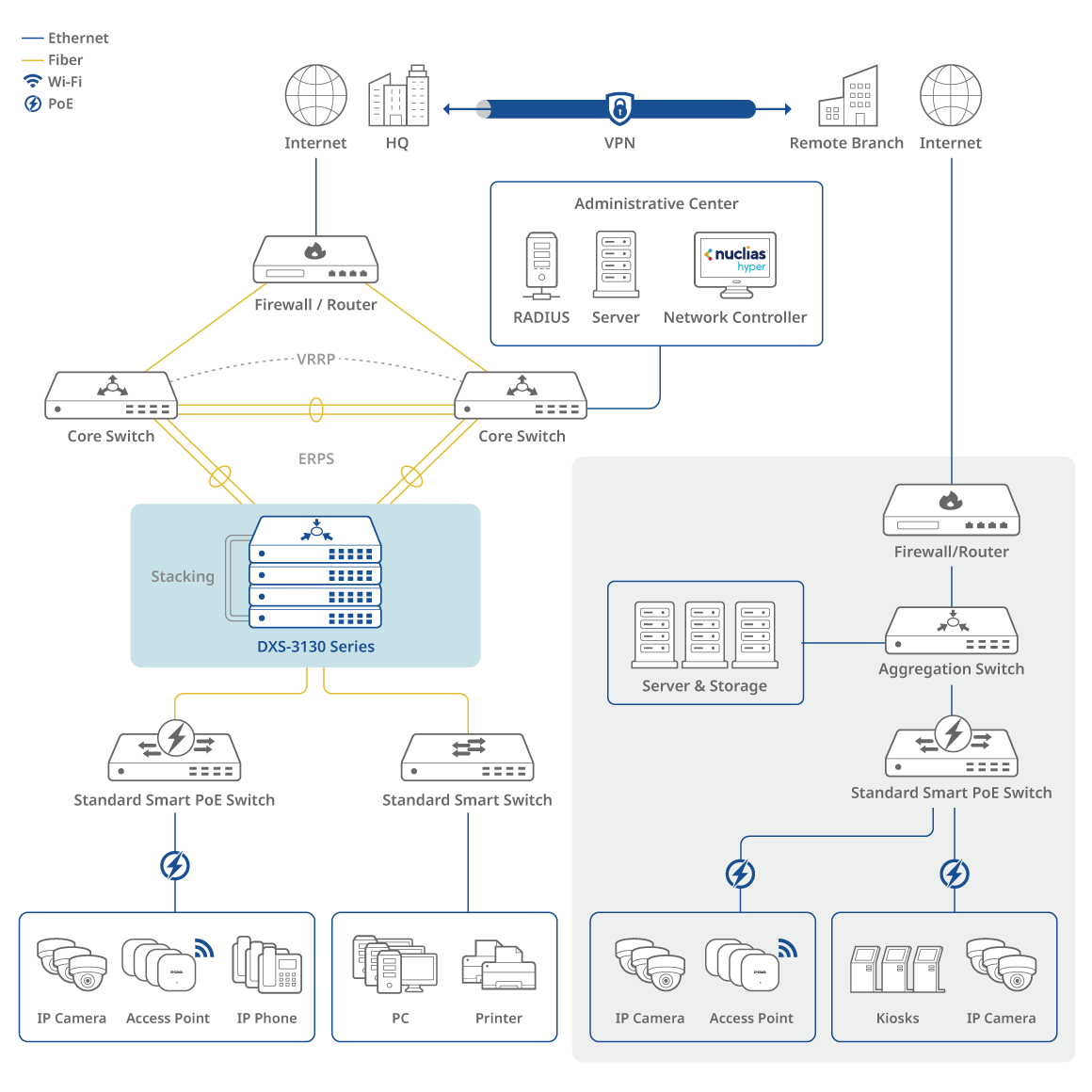

Connection Diagram

The DXS-3130 Series delivers secure, high-performance Layer 3 switching for enterprise and metro networks. With 10G/multi-Gigabit PoE++, 25G uplinks, and physical stacking, it offers scalable bandwidth and power for IP surveillance, VoIP, and high-density environments.

Network Controller

Learn More

Aggregation Switch

Standard Smart Switch

Access Point

Learn More

Applications

Enterprise

  • High Bandwidth for Workloads
  • Optimized Network Efficiency
  • Improved Security & Compliance
  • Stronger Network Segmentation

Education

  • Speed that Empowers Learning
  • Scalability for Future Growth
  • Seamless Integration
  • Improved Security

Business

  • High Bandwidth Capacity
  • High Availability Assurance
  • Simplified Network Management
  • Cost Efficiency

Building

  • Performance at Full Throttle
  • Enhances Network Stability
  • Enhances Security
  • Provides Scalability

DXS-3130 Series Specification


Products

DXS-3130-28DXS-3130-28PDXS-3130-32S



Interface

 24 x 10GE
 4 x 25G SFP28

 24 x 10GE PoE++
 4 x 25G SFP28

 28 x 10G SFP+
 4 x 25G SFP28
Performance
Switch Capacity 680 Gbps 680 Gbps 760 Gbps

Max. Packet Forwarding Rate

 505.92 Mpps 505.92 Mpps 505.92 Mpps
PoE
PoE Standard - IEEE 802.3af/at/bt -
PoE Ports - Port 1 - 24 -
PoE Budget - 790W -
Technical Specification
Surge Protection 6kV surge protection on all Ethernet access ports
Console Port Yes Yes Yes
Power Supply Type
 Internal CRSP Internal
