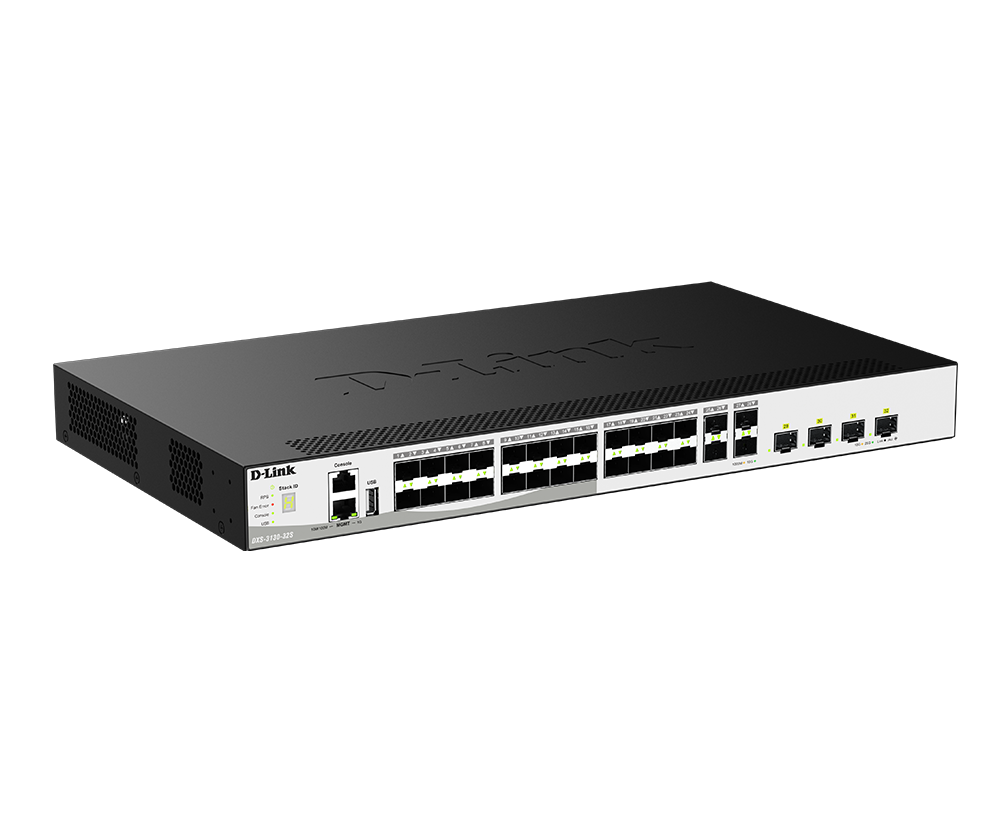

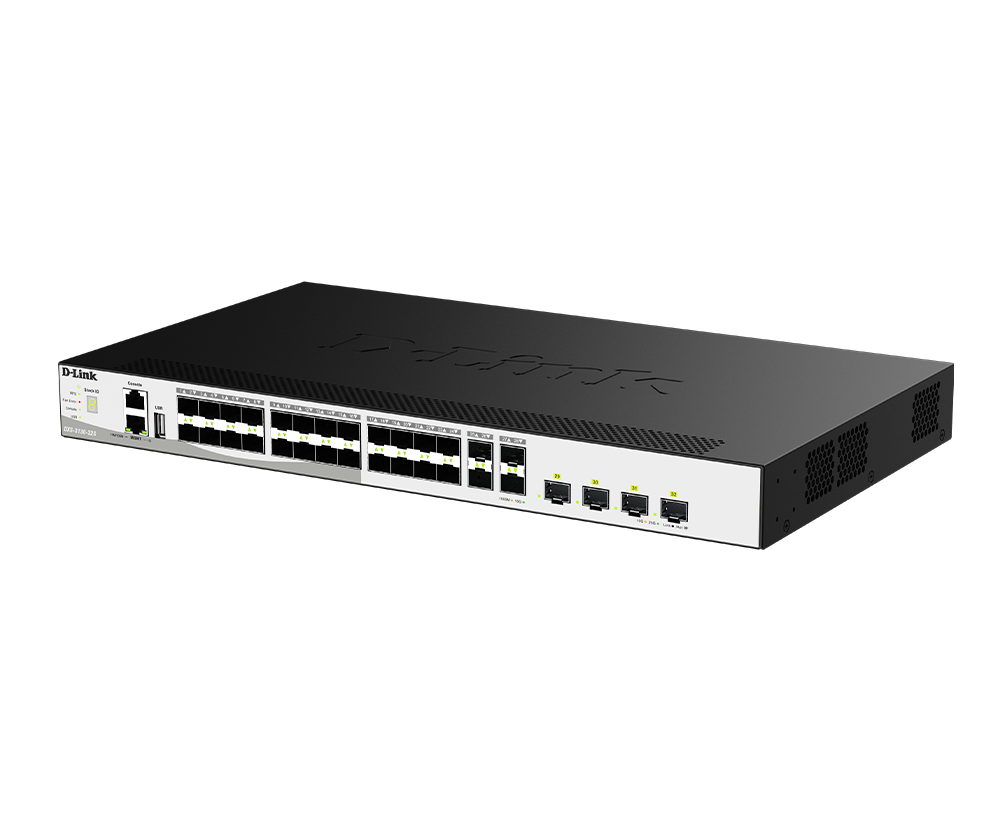

10G L3 Stackable Managed 核心/匯聚可堆疊網管交換器(光纖)

DXS-3130-32S

  • Product Status (A1_v100WW): Live
  • 具28埠10G SFP+光纖埠
  • 內建4埠10G/25G SFP28 高速上行連接和堆疊
  • 支援實體堆疊數量9台、200G堆疊頻寬
  • 內建5速智慧風扇智能調節
  • HA高可用性支援備援電源 (RPS)
  • 完整L3路由配置功能 RIP/RIPng, OSPFv2/v3,VRRP
  • 具靈活網路管理和進階安全設定
  • 支援多樣進階OAM線路連接診斷功能

型錄下載

Where to buy

User Benefits​

Versatile Traffic Management

Optimizes critical services with QoS, traffic shaping, multicast support, and ISM VLAN for enhanced efficiency

Simplified Management

The SIM feature enables managing multiple switches as a virtual stack with a single IP, supporting diverse management tools

Boosted Network Reliability

AC or DC RPS options ensure uninterrupted operation and boost switch reliability by preventing power disruptions

Advanced Security for Access

Supports authentication mechanisms such as 802.1X, Web/MAC-based access control for the easy deployment

High Availability and Scalability

Stack up to 9 switches with 200 Gbps bandwidth and unified IP for simplified control, fast failover and solid redundancy

Efficient Layer 3 Routing

Enables Layer 3 routing between different parts of your network, improving efficiency by directing traffic to its optimal destination

High-Speed Versatile Switching

Featuring flexible combinations of 10G SFP+ and 10GBase-T downlink ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic. The full optical interface design optimizes speed and handles heavy traffic.

Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.

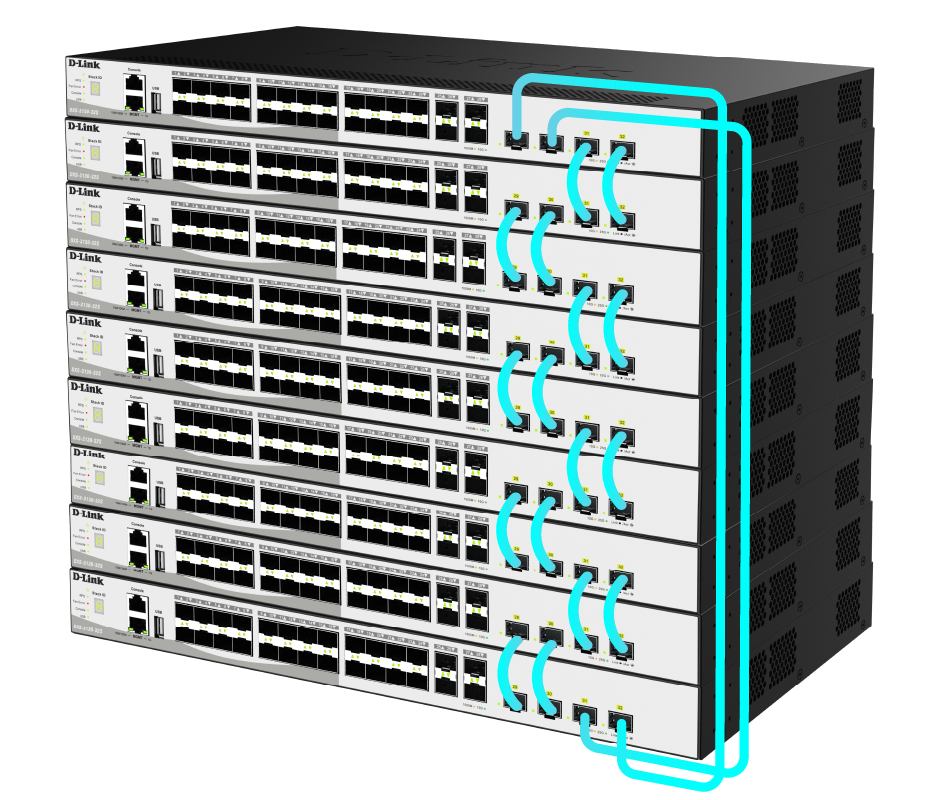

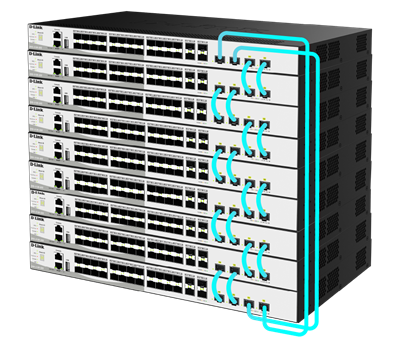

Unified the Power, Stack for Success

Scale your network with the DXS-3130 series by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.

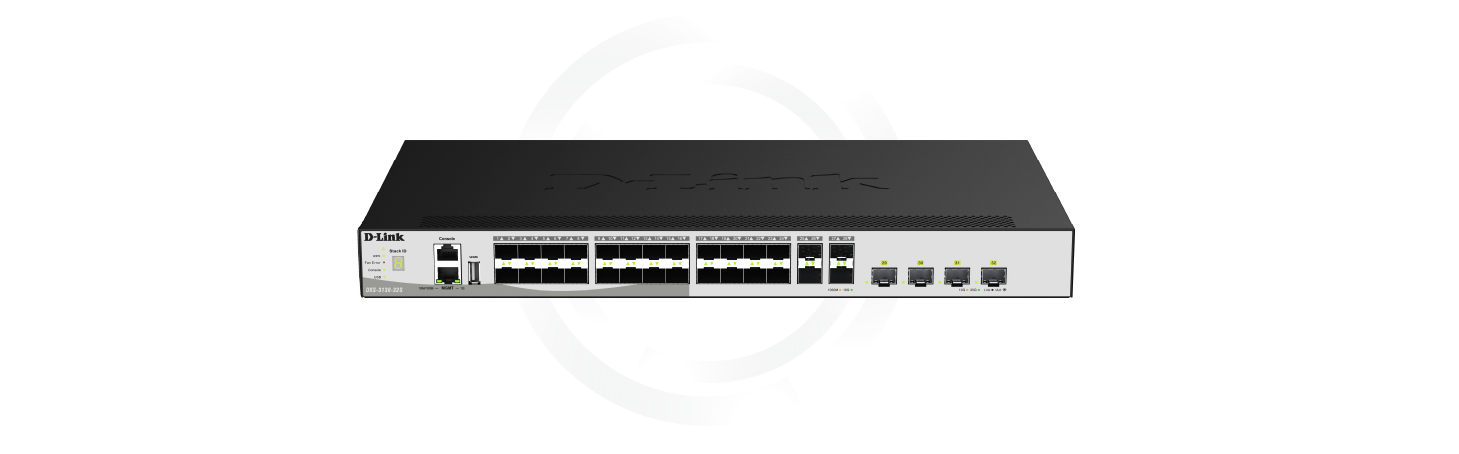

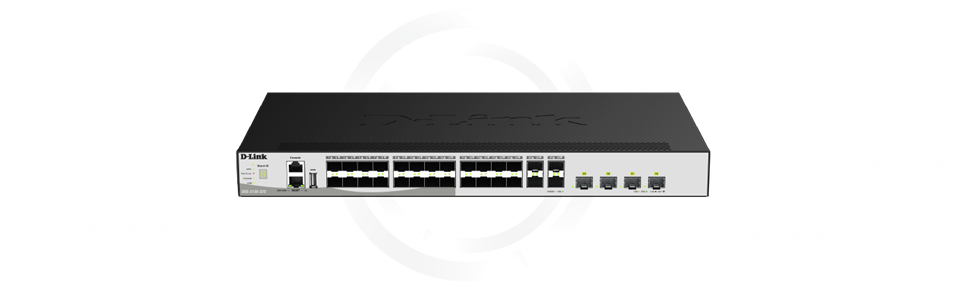

Built for Unbreakable Networks

The DXS-3130-32S ensures continuous uptime with redundant power and stacking. It's 50ms ERPS recovery minimizes downtime, loopback detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.

Optimized Performance for Critical Services

The DXS-3130-32S switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.

Advanced QoS/CoS

Prioritizes critical traffic like VoIP and video, ensuring smooth performance and minimal latency for time-sensitive applications

IGMP/MLD Snooping

Multicast traffic streams only to intended recipients, reducing unnecessary bandwidth usage and enhancing network efficiency

ISM VLAN

Controls multicast across VLANs to reduce traffic and enhance security and performance on the large-scale network

Related Products

10G L3 Stackable Managed 核心/匯聚可堆疊網管交換器(電)
DXS-3130-28
Find out more
10G L3 Stackable Managed 核心/匯聚可堆疊網管交換器(PoE供電)
DXS-3130-28P
Find out more

Applications

K-12 School (Education)

Learn More

Office (Enterprise)

Learn More

High-Rise Community (Buildings)

Learn More

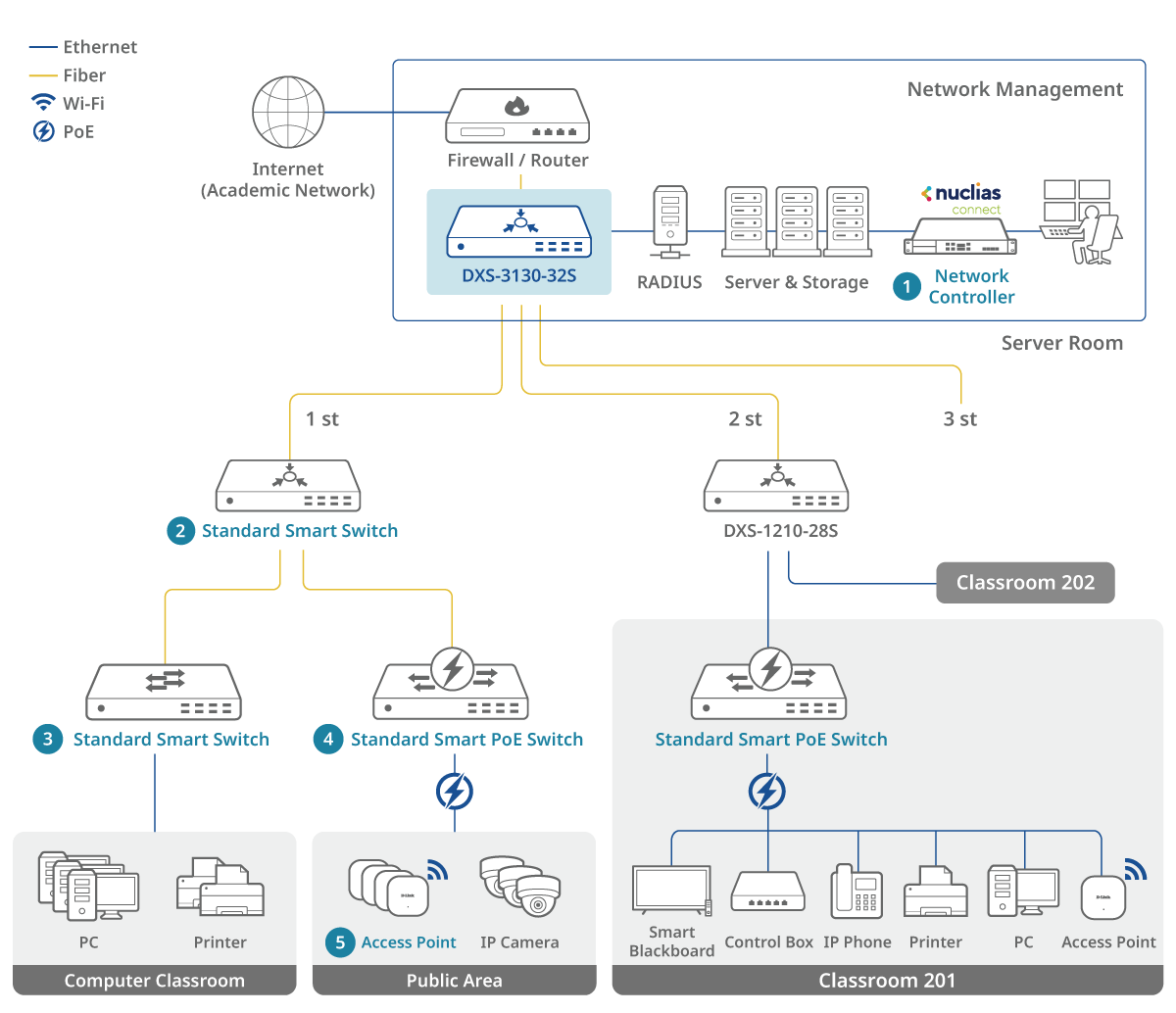

K-12 School​ (Education)

User benefits :

  • Ultra-fast 10G for stable, high-performance connectivity
  • VLAN and QoS for smarter traffic control
  • Scalable design to grow network demands
  • Easy management for streamlined administration
  • Advanced security to protect against threats

Learn more :

  1. Network Controller : DNH-1000
  2. Standard Smart Switch : DXS-1210-28S
  3. Standard Smart Switch : DMS-1250-18
  4. Standard Smart PoE Switch : DMS-1250-18P
  5. Access Point : DAP-X3060

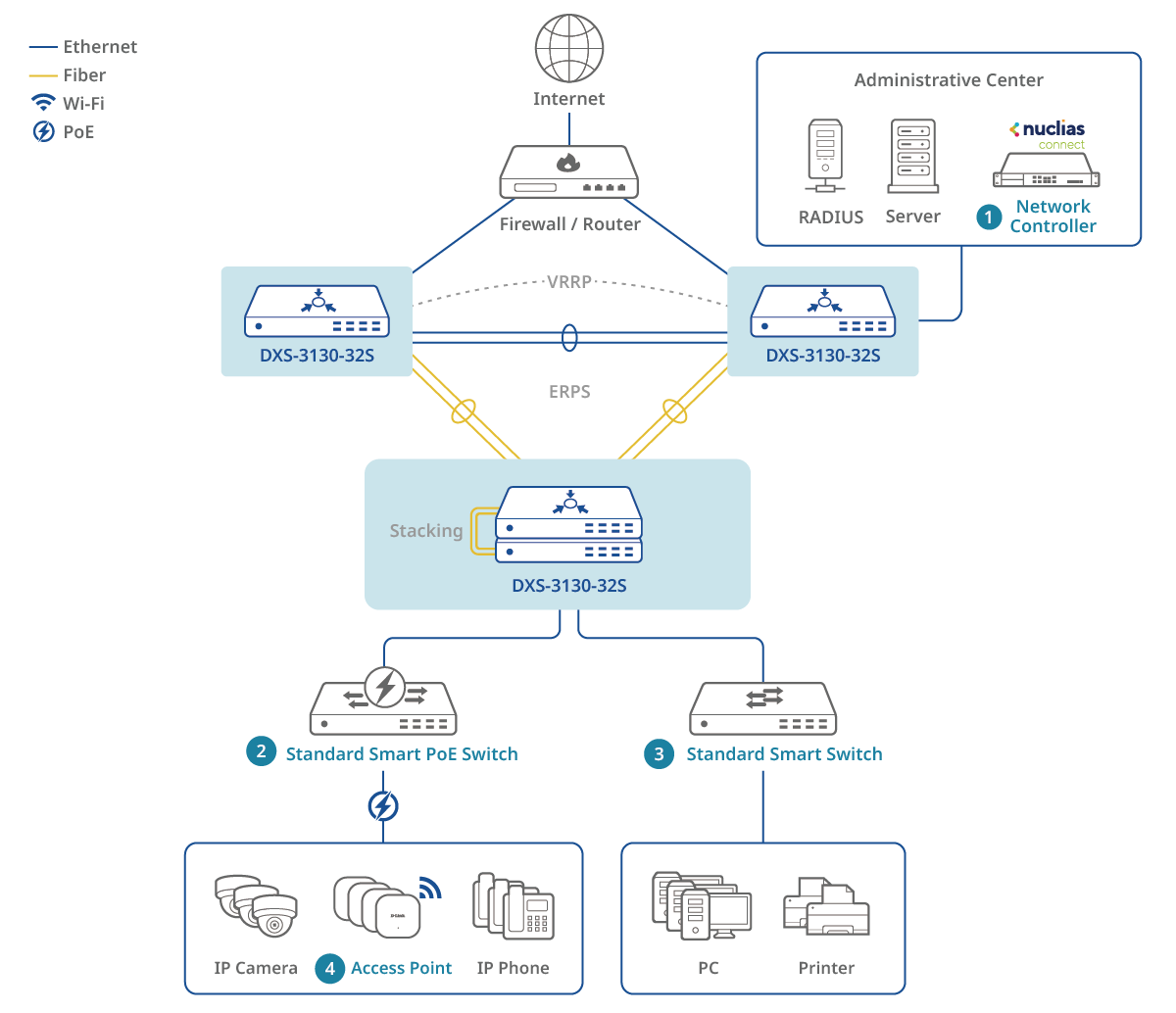

　Office (Enterprise)

User benefits :
  • High bandwidth for demanding network workloads
  • Router offloading to boost efficiency
  • Fast recovery for always-on connectivity
  • Strong security to protect critical data
  • Smart traffic Control for efficient data flow

Learn more :

  1. Network Controller : DNH-3000
  2. Standard Smart PoE Switch : DXS-1250-28YP

  3. Standard Smart Switch : DXS-1210-12TC

  4. Access Point : DAP-E9560

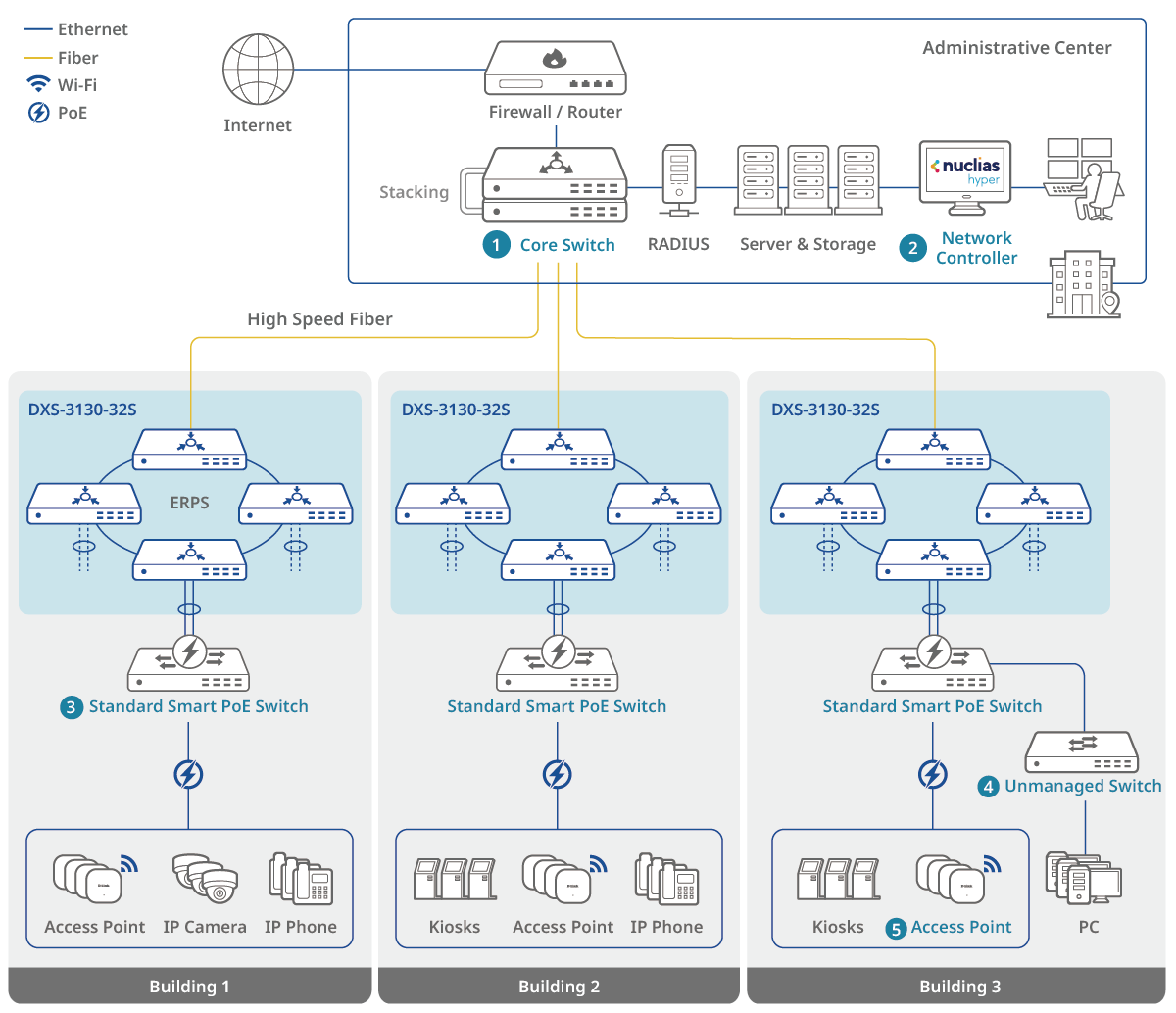

High-Rise Community (Buildings)

User benefits :
  • Centralized management for efficient operations
  • Easy maintenance to minimize downtime
  • 10G speed to handle growing bandwidth demands
  • Strong security for reliable protection
  • Scalable design for seamless expansion

Learn more :

  1. Core Switch : DQS-3630-56S ( Coming Soon )
  2. Network Controller : DNC-5000

  3. Standard Smart PoE Switch : DMS-1250-18P

  4. Unmanaged Switch : DMS-1016

  5. Access Point : DAP-X3060

產品規格

型錄下載

Interfaces
28 x 10GE SFP+
4 x 10/25G SFP28
Switch Capacity
760 Gbps
Max. Packet Forwarding Rate
560.44 Mpps
Max Power Consumption
66.5W
Dimensions
440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in)
Weight
3.835 kg
FAN
3 x Smart fans
Operating Temperature
0 to 50 °C (32 to 122 °F)
Storage Temperature
-40 - 70°C (-40 - 158 °F)
Operating Humidity
10% to 90% relative humidity
Storage Humidity
5% to 90% relative humidity
Console Port
Yes
Power Supply Type
Internal

實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件，僅供參考。規格如有變更，恕不另行通知。
