10G L3 Stackable Managed 核心/匯聚可堆疊網管交換器(PoE供電)

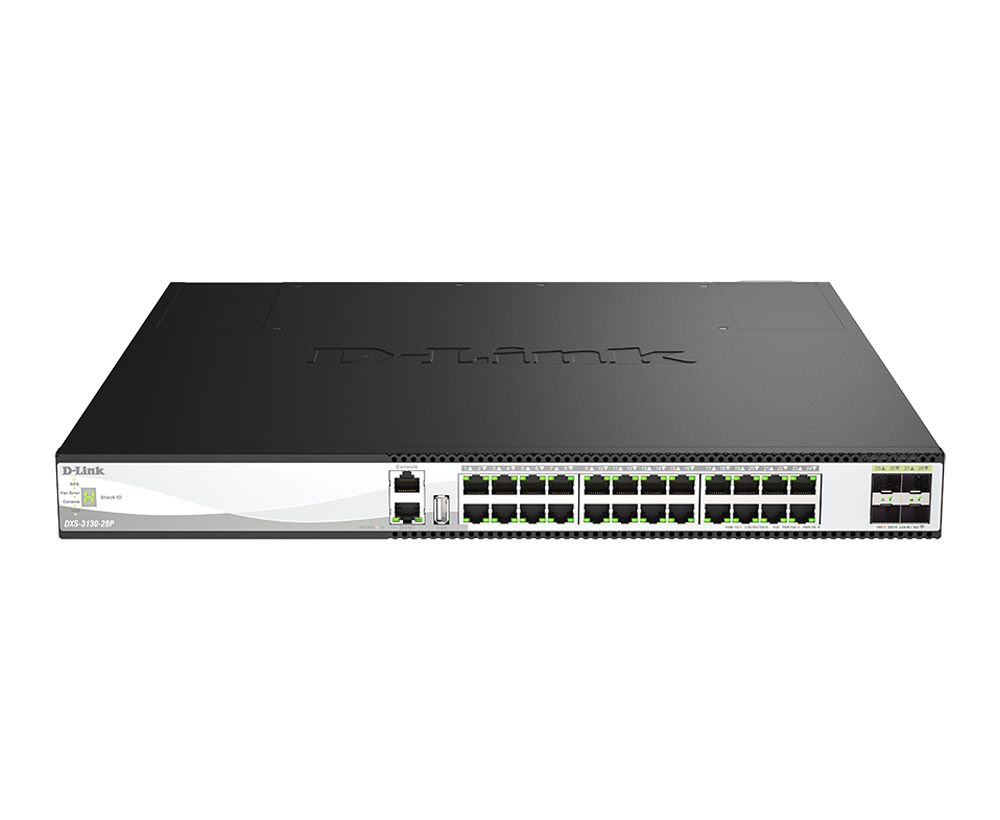

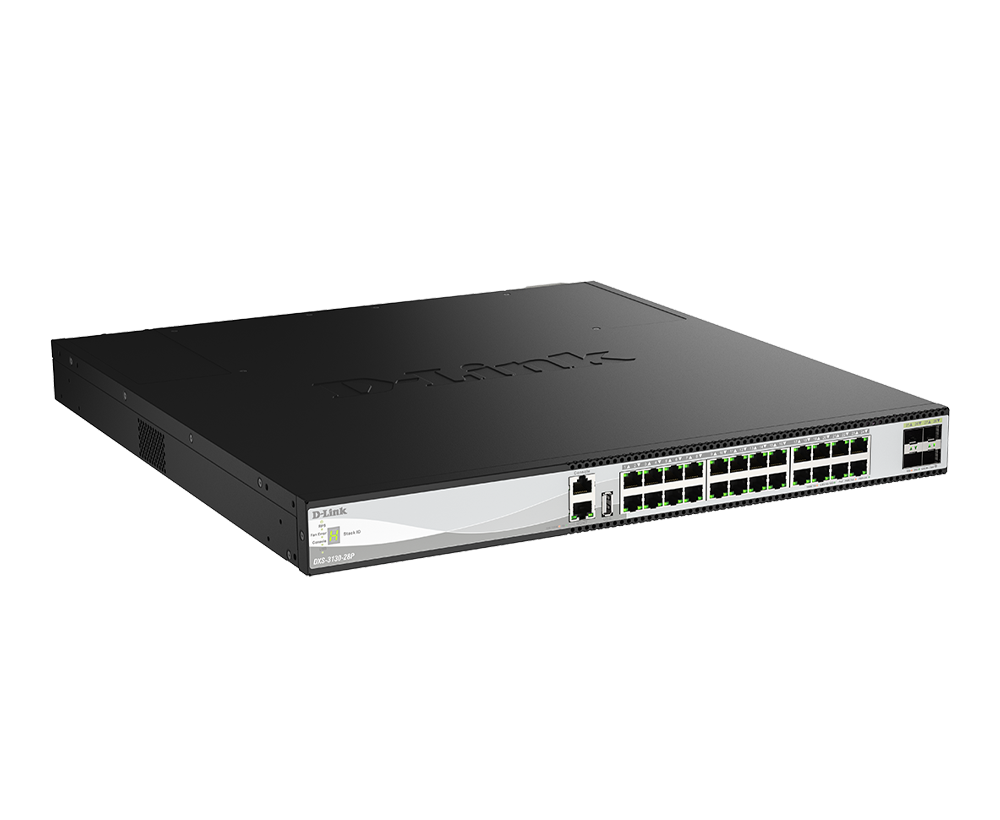

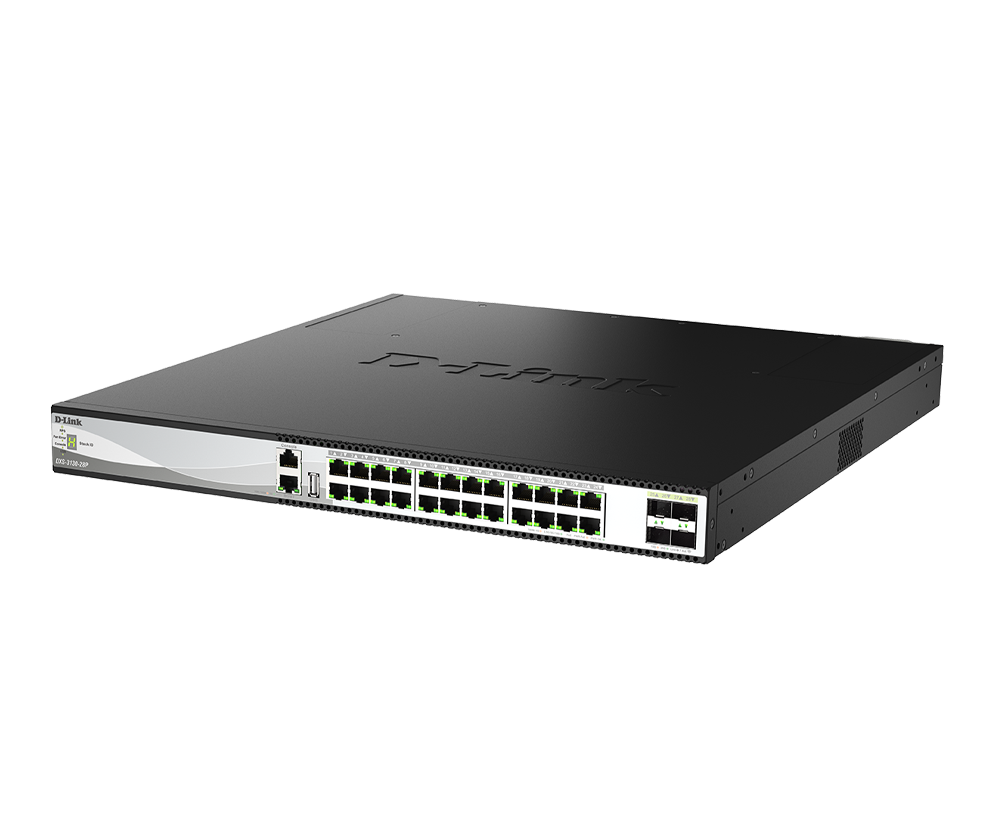

DXS-3130-28P

  • Product Status (A1 v1.02): Live
  • 具24埠100M-10G多速率Base-T PoE
  • 內建4埠10/25G SFP28 高速上行連接和堆疊
  • PoE支援 802.3af/at/bt 單埠60瓦輸出,總供電790 W
  • PoE支援永久供電(Perpetual)和快速供電(Fast)
  • HA高可用性支援1+1熱插拔電源模組
  • 乙太網埠內建6kV surge protection突波防護
  • 內建5速智慧風扇智能調節
  • 支援實體堆疊數量9台、200G堆疊頻寬
  • 完整L3路由配置功能 RIP/RIPng, OSPFv2/v3,VRRP
  • 具靈活網路管理和進階安全設定
  • 支援多樣進階OAM線路連接診斷功能

型錄下載

Where to buy

User Benefits​

Versatile Traffic Management

Optimizes critical services with QoS, traffic shaping, multicast support, and ISM VLAN for enhanced efficiency

High-Power PoE

24 PoE ports support up to 60 W each, with a 790 W budget expandable to 1440 W—ideal for 10G PoE devices

Boosted Network Reliability

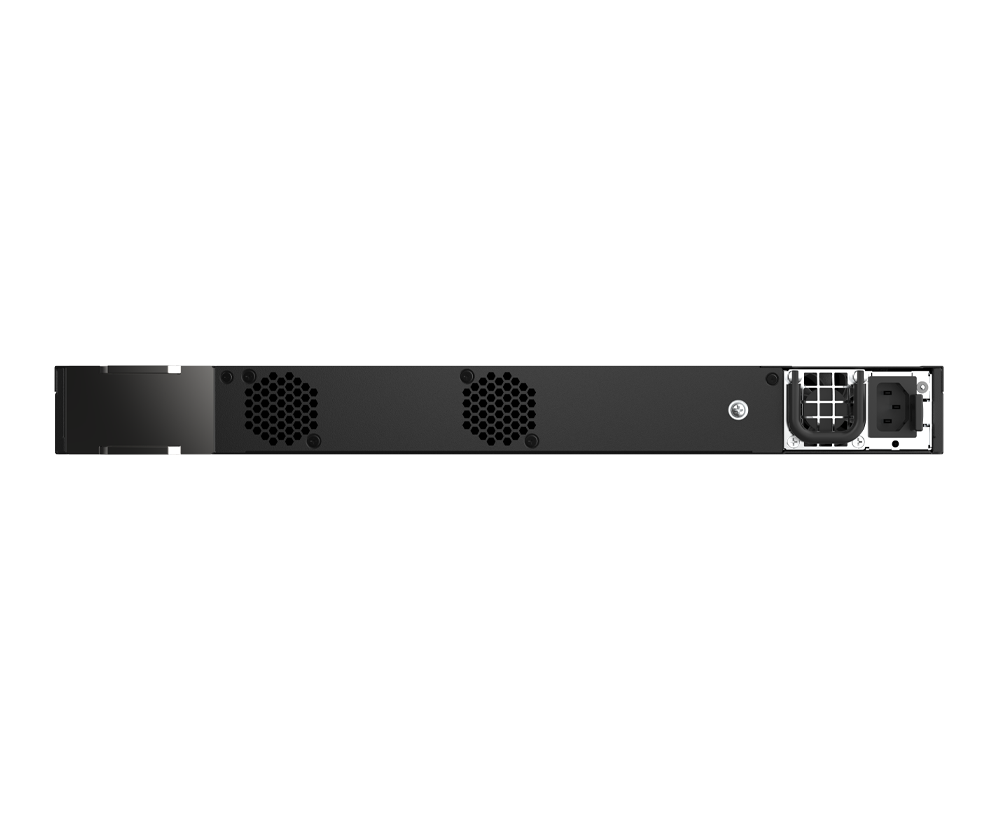

Two hot-swappable power modules enable 1+1 redundancy and load sharing for uninterrupted power and reliability

Advanced Security for Access

Supports authentication mechanisms such as 802.1X, Web/MAC-based access control for the easy deployment

High Availability and Scalability

Stack up to 9 switches with 200 Gbps bandwidth and unified IP for simplified control, fast failover and solid redundancy

Efficient Layer 3 Routing

Enables Layer 3 routing between different parts of your network, improving efficiency by directing traffic to its optimal destination

High-Speed Versatile Switching

Featuring 24×10G multi-Gigabit ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic.

Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.

　Power You Can Rely On

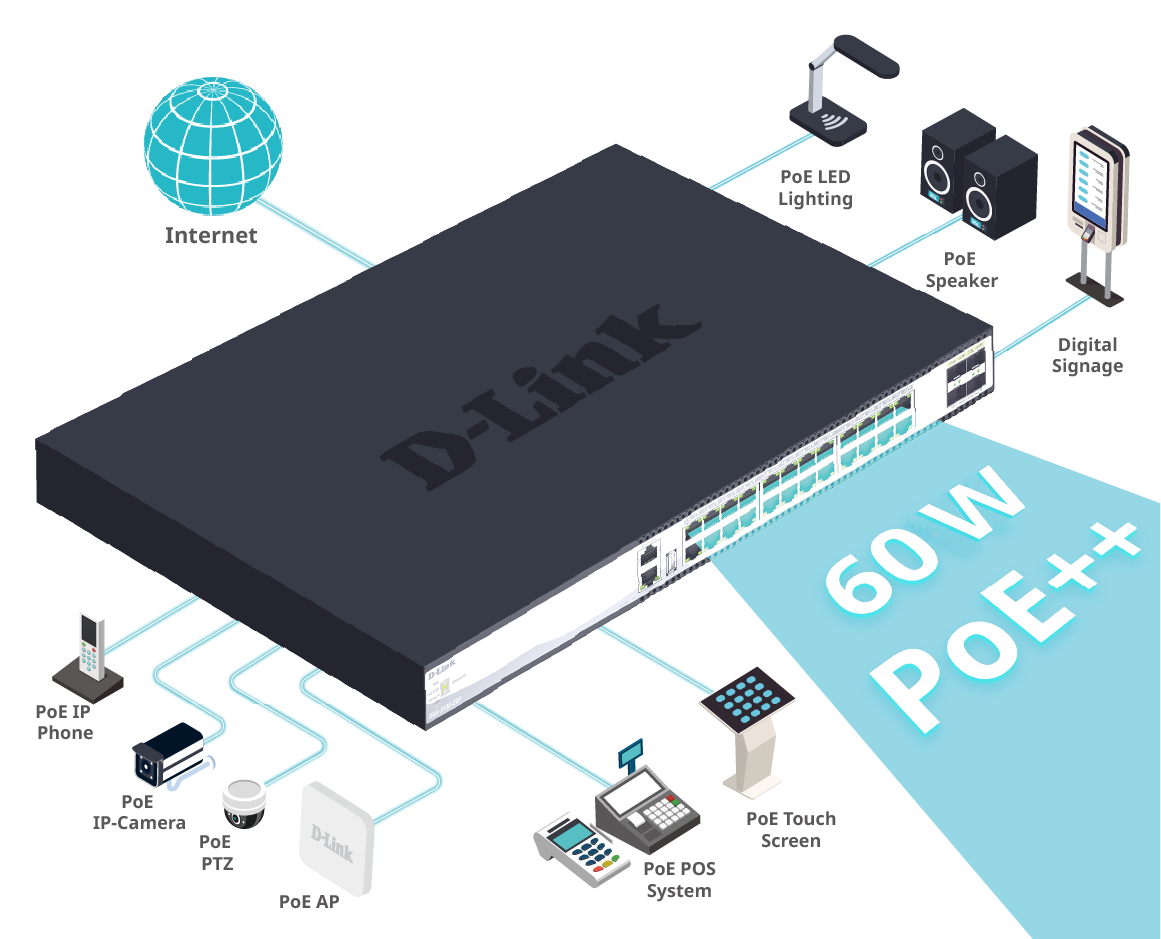

The DXS-3130-28P supports 802.3af/at/bt PoE standards, delivering up to 60 W per port with Perpetual and Fast PoE.

The DXS-3130-28P offers a 790 W PoE budget, expandable to 1440 W with dual power supplies powering more devices with ease.

PoE enables simple deployment of IP cameras, APs, and VoIP phones over standard Ethernet, reducing the need for separate electrical wiring.

Perpetual PoE

Maintains power to connected devices during Power Sourcing Equipment (PSE) switch reboots

Fast PoE

Delivers power to connected devices quickly, without waiting for the switch operating system to fully boot

PD-Alive

PD-Alive auto-reboots unresponsive IP devices to ensure continuous operation and monitors their status

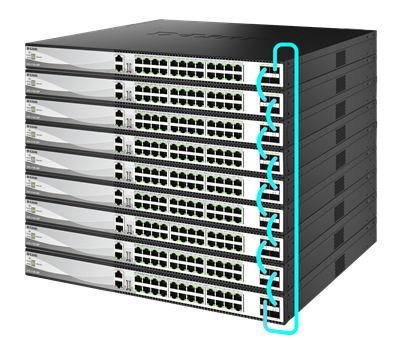

Unified the Power, Stack for Success

Scale your network with the DXS-3130-28P by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.

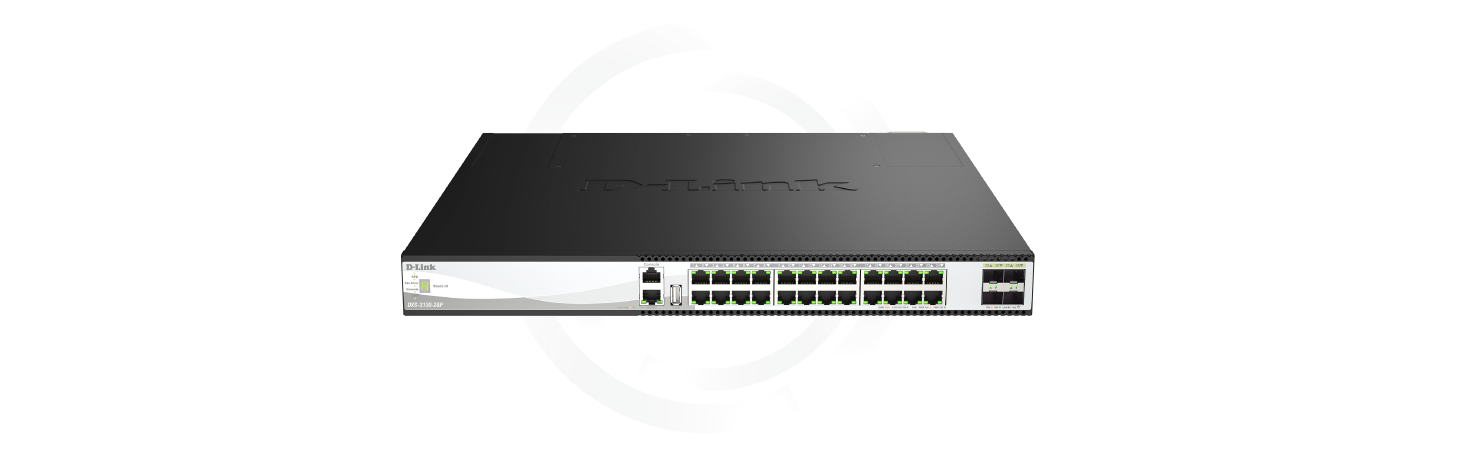

Built for Unbreakable Networks

The DXS-3130-28P ensures continuous uptime with redundant power and stacking. It's 50ms ERPS recovery minimizes downtime, loop back detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.

Optimized Performance for Critical Services

The DXS-3130-28P switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.

Advanced QoS/CoS

Prioritizes critical traffic like VoIP and video, ensuring smooth performance and minimal latency for time-sensitive applications

IGMP/MLD Snooping

Multicast traffic streams only to intended recipients, reducing unnecessary bandwidth usage and enhancing network efficiency

ISM VLAN

Controls multicast across VLANs to reduce traffic and enhance security and performance on the large-scale network

Related Products

10G L3 Stackable Managed 核心/匯聚可堆疊網管交換器(電)
DXS-3130-28
Find out more

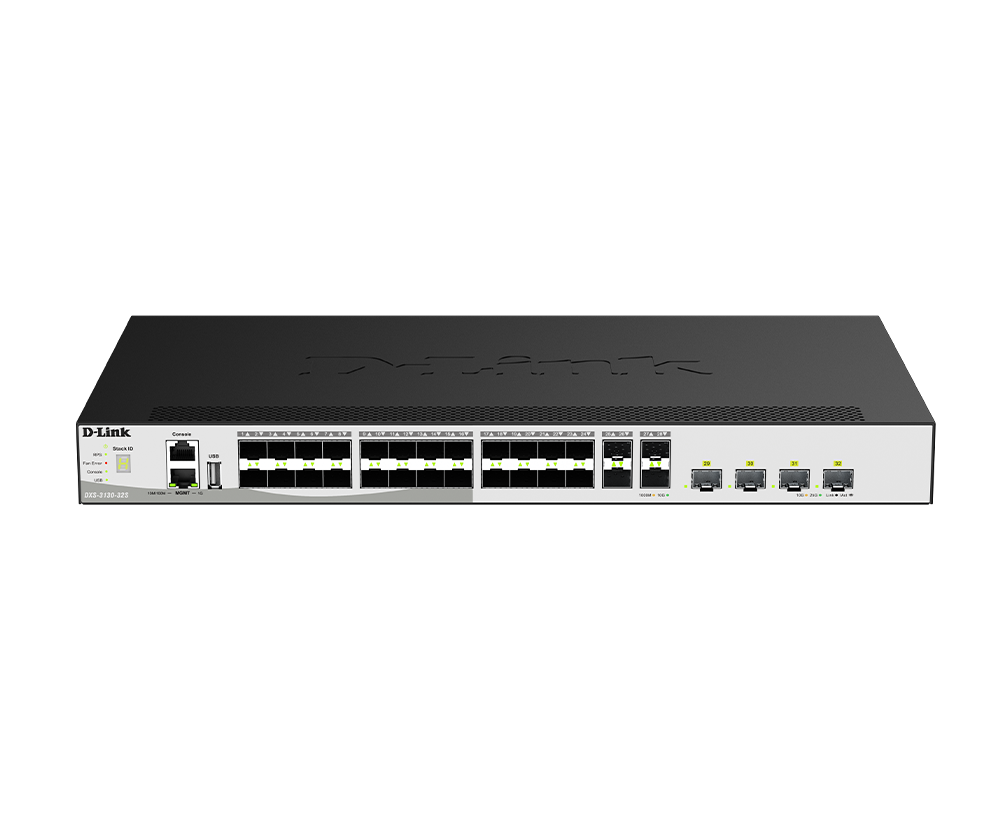

10G L3 Stackable Managed 核心/匯聚可堆疊網管交換器(光纖)
DXS-3130-32S
Find out more

Applications

K-12 School (Education)

Learn More

Office (Enterprise)

Learn More

High-Rise Community (Buildings)

Learn More

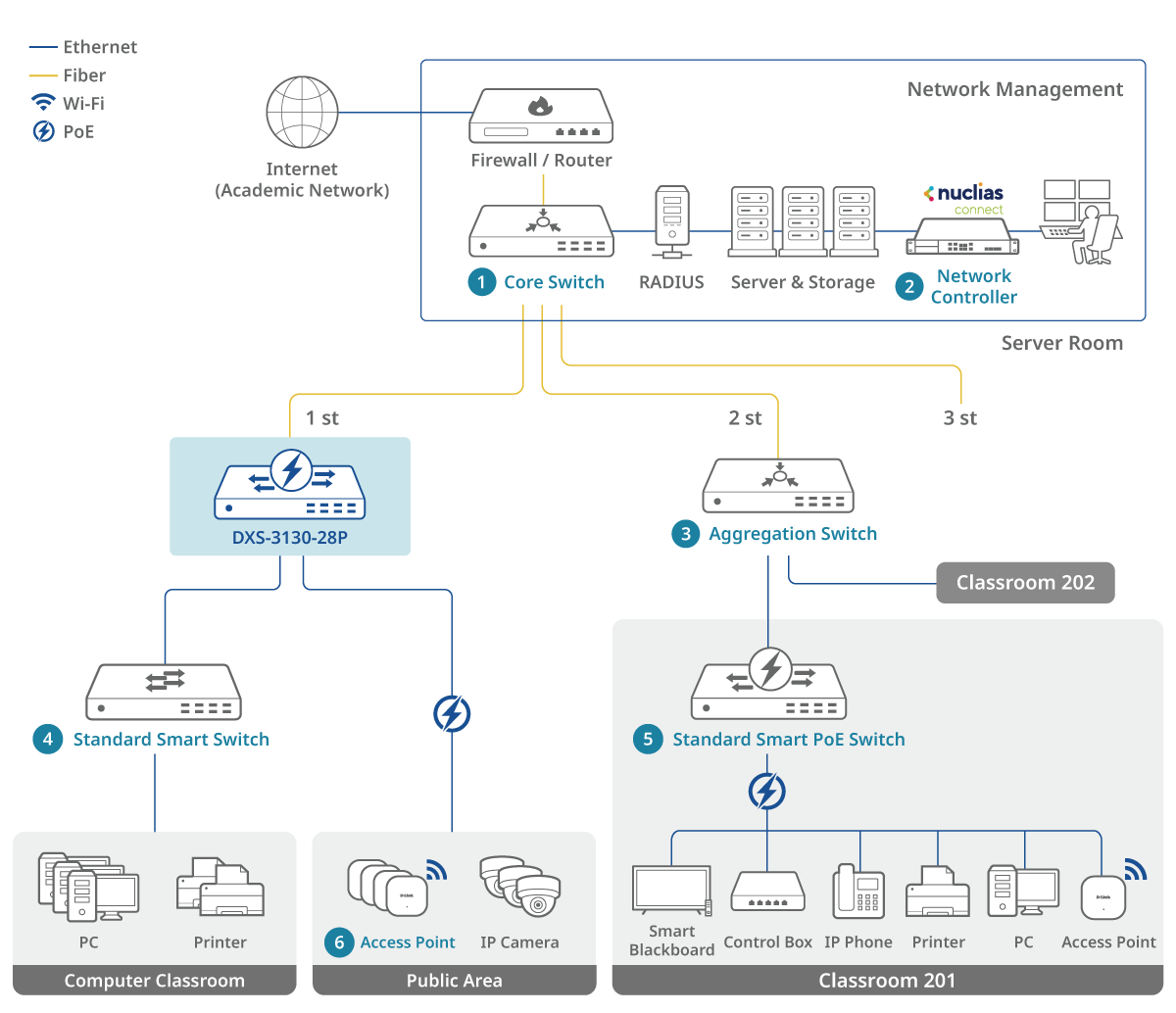

K-12 School​ (Education)

User benefits :

  • Ultra-fast 10G speed delivers a stable and high-performance network connection
  • VLAN and QoS optimize traffic for better learning experiences
  • Power device with PoE++ for flexible deployment
  • Scalable design easily adapts to growing network demands
  • Simplified management streamlines administration and boosts operational efficiency

Learn more :

  1. Core Switch : DXS-3130-32S ( Coming Soon )
  2. Network Controller : DNH-1000
  3. Aggregation Switch : DXS-3130 Series
  4. Standard Smart Switch : DMS-1250-18
  5. Standard Smart PoE Switch : DMS-1250-18P
  6. Access Point : DAP-X3060

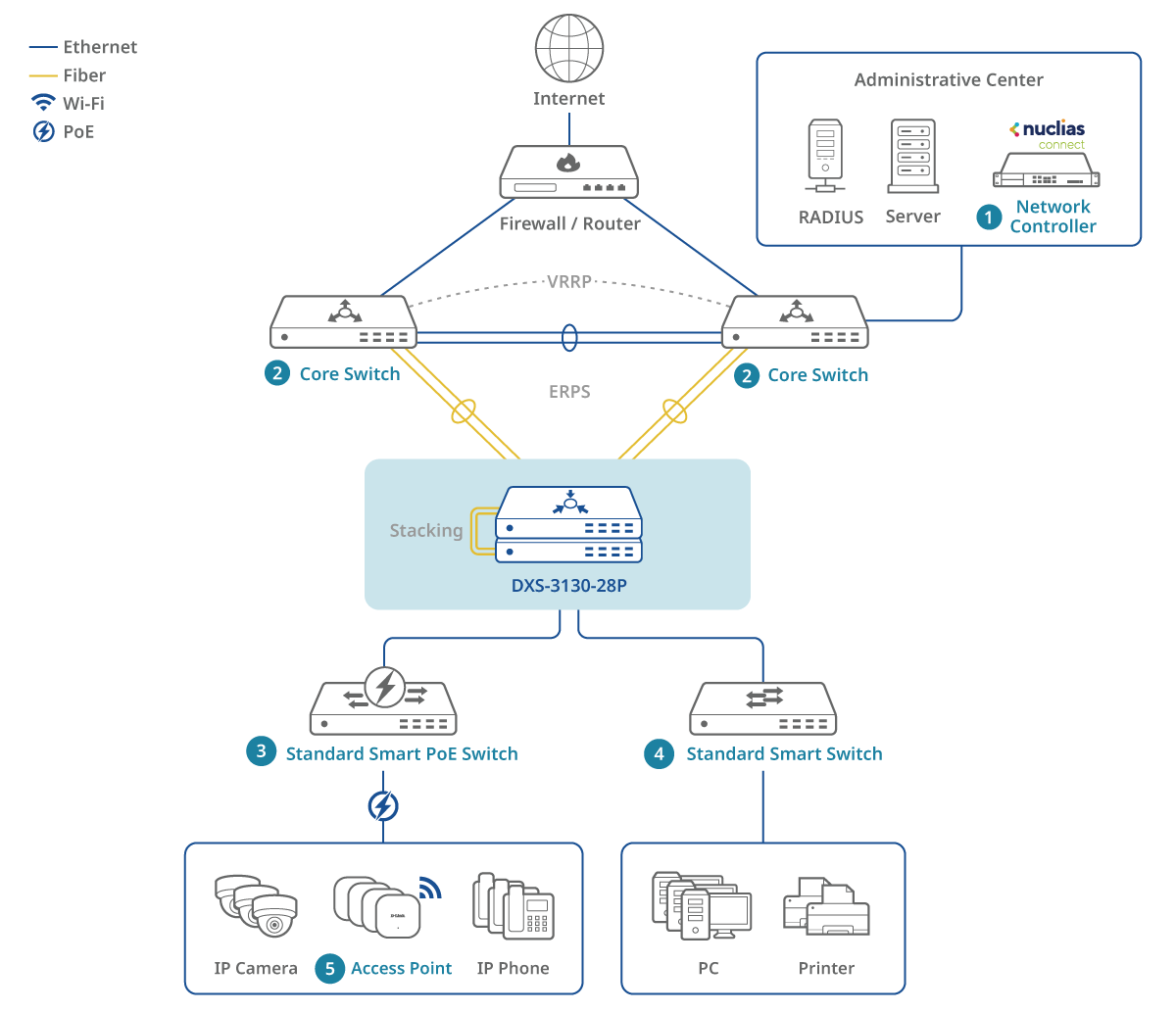

　Office (Enterprise)

User benefits :
  • High bandwidth and throughput to meet demanding network needs
  • Power devices with PoE++ for flexible deployment
  • Fast fault recovery ensures stable, always-on connections
  • Comprehensive security protects critical data and infrastructure
  • Intelligent traffic control enables efficient data diversion and management

Learn more :

  1. Network Controller : DNH-3000
  2. Core Switch : DXS-3130-32S ( Coming Soon )
  3. Standard Smart PoE Switch : DXS-1250-28YP ( Coming Soon )

  4. Standard Smart Switch : DXS-1250-28Y ( Coming Soon )

  5. Access Point : DAP-E9560 ( Coming Soon )

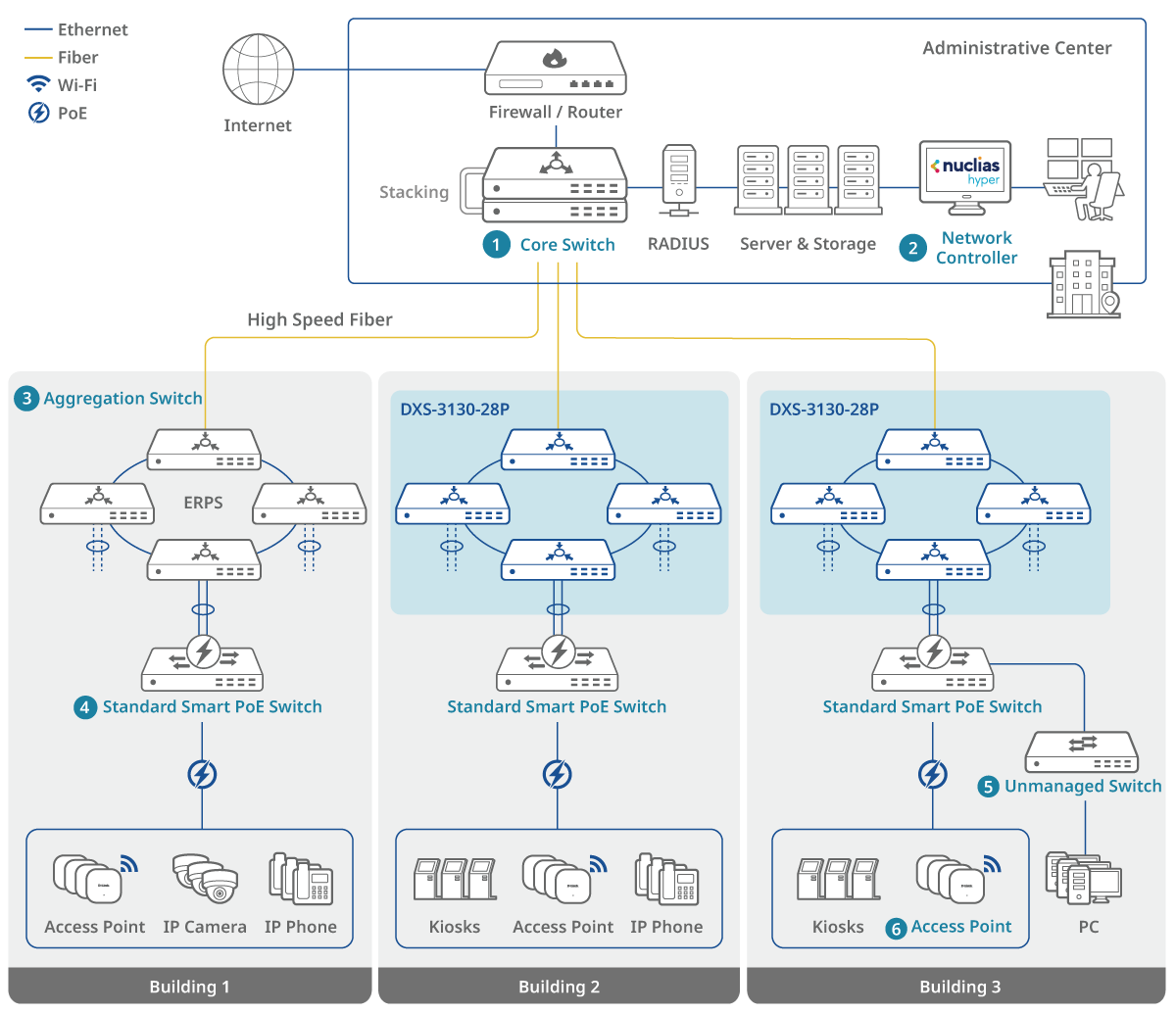

High-Rise Community (Buildings)

User benefits :
  • Centralized management improves operational efficiency
  • Simplified maintenance reduces downtime and disconnection risks
  • Power all classroom devices efficiently with PoE++
  • Robust security features ensure reliable network protection
  • Scalable design supports seamless network expansion

Learn more :

  1. Core Switch : DXS-3630-54S ( Coming Soon )
  2. Network Controller : DNC-5000
  3. Aggregation Switch : DXS-3130 Series

  4. Standard Smart PoE Switch : DMS-1250-18P

  5. Unmanaged Switch : DMS-1016

  6. Access Point : DAP-X3060

產品規格

型錄下載

Interfaces
24 x 10GE PoE++
4 x 10/25G SFP28
Switch Capacity
680 Gbps
Max. Packet Forwarding Rate
505.92 Mpps
PoE Standards
IEEE 802.3af/at/bt
PoE Power Budget
790 W
Max Power Consumption
1008.1 W
Dimensions
440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in)
Weight
6.48 kg (14.29 lbs)
Surge Protection
IEC61000-4-5 6kV surge protection on all Ethernet ports
FAN
2 x Smart fans
Operating Temperature
0 to 50 °C (32 to 122 °F)
Storage Temperature
-40 - 70°C (-40 - 158 °F)
Operating Humidity
10% to 90% relative humidity
Storage Humidity
5% to 90% relative humidity
Console Port
Supported
Power Supply Type
Internal

實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件，僅供參考。規格如有變更，恕不另行通知。
