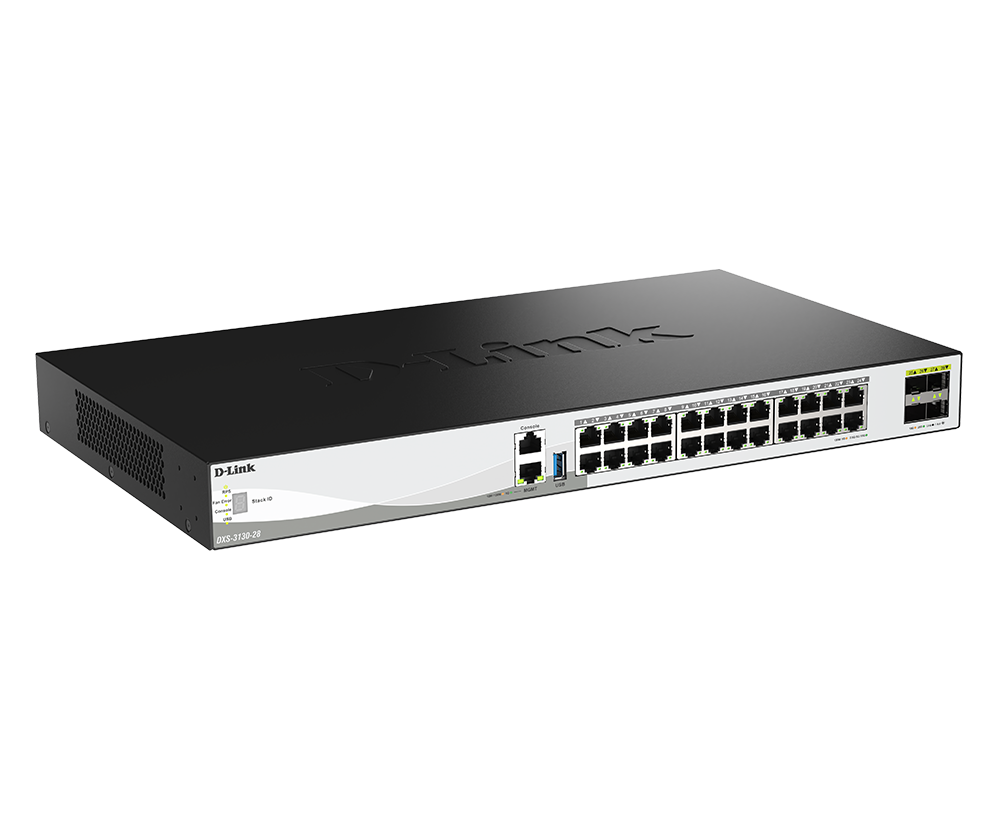

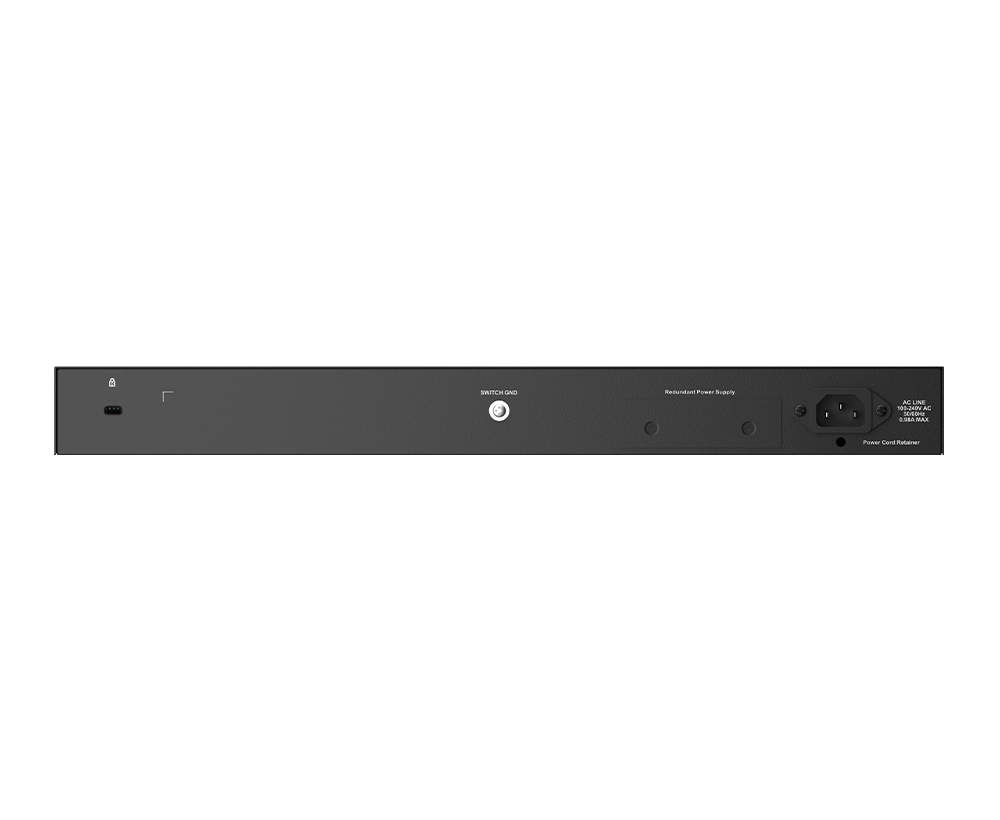

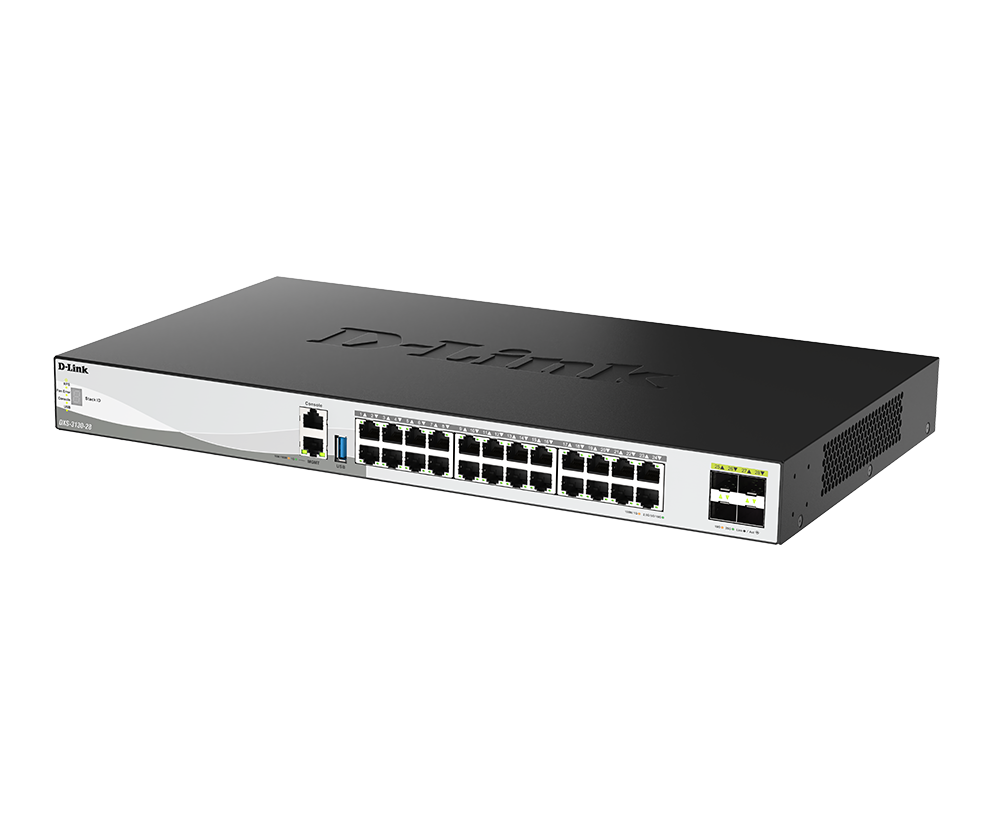

10G L3 Stackable Managed 核心/匯聚可堆疊網管交換器(電)
DXS-3130-28
- Product Status (A1 v1.00): Live
- 具24埠100M-10G多速率Base-T
- 內建4埠10/25G SFP28 高速上行連接和堆疊
- 支援實體堆疊數量9台、200G堆疊頻寬
- 乙太網埠內建6kV surge protection突波防護
- 內建5速智慧風扇智能調節
- HA高可用性支援備援電源 (RPS)
- 完整L3路由配置功能 RIP/RIPng, OSPFv2/v3,VRRP
- 具靈活網路管理和進階安全設定
- 支援多樣進階OAM線路連接診斷功能
Where to buy
User Benefits
Versatile Traffic Management
Optimizes critical services with QoS, traffic shaping, multicast support, and ISM VLAN for enhanced efficiency
Simplified Management
The SIM feature enables managing multiple switches as a virtual stack with a single IP, supporting diverse management tools
Boosted Network Reliability
AC or DC RPS options ensure uninterrupted operation and boost switch reliability by preventing power disruptions
Advanced Security for Access
Supports authentication mechanisms such as 802.1X, Web/MAC-based access control for the easy deployment
High Availability and Scalability
Stack up to 9 switches with 200 Gbps bandwidth and unified IP for simplified control, fast failover and solid redundancy
Efficient Layer 3 Routing
Enables Layer 3 routing between different parts of your network, improving efficiency by directing traffic to its optimal destination
High-Speed Versatile Switching
Featuring 24×10G multi-Gigabit ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic.
Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.

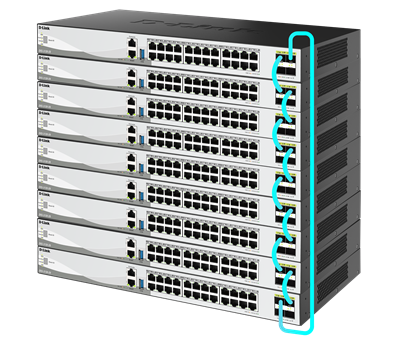

Unified the Power, Stack for Success
Scale your network with the DXS-3130-28 by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.

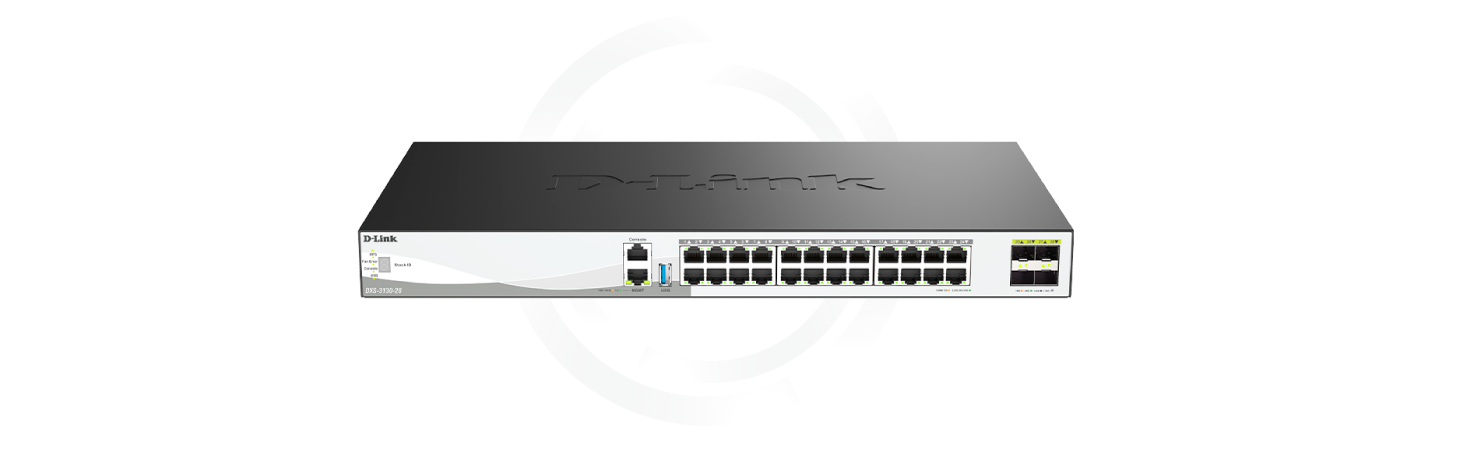

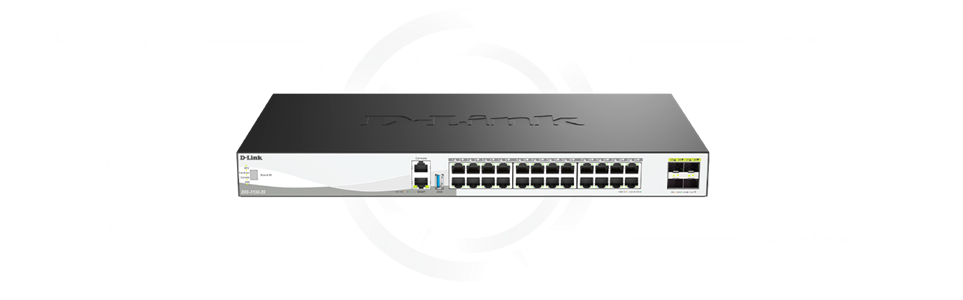

Built for Unbreakable Networks
The DXS-3130-28 ensures continuous uptime with redundant power and stacking. It's 50ms ERPS recovery minimizes downtime, loop back detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.
Optimized Performance for Critical Services
The DXS-3130-28 switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.
Advanced QoS/CoS
Prioritizes critical traffic like VoIP and video, ensuring smooth performance and minimal latency for time-sensitive applications
IGMP/MLD Snooping
Multicast traffic streams only to intended recipients, reducing unnecessary bandwidth usage and enhancing network efficiency
ISM VLAN
Controls multicast across VLANs to reduce traffic and enhance security and performance on the large-scale network
Related Products

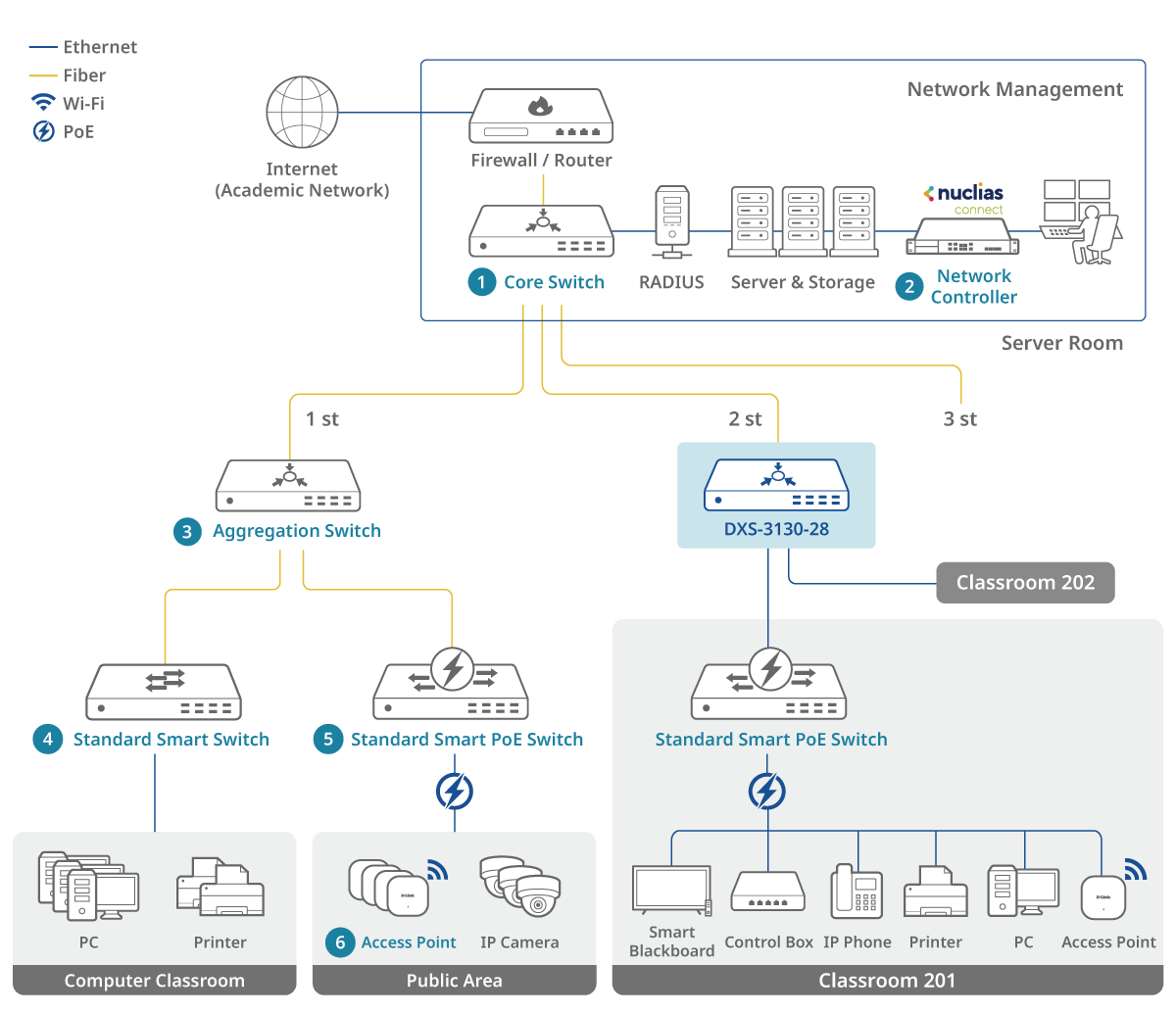

K-12 School (Education)
User benefits :
- VLAN and QoS optimize traffic for better learning experiences
- Scalable design easily adapts to growing network demands
- Simplified management streamlines administration and boosts operational efficiency
- Advanced security Features safeguard your network from threats
Learn more :
- Core Switch : DXS-3130-32S ( Coming Soon )
- Network Controller : DNH-1000
- Aggregation Switch : DXS-3130 Series
- Standard Smart Switch : DMS-1250-18
- Standard Smart PoE Switch : DMS-1250-18P
- Access Point : DAP-X3060

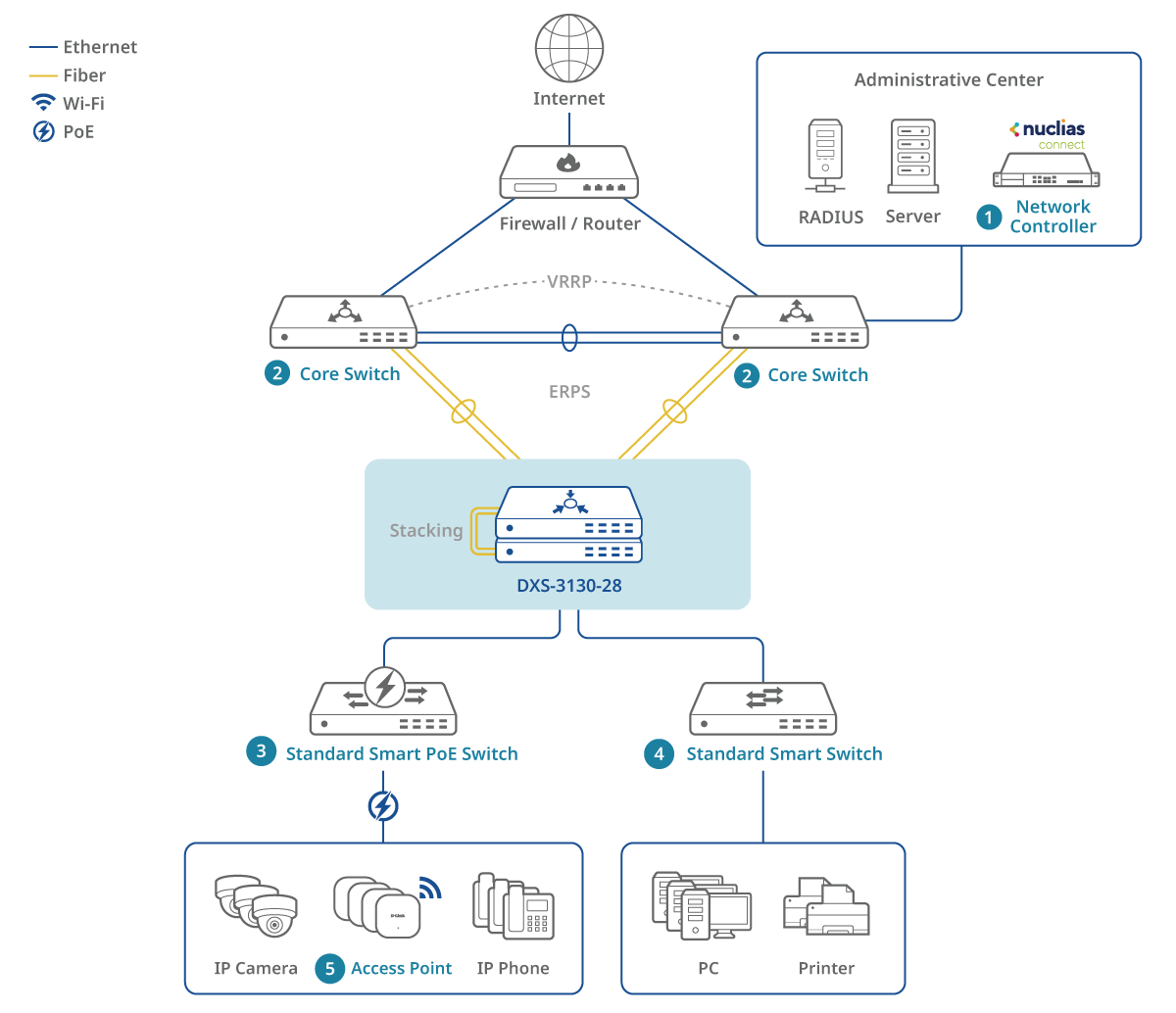

Office (Enterprise)
- Router offloading improves overall network efficiency
- Fast fault recovery ensures stable, always-on connections
- Comprehensive security protects critical data and infrastructure
- Intelligent traffic control enables efficient data diversion and management
Learn more :
- Network Controller : DNH-3000
- Core Switch : DXS-3130-32S ( Coming Soon )
- Standard Smart PoE Switch : DXS-1250-28YP ( Coming Soon )
Standard Smart Switch : DXS-1250-28Y ( Coming Soon )
Access Point : DAP-E9560 ( Coming Soon )

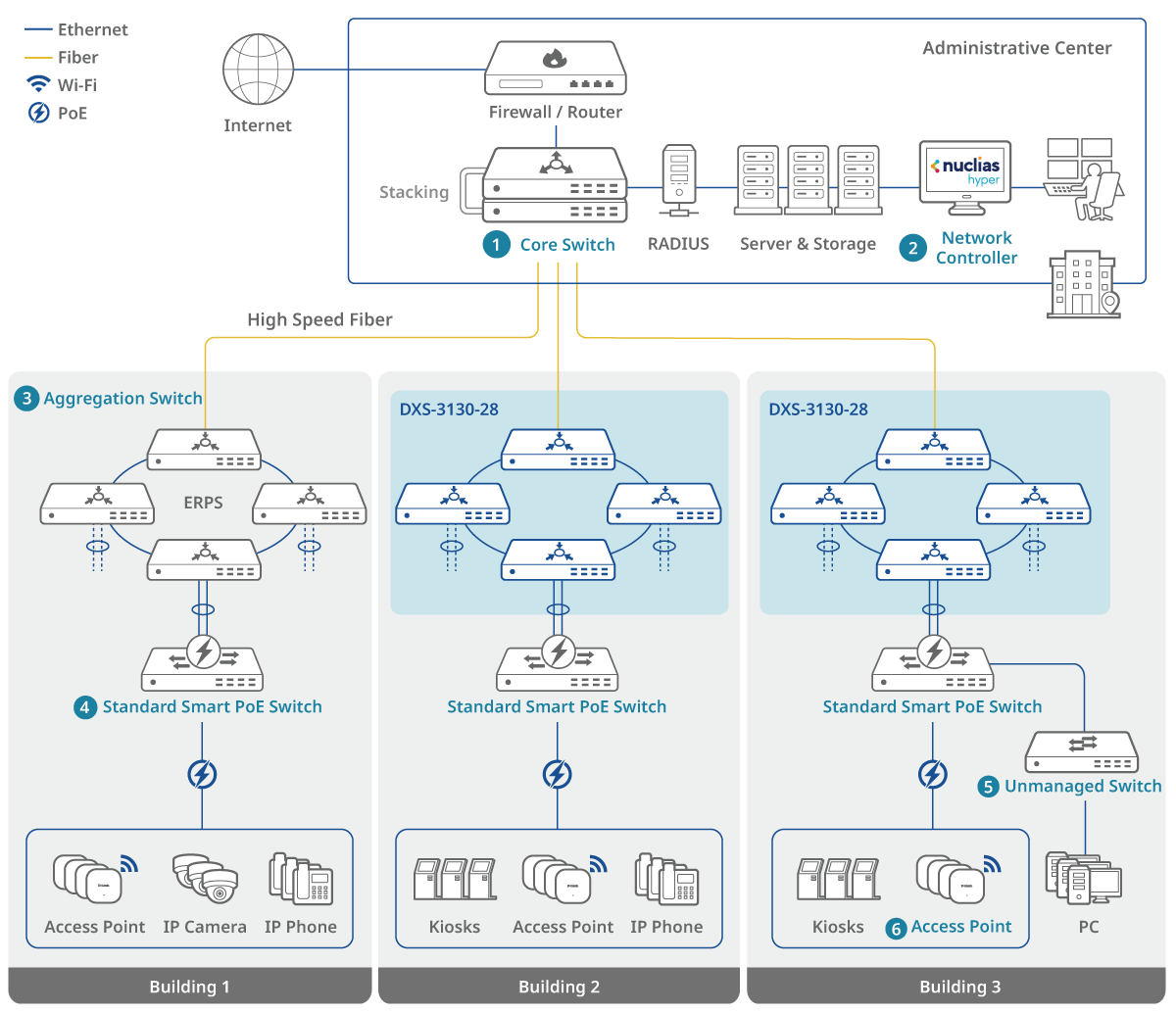

High-Rise Community (Buildings)
- Simplified maintenance reduces downtime and disconnection risks
- 10G high-speed connectivity meets growing bandwidth needs with ease
- Robust security features ensure reliable network protection
- Scalable design supports seamless network expansion
Learn more :
- Core Switch : DXS-3630-54S ( Coming Soon )
- Network Controller : DNC-5000
- Aggregation Switch : DXS-3130 Series
Standard Smart PoE Switch : DMS-1250-18P
Unmanaged Switch : DMS-1016
Access Point : DAP-X3060
產品規格
|
Interfaces
|
24 x 10GE 4 x 10/25G SFP28 |
|---|---|
|
Switch Capacity
|
680 Gbps |
|
Max. Packet Forwarding Rate
|
505.92 Mpps |
|
Max Power Consumption
|
76.58 W |
|
Dimensions
|
440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in) |
|
Weight
|
3.525 kg |
|
Surge Protection
|
IEC61000-4-5 6kV surge protection on all Ethernet ports |
|
FAN
|
3 x Smart fans |
|
Operating Temperature
|
0 to 50 °C (32 to 122 °F) |
|
Storage Temperature
|
-40 - 70°C (-40 - 158 °F) |
|
Operating Humidity
|
10% to 90% relative humidity |
|
Storage Humidity
|
5% to 90% relative humidity |
|
Console Port
|
Supported
|
|
Power Supply Type
|
Internal |
|
實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件，僅供參考。規格如有變更，恕不另行通知。 |
|
