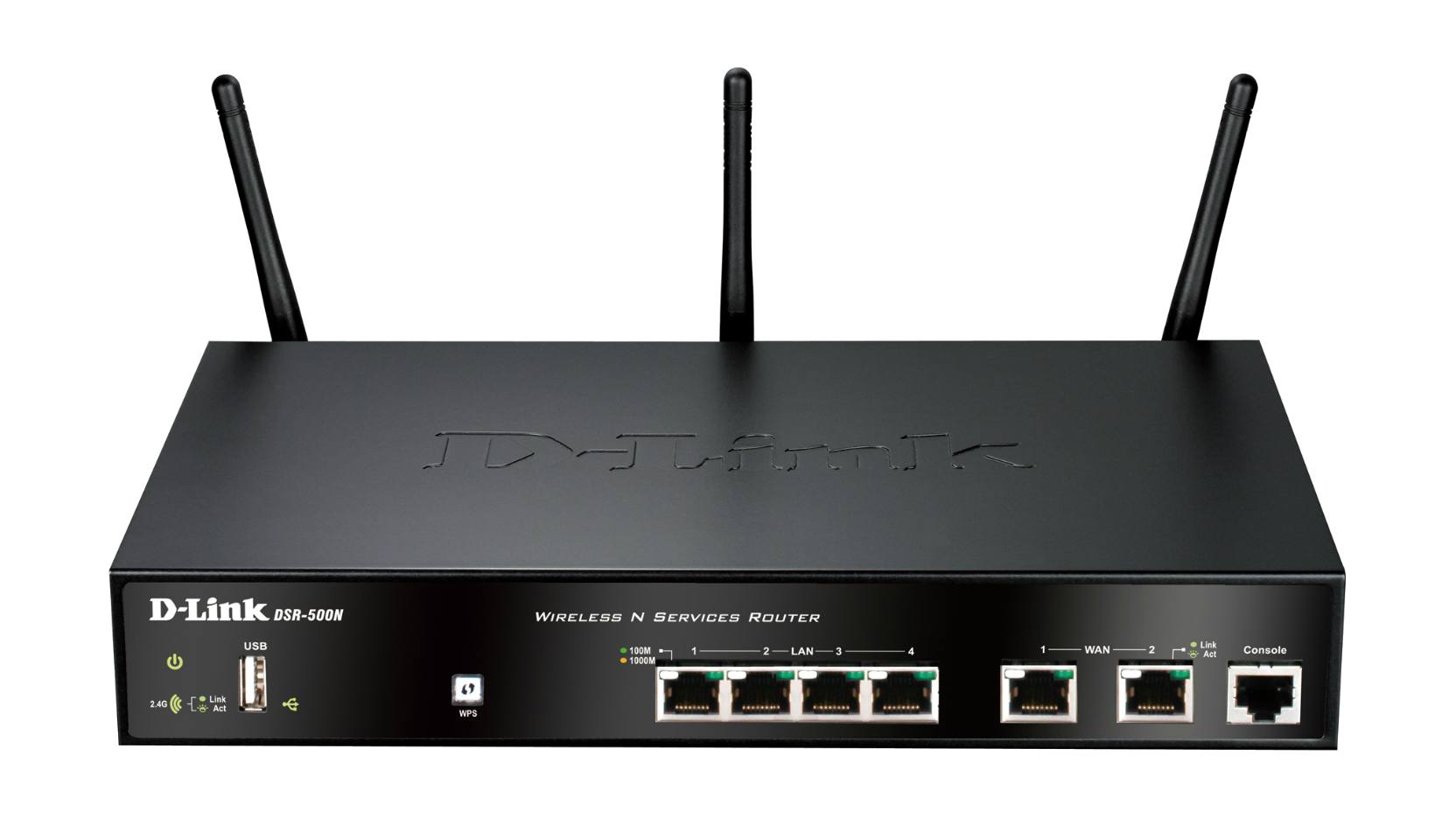

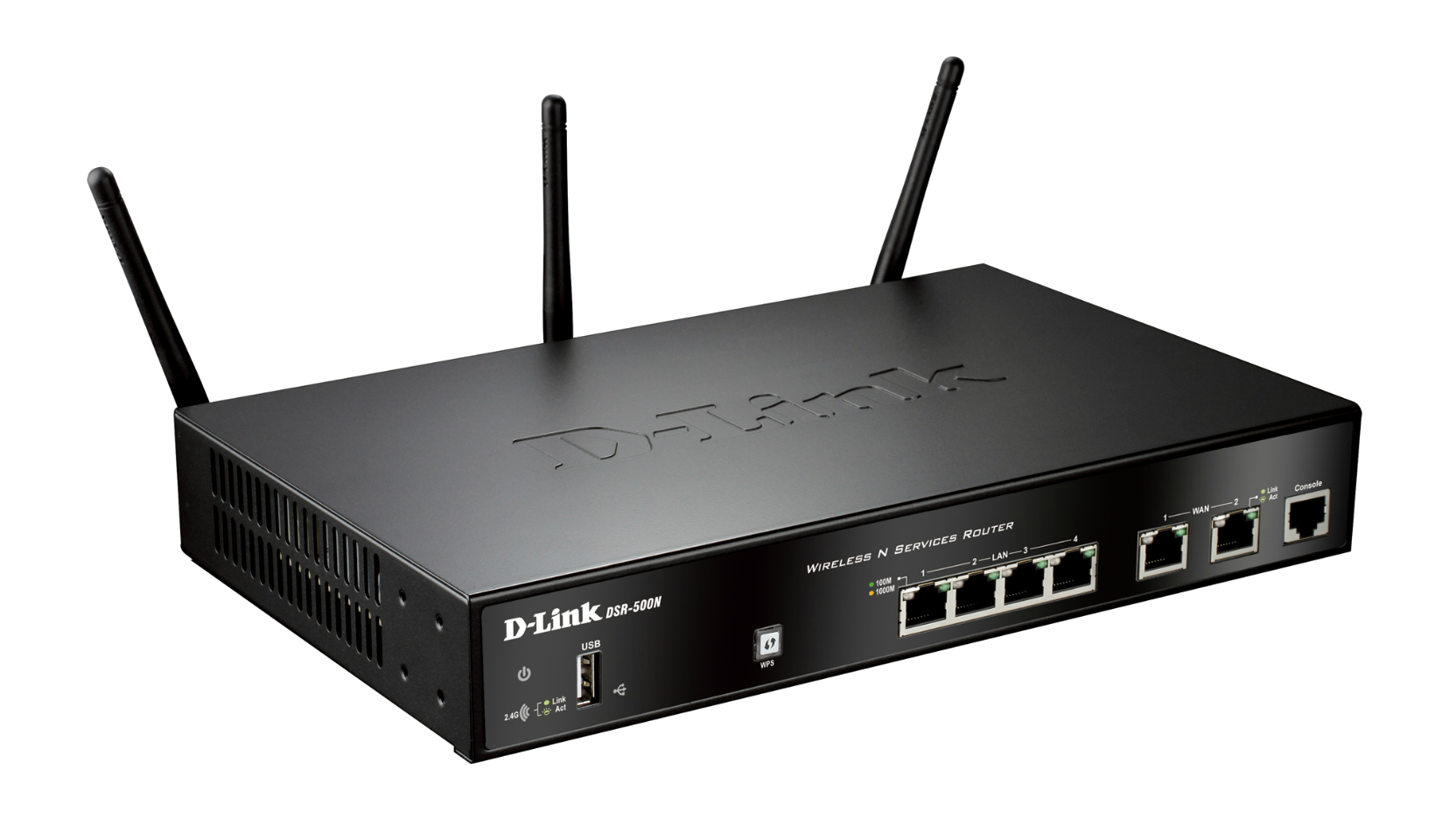

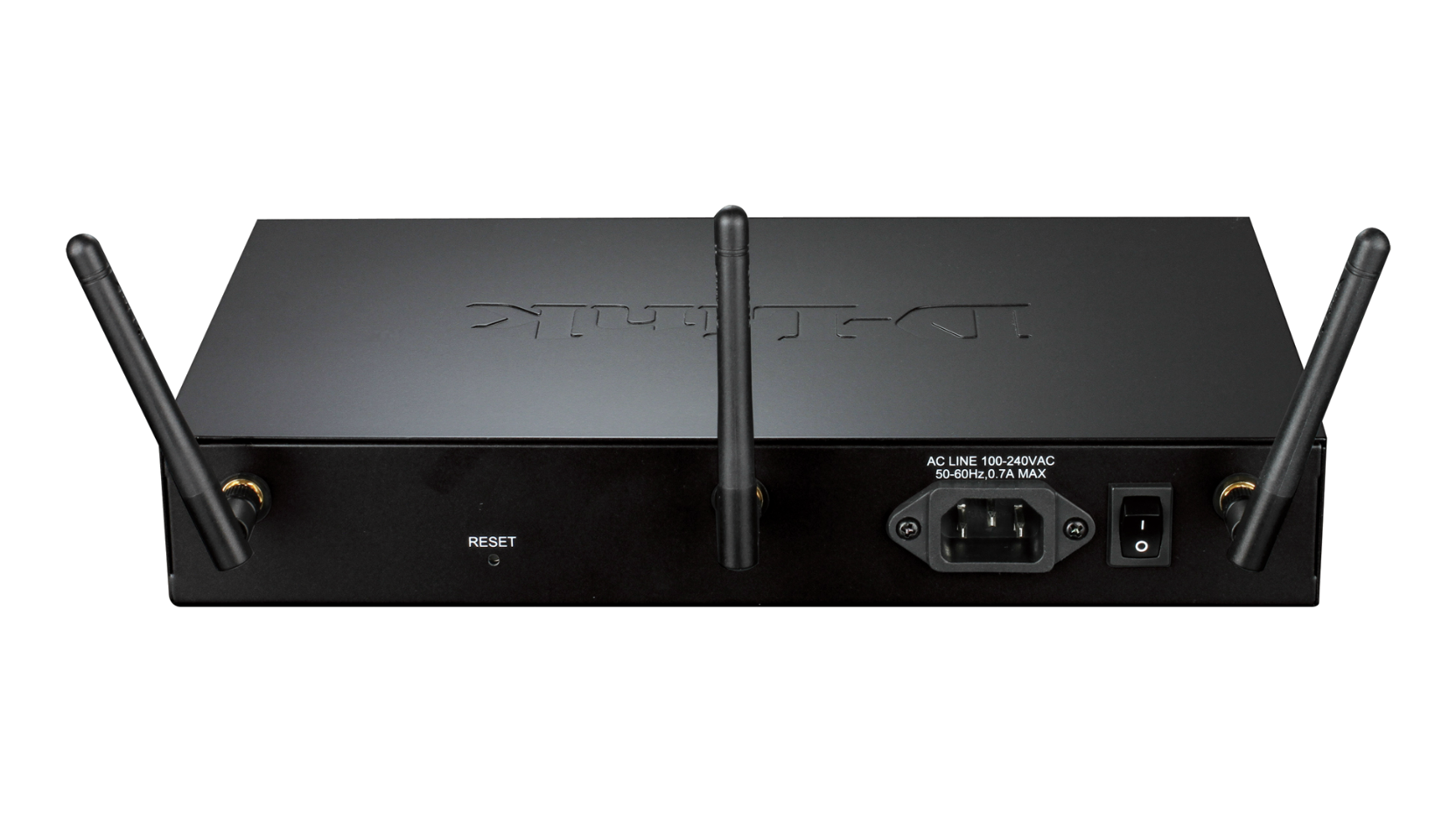

The D-Link DSR-500N Unified Services Router, high-performance networking solutions to address the growing needs of small and medium businesses. The integrated high-speed IEEE 802.11n wireless technology in the D-Link DSR-500N Unified Services Router offers comparable performance to traditional wired networks, but with fewer limitations. Each router provides optimal network security via features such as Virtual Private Network (VPN) tunnels, IP Security (IPSec), Point-to-Point Tunnelling Protocol (PPTP), Layer 2 Tunnelling Protocol (L2TP), Generic Routing Encapsulation (GRE)2, and Secure Sockets Layer (SSL). These routers also allow you to empower your road warriors with clientless remote access anywhere and anytime using SSL VPN tunnels.
Comprehensive Management Capabilities
The DSR-500N include dual-WAN Gigabit Ethernet that provides policy-based service management to ensure maximum productivity for your business operations. The failover feature maintains data traffic without disconnecting when a landline connection is lost. The Outbound Load Balancing feature adjusts outgoing traffic across two WAN interfaces and optimises system performance, resulting in high availability. The second WAN port can be configured as a DMZ port, allowing you to isolate servers from your LAN.
Superior Wireless Performance
The D-Link DSR-500N Unified Services Router include 802.11b/g/n, allowing for operation on the 2.4 GHz wireless LAN radio band. Multiple In Multiple Out (MIMO) technology allows the DSR-500N to provide high data rates and a wide wireless coverage area with minimised “dead spots.”
Flexible Deployment Options
The DSR Series supports Third Generation (3G) networks via an extendable USB 3G dongle1. This 3G network capability offers an additional data connection for critical or backup services. A 3G USB dongle can be configured as a third WAN port, performing Traffic Load Balancing and executing automatic failover whenever the primary WAN link gets lost.
Robust VPN Features
A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The D-Link DSR-500N Unified Services Router is capable of simultaneously managing 10 Secure Sockets Layer (SSL) VPN tunnels, as well as 15 Generic Routing Encapsulation (GRE) tunnels2, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunnelling Protocol (PPTP), or Layer 2 Tunnelling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. The DSR-500N simultaneously support up to 35 IPSec VPN tunnels, and 25 additional PPTP/L2TP tunnels.
Efficient Green Technology
D-Link Green Wi-Fi and D-Link Green Ethernet features save power and help cut energy usage costs. The D-Link Green WLAN Scheduler shuts down your wireless network automatically according to a schedule you define, allowing you to turn off your wireless network during off-peak hours, saving energy and keeping your network secure. The D-Link Green Ethernet feature can detect if a link is down on a port, and automatically puts that port into a sleep mode that drastically reduces the amount of power used. In addition, compliance with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives make D-Link Green-certified devices an environmentally responsible choice.
1 The following 3G dongles are supported: DWM-152 A1/A2/A3, DWM-156 A1/A2/A3/A5*/A6*, DWM-157*, Huawei E1550, E173, and EC306.* The dongles marked with * will be supported through firmware upgrades.2 Available through future firmware upgrade.
Specs
Type
|
VPN security router |
---|---|
Wireless standard
|
Wireless N |
Frequency band mode
|
Single-band |
Wireless speed
|
300 Mbps 2.4 GHz |
Antenna type
|
3 detachable omni-directional antennas |
Antenna gain
|
2 dBi for 2.4 GHz |
Wired interface
|
2 x Gigabit Ethernet WAN 4 x Gigabit Ethernet LAN |
USB ports
|
1 x USB 2.0 |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Metal |
Wireless modes
|
Access Point (AP) |
Advanced features
|
MIMO |
Maximum number of SSIDs
|
4 |
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
Firewall throughput
|
950 Mbps |
VPN throughput (3DES)
|
$name |
Concurrent sessions
|
30000 |
Firewall policies
|
300 |
Internet connection type
|
Multiple PPPoE PPPoE/L2TP/PPTP Static/Dynamic IP |
Firewall system
|
Dynamic DNS Dynamic route Inter-VLAN route Intrusion prevention system (IPS) NAT, PAT Static route Web content filtering |
Networking
|
3G redundancy DHCP relay DHCP server/client IEEE802.1q VLAN IP multicast IPv6 Outbound load balancing Route failover VLAN (port-based) |
VPN tunnels
|
85 |
IPSec tunnels
|
35 |
PPTP/L2TP tunnels
|
10 |
Encryption methods
|
DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL RC4-128, 3DES, AES |
VPN features
|
Dead Peer Detection Hub and Spoke IP Authentication Header (AH) IP Encapsulating Security Payload (ESP) IPSec NAT Traversal IPSec/PPTP/L2TP Server VPN Tunnel Keep Alive |
Bandwidth management
|
Maximum bandwidth control Port-based QoS |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Support
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | |
---|---|---|---|
CE doc 1.10 Revision A1 | CE Declaration | 25.2.2014. | Download |
DEU_Bandwidth_Management_setup_RevA | Bandwidth Management setup | - | Download |
DEU_IPSec Between DSR Series_RevA | IPSec Between DSR-Series | - | Download |
DEU_IPSec Tunnel between DLink DSR Series and Sonicwall Firewall_RevA | IPSec Tunnel between DLink DSR Series and Sonicwall Firewall |
- | Download |
DEU_IPSec Tunnel between DLink DSR series and Fortinet Firewall_RevA | IPSec Tunnel between D-Link DSR-series and Fortinet Firewall |
- | Download |
DEU_IPSec Tunnel between DSR series and D Link DFL Firewall_RevA | IPSec Tunnel between DSR-series and D-Link DFL Firewall_RevA |
- | Download |
DEU_IPSec Tunnel between D_Link DSR_series and Cisco Firewall_RevA | IPSec Tunnel between D-Link DSR-series and Cisco Firewall |
- | Download |
DEU_IPSec Tunnel between D_Link DSR_series and Juniper Firewall_RevA | IPSec Tunnel between D-Link DSR-series and Juniper Firewall |
- | Download |
DEU_SSL VPN setup in DSR_series_REvA | SSL VPN setup in DSR-series | - | Download |
DEU_VLAN with multiple subnets in DSR Series_RevA | VLAN with multiple subnets in DSR Series | - | Download |
DEU_WPS in DSRSeries_RevA | WPS in DSR-Series | - | Download |
DEU_portforwarding_RevA | Portforwarding | - | Download |
