PowerLine AV Pass-through Adapter Kit


  • Product Status (Revision D): End of Life

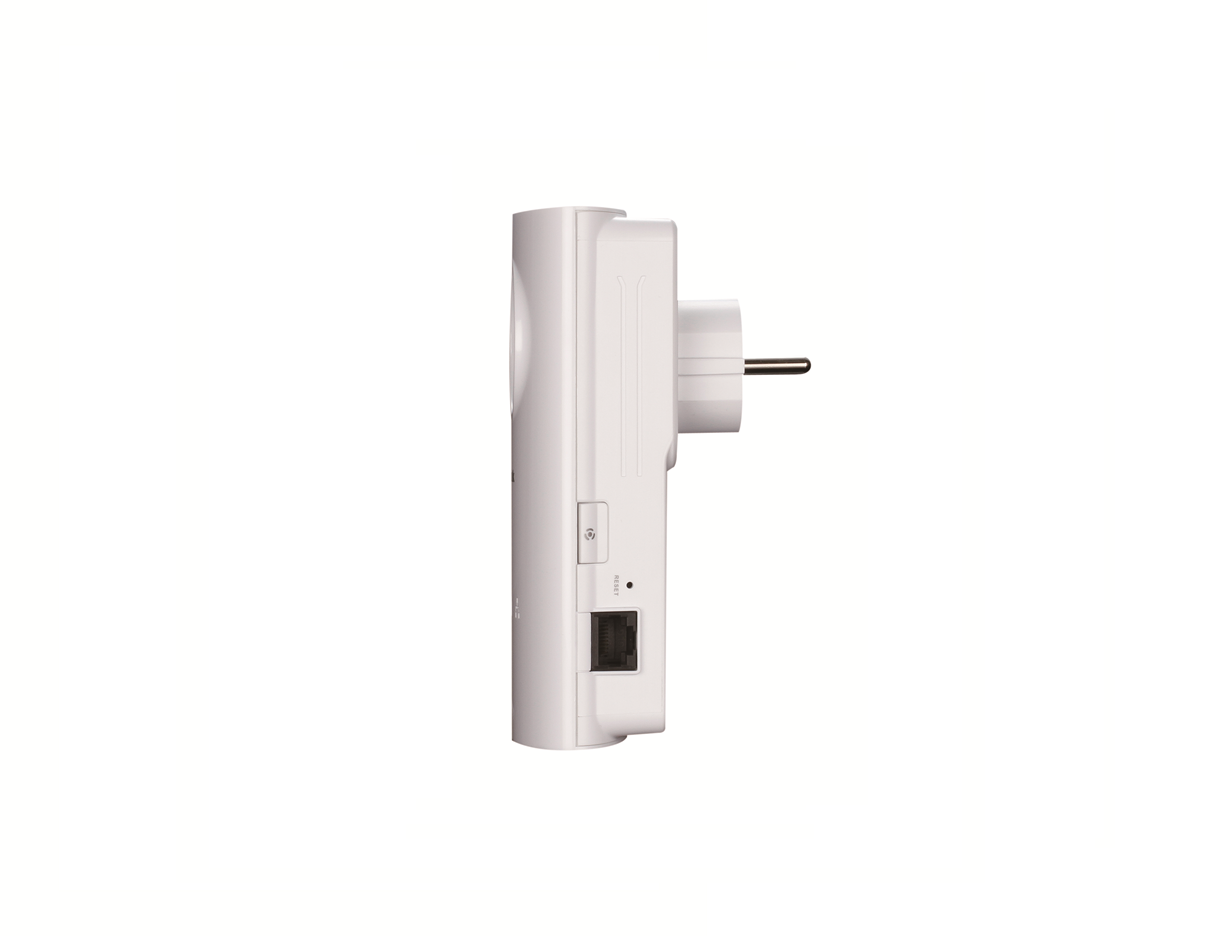

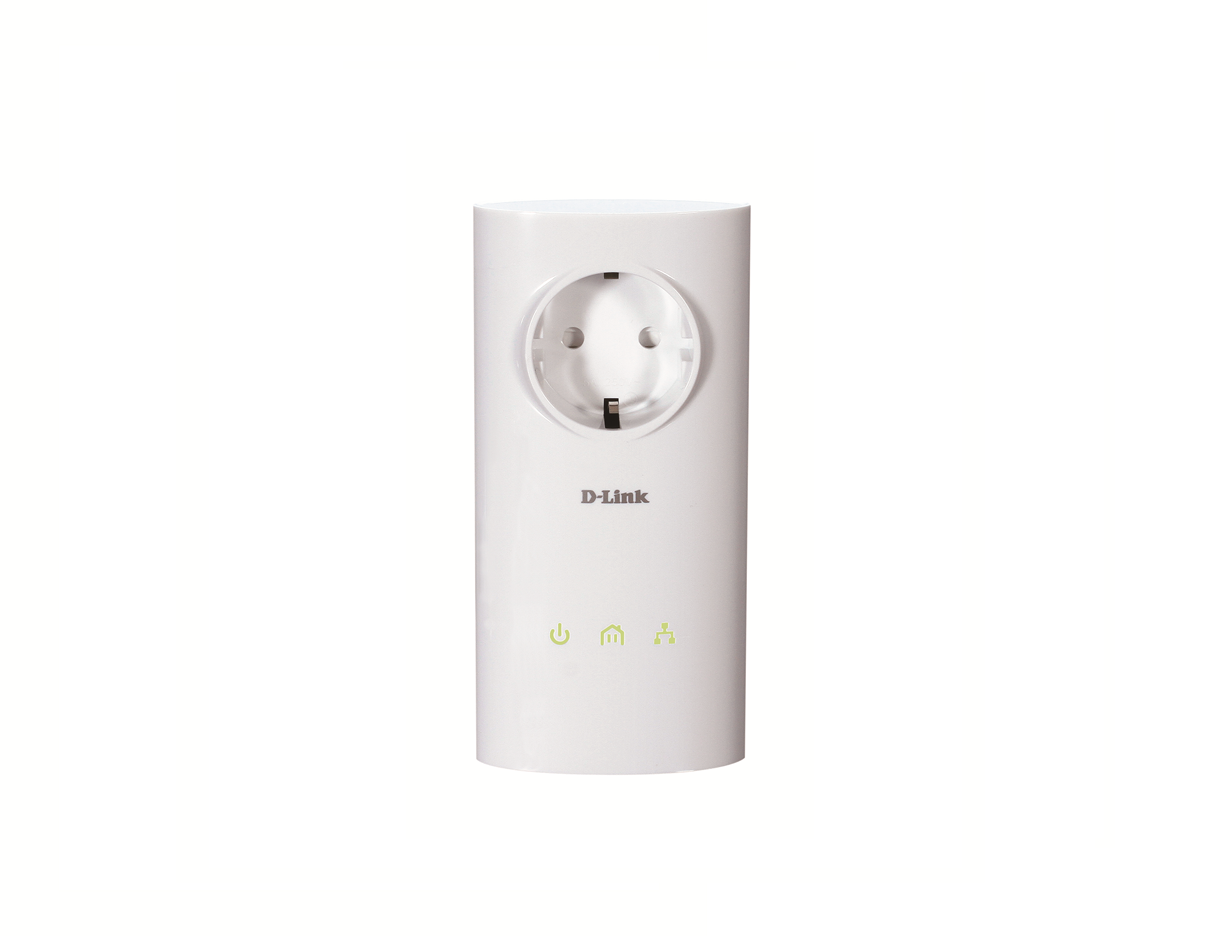

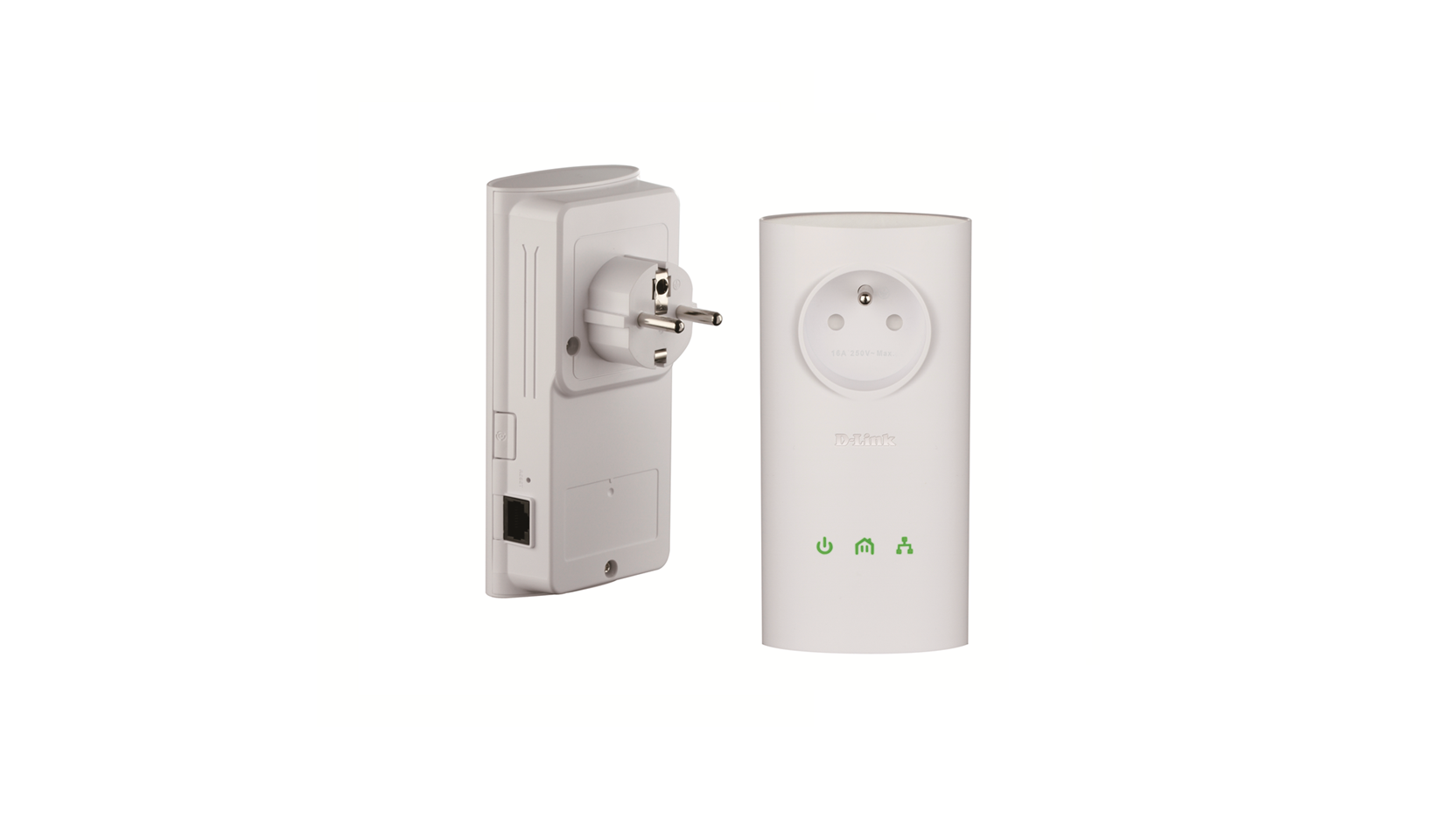

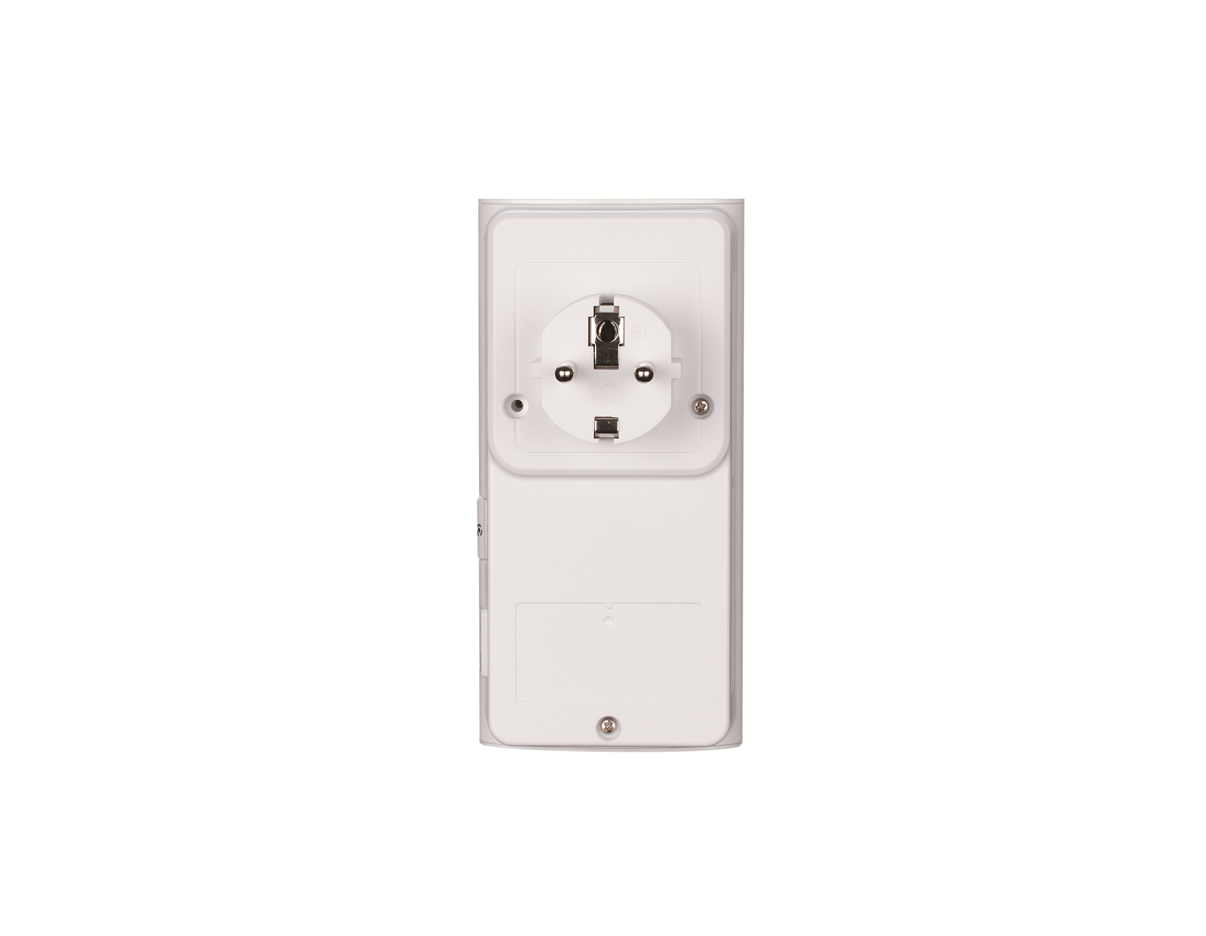

The D-Link DHP-P307AV kit consists of two PowerLine Homeplug AV passthrough adapters used to distribute Ethernet over standard AC wiring within the home. Each adapter has an electrical socket built in, so you don’t need to worry about running out of sockets!

Use existing wiring to create a home network

By simply plugging one PowerLine adapter into an existing electrical socket, you can turn every power outlet into a potential network connection, making the DHP-P307AV an ideal solution for sharing a high-speed Internet connection or for connecting computers, HD media players, game consoles and Network Attached Storage to your home network. It is also ideal for homes or small offices where concrete walls, successive floors in multi-storied buildings, or other architectural impediments could inhibit a wireless signal1.

200 Mbps transmission with Quality of Service (QoS)

Delivering data transfer rates of up to 200 Mbps2, D-Link’s PowerLine Homeplug AV provides ample bandwidth for demanding digital home requirements, such as watching Internet TV or streaming digital music in any room. Advanced technology built into these adapters makes them more resistant to electrical interference from other household appliances, so users can fully benefit from the maximum transmission speeds. In addition to maximum throughput, D-Link’s PowerLine Homeplug AV includes a built-in Quality of Service (QoS) engine that prioritises data packets in order to enhance HD video and audio streaming, online gaming and VoIP calling.

Conveniently connect

You can attach a switch or wireless Access Point (AP) to a D-Link PowerLine Homeplug AV Passthrough Adapter, allowing you to connect multiple devices in the farthest corners of your home. Furthermore, D-Link’s Powerline Homeplug AV implements 128-bit AES encryption for securing your connection and keeping your data safe from intruders. You can set this up easily via the button on the side of the adapter.


Based on the industry-leading Atheros Homeplug AV technology, the adapters are compatible with other brands’ devices based on the same Homeplug AV standard, such as D-Link’s DHP-306AV/307AV. However, they will not work with devices based on other standards, such as D-Link’s DHP-303/343. But they will co-exist with them, so you don’t need to worry about getting rid of your existing adapters.

D-Link Green™

The kit is part of D-Link Green, D-Link’s program for providing eco-friendly alternatives without compromising performance: if data transmission or reception does not occur over a certain period of time, the adapters will automatically go into sleep mode to save power.  This requires less than 1W, making the adapters among the first in their category to comply with the European Union guideline on Energy using Products (EuP), applicable since 7th January 2010.

1 Power outlets and electrical wiring must all be part of the same electrical system. Additional PowerLine Homeplug AV Ethernet adapters are required to add new devices to the network.
2 Maximum throughput based on theoretical data rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic and network overhead may lower actual throughput rate.


PowerLine technology
AV 200
Wired interface
1 x Fast Ethernet LAN
Passthrough power socket
This product was phased out on: 09/06/2013
This product's last date of support is on: 09/06/2015
Version Date Type File Size
Datasheet (English) - PDF 1.03mb Download
Version Description Date Type File Size
Product manual

Product manual

22.5.2014. PDF 4.82mb Download
Version Description Date Type File Size

Quick installation guide

22.5.2014. PDF 0.41mb Download
Version Description Date Type
Firmware 6.00 Firmware 24.1.2012. - Download
Version Description Date
Powerline Utility 2.13

Powerline Utility

22.5.2014. Download
Version Description Date
DEU_AD_D1_CE_Doc CE Declaration 22.12.2011. Download
