Professional Surveillance in Vandal-proof 4MP High Definition
A 4 Megapixel lens and state-of-the-art image enhancement features, packed into a secure and compact form factor that’s ready to face the outdoors.

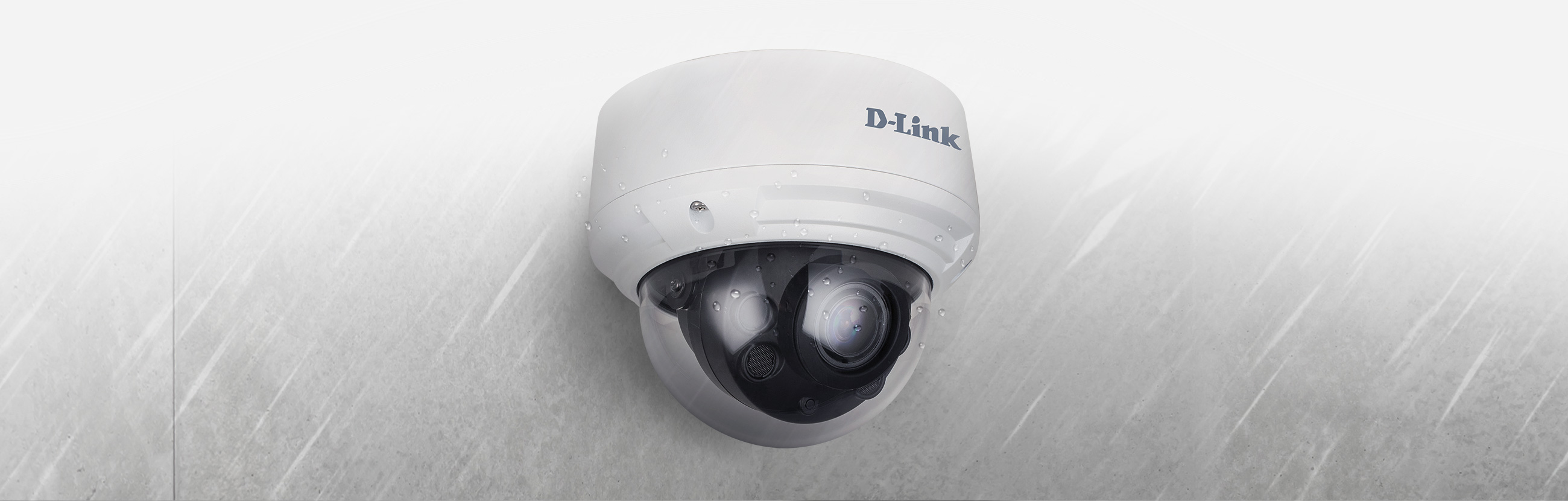

![](/rs/sr/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_01_billboard.jpg?h=830&w=2600&la=sr-Latn-RS&hash=102FAE71A6CC4405C97DC55E5BFE060C)
![](/rs/sr/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_02_hd.png)
4MP HD Resolution
4-megapixel sensor with High Definition resolution up to 2592 x 1520 for detailed footage
![](/rs/sr/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_02_vandalproof.png)
Vandal-proof
IK10-rated housing for protection against physical impacts
![](/rs/sr/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_ip66.png)
Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C
![](/rs/sr/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_nightvision.png)
Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas
![](/rs/sr/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_poe.png)
PoE Capable
Supports 802.3af PoE for flexible and simple installation
![](/rs/sr/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_sd.png)
Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.
![](/rs/sr/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_02_wdr.png)
Wide Dynamic Range with LowLight+
Improved image quality in high-contrast conditions with WDR & optimised for low-light environments
![](/rs/sr/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_easyremotemanagement.png)
Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive
High quality videos, whatever the lighting
Video resolutions of up to 2592 x 1520 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The DCS-4614EK offers unbelievable flexibility to be manually angled to provide surveillance where you need it the most.
Viewing Angles
(H) 100°
(V) 58°
(D) 126°
High Quality Lens
2.8 mm lens with an F2.0 aperture
![](/rs/sr/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_03_angles.jpg?h=630&w=605&la=sr-Latn-RS&hash=5333ADCCBE4FF10EDC700A94A29A85D7)
Versatile Monitoring in All Environments
IP66 certification ensures the camera is completely protected from dust and water in any environment and the IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.
Weather resistant
Withstands rain and moisture with a wide operating temperature range of -30°C to 50°C.
![](/rs/sr/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_04_environment.png?h=630&w=580&la=sr-Latn-RS&hash=2209DADFAD07E33F0C631F515C51204F)

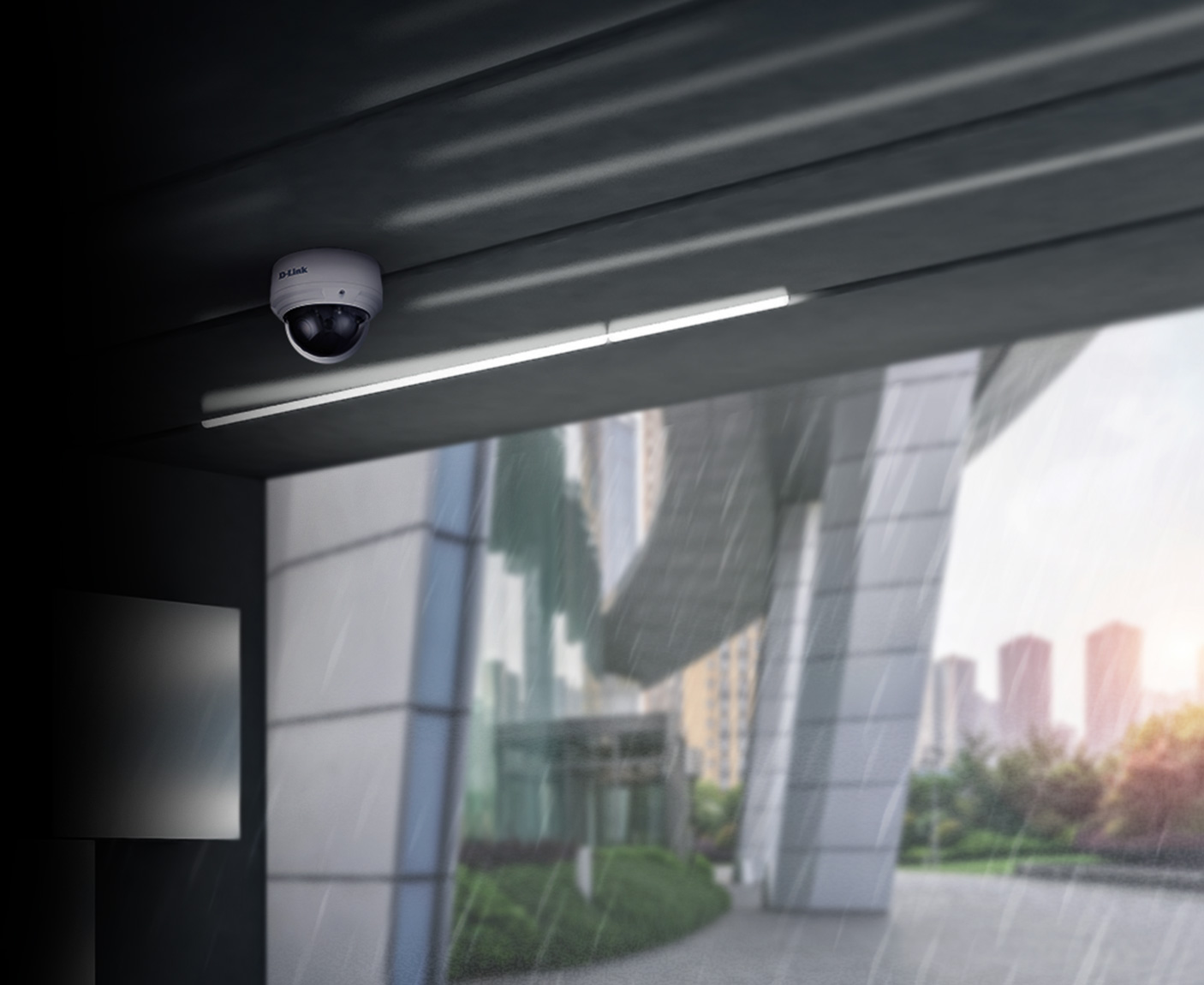

Vandal-proof
The IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.
![](/rs/sr/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_05_vandalproof.jpg?h=1150&w=1406&la=sr-Latn-RS&hash=7D3BACD113159CE5C064F45D7E1857AE)

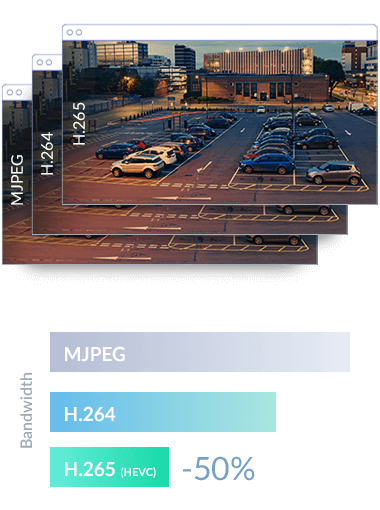

Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4614EK provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting two separate profiles for simultaneous video streaming and recording.
![](/rs/sr/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_06_bandwidth.png?h=510&w=380&la=sr-Latn-RS&hash=FDC5F620E1BD8354D8EBCE3EBABA4B3F)
Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.
![](/rs/sr/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_07_connectivity.png?h=580&w=1124&la=sr-Latn-RS&hash=29F5EACF53A0AEAF2E02C1A1F98E58C0)

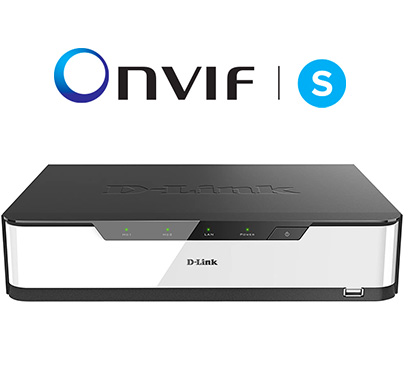

Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.
![](/rs/sr/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_08_onvif.jpg?h=380&w=412&la=sr-Latn-RS&hash=123D142A4DD56BE09630C988EC80C5DE)
Free Surveillance Management Software
D-Link Network Cameras include D-Viewcam - a complete surveillance software package to view, manage and record up to x64 cameras on a single computer from a central location.
![](/rs/sr/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_09_software.png?h=560&w=1460&la=sr-Latn-RS&hash=7E376E65D2594DF8E819BA56500AFDC2)
We're here to help.
![](/rs/sr/-/media/product-pages/common/callouts/icon_35years.png?h=113&w=142&la=sr-Latn-RS&hash=78E59C011CF72DDE59ECBC0345200EA5)
Over 35 years in the networking industry
Innovative end-to-end solution experts for small businesses to large corporations around the world.
![](/rs/sr/-/media/product-pages/common/callouts/icon_support.png?h=113&w=86&la=sr-Latn-RS&hash=58A654788601DA1CAC0293A3C07B59E7)
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
![](/rs/sr/-/media/product-pages/common/callouts/icon_2years.png?h=113&w=145&la=sr-Latn-RS&hash=6B4812C611494C3E86A6077BBC365553)
2‑Year D‑Link Warranty
You're protected by one of the global leaders in the industry.
Specs
Indoor/outdoor
|
Outdoor |
---|---|
Type
|
Dome |
Connectivity
|
Wired PoE |
Resolution
|
4 megapixel |
Image sensor
|
1/2.8" 4 megapixel WDR progressive scan CMOS |
Maximum Video Resolution
|
2592 x 1520 (16:9) |
Advanced Light features
|
Corridor Mode LowLight+ Wide Dynamic Range |
Lens
|
2.8 mm F2.0 Fixed |
Angle of View (H/V/D)
|
100° / 58° / 126° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
30 m |
Wide Dynamic Range(WDR)
|
Supported
|
LowLight+
|
Supported
|
Privacy Masks
|
3 zones |
Vandal Proof
|
Supported
|
External Card Slot
|
MicroSD SDHC SDXC (max 256 GB) |
Power Consumption
|
8 W |
App Support
|
JustConnect+ |
Features
|
ONVIF |
Video Format
|
H.264 H.265 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
18x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
