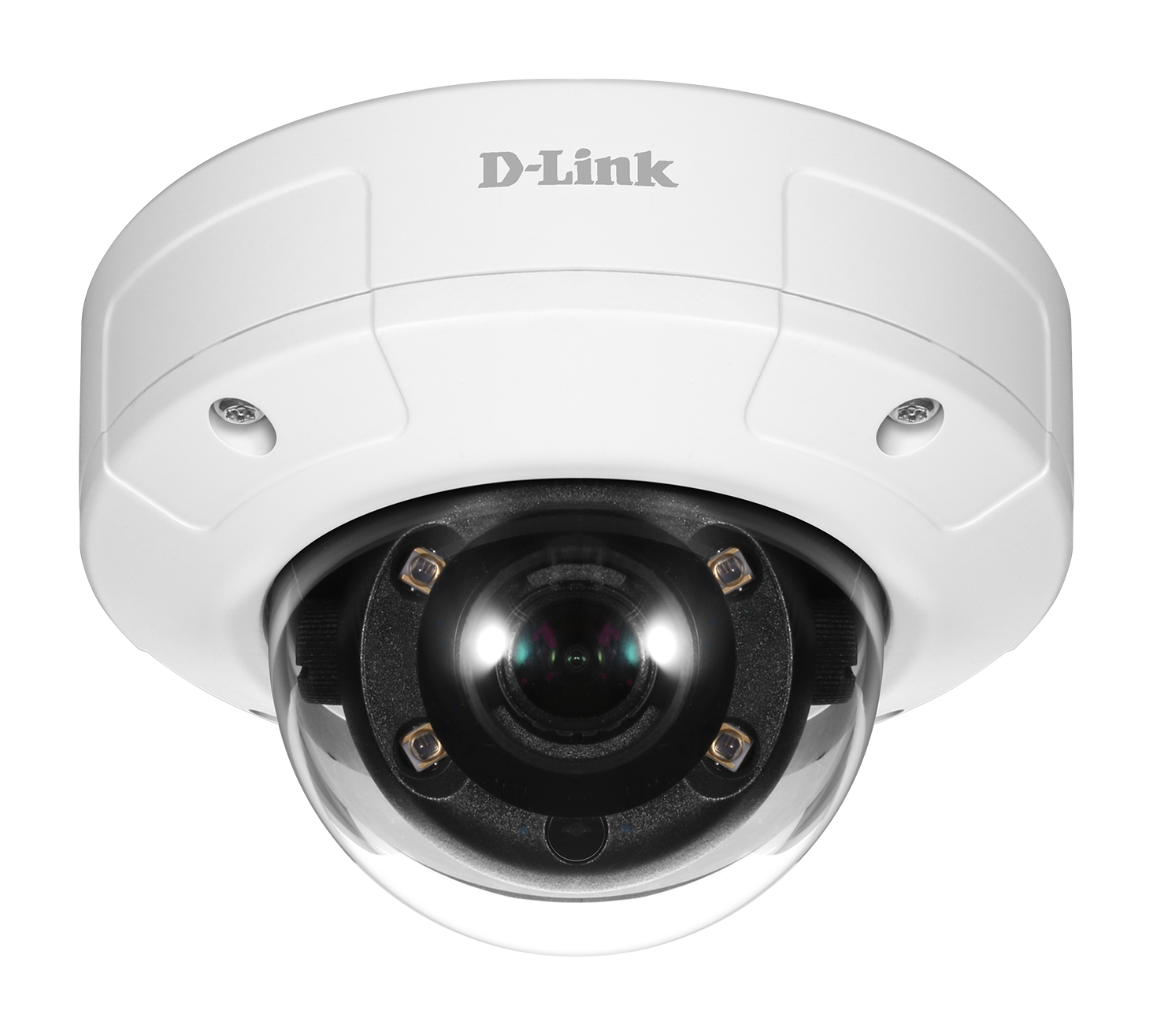

Vigilance 5-Megapixel Vandal-Proof Outdoor Dome Camera

DCS-4605EV

  • Product Status: End of Sale
5-Megapixel sensor

High resolution of 2560 x 1920 with Wide Dynamic Range (WDR) image enhancement and x10 digital zoom

Day & night surveillance

Built-in IR LED illuminators with 20-meter range for pitch-black areas

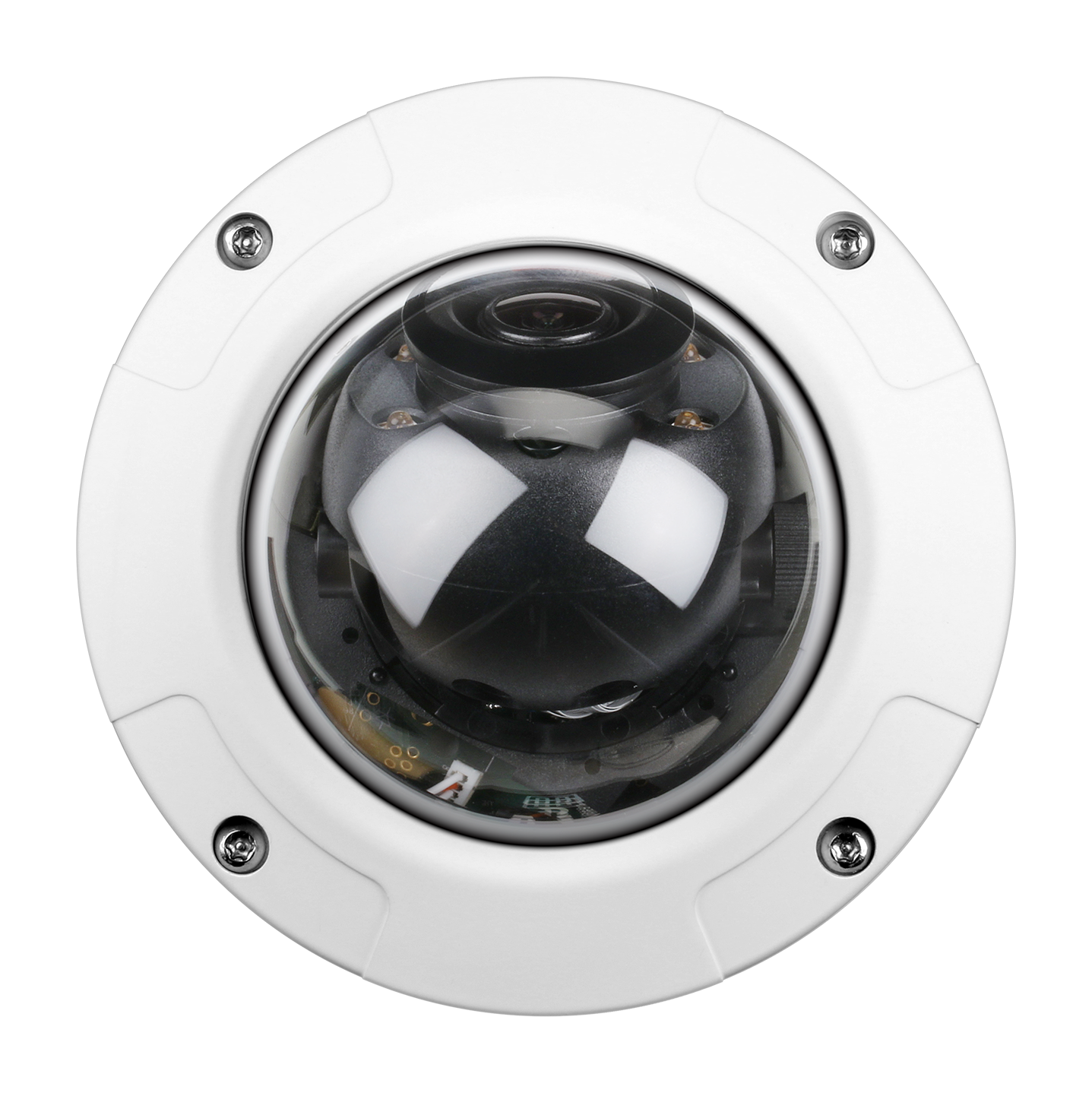

Vandal & Weatherproof

The IP66 and IK10 ratings make it ideal for even the most demanding of surveillance locations

H.265 support

HEVC (High Efficiency Video Coding) standard support to optimise network bandwidth for better visual quality and recording performance.

Free Surveillance Management Software

Includes D-ViewCam - view, manage, and record with up to 32 cameras

2-Year D-Link Warranty

You're protected by one of the global leaders in the industry

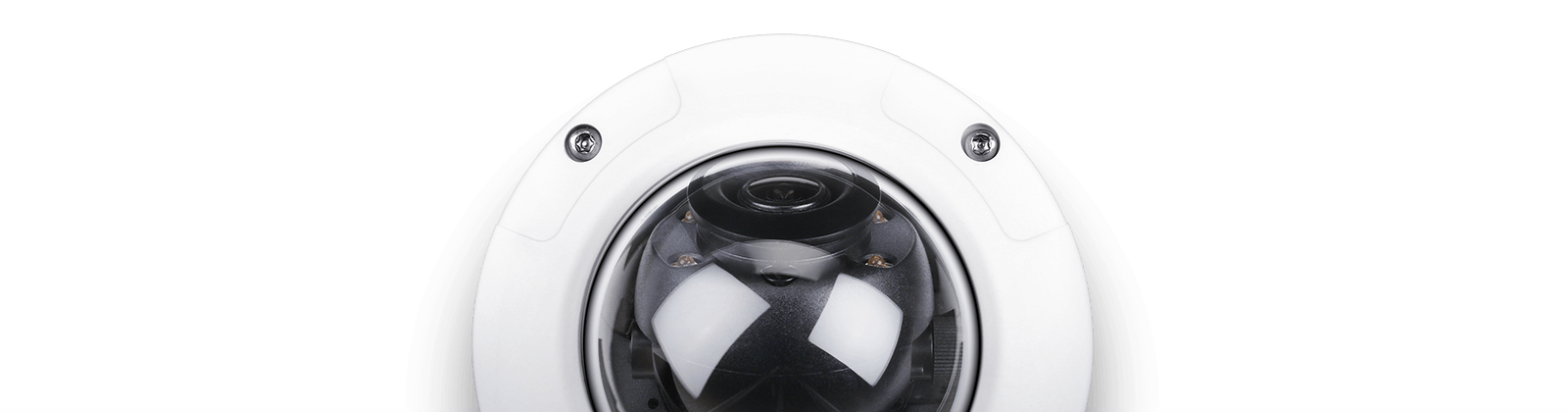

Unbeatable video surveillance in any weather

The DCS-4605EV 5-Megapixel Vandal-Proof Outdoor Dome Camera has a rugged weatherproof and vandal-proof dome design, and 20-metre IR night vision which makes the camera extremely reliable to guard day and night, in all seasons.

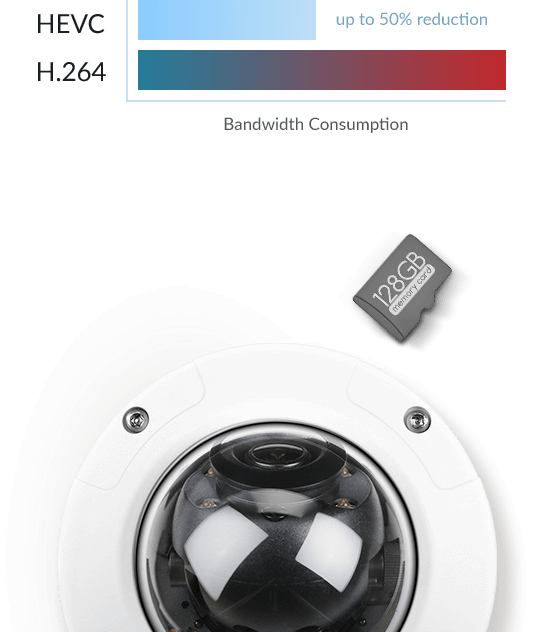

High-Quality Streaming & Recording

To maximise bandwidth efficiency and improve image quality, the DCS-4605EV provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting three separate profiles for simultaneous video streaming and recording.

Motion detection, event management features, and digital pan, tilt, zoom (ePTZ) allows for deployments in a wide variety of surveillance environments like monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, recording criminal activity, or monitoring inventory.

The onboard microSD card slot can store up to 256GB of footage locally for extra backup protection.

Strong in any environment

Even with uneven or difficult lighting, WDR image enhancements deliver better image quality so you can identify subjects that are backlit, or in brightly-lit areas. In low-light situations, the IR-cut filter slides out of the way to use all available light.

Infrared illuminators allow the camera to see clearly even in complete darkness. The IP66 weatherproofing completely protects the camera from dust and water, and the IK10 rugged vandal-proof housing prevents sabotage. Monitor indoors or outdoors, 24/7.

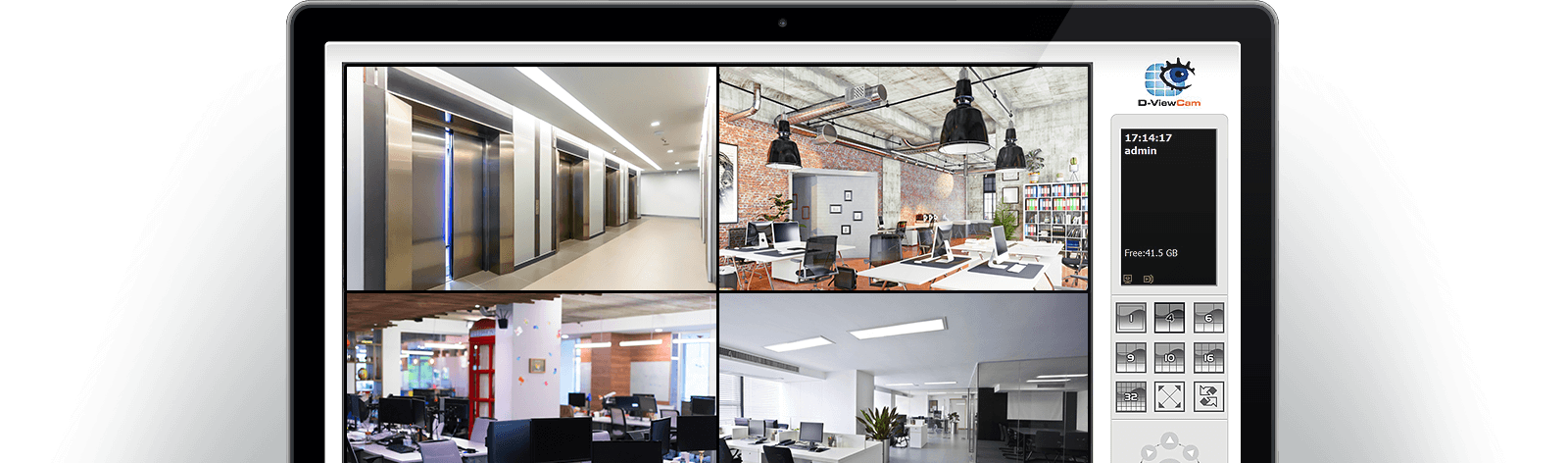

Free Surveillance Management Software

All D-Link Network Cameras include D-ViewCam - view, manage and record up to 64 cameras on a single computer from a central location with this complete surveillance software package.

Learn more

D-ViewCam Mobile

Keep an eye on your surveillance cameras anywhere, anytime with D-Link’s D-ViewCam Mobile app.

The D-ViewCam Mobile app makes it easy to instantly check on your business and keep up to date with any situations.

Download button for the Apple App Store.   Download button for the Google Play Store.

Faster and easier to deploy

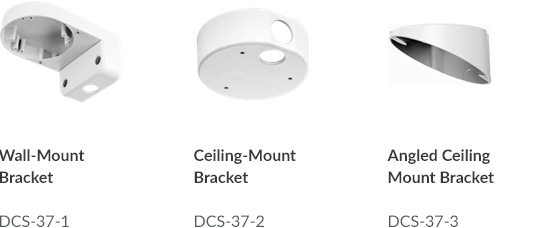

The DCS-4605EV is compatible with a range of mounting brackets to suit any scenario.

Its 802.3af-compliant PoE support provides power and networking connectivity over a single network cable to simplify and speed up deployment.

We're here to help.

Over 35 years in the networking industry

Innovative end-to-end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

2‑Year D‑Link Warranty

You're protected by one of the global leaders in the industry.

Indoor/outdoor
Indoor
Outdoor
Type
Dome
Connectivity
Wired PoE
Resolution
5 megapixel
Image sensor
1/2.9'' 5 megapixel WDR progressive scan CMOS
Maximum Video Resolution
2560 x 1440 (16:9)
2560 x 1920 (other)
Advanced Light features
Wide Dynamic Range
Lens
2.8 mm
F2.0
Fixed
Angle of View (H/V/D)
87° / 65° / 110°
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
20 m
Wide Dynamic Range(WDR)
Supported
Privacy Masks
3 zones
Vandal Proof
Supported
External Card Slot
MicroSD SDHC SDXC (max 128 GB)
Power Consumption
6 W
App Support
JustConnect+
Features
D-ViewCam D-Link NVR compatible
MicroSD Card slot
ONVIF
Video Format
H.264
H.265
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 13/07/2021
Version Date Type File Size
Datasheet EN - PDF 0.75mb Download
Version Description Date Type File Size
Manual 1.01 Revision A1 Product Manual 14.8.2018. - - Download
Manual 1.00 Revision A1 Product Manual 25.6.2018. - - Download
Version Description Date Type File Size
QIG 1.02 Revision A1 Quick Installation Guide 14.1.2019. - - Download
QIG 1.01 Revision A1 Quick Installation Guide 25.6.2018. - - Download
QIG 1.00 Revision A1 Quick Installation Guide 16.4.2018. - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 1.00.07 Firmware
Release Notes Included
31.8.2018. - Download
Version Description Date
CE doc 1.00 Revision A1 CE document 23.5.2018. Download
CE doc 1.01 Revision A1 CE document 23.5.2018. Download
