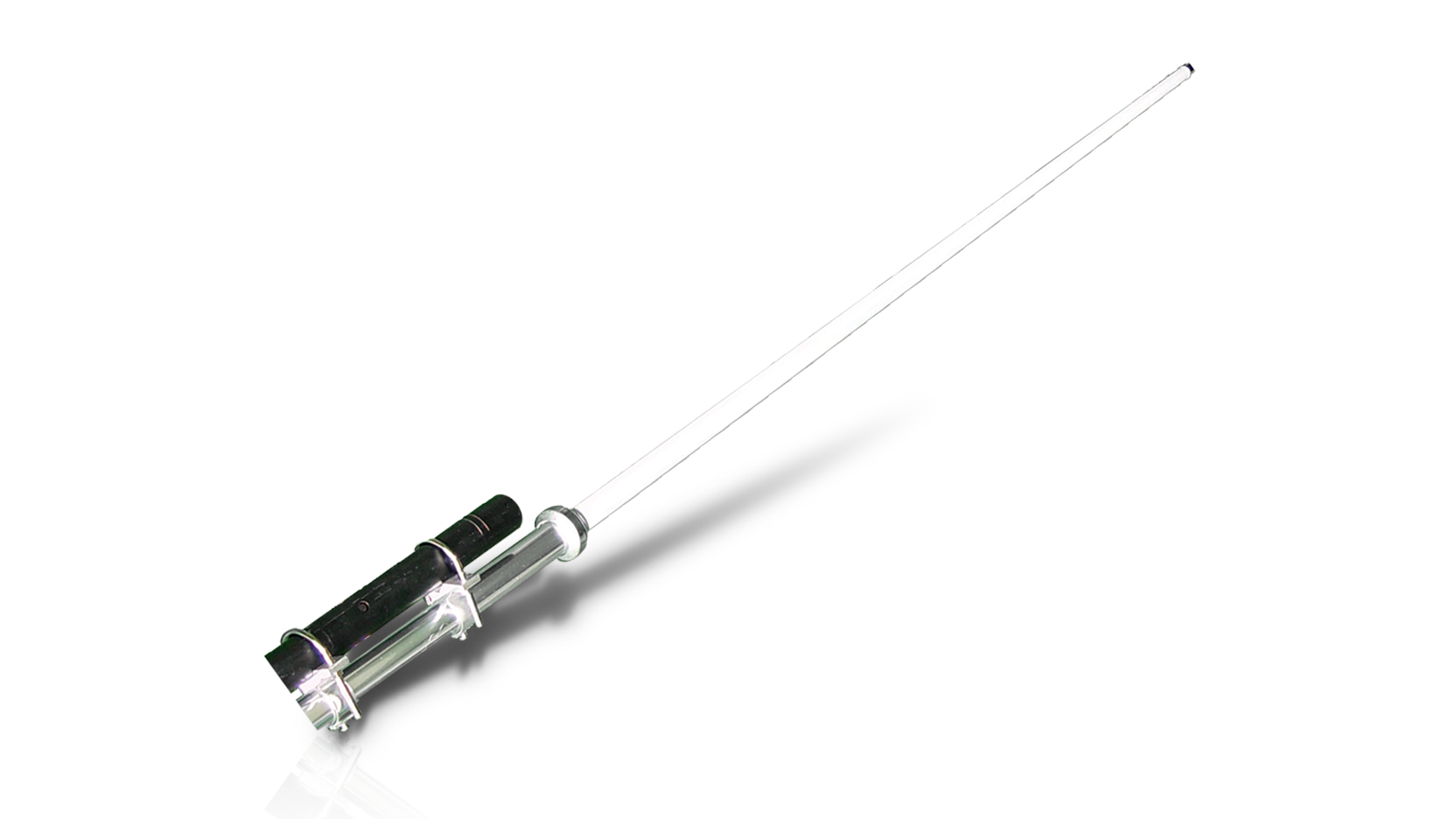

Outdoor 15 dBi Omni-Directional Antenna


  • Product Status (Revision A1): End of Sale
The D-Link 15dBi Omnidirectional Antenna, ANT24-1500, provides extended coverage for an existing 802.11b or 802.11g wireless network. The D-Link ANT24-1500 comes with a conversion cable that allows connection directly to a reverse SMA connector.


The D-Link ANT24-1500 is a 15dBi Outdoor Omni-Directional Antenna that connects to a compatible D-Link Access Point to extend the coverage of your Wireless Local Area Network. The ANT24-1500 is compatible with a wide variety of access points including the DWL-2130AP, DWL-2200AP, and DWL-2230AP.


The omni-directional design of the ANT24-1500 offers dramatically increased wireless signal coverage in all directions. With 360° of better signal reception, this high-gain antenna will also improve data throughput at further distances. The PtMP capability allows the ANT24-1500 to operate as a single directional antenna, which sends the signal in one direction or as a bi-directional antenna, which sends the signal out 360° degrees from a single point.

The ANT24-1500 antenna provides extended signal range using the 2.4GHz frequency, making this antenna compatible with both 802.11g and 802.11b wireless devices.


With a weatherproof and corrosion resistant shell, the ANT24-1500 is able to withstand harsh outdoor conditions, including extreme temperatures ranging from -40°F to 176°F.

The ANT24-1500’s 15dBi omni-directional design gives increased wireless signal range in all directions. When you affix this antenna outdoors, you can achieve farther coverage including building-to-building bridging. Avoid the cost and complexity of adding additional access points or repeaters by using the ANT24-1500 with your current 802.11g or 802.11b network.
Electrical Specifications
Frequency Range

•    2.4GHz - 2.5GHz


•    15 dBi

•    Linear

•    Vertical


•    Horizontal - 360

•    Vertical - 5

Power Handling

•    50W (cw)


•    50 Ohms


•    N female

DHF Extension Cable

•    3 meters (N-male to RP-SMA plug)

Environment & Mechanical Characteristics
Operating Temperature

•    -40°F to 176°F (-40°C to 80°C)

Operating Humidity

•    100% @ 77°F (25°C)

Lightning Protection

•    DC ground

Radome Material

•    Fiberglass

Radiator Material

•    Micro Striple Line

Antenna Weight

•    750g +/- 20g


•    65 inches (length)


•    1 Year Limited*

Minimum System Requirements
•    2.4GHz (draft 802.11g-802.11b) Networking Device with Detachable RP-SMA Antenna Connector

Package Contents

•    15dBi 2.4GHz Antenna
•    Wall Mounting Kit
•    Quick Installation Guide

* 1-Year Warranty available only in the U.S.A and Canada.

All references to speed and range are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
