Gigabit PoE Smart Surveillance Switches
DSS-200G Series
- Status produktu (Revision A1): W sprzedaży
- Gigabit Ethernet PoE
- PoE & PoE++ with up to 518W power budget
- Deploy IP cameras at up to 250m
- DIP Switch for quick controls
- 6kV Surge Protection on all PoE ports
- Alarm Port and four-stage PoE usage indicator light
- Layer 2 Management Features
- Auto-Detects ONVIF devices
- Built-in SNMP MIB
- Web-based GUI
- 5-Year D-Link Warranty
Lista sklepów
Built for Surveillance,
with Gigabit Ethernet & PoE++
with Gigabit Ethernet & PoE++
Designed to meet surveillance requirements for businesses of all sizes, with features like support for high-powered PTZ cameras, high PoE budgets, Auto Surveillance VLAN, and surge protection, these switches are ideal for IP surveillance setups.
Daleki zasięg PoE
Podłączanie i zasilanie kamer do 250 metrów bez konieczności stosowania dodatkowych extenderów PoE.
Zasilanie dla urządzeń
Wsparcie PoE/PoE+ przy podłączaniu i zasilaniu urządzeń sieciowych kablem Ethernet PoE bez konieczności stosowania adapterów zasilania.
Niezawodne połączenia PoE
Ochrona przeciwprzepięciowa na wszystkich portach PoE chroni przełącznik podczas zasilania urządzeń obsługujących PoE.
High PoE power budgets
Built-in PoE usage indicator LEDs. High PoE budgets of up to 518W and support for 802.3bt 90W PoE1
Built for surveillance

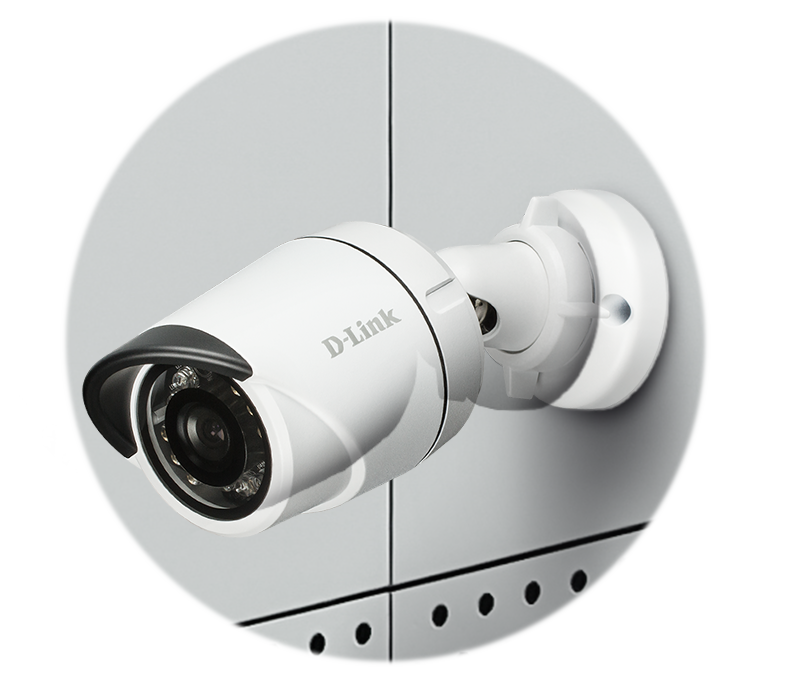

Auto-detects connected IP cameras in Surveillance Mode and generates a topology
Gigabit Uplink Ports
Gigabit Ethernet PoE and fibre uplinks with up to 56 Gbps switching capacity for connections to NVR or servers
Easy deployment with automatic configuration
Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration
Rapid deployments with a single PoE cable.
The series supports PoE, and some provide higher power PoE++, delivering up to 90 watts on selected ports, enabling faster deployment of PoE devices such as IP cameras, VoIP phones, access points, terminals, speakers, lights, conferencing systems, displays, and more.
Reach further with a flick of a switch.
The built-in DIP switch allows easy configuration and quick adjustment of application settings without the need to access the web configuration. Quickly enable and disable functions such as QoS, Extend (connection by up to 250 metres), Port Isolation, PD-Alive and STP (Spanning Tree Protocol) in an instant.
Protects the network against power surges.
6kV surge protection on all PoE ports protects the network against voltage spikes with link aggregation, ERPS and STP support to make your network more robust and resilient.
Connect to more with PoE++
See your remaining power availability with the built-in PoE Power Budget LEDs for 25%, 50%, 75%, and 100% power usage at a glance. And utilise up to 518W, with 90W on 8 ports and 30W on 15 ports for DSS-200G-28MPP, so you can rapidly deploy more devices.
Layer 2 management features.
Comes with a complete line-up of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features such as loopback detection and cable diagnostics.
Quality of Service and bandwidth control.
Bandwidth control allows network administrators to reserve bandwidth for important functions that require higher priority or more bandwidth.
Auto Surveillance VLAN consolidates data and surveillance video transmission through a single switch, sparing businesses the expense of dedicated hardware and facilities.
Voice VLAN enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritised and segmented VLAN, this feature guarantees quality and security of VoIP traffic.
Energy efficient
With built-in D-Link Green technology, this series saves power without sacrificing operational performance or functionality.
Time-Based PoE
Schedule the ports on the switch to provide PoE power to devices on specific days and during set hours of the week for energy savings
Sleep mode
Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode
Advanced chipset
The series incorporates a special chipset with advanced silicon technology for efficient use of energy
Jesteśmy, aby Ci pomóc
Ponad 35 lat doświadczenia
Innowacyjne, kompleksowe rozwiązania dla małych i średnich przedsiębiorstw jak również użytkowników domowych.
Porozmawiajmy
Wykwalifikowane wsparcie lokalne w 16 krajach. Nasze zespoły wsparcia są gotowe, aby Ci pomóc.
Pięcioletnia gwarancja
Dbamy o Twój spokój.
1The 250m long range mode is subject to cabling quality and/or IP camera’s electrical design. Compatibility testing is recommended prior to use. UTP CAT5e rated cables (or higher) are required.
Dane techniczne
Rodzaj przełącznika
|
Zarządzalny Smart |
---|---|
Liczba portów
|
16 - 28 portów 5 - 10 portów |
Warstwa
|
Layer 2 |
Rodzaj portów
|
1000BASE-T Gigabit Ethernet |
Rodzaj portów uplink
|
Combo 1000BASE-T/SFP SFP |
Przepustowość przełączania
|
20 Gbps |
Standard PoE
|
802.3af 802.3at 802.3bt draft Long Range PoE (up to 250m) |
Long range PoE
|
Supported
|
Liczba portów PoE
|
24 8 |
Budżet PoE
|
101 do 200W 201 do 400W See datasheet |
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Montaż
|
Szafa Rack |
Obudowa
|
Metal |
Ramki Jumbo
|
Supported
|
Diagnostyka kabla
|
Supported
|
MAC address
|
8K |
Spanning Tree Protocol
|
802.1D STP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Agregacja linków
|
802.3ad |
VLAN group (max static)
|
128 |
Typ VLAN
|
w oparciu o port |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Voice VLAN |
Liczba kolejek QoS na port
|
4 |
Kontrola przepustowości
|
16 Kbps minimum granularity |
Encryption protocol supported
|
SSL (v1/v2/v3) |
