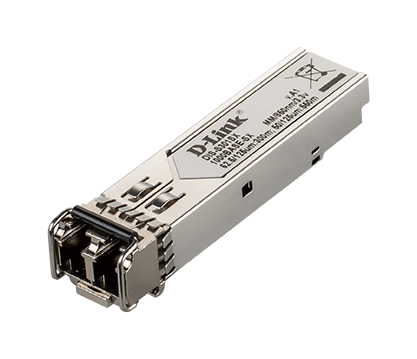

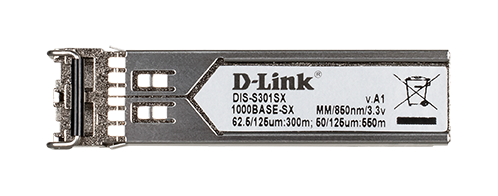

Moduł światłowodowy Mini-GBIC SFP do 1000Base-SX

DIS-S301SX

  • Status produktu: W sprzedaży
  • 1-portowy moduł SFP (1000Base-SX, Wielomodowy)
  • do 550 m
  • temperatura pracy -40 ~ 85°C

Pobierz kartę produktu.

Lista sklepów

Features

  • Hot Pluggable
  • MSA Compliant
  • RoHS Compliant

Standard

Compliant Standard

  • IEEE802.3z
  • 1000BASE-SX

Transceiver Type

  • SFP

Fiber Channel FC-PI standard

  • 100-M6-SN-I/100-M5-SN-I

Fiber Media support

  • Multi-Mode

Distance

  • 62.5/125um: 300m
  • 50/125um: 550m

Speed

  • 1.25Gbps

Interface

Connector

  • Duplex LC Connector

Single/bi Direction

  • Single-direction

Wavelength

  • 850nm

Output Optical Power (TX Optical Power)

  • MAX.: -3dBm
  • MIN.: -8 dBm

Input Optical Power (RX Optical Power)

  • MAX.: - 3 dBm
  • MIN.: - 22 dBm

Sensitivity

  •  -22dBm

Cable Type

  • Multi-mode 50/125um or 62.5/125um fibre

Operating

Power

  •  3.3V

Max Input Current

  • 300mA

Power Budget (MIN Power Budget)

  • 14d B

MAX Power Budget

  • 19d B

Heat Generated

  • 1.782kJ/h

MTBF (hours)

  • 224,167 hours

Physical & Environment

Operation Temperature

  • -40~85℃

Storage Temperature

  • -40~85℃

Humidity (Operating)

  • 5%~95%

Humidity (Storage)

  • 5%~95%

Dimension ( W x D x H )

  • 13.7 x 55.4 x 8.5mm

Weight(g)

  • 20g

Bail latch colour

  • Black

Emission (EMI) and Safety Certifications

EMI

  • CE, FCC, VCCI

Safety

  • LVD, EN60825-1, EN 60825-2
