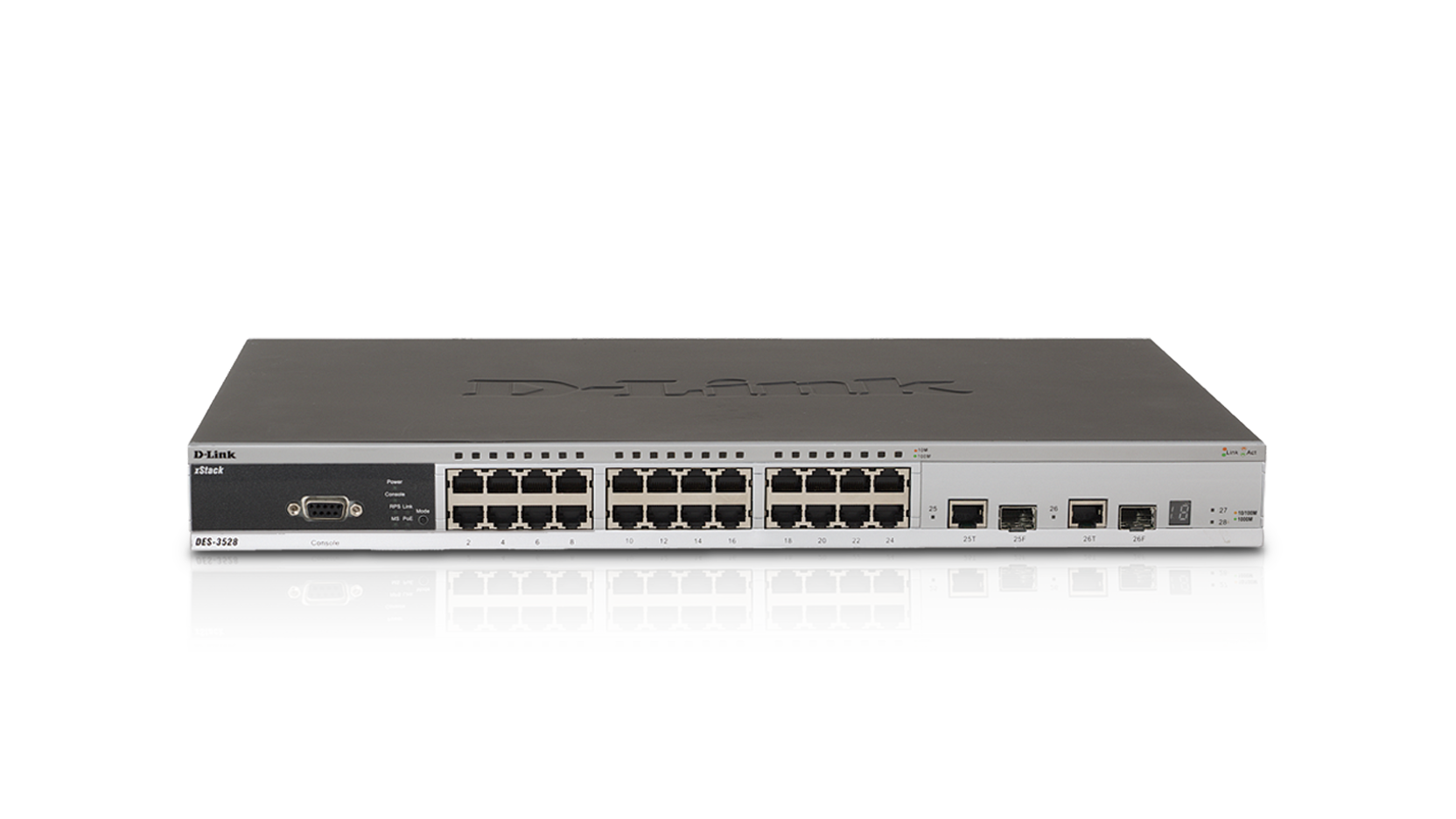

The xStack DES-3528 by D-Link is a high-performance, managed, stackable 28-port Layer 2 Fast Ethernet switch including 2 Gigabit Ethernet and 2 Combo 1000BASET-T/SFP ports that provides an ideal solution for workgroups and edge deployments of a network. The D-Link Single IP Management (SIM) allows administrators to cluster up a virtual stack of up to 32 dispersed switches with fewer distance limitations through a single IP address.
Non-Blocking Switching
The DES-3528 provides a non-blocking switching solution for 10/100 Fast Ethernet connections. The DES-3528 supports 24 10/100Mbps ports, with 4 gigabit 10/100/1000BASE-T ports. Two of these gigabit copper ports are disabled when the two 1000BASE-X SFP are used, also known as dual personality or combo ports. The DES-3528 has a non-blocking bandwidth of 12.8Gbps; the xStack switch has a redundant power option for mission critical applications.
Advanced Network Security
For edge network security, the DES-3528 supports DHCP server screening, client filtering, and IP-MAC-Port Binding to prevent security breaches such as rogue DHCP server, man-in-the-middle attacks and IP spoofing. For clients with XP SP3, Vista, or servers with Microsoft’s Server 2008, DES-3528 works in conjunction with Microsoft’s Network Access Protection (NAP) as part of an ecosystem that enforces compliance with network health policies. The xStack switch will grant network host access only if it complies with IT security policies such as up-to-date anti-virus signatures and operating system patches. This prevents a virus-infested client or server from gaining access and further contamination.
IP Clustering Stackable
The xStack DES-3528 provides D-Link Single IP Management Technology (SIM), allowing a set of switches to be managed by a single IP, regardless of geographical locations. Traffic running among units in this virtual stack is through the full-duplex Gigabit interfaces and your usual network wires, doing away with the costly and cumbersome stacking cables. Without any stacking cable, cable distance barrier and physical stacking limitations, your stack can comprise units that are located anywhere on the network, minimizing the impact of any single point of failure. Furthermore, multiple xStack switches can be configured, monitored and maintained from any workstation running a web browser through one unique IP address.
Ease of Management
The DES-3528 supports SNMP v1/2/3 so traps can be set on abnormal events and information can be polled to maximize the productivity of the network. Other standard management features are also supported including RMON and IEEE 802.1d/w/s spanning tree, User interface includes intuitive web-based browser graphic interface or industry-standard CLI, either administration traffic can be protected thru SSL or SSH encryptions.
Sugerowane urządzenia
![](/pl/pl/-/media/product-pages/dv/700/dv700.png?h=100&w=178&la=pl-PL&hash=B491BDDC52269BEF7AB01EAE1BD8D76F)
![](/pl/pl/-/media/product-pages/dem/211/dem-211-left.png?h=100&w=178&la=pl-PL&hash=574116C2DBE13D79C087C103D230E653)
![](/pl/pl/-/media/product-pages/dem/310gt/dem-310gt-left.png?h=100&w=178&la=pl-PL&hash=C084055D27534B97A997D2434BD0BAC6)
![](/pl/pl/-/media/product-pages/dem/311gt/dem311gtg1image-lside.png?h=100&w=178&la=pl-PL&hash=7E62D35618DBEB6423A370B9758E2807)
![](/pl/pl/-/media/product-pages/dem/312gt2/dem-312gt2-left.png?h=100&w=178&la=pl-PL&hash=87FE1F0688D69909D53AA9FD3226BDA5)
Dane techniczne
Liczba portów
|
16 - 28 portów |
---|---|
Warstwa
|
Layer 2+ |
Rodzaj portów
|
100BASE-TX Fast Ethernet |
Rodzaj portów uplink
|
1000BASE-T Gigabit Ethernet Combo 1000BASE-T/SFP |
Przepustowość przełączania
|
12.8 Gbps |
Chłodzenie pasywne
|
Supported
|
Montaż
|
Szafa Rack |
Stakowanie fizyczne
|
Do 8 urządzeń Dwukierunkowa przepustowość do 4 Gb/s |
Stakowanie wirtualne do 32 urządzeń
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Agregacja linków
|
802.3ad |
VLAN group (max static)
|
4K |
Typ VLAN
|
GVRP w oparciu o adresację MAC w oparciu o port w oparciu o protokół |
Advanced VLAN
|
Asymmetric VLAN Double VLAN (Q-in-Q) ISM VLAN Voice VLAN |
IPv4/IPv6 routing table
|
IPv4 - 224 IPv6 - 96 |
Interfejsy IP
|
16 |
IPv6 Ready
|
Supported
|
Routing statyczny dla IPv4/IPv6
|
IPv4 - 16 IPv6 - 16 |
Liczba kolejek QoS na port
|
8 |
CoS na podstawie zawartości
|
Supported
|
Kontrola przepustowości
|
64 Kbps minimum granularity |
Typ ACL
|
Ingress |
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
Kontrola dostępu 802.1X
|
Supported
|
Microsoft NAP support
|
Supported
|
Uwierzytelnienie RADIUS/TACACS+
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
sFlow
|
Supported
|
LLDP-MED
|
Supported
|
ICMPv6
|
Supported
|
802.3ah
|
Supported
|
802.1ag
|
Supported
|
ITU-T Y.1731
|
Supported
|
