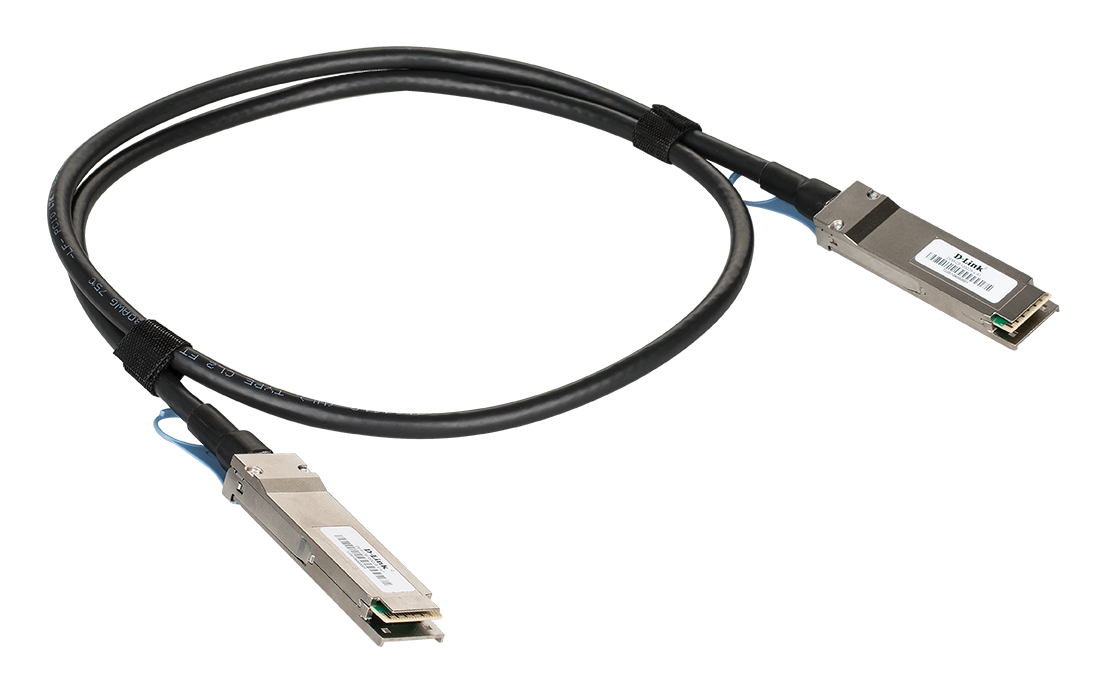

100G QSFP28 to QSFP28 1 m Direct Attach Stacking Cable

DEM-CB100Q28

  • Status produktu: W sprzedaży
High-quality 100G QSFP28 connection cables for physical stacking (compatible with DXS-3610 series).

Pobierz kartę produktu.

Lista sklepów

High-quality 100G QSFP28 connection cables for physical stacking (compatible with DXS-3610 series).

  • Quad Small Form-factor Pluggable 28 (QSFP28)
  • 100 Gbps data rate
  • Compliant with the following standards:
    • SFF-8436
    • SFF-8636
    • SFF-8665
    • EIA-364
    • EIA-364-1000.01

Sugerowane urządzenia

Zarządzalne stakowane przełączniki 10G L3
DXS-3610-54S, DXS-3610-54T
Dowiedz się więcej

General

Device Rate

  • 100 Gbps

Connector Type

  • QSFP28 Cable Assembly

Wire AWG

  • 30 AWG



Functionality

SFP MSA Standard

  • SFF-8436, SFF-8636, SFF-8665

Electrical Connector Performance Test Standard

  • EIA-364, EIA-364-1000.01

Flammability Standard

  • UL 94



Physical

Minimum Cable Bend Radius

  • 34.5 mm (1.36 in)

Cable Characteristic Impedance

  • 100 Ohms

Voltage

  • 30 V AC

Current

  • 0.5 A

Operating Temperature

  • -40 to 75 °C (-40 to 167 °F)
Wersja Opis Data
Reach 1.01 RevA1 - 24.08.2021 Pobierz
Reach 4s28 1.01 RevA1 - 24.08.2021 Pobierz
CE declaration CE declaration 20.10.2014 Pobierz
