Zewnętrzny punkt dostępowy PoE
DAP-3320
- Status produktu: Brak wsparcia
The DAP-3320 Wireless PoE Outdoor Access point is the ideal solution for expanding the coverage and signal strength of any wireless network. Built to withstand outdoor environments, the DAP-3320 also excels in connecting separate networks that cannot be joined using physical wiring.

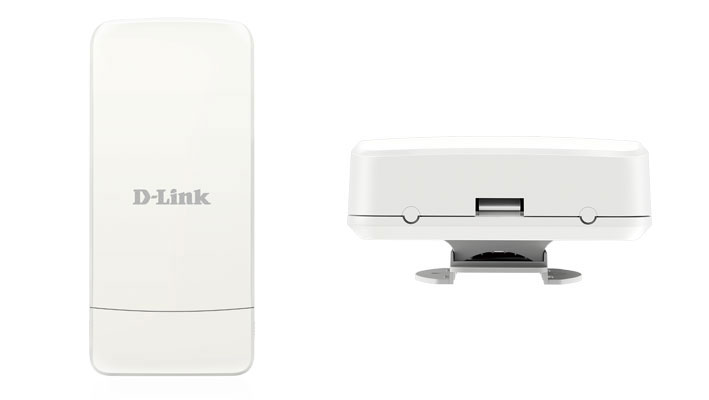

Convenient Design
Built for outdoor use, the DAP-3320 has an IP552 weatherproof housing that protects it from weather. In addition, the DAP-3320 is powered by PoE which allows for convenient installation, especially in places where a power supply is not available.
Simplified outdoor connectivity
Low cost Outdoor Access Point, with high power radio design the DAP-3320 is ideal for providing wireless connectivity between two locations.

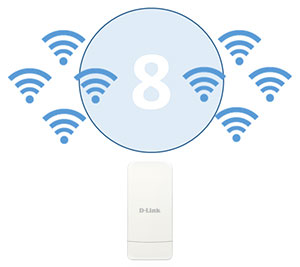

Broadcast on 8 SSIDs Simultaneously
Supports up to 8 SSIDs per Band that can logically divide the access point into several virtual access points all within a single hardware platform.
Product Highlights
Flexible Operation
Configure to use as an access point, a wireless distribution System (WDS) with access point, a WDS bridge or a wireless client
Full Featured Security
Includes industry standard wireless encryption along with support for multiple SSIDs and VLANs, allowing for complete control over network access
Rugged Construction
IP55 weatherproof housing and weathershield2 makes the DAP-3320 ideal for demanding networking environments

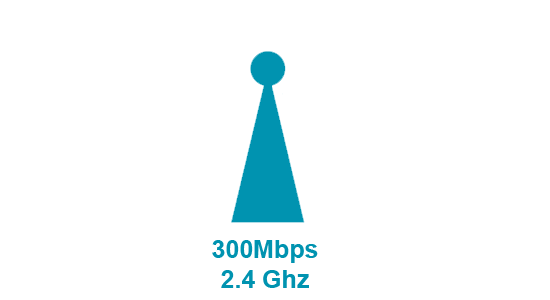

2.4Ghz Single-Band Wireless
The built-in 2 dBi omnidirectional antenna ensures that wireless signal will cover a wide area.

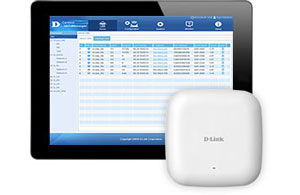

Free Wireless AP Controller software
D-Link’s free Central Wifi Manager is a cloud enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.
Manage up to 1000 APs
Manage up to 1000 Access Points located around the world from one virtual controller residing in your network or in the cloud.

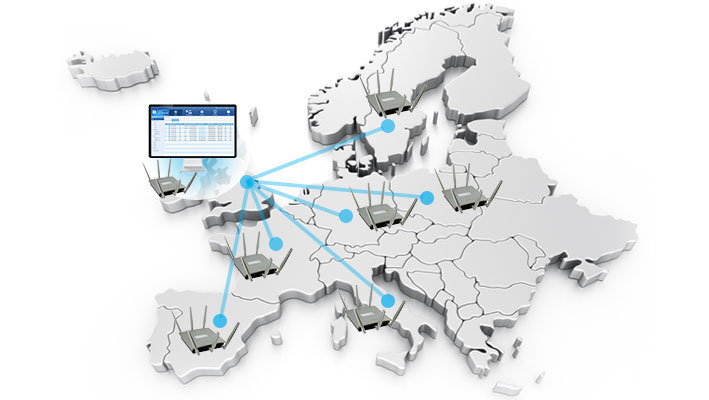

Scalable, flexible, centralised AP management
Manage up to 1000 Access Points from a central location, regardless of geography.
Dane techniczne
|
Rodzaj
|
Punkt dostępowy |
|---|---|
|
Standard WiFi
|
Wireless N |
|
Ilość pasm
|
Jednopasmowy |
|
Przepustowość
|
300 Mb/s 2.4 GHz |
|
Anteny
|
Wbudowane anteny dookólne |
|
Zysk mocy
|
2 dBi w 2.4 GHz |
|
PoE
|
Tak |
|
Porty
|
1 x Fast Ethernet LAN |
|
Montaż
|
Na zewnątrz |
|
Obudowa
|
Plastikowa |
|
Stopień ochrony
|
IP55 |
|
Tryb pracy
|
Access Point (AP) Klient bezprzewodowy WDS Bridge WDS z AP |
|
Zaawansowane funkcje
|
MIMO |
|
Maksymalna liczba SSID
|
8 |
|
Automatyczny dobór kanału
|
Supported
|
|
Harmonogram WiFi
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
Szyfrowanie TKIP-AES
|
Supported
|
|
WPA/WPA2-PSK przez WDS
|
Supported
|
|
Opcja wyłączenia rozgłaszania SSID
|
Supported
|
|
Station isolation
|
Supported
|
|
Filtrowanie adresów MAC
|
Supported
|
|
Autoryzacja 802_1X
|
Supported
|
|
Platforma do zarządzania
|
CWM-100 |
|
WEB
|
Supported
|
