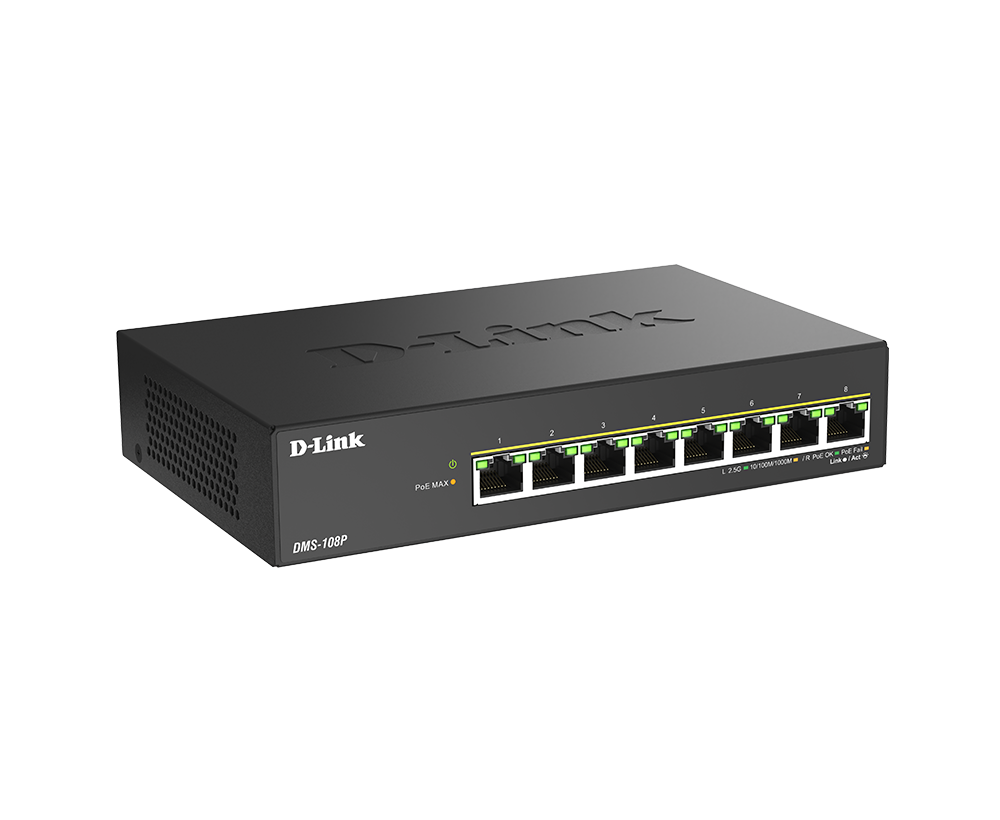

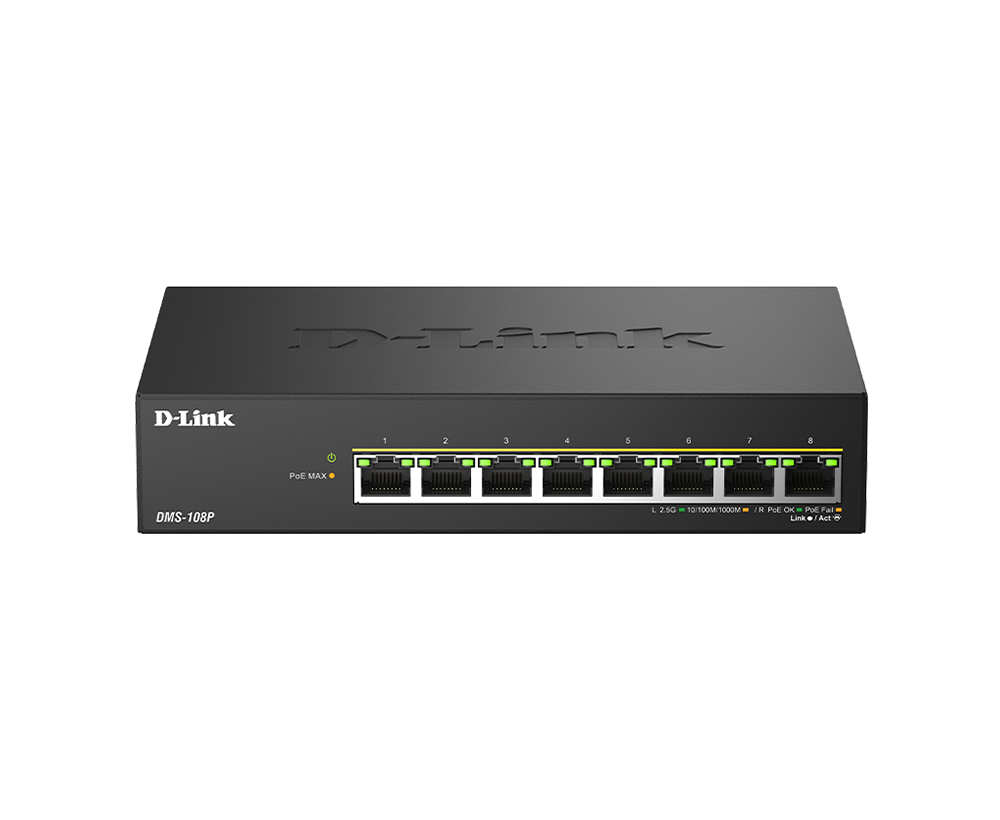

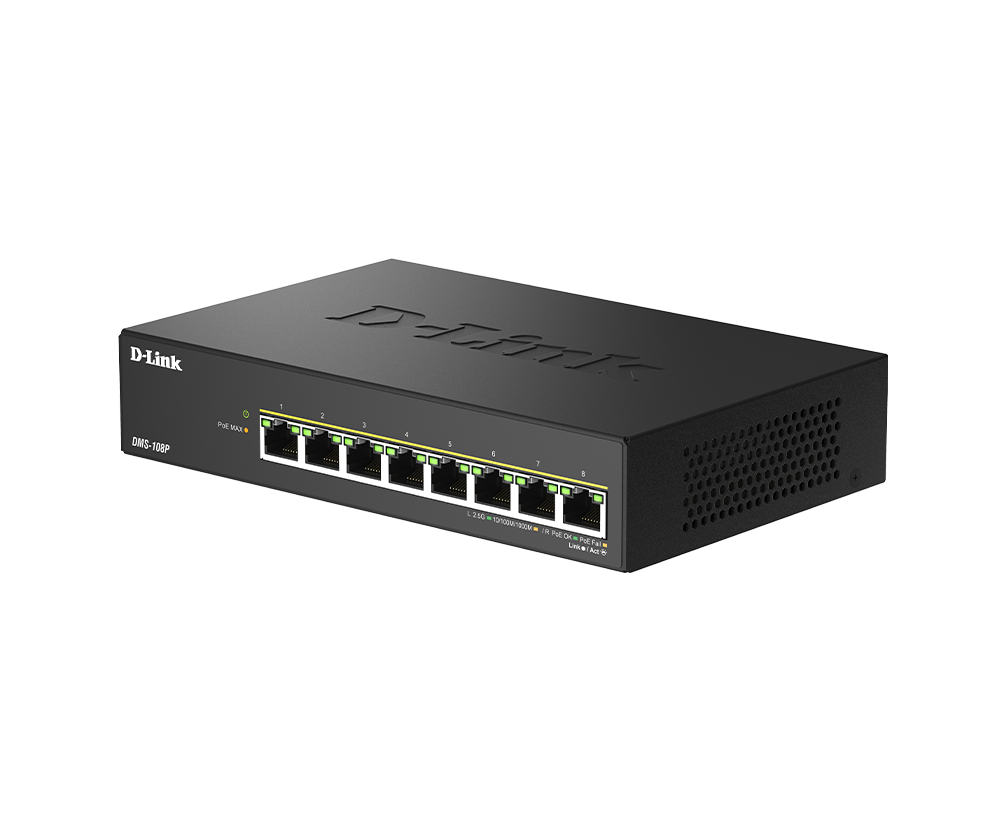

8-Port Desktop Multi-Gigabit PoE++ Unmanaged Switch
DMS-108P
- Product Status (A1 v1.00): Live
- 8-port 2.5GE connectivity for high performance networking
- IEEE 802.3af/at/bt PoE (up to 90W/port), 230W power budget
- Plug and Play simplicity for easy installation
- Fanless design for enhanced reliability and silent performance
- Durable metal housing enhances product durability
- IGMP snooping for optimized bandwidth utilization
- Auto MDI/MDI-X crossover on all ports simplifies setup
- IEEE 802.3x flow control prevents packet loss
- Quality of Service (QoS) ensures uninterrupted connectivity
- IEEE 802.3az reduces power consumption and operating cost
Alle Verkooppunten
User Benefits
Plug & Play
Easy installation with no configuration required
Multi-Gigabit
Multi-Gigabit ports for high data rate transmission
High Power Budget
230W PoE total budget to power more devices
IEEE802.3bt
Up to 90W per port enables high-power devices (PD)
Multicast Optimization
IGMP snooping feature prevents network flooding
Silent Operation
Fanless design for a noise-free working environment

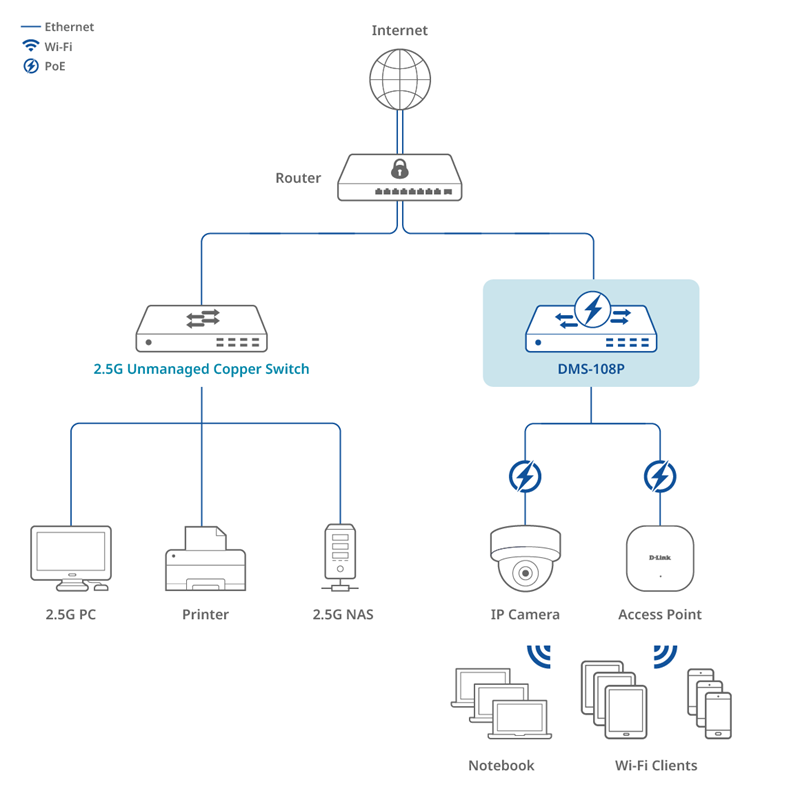

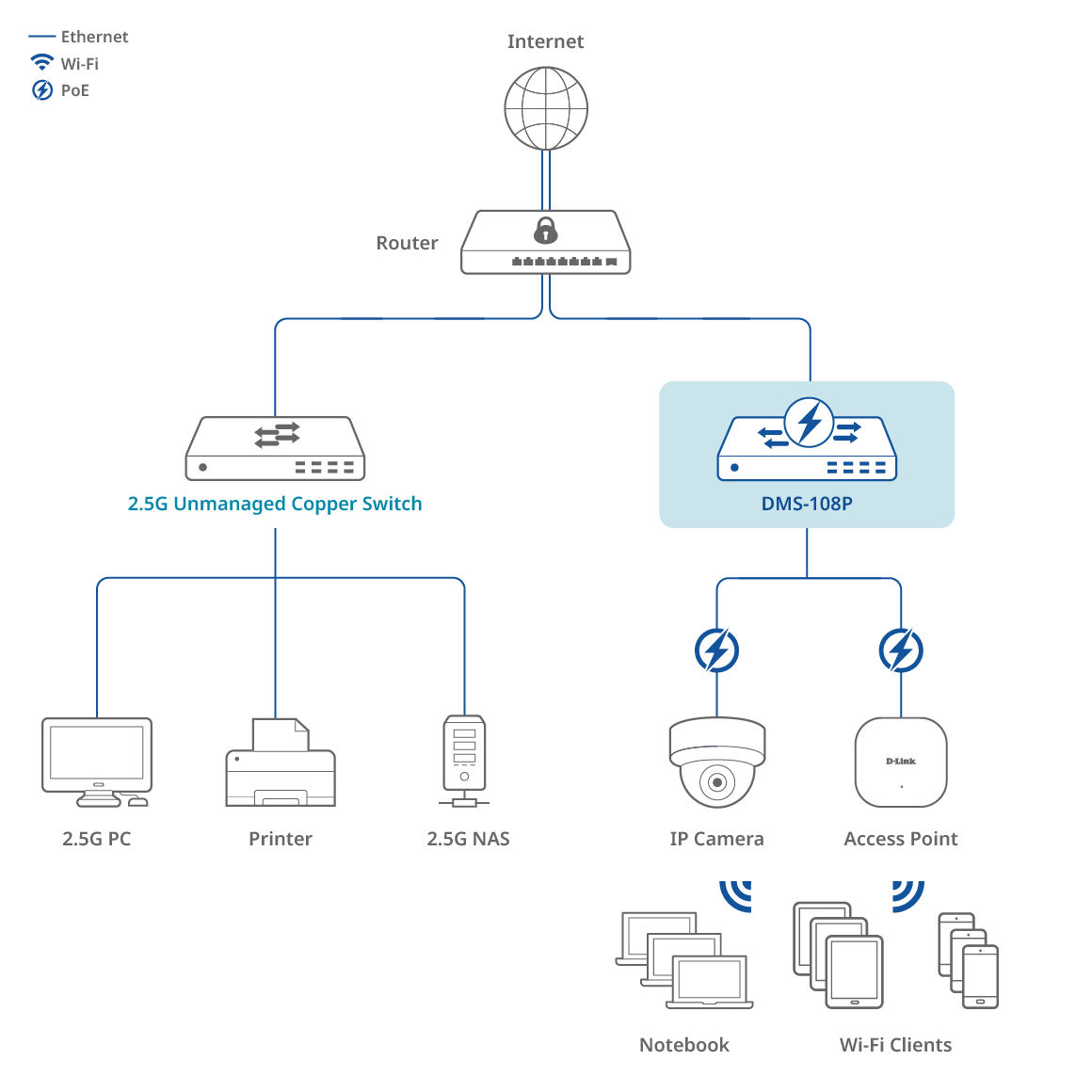

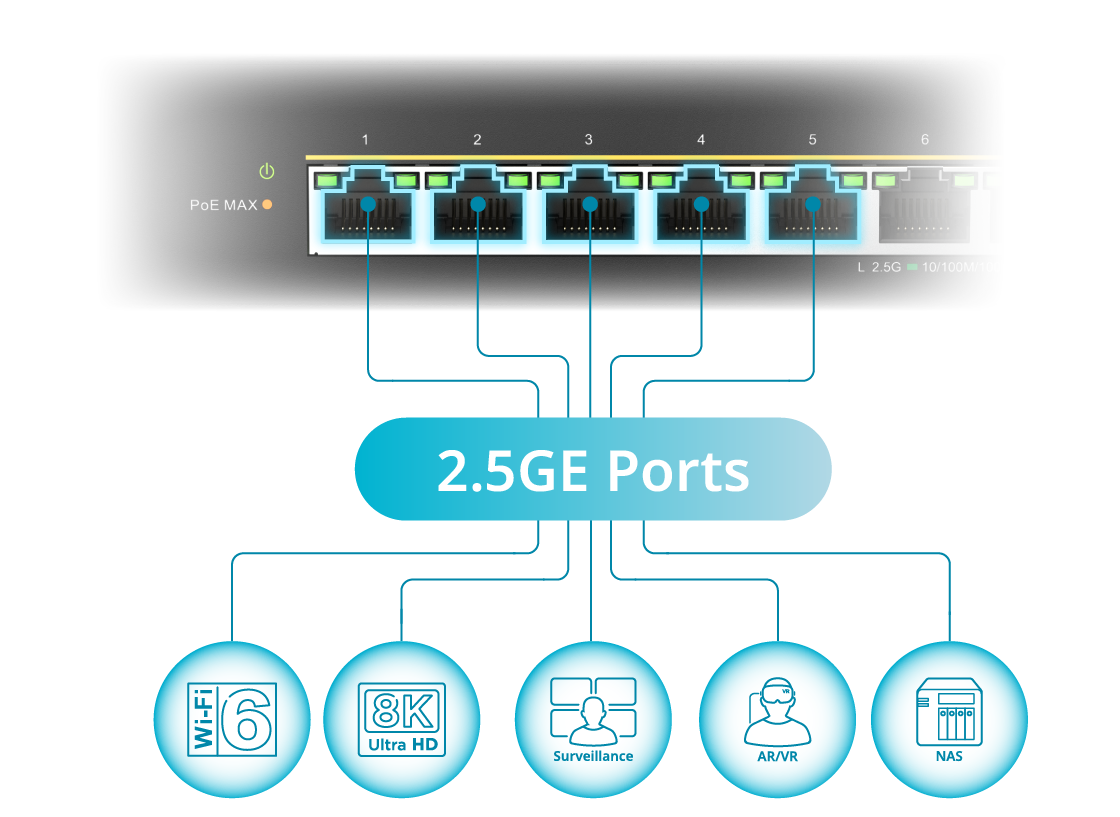

Unleash Wi-Fi 6 via 2.5G Ports
As Wi-Fi 6 (802.11ax) delivers ultra-fast speeds and low latency, standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, unlocking the full potential of Wi-Fi 6 for smoother 4K/8K streaming, HD surveillance, AR/VR gaming, data transfer, and data-intensive environments. Future-proof your network and experience Wi-Fi 6 at its best—fast, reliable, and unrestricted.
Small Size, Big Power
The DMS-108P with IEEE 802.3bt (PoE++) delivers up to 90W per port with a 230W total power budget, enabling high-performance devices without additional power supplies. Ideal for Wi-Fi 6 access points, PTZ cameras, kiosks, smart LED lighting systems, and much more. PoE++ simplifies installation, reduces cabling costs, and enhances energy efficiency.
Smarter Multicast, Smoother Performance
The DMS-108P enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

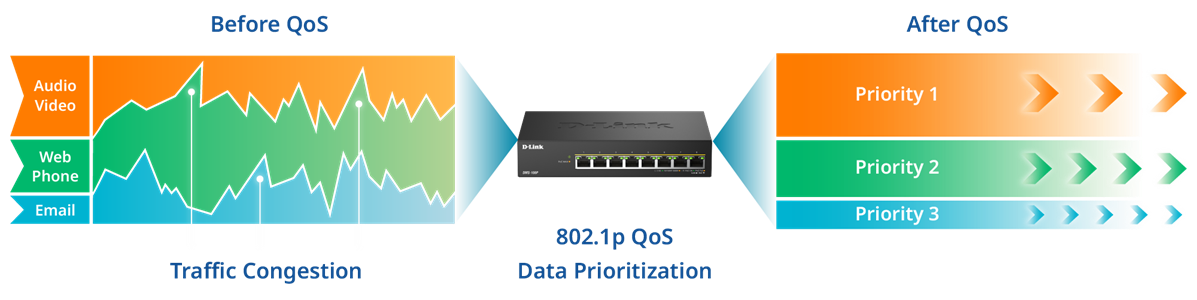

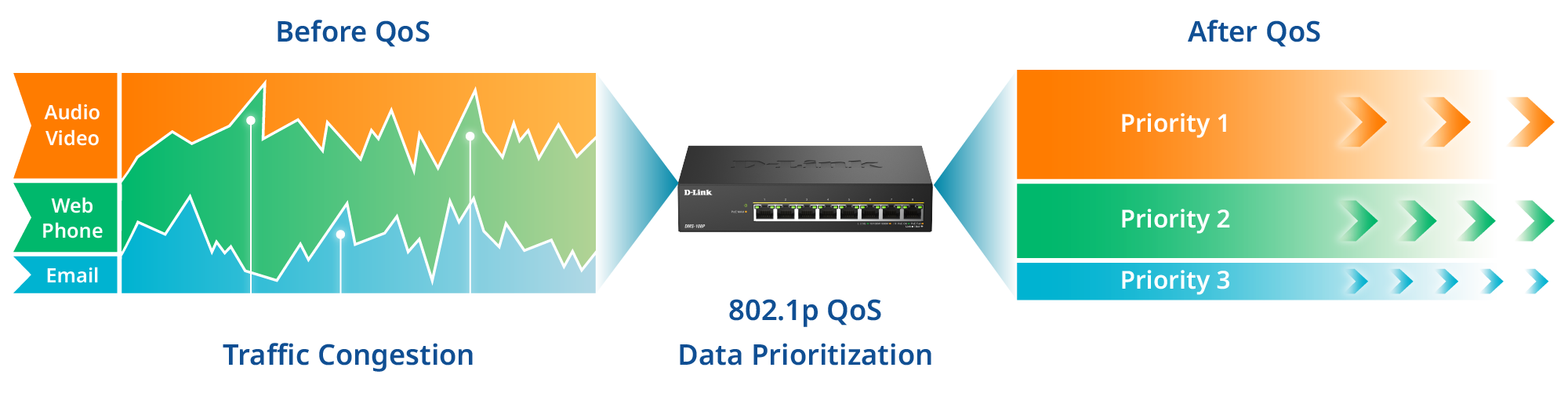

Prioritize Traffic for Optimized Performance
With the DMS-108P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.
Gerelateerde Producten
5-poorts 2,5G Multi-Gigabit Desktop Switch
DMS-105
7-Poort Multi-Gigabit Unmanaged Switch
DMS-107
8-poorts 2,5G Multi-Gigabit Desktop Switch
DMS-108
Specs
|
Number of Fast Ethernet ports
|
0 |
|---|---|
|
Number of Gigabit ports
|
0 |
|
Number of Combo 1000BASE-T/SFP ports
|
0 |
|
Number of SFP ports
|
0 |
|
Number of 2.5 GBASE-T ports
|
8 |
|
Number of 10GBASE-T ports
|
0 |
|
Switching Capacity
|
40 Gbps |
|
PoE Standards
|
802.3af, 802.3at, 802.3bt |
|
PoE Power Budget
|
230W |
|
PoE capable ports
|
Port 1-8, up to 90 W |
|
Fanless
|
Supported
|
|
D-Link Green
|
Supported
|
|
802.3az EEE
|
Supported
|
|

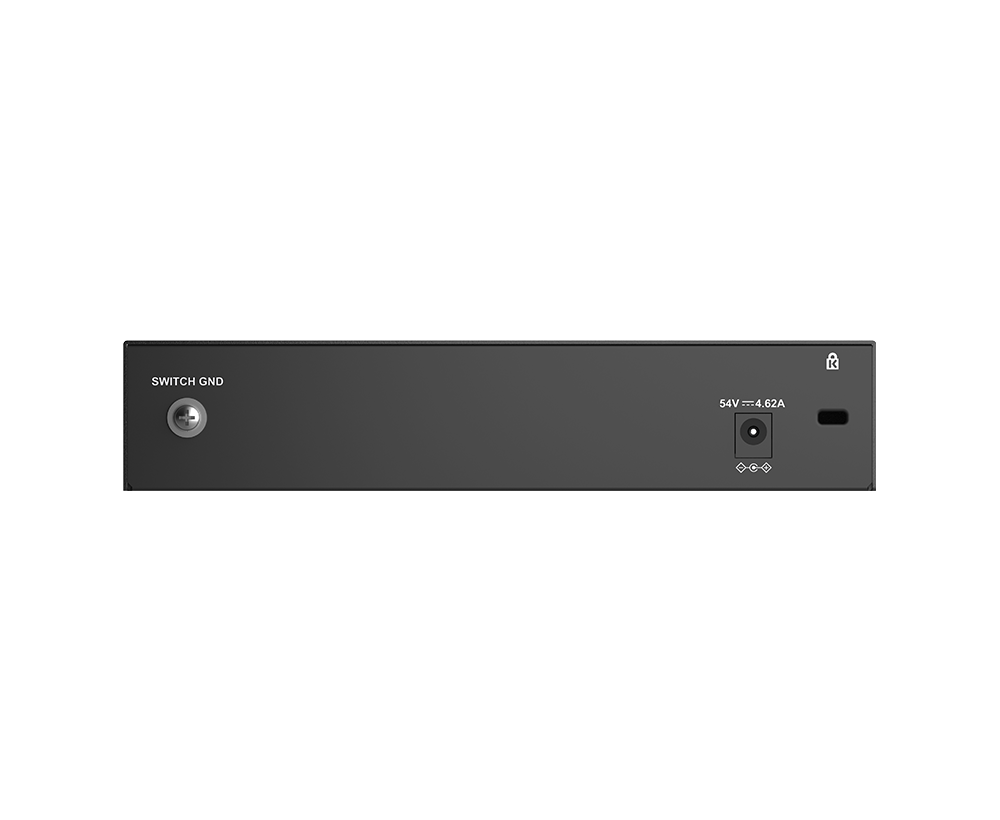

Power Supply Type
|
External |
|
MAC address
|
4K |
|
802.1p QoS
|
Supported
|
