xStack Gigabit L2+ Stackable Managed Switches

DGS-3420 Series

  • Product Status (Revision B1): End of Sale

There's a new version of this product:

Gigabit Layer 3 Stackable Managed Switches

DGS-3130 Series

See Newer Product

There's a new version of this product:

DGS-3130 Series

Gigabit Layer 3 Stackable Managed Switches

Overzicht

  • Unified software image met krachtige L2- en L3-functies
  • 6x 10 Gigabit-poorten
  • 6kV overspanningsbeveiliging voor Gigabit Ethernet-poorten
  • Power over Ethernet (PoE) opties, tot 740W met RPS
  • D-Link Safeguard Engine
  • Beperkte levenslange garantie na registratie

See Newer Product

Overzicht

  • Unified software image met krachtige L2- en L3-functies
  • 6x 10 Gigabit-poorten
  • 6kV overspanningsbeveiliging voor Gigabit Ethernet-poorten
  • Power over Ethernet (PoE) opties, tot 740W met RPS
  • D-Link Safeguard Engine
  • Beperkte levenslange garantie na registratie

See Newer Product

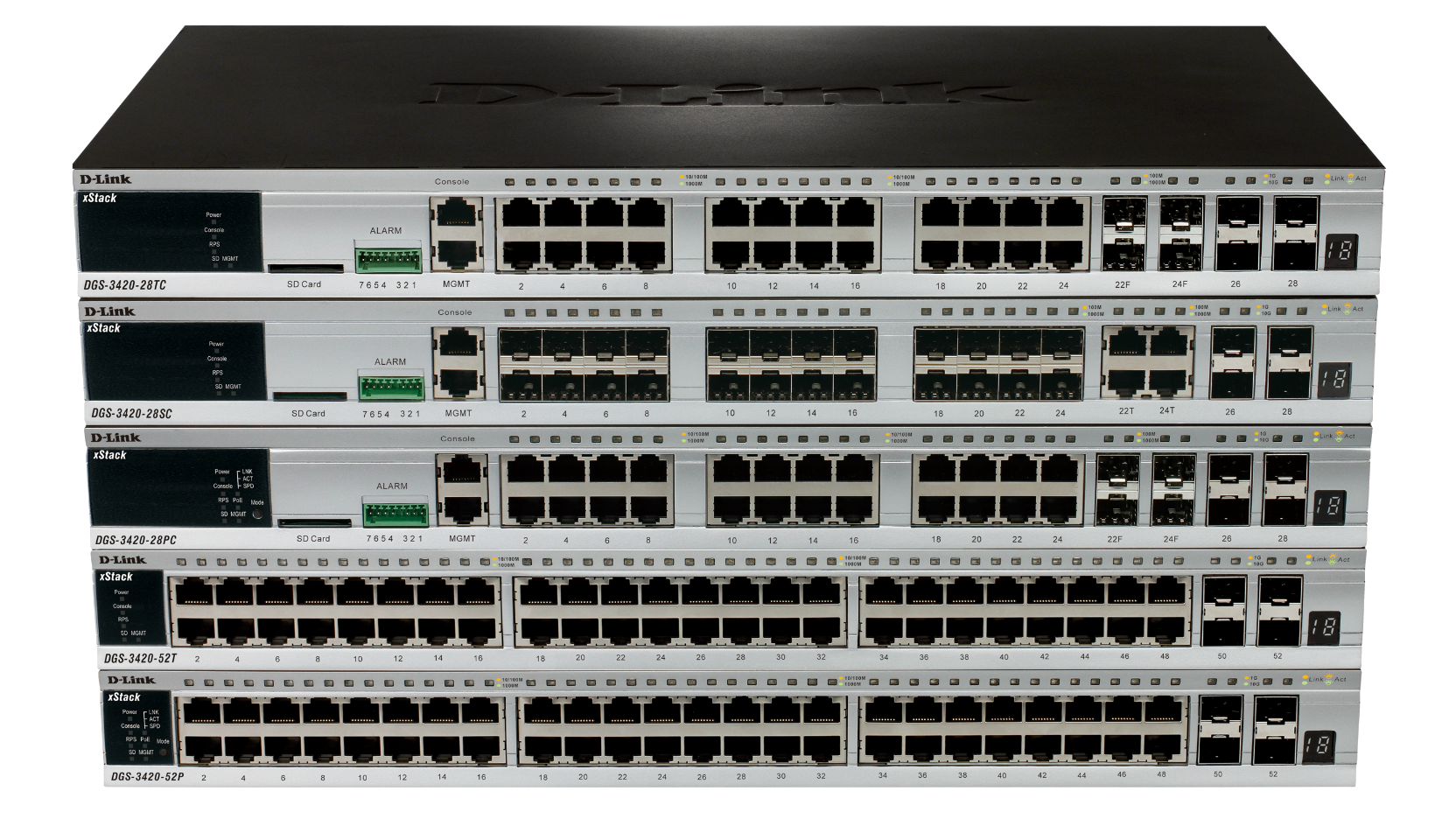

The DGS-3420 Series xStack Gigabit L2+ Stackable Managed Switches consists of:

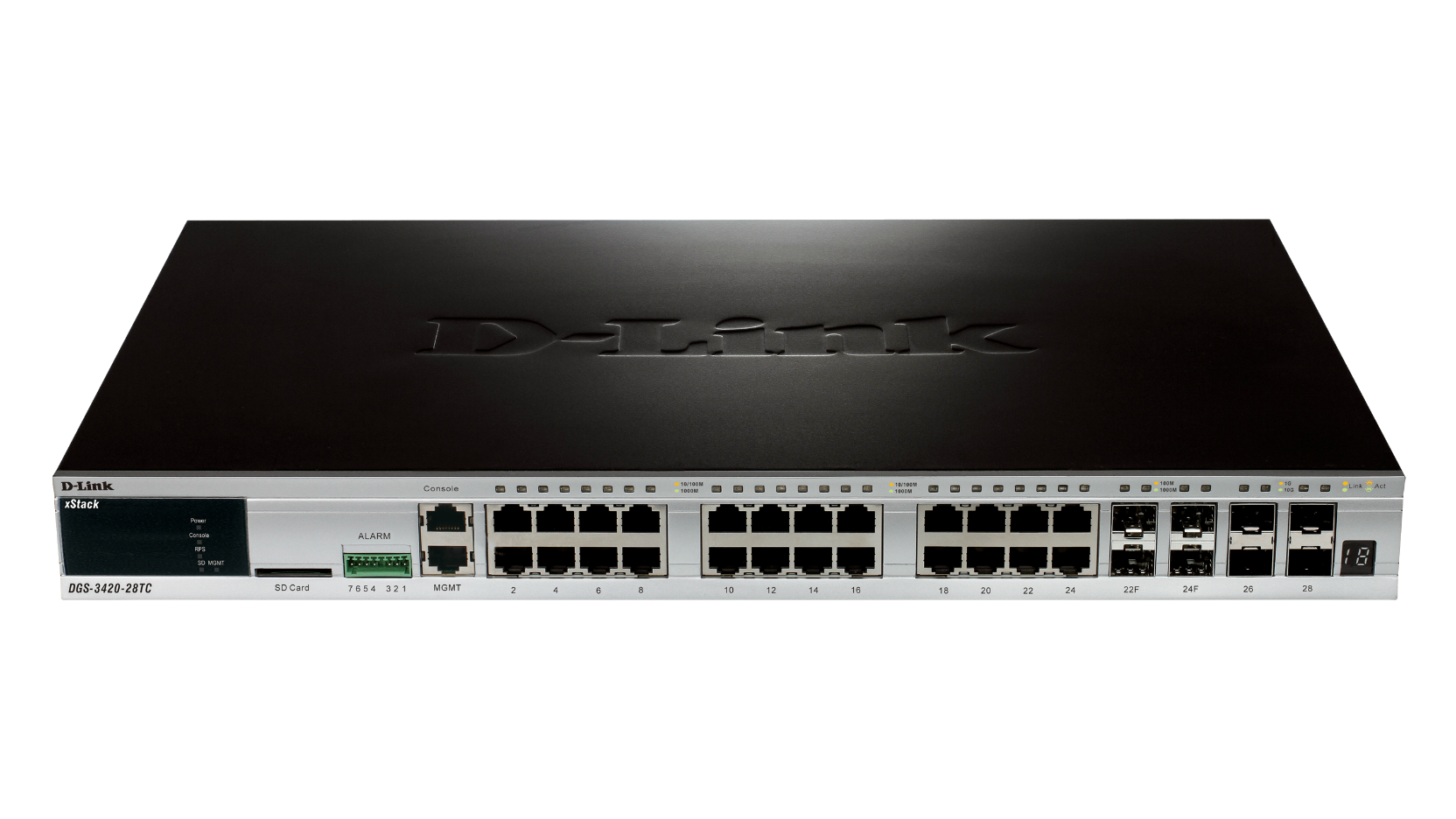

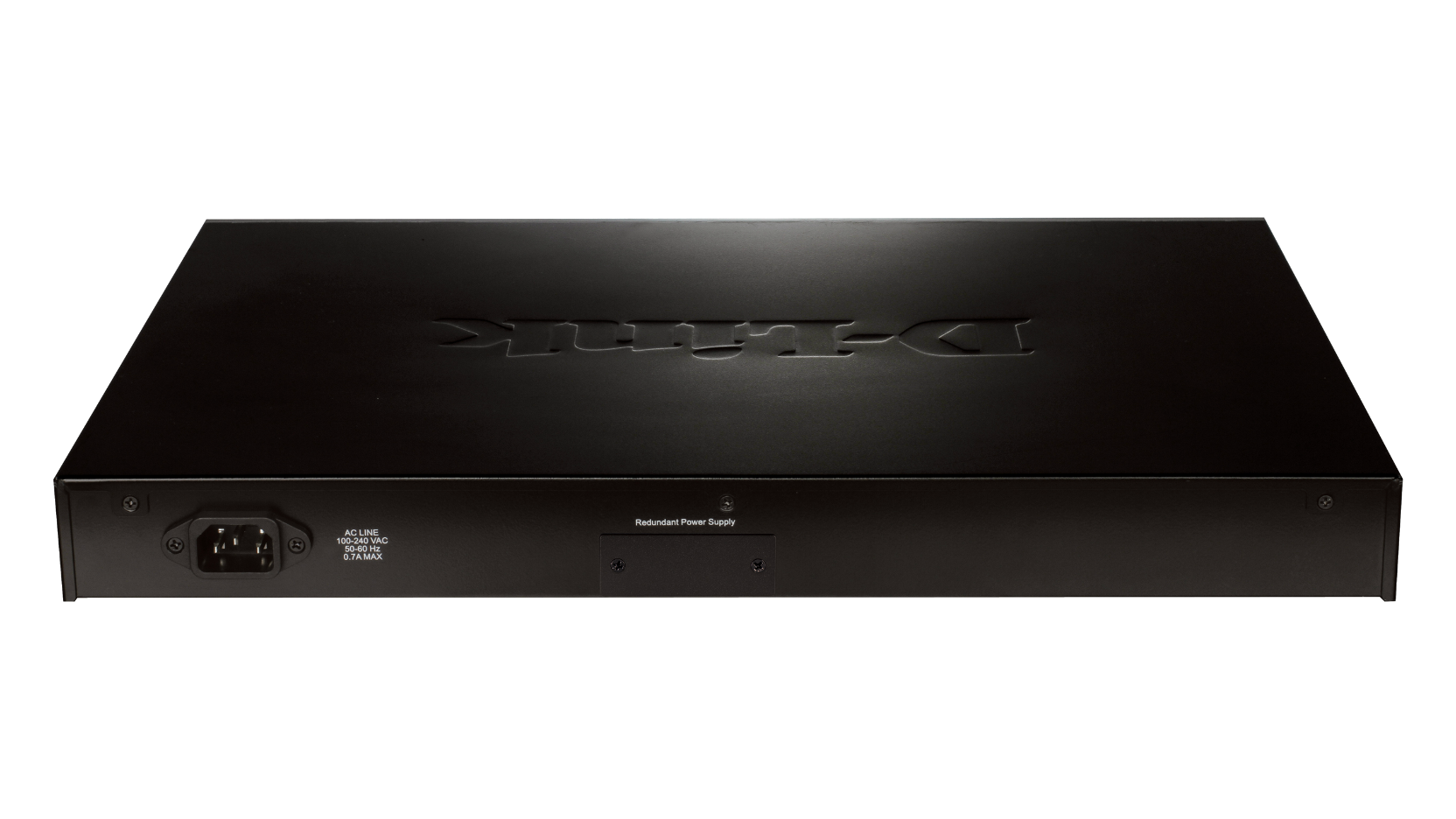

  • DGS-3420-28TC: 28-Port Gigabit L2+ Stackable Managed Switch including 4 x Combo 1000BASE-T/SFP ports and 4 x 10 Gbps SFP+ ports

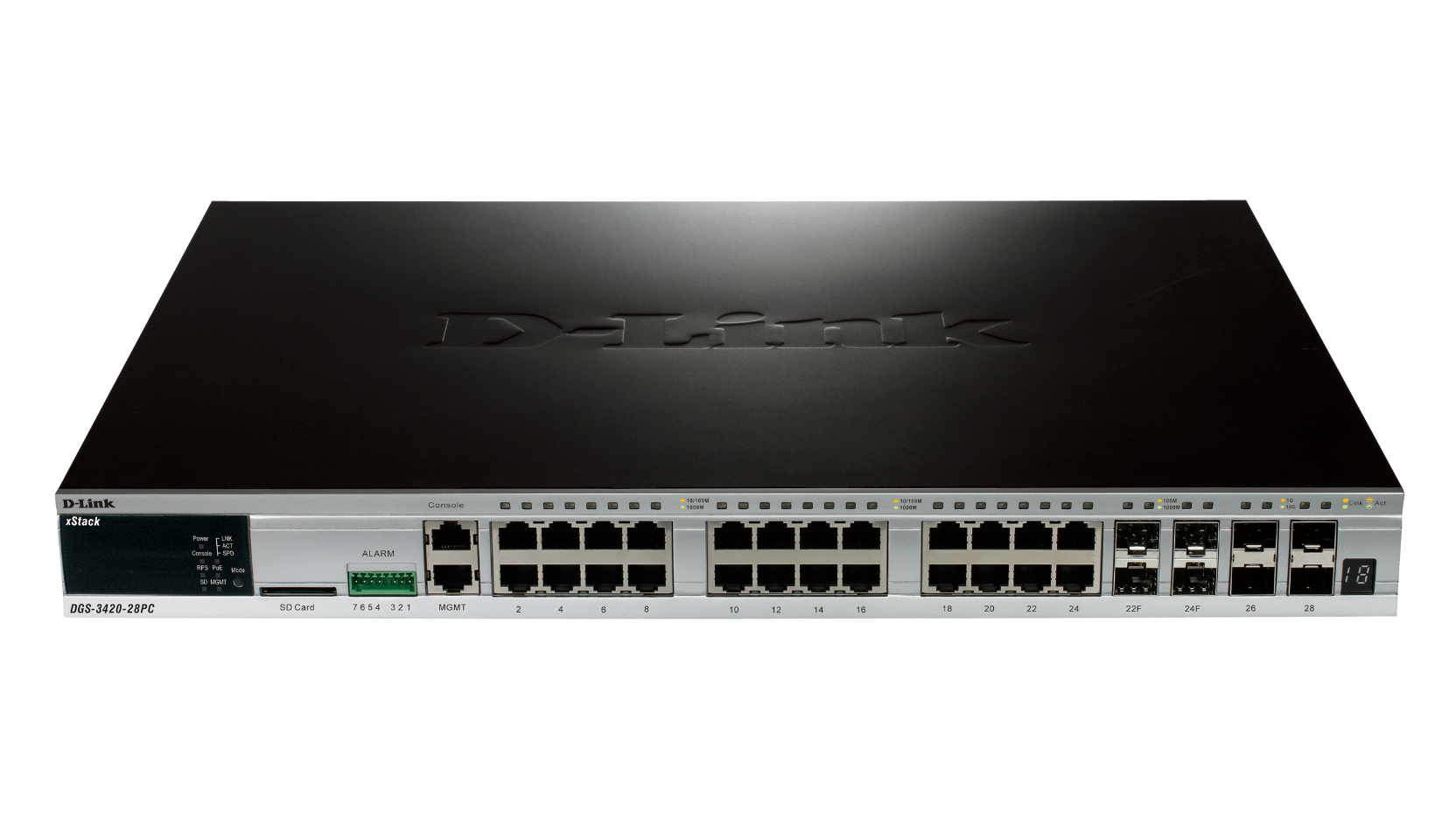

  • DGS-3420-28PC: 28-Port Gigabit L2+ Stackable Managed PoE Switch including 4 x Combo 1000BASE-T/SFP ports and 4 x 10 Gbps SFP+ ports (24 x PoE ports)

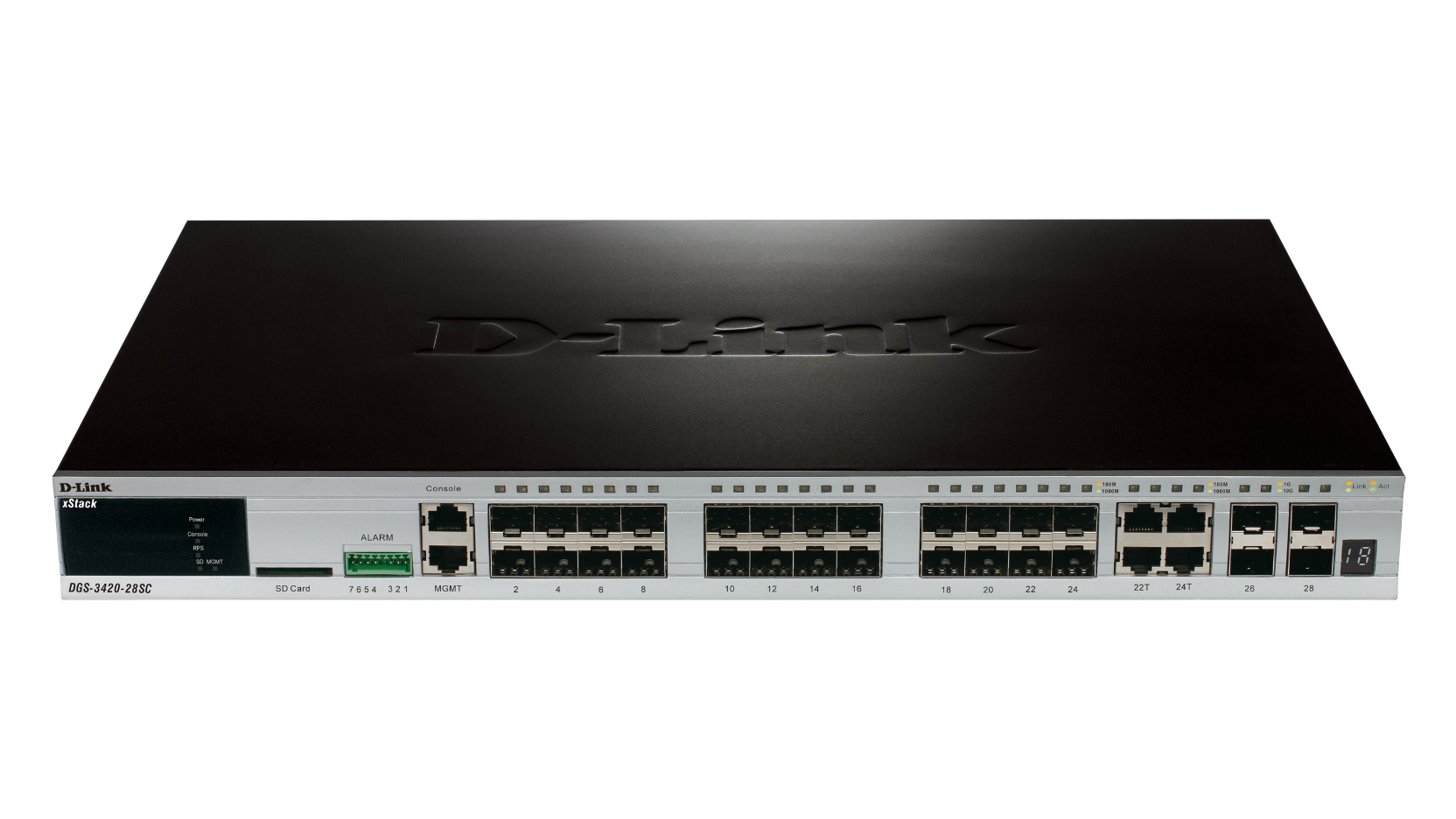

  • DGS-3420-28SC: 28-Port Gigabit SFP L2+ Stackable Managed Switch including 4 x Combo 1000BASE-T/SFP ports and 4 x 10 Gbps SFP+ ports

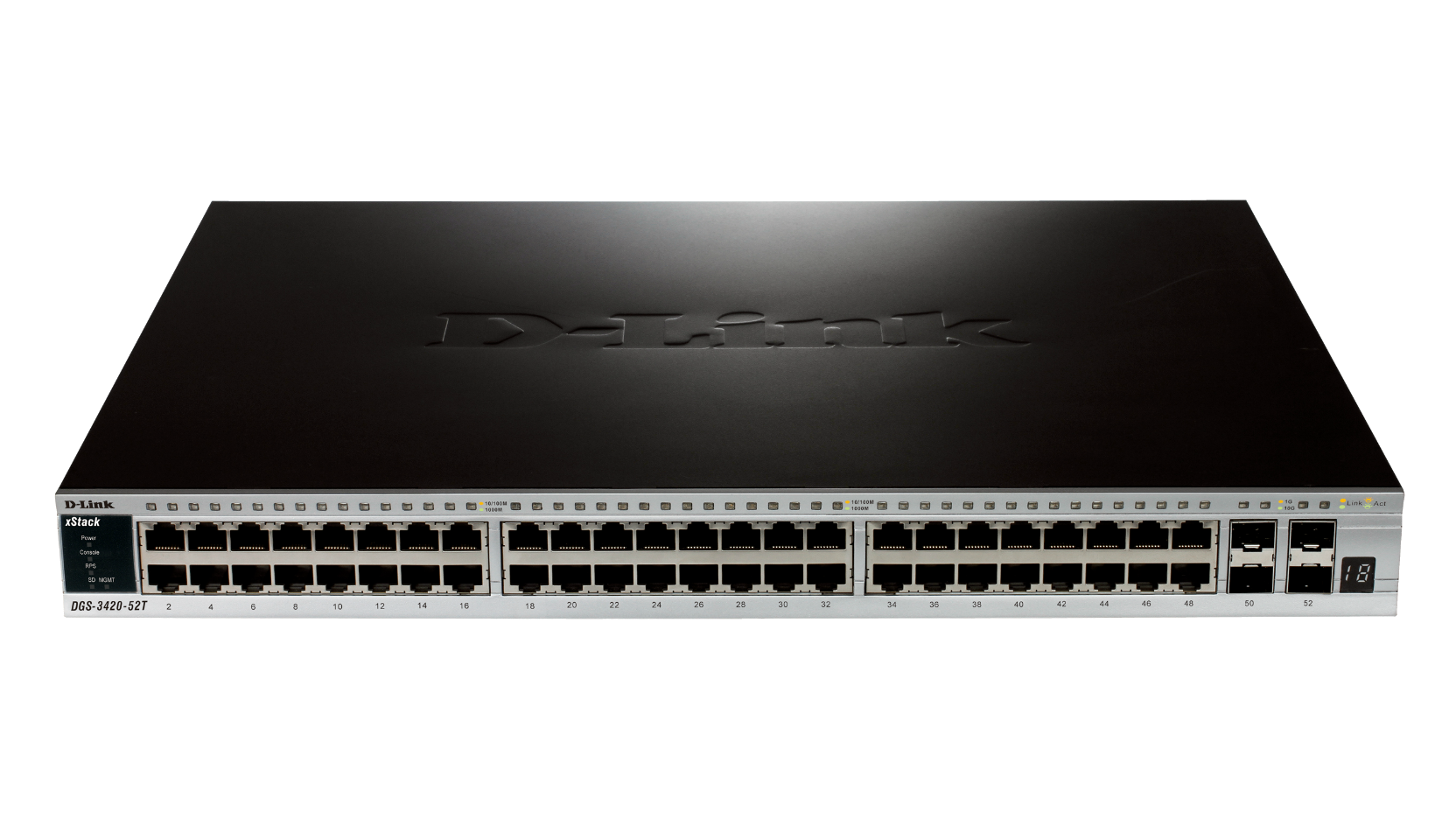

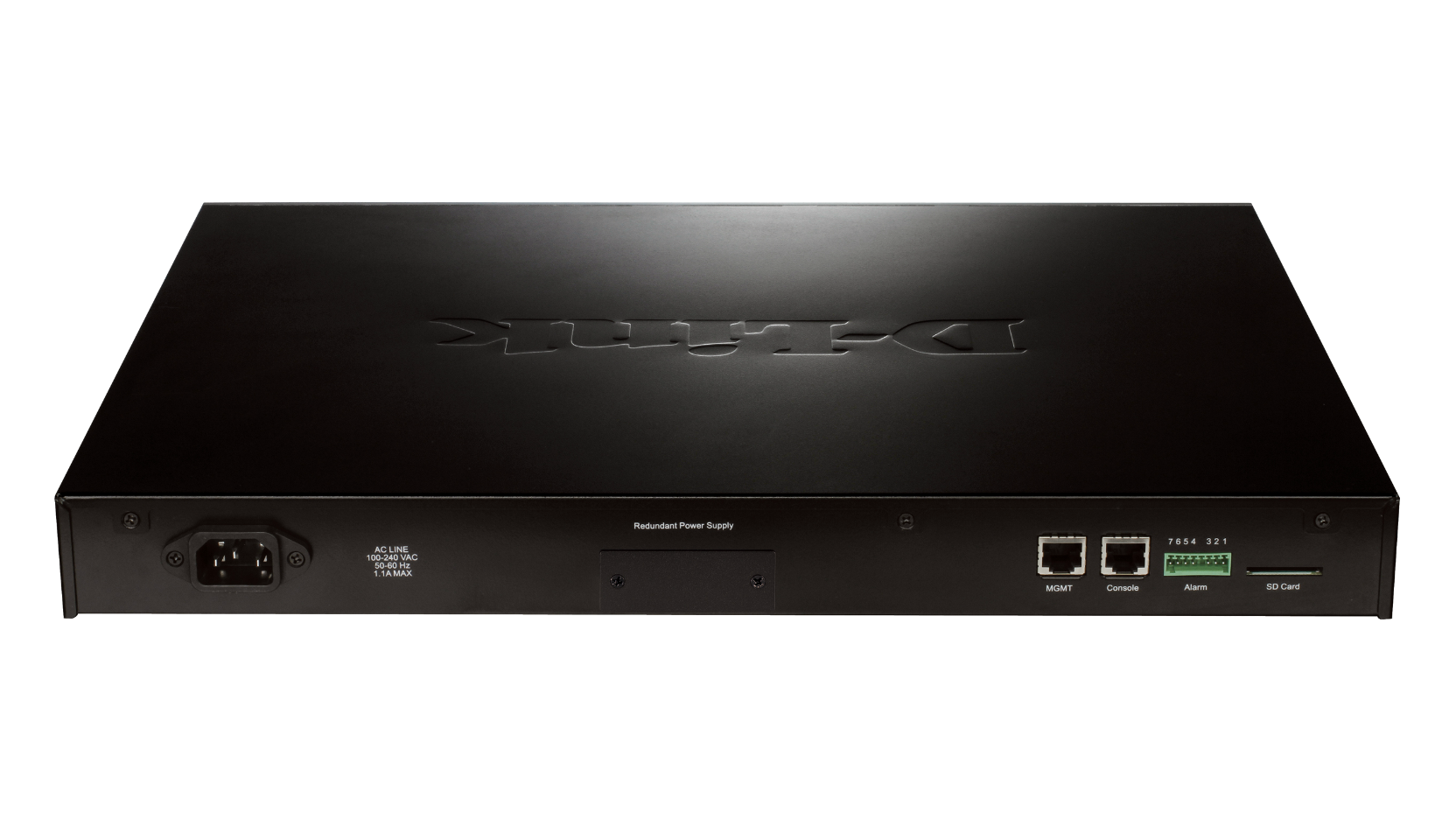

  • DGS-3420-52T: 52-Port Gigabit L2+ Stackable Managed Switch including 4 x 10 Gbps SFP+ ports

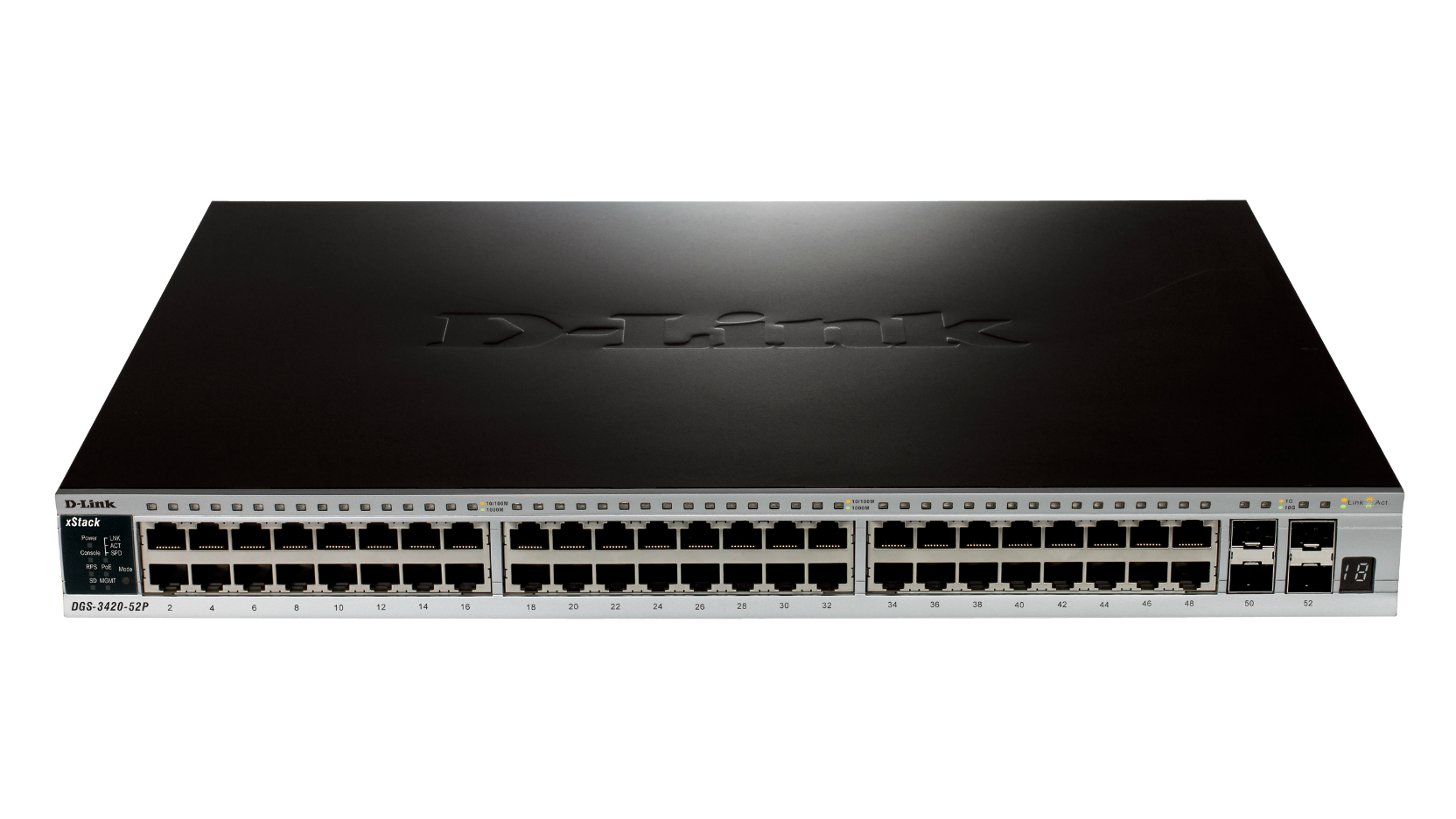

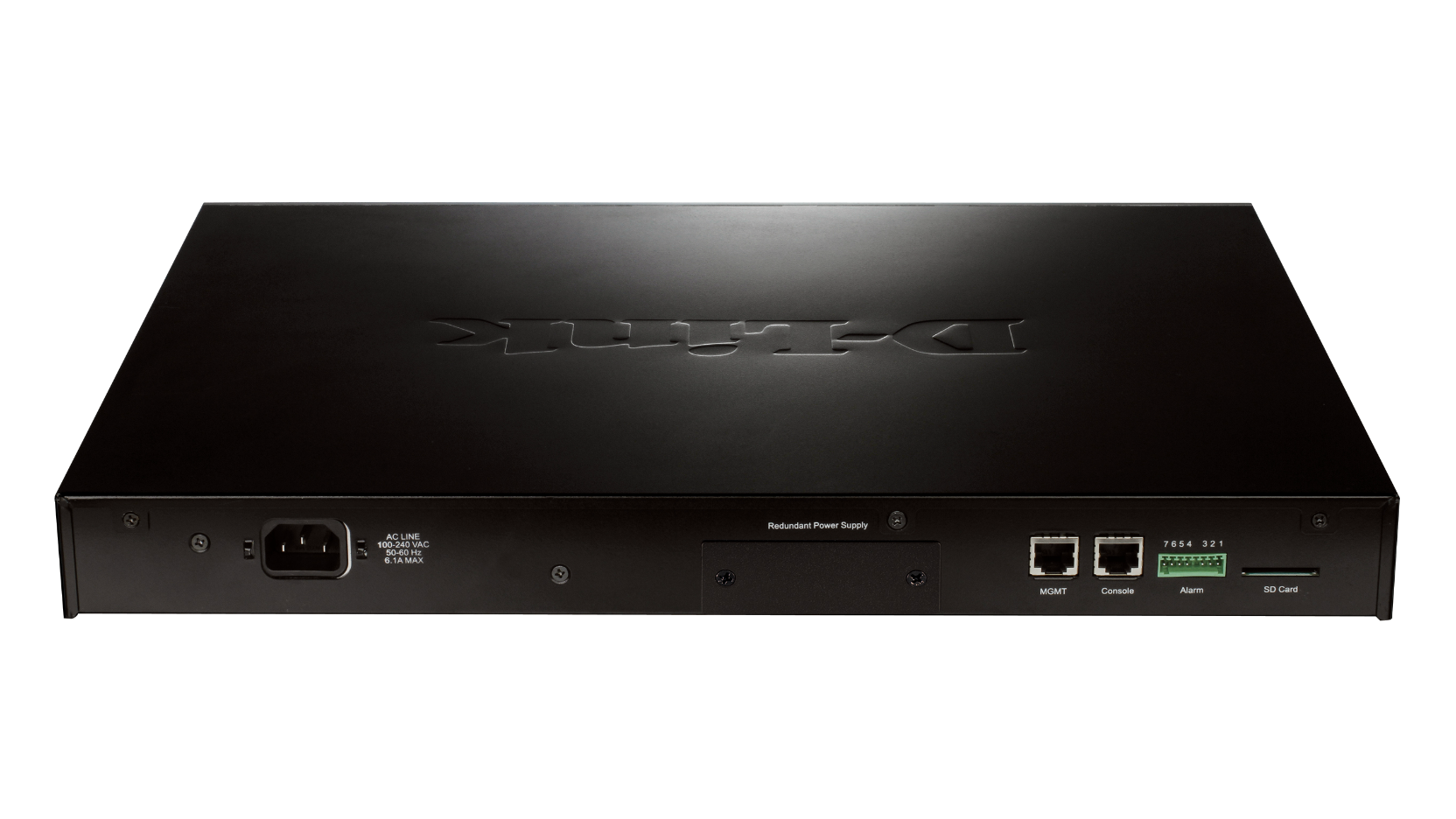

  • DGS-3420-52P: 52-Port Gigabit L2+ Stackable Managed PoE Switch including 4 x 10 Gbps SFP+ ports (48 x PoE ports)



The xStack DGS-3420 series of next generation Layer 2+ Gigabit switches delivers performance, flexibility, security, multi-layer QoS, and accessibility, along with redundant power solutions for SMBs and enterprises. With high Gigabit port densities, Gigabit SFP, 10-Gigabit SFP+ support, and advanced software solutions, these switches can act as either departmental access layer devices or aggregation switches to form a multilevel network structured with backbone and centralised high-speed servers.

Service providers can take advantage of the high SFP density switches (DGS-3420-28SC) to structure the aggregation of Fiber to the Building (FTTB) networks that are extended to the subscribers’ sites.

Unparalleled Flexibility

Easily deployed and simple to manage, the DGS-3420 can be stacked with any switch that supports D-Link’s Single IP Management to form a multi-level network structured with backbone and centralised high-speed servers. The virtual stack can include units located anywhere on the same network domain, and uses optional 10-Gigabit uplinks to move intra-stack traffic at 20 Gbps full duplex speeds.

Redundant Ring Stacking

Alternatively, depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. 12 units or 576 Gigabit ports can be configured for a stack using direct attach cables to provide high bandwidth on the DGS-3420 Series with cost efficiency.

Security, Performance & Availability

The DGS-3420 Series provides a complete set of security features including L2/L3/L4 multi-layer Access Control Lists and 802.1X user authentication via TACACS+ and RADIUS servers.

The DGS-3420 Series offers extensive VLAN support including GVRP and 802.1Q VLAN to enhance security and performance. A robust set of L2/L3/L4 QoS/CoS solutions help ensure that critical network services such as VoIP, ERP, Intranet, and video conferencing are served with proper priority. The series also provides D-Link’s Safeguard Engine to increase the switch’s reliability, serviceability, and availability to prevent malicious flooding traffic caused by worms or virus infections. Bandwidth Control can be flexibly set for each port using pre-defined thresholds to assure a committed level of service for endusers. For advanced applications, flow-based bandwidth control allows easy fine-tuning of service types based on specific IP addresses or protocols.

IPv6 Technology

The DGS-3420 Series also features comprehensive IPv6 support, including IPv6 Tunnel, ICMPv6, DHCPv6, RIPng, IPv4/IPv6 dual stack, and more. With 10-Gigabit connectivity and IPv6 support, the series enables you to future-proof your network for cost efficiency and longevity while meeting the requirements that future IPv6-capable network devices require.

D-Link Green Technology

D-Link is striving to take the lead in developing innovative and power-saving technology that does not sacrifice operational performance or functionality. The DGS-3420 Series implements D-Link Green technology, which includes power saving through link status, smart fan design, increased heat dissipation, and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner. The Smart Fan design allows the built-in fans to automatically turn on only at a certain temperature, providing continuous, reliable, and eco-friendly operation of the switch.

Gerelateerde Producten

D-View 7 Network Management System
DV-700
Meer lezen
100 cm 10GbE Direct Attach SFP+ Cable
DEM-CB100S
Meer lezen
300 cm 10GbE Direct Attach SFP+ Cable
DEM-CB300S
Meer lezen
589 Watt Redundant Power Supply for D-Link Managed Switches
DPS-700
Meer lezen
SFP+ 10GBASE-SR Multi-Mode Fibre Transceiver (550m)
DEM-431XT
Meer lezen
Type
Managed
Number of ports
16 to 30 ports
48 to 54 ports
Layer
Layer 2+
Stacking
Physical
Virtual
Main type of ports
1000BASE-T Gigabit Ethernet
SFP
Type of uplink ports
10GbE SFP+
Combo 1000BASE-T/SFP
Switching capacity
128 Gbps
176 Gbps
PoE options
802.3af
802.3at
Number of PoE ports
24
48
PoE power budget
See datasheet
See datasheet
D-Link Green
Supported
Form Factor
Rackmountable
Physical stacking
Up to 12 devices
Up to 40 Gbps bidirectional bandwidth
MAC address
16K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.1AX
802.3ad
VLAN group (max static)
4K
VLAN type
GVRP
MAC-based
Port-based
Protocol-based
Advanced VLAN
Double VLAN (Q-in-Q)
ISM VLAN
Voice VLAN
IPv4/IPv6 routing table
IPv4 - 1K
IPv6 - 512
IPv4/IPv6 forwarding table
IPv4 - 2K
IPv6 - 1K
IP interfaces
256
IPv6 Ready
Supported
Static route for IPv4/IPv6
IPv4 - 256
IPv6 - 128
RIP v1/v2
Supported
RIPng
Supported
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
1 Kbps minimum granularity
Time-based QoS
Supported
ACL type
Egress
Ingress
VLAN-based
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
BPDU attack protection
Supported
802.1X access control
Supported
Microsoft NAP support
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
sFlow
Supported
LLDP-MED
Supported
ICMPv6
Supported
802.3ah
Supported
802.1ag
Supported
ITU-T Y.1731
Supported
This product was phased out on: 11/05/2022
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 11/05/2027
