Megapixel Wireless Internet Camera


  • Product Status: End of Life
Full Duplex 2-way Audio

Listen and talk at the same time when connected to an external speaker.

Dual Mode Recording

Simultaneous MJPEG and MPEG-4 streams allow optimization of both image quality and bandwidth efficiency.

Low light recording

0.5 lux light sensitivity allows you to capture video in rooms with minimal lighting, making it ideal for use in low-light environments.

Product description

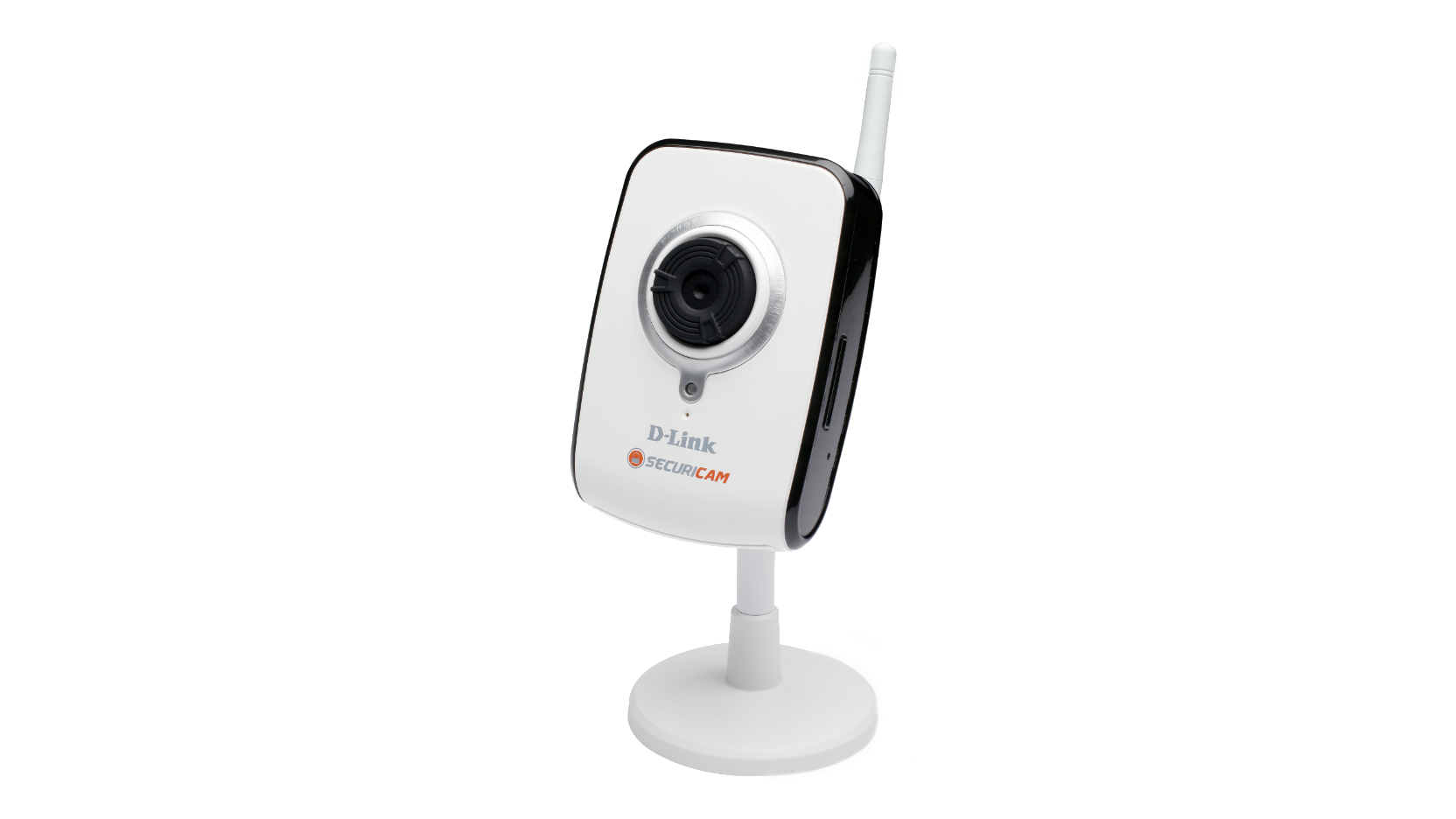

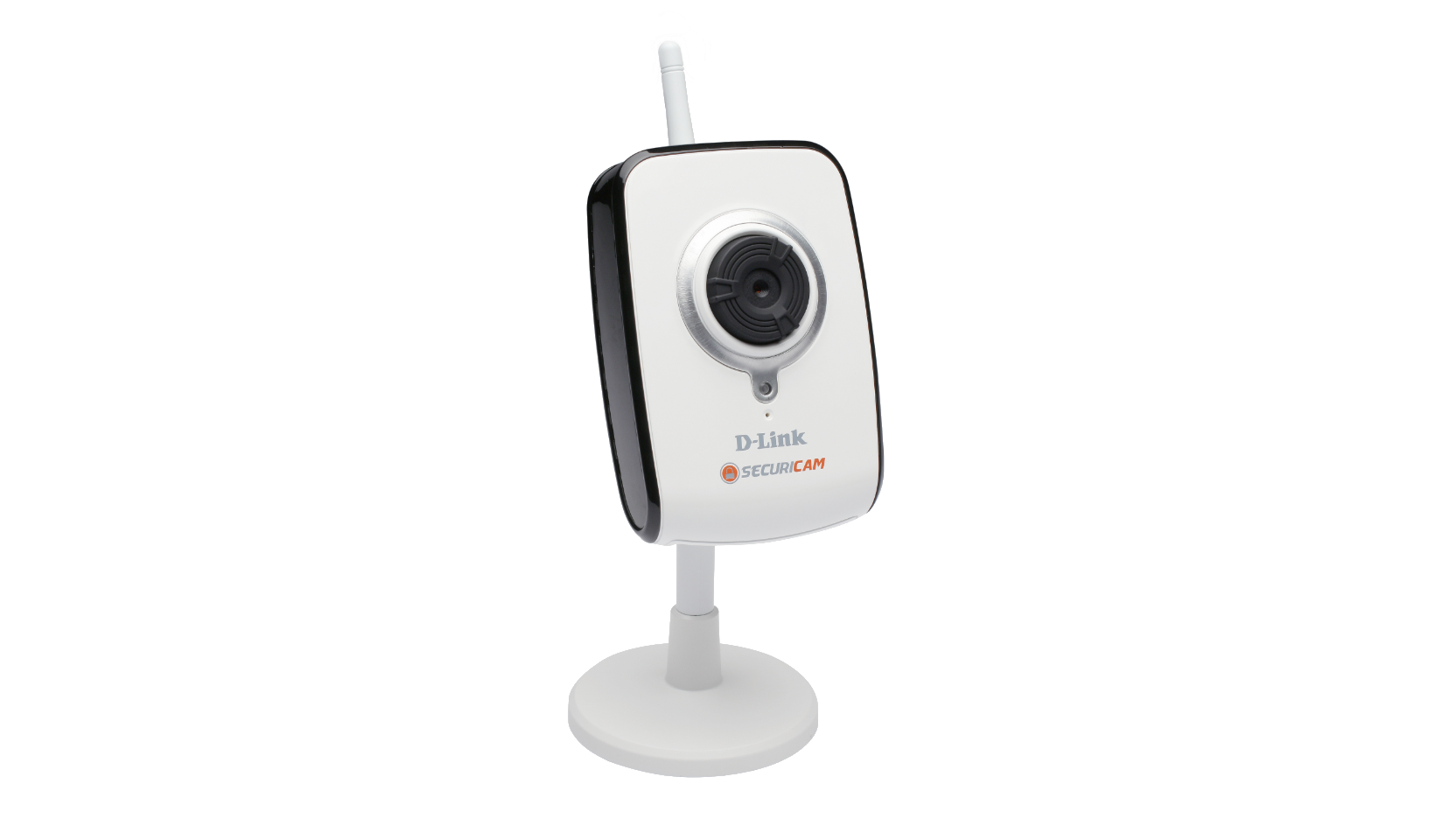

The DCS-2121 is a versatile and unique surveillance solution for your small office or home. Unlike a standard webcam, the DCS-2121 is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance. The DCS-2121 can be accessed remotely and controlled from any PC or notebook over the local network or through the Internet via a web browser. The simple installation and intuitive web based interface offer easy integration with your Ethernet/Fast Ethernet or 802.11g wireless network. The DCS-2121 also comes with remote monitoring and motion detection features for a complete and cost-effective home security solution.

Wireless G connectivity

The DCS-2121 offers both 802.11g wireless and Ethernet/Fast Ethernet connectivity, making the DCS-2121 easy to integrate into your existing network environment. The DCS-2121 works with a 10Mbps Ethernet based network or 100Mbps Fast Ethernet based network for traditional wired environments and works with 802.11g routers or access points for added flexibility. The Site Survey feature also allows you to view and connect to nearby wireless networks.

Snapshots, recording & storage

Using the Snapshot and recording features, you can save snapshots and record video and audio directly from the web browser to a local hard drive without installing any software, making it convenient to instantly capture any moment from a remote location. The DCS-2121 allows you to record directly to a local network area storage device without the use of a dedicated PC for storing recorded video.

Surveillance software

Included with DCS-2102/2121, D-ViewCam 2.0 IP camera surveillance software is a comprehensive surveillance system designed to centrally manage multiple IP cameras for home, Small Office and Home Office (SOHO), or Small and Medium Business (SMB) users. Supporting up to 32 IP cameras, D-ViewCam 2.0 is compatible with all current D-Link IP cameras, offering digital monitoring and recording capabilities of video, audio, and events for various security applications.

This software provides users with a wide array of features for added convenience, including video recording and playback, Video mode, Map mode, Wizard mode, Expert mode, Event Action, and more, offering users powerful surveillance software that’s easy to use.
OS Support

  • Device: Windows 2000 / Windows XP /Windows Vista / 3GPP
  • Utility: Windows 2000 / Windows XP /Windows Vista

Networking Protocol

  • DHCP Client
  • NTP Client
  • DNS Client
  • DDNS Client
  • SMTP Client
  • FTP Client
  • HTTP Server
  • Samba Client
  • PPPoE + RTP
  • 3GPP


  • 10/100BASE-TX port
  • IEEE 802.3 compliant
  • IEEE 802.3u compliant
  • Supports Full-Duplex operation
  • MDI/MDIX auto-negotiation
  • 802.3x Flow Control support for Full-Duplex mode

Wireless Connectivity

  • 802.11b/g Wireless with WEP/WPA/WPA2 Security

Wireless transmit output power

  • 16dbm for 11b, 12dbm for 11g (typical)

Wireless receiver sensibility

  • (11g Packet Error Rate < 10%) 54Mbps: <-66dbm
  • (11b Packet Error Rate < 8%) 11Mbps: < -82dbm


  • Video: MPEG-4/MJPEG
  • Audio: GSM-AMR: 8kbps, ADPCM: 8Kbps


  • ¼ inch color 1.3MP CMOS Sensor


  • 64 Mbytes

Flash Memory

  • 8 Mbytes

SD-Card slot

  • Supports up to 16GB


  • Focal Length: 5.01mm, F2.8


  • 50dB +/- 3dB, Omni-directional

I/O connectors

  • 1 Input (photo relay, active high 12V, +/-3V, dropout: 0 VDC)
  • 1 Output (photo relay, Close circuit current: AC 70mA or DC 100mA; 40Ohm; Open circuit voltage: 240 VAC or 350VDC)

Audio out

  • Yes

Reset button

  • Reset to factory default

Video algorithm supported

  • MPEG-4/MJPEG simultaneous dualformat compression
  • JPEG for still image

Video features

  • Adjustable image size and quality
  • Time stamp and text overlay
  • Flip and Mirror

Video resolution

  • VGA (640 X 480)
  • 640 x 480 at 30fps
  • 320 x 240 at 30fps
  • 160 x 120 at 30fps
  • XGA (1024 X 768)
  • 1024 x 768 at 10fps
  • 512 x 384 at 10fps
  • 256 x 192 at 10fps
  • SXGA (1280 x 1024)
  • 1280 x 1024 at 10fps


  • 0.5 lux @ F2.8

3A Control

  • AGC (Auto Gain Control)
  • AWB ( Auto White Balance)
  • AES (Auto Electronic Shutter)


  • 50~16000Hz

Signal/Noise Ratio

  • 50dB +/- 3dB, Omni-directional


  • External AC-to-DC Switching Power Adapter (Input 100-240VAC / Output 5VDC, 2.5A)

Dimension (WxDxH)

  • 71.9mm x 110.0mm x 37mm (without bracket and stand)


  • DCS-2121: 281.4g (without bracket and stand)

Operation Temperature

  • 0˚ to 40˚C (32˚ to 104˚F)

Storage Temperature

  • - 20˚ to 70˚C (-4˚ to 158˚F)


  • 20-80% RH non-condensing

Emission (EMI), Safety & other certifications

  • FCC Class B
  • IC
  • C-Tick
  • CE

This product was phased out on: 10/07/2012
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 10/07/2014
Versie Datum Type Bestandsgrootte
Datasheet (English) - PDF 0.46mb Download
Versie Beschrijving Datum Type Bestandsgrootte
D View Cam Manual (English) D View Cam Manual (English) - PDF 13.84mb Download
Manual (English) Manual (English) - PDF 3.83mb Download
Versie Beschrijving Datum Type Bestandsgrootte
Quick installation guide Quick Installation Guide (English) - PDF 5.87mb Download
Versie Beschrijving Datum Type
Firmware 1.06.7712


3-6-2013 - Download
Firmware 1.06.5731 Firmware 22-5-2012 - Download
Versie Beschrijving Datum
Setup Wizard 1.04 Setup Wizard 19-4-2011 Download
Versie Beschrijving Datum
DEU_CE_Declration_A3 CE Declaration 25-2-2011 Download
DEU_CE_Declaration_RevA1 CE Declaration 9-9-2009 Download
