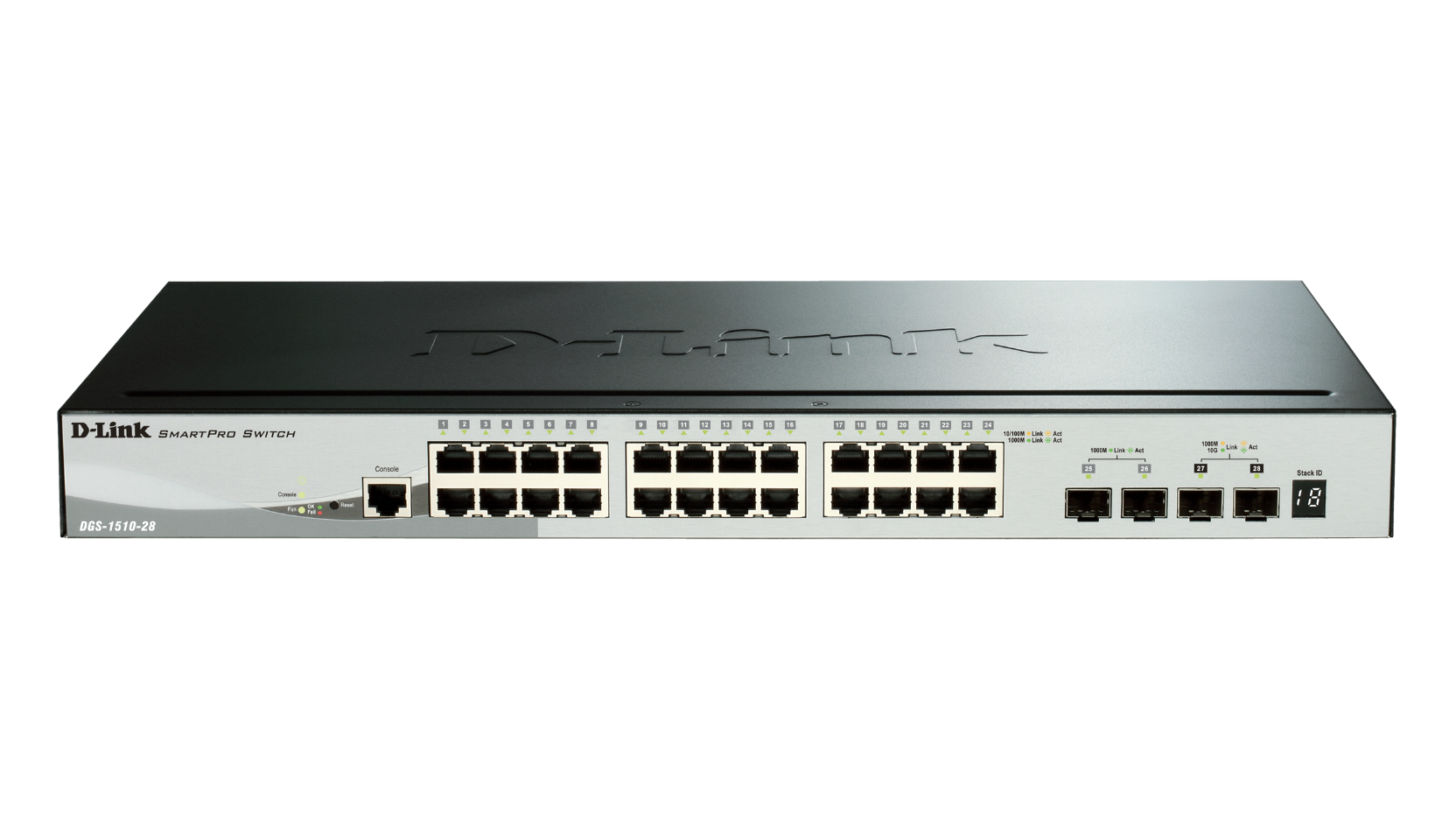

Stackable Smart Managed Gigabit Switches

DGS-1510 Series

  • Product Status (Revision A): Live
  • Layer 2 management and security with Layer 3 capabilities
  • Industry Standard CLI, Console Port and Web UI
  • 10G SFP+ Physical Stacking
  • Static Routing and MSTP
  • PoE options up to 740W power budget2
  • Limited-Lifetime Warranty after registration

Download the datasheet.

Where to buy

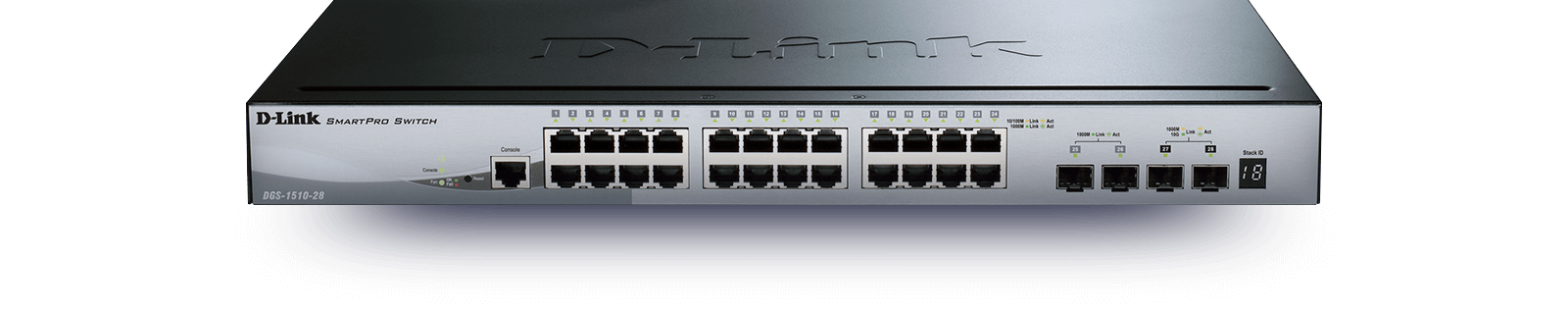

Industry Standard CLI

Supports a full industry standard Command-Line Interface for system management.

Physical Stacking

Physically stack up to 6 units for a total of 288 ports.

SFP+ 10G ports

Stack or connect to other areas of your network at 10Gigabit speeds with SFP+ ports.

Multiple firmware images and configuration

Risk-free firmware upgrades and configuration testing.

Static Routing

Route Layer 3 traffic between switches, even if they're segmented in VLANs.

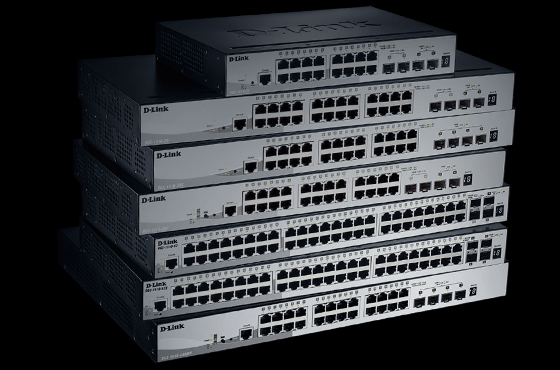

Industry Standard CLI with 10G SFP+ stacking

The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.

Fully-Featured with Layer 3 Traffic Management

The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images, and multiple configuration files.

With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.

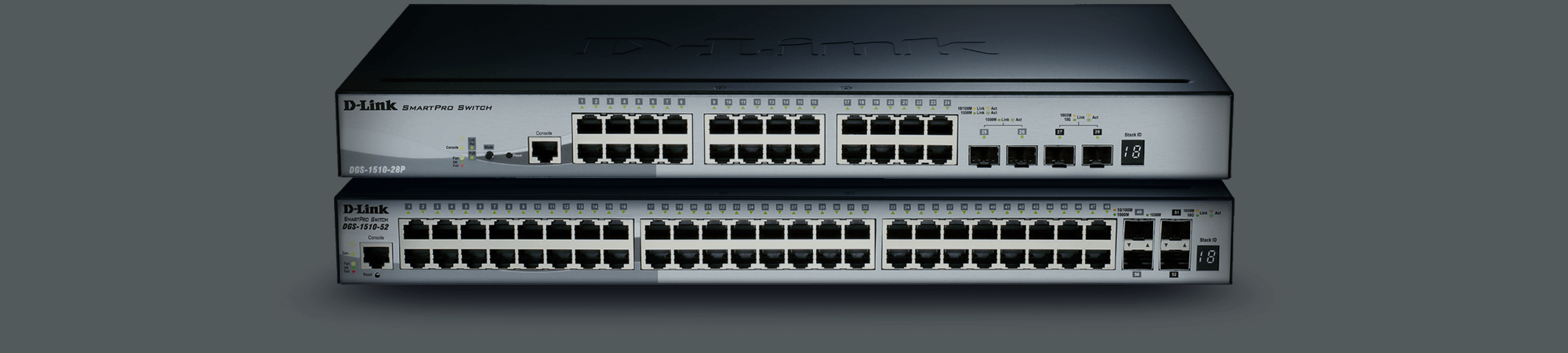

10G SFP+ Stacking

Create a physical stack of up to 6 units in a fault-tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1

PoE and PoE+, with budgets up to 740W2

Choose between 193W and 370W power budget options. Or utilise a total of 740W when adding a redundant power supply to the DGS-1510-52XMP.

Free Network Design and Management Software

D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Learn more about D-View 7

Smart Energy-Saving Design

D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series feature a smart fan that adjusts fan-speed. With advanced silicon technology, the DGS-1510 saves up to 73% of energy compared to a normal switch.


Ethernet Energy saving technology

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

1. When stacking in a linear typology, the remaining unused SFP+ ports in the stacking port pair of the top and bottom switches will also be considered occupied by the switch and cannot be used for any other purpose.
2. Power Budget of 740W is achieved when using an optional DPS-700 RPS redundant power supply on the DGS-1510-52XMP. Up to 30W per port.

DGS-1510 switch series

DGS-1510-20

· 16 x 1000Base-T
· 2 x SFP
· 2 x 10G SFP+



DGS-1510-28X

· 24 x 1000Base-T
· 4 x 10G SFP+

DGS-1510-28X

· 24 x 1000Base-T
· 4 x 10G SFP+

DGS-1510-28P

· 24 x 1000Base-T 802.3af/802.3at PoE (193W PoE budget)
· 2 x 10G SFP+
· 2 x SFP

DGS-1510-28XMP

· 24 x 1000Base-T 802.3af/802.3at PoE (370W PoE budget)
· 4 x 10G SFP+

DGS-1510-52X

· 48 x 1000Base-T
· 4 x 10G SFP+

DGS-1510-52X

· 48 x 1000Base-T
· 4 x 10G SFP+

DGS-1510-52XMP

· 48 x 1000Base-T 802.3af/802.3at PoE (370W-740W2 PoE budget)
· 4 x 10G SFP+

Related Products

D-View 7 Network Management System
DV-700
Find out more
100 cm 10GbE Direct Attach SFP+ Cable
DEM-CB100S
Find out more
300 cm 10GbE Direct Attach SFP+ Cable
DEM-CB300S
Find out more
SFP+ 10GBASE-SR Multi-Mode Fibre Transceiver (550m)
DEM-431XT
Find out more
10GBase-LR SFP+ Transceiver (10 Km)
DEM-432XT
Find out more
Type
Smart managed
Number of ports
16 to 30 ports
48 to 54 ports
Layer
Layer 2
Layer 2+
Stacking
Physical
Virtual
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
10GbE SFP+
SFP
Switching capacity
140 Gbps
76 Gbps
92 Gbps
PoE options
802.3af
802.3at
Number of PoE ports
24
PoE power budget
See datasheet
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Desktop
Rackmountable
Housing
Metal
Physical stacking
Up to 6 devices
Virtual stacking (up to 32 devices)
Supported
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
16K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Link aggregation
802.3ad
VLAN group (max static)
4K
VLAN type
GVRP
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Auto Voice VLAN
IPv6 Ready
Supported
Static route for IPv4/IPv6
IPv4 - 64
IPv6 - 32
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
64 Kbps minimum granularity
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
802.1X access control
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1
Supported
LLDP
Supported
LLDP-MED
Supported
