Why You Need It​

Plug and Play

Easy installation with no configuration required

PoE Versatility

IEEE 802.3af/at options with ample PoE budgets

Optimized Performance

QoS prioritizes traffic, enhancing user experience

DIP Switch Capability

DIP switch enables fast and easy onsite configuration

Enhanced Design

Durable rugged housing with intuitive LED indicators

Fanless/Smart Fan

Innovative cooling designs enhance energy efficiency

DGS-1000 Series Comparison (non-PoE models)

Products DGS-105DGS-105GLDGS-108DGS-108GLDGS-1005ADGS-1005DDGS-1008ADGS-1008DDGS-1016D DGS-1024D










 Interface

5 x GE

5 x GE

8 x GE

8 x GE

5 x GE

5 x GE

8 x GE8 x GE16 x GE
24 x GE
Learn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn More

DGS-1000 Series Comparison (PoE models)

Products DGS-1005PDGS-1008PDGS-1010PDGS-1018PDGS-1026PDGS-1026MP






 Interface

1 x GE
4 x GE PoE

4 x GE
4 x GE PoE

8 x GE PoE
2 x 1G SFP

16 x GE PoE
2 x 1G SFP

24 x GE PoE
2 x 1G SFP

24 x GE PoE
2 x GE Combo

 PoEPoE+ 30 W/port
60 W power budget		PoE+ 30 W/port
60 W power budget		PoE+ 30 W/port
125 W power budget		PoE+ 30 W/port
240 W power budget 		PoE+ 30 W/port
240 W power budget		PoE+ 30 W/port
370 W power budget
Learn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn More

　

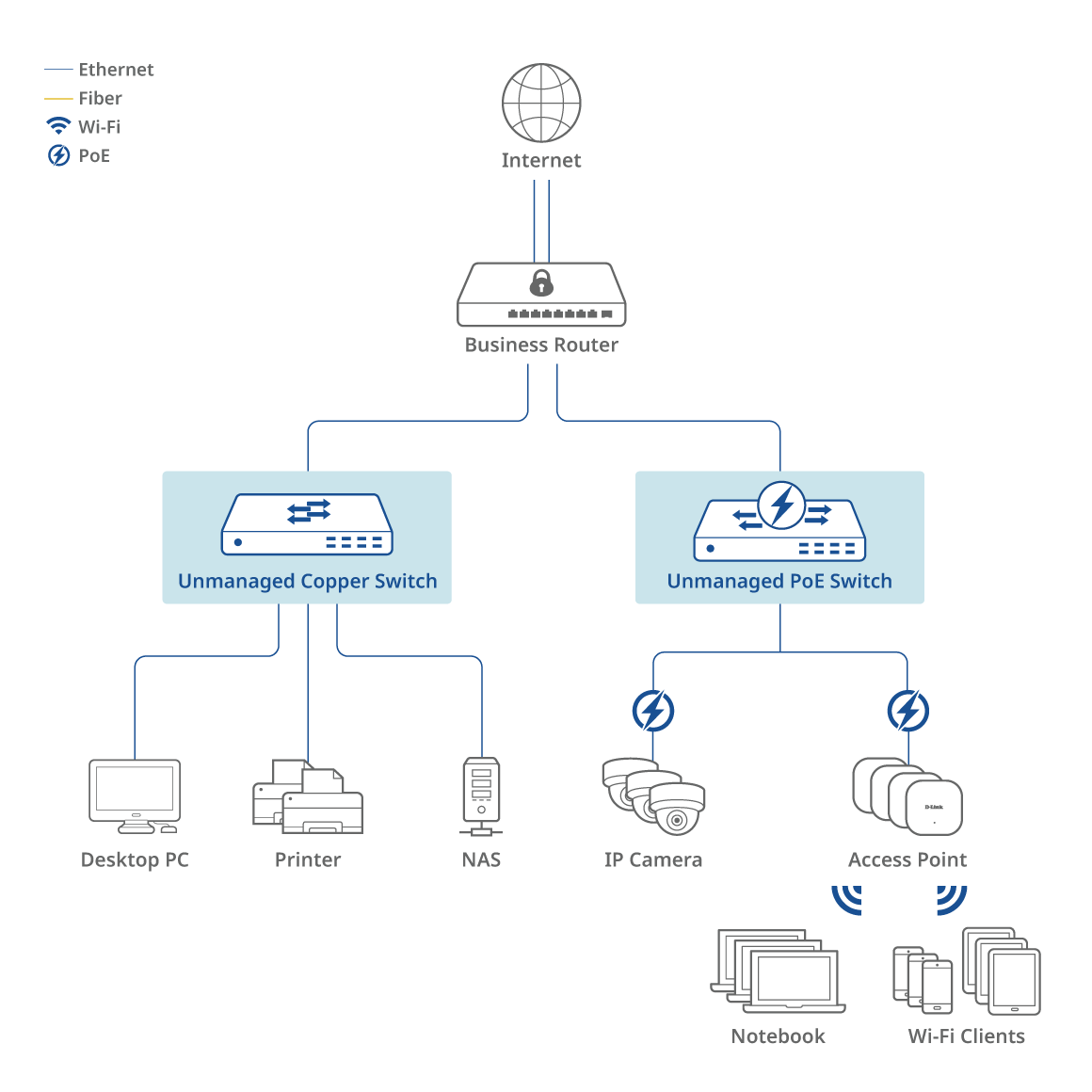

Connection Diagram

The DGS-1000 Series offers a wide range of plug-and-play Gigabit edge connectivity for cost-effective home and office upgrades with available features such as port isolation, flow control, QoS, PD-alive, SFP ports, and extending PoE and data transmission beyond the 100-meter limitation of traditional copper Ethernet cabling to adapt to various application requirements.

Business Router

Learn More

Access Point

Learn More

DGS-1000 Series Specifications (non-PoE models)

Products

DGS-105DGS-105GLDGS-108DGS-108GLDGS-1005ADGS-1005DDGS-1008ADGS-1008DDGS-1016DDGS-1024D





Interface

 5 x GE

 5 x GE

 8 x GE

 8 x GE

 5 x GE

 5 x GE 8 x GE 8 x GE 16 X GE

 24 x GE

Performance
Switch Capacity 10 Gbps 10 Gbps 16 Gbps 16 Gbps 10 Gbps 10 Gbps 16 Gbps 16 Gbps 32 Gbps 48 Gbps

Max. Packet
Forwarding Rate

 7.44 Mpps 11.9 Mpps 7.44 Mbps 7.44 Mbps 11.9 Mbps 7.44 Mbps
 7.44 Mbps
 11.9 Mbps
 23.81 Mbps
 35.71 Mbps
Technical Specification
Fan Fanless Fanless Fanless Fanless Fanless Fanless
 Fanless
 Fanless
 Fanless
 Fanless
Power Supply Type
 External External External External External External
 External
 External
 Internal
 Internal
Learn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn More

DGS-1000 Series Specifications (PoE models)

Products

DGS-1005PDGS-1008PDGS-1010PDGS-1018PDGS-1026PDGS-1026MP





Interface

 1 x GE
 4 x GE PoE

4 x GE
4 x GE PoE

 8 x GE PoE
 2 x 1G SFP

 16 x GE PoE
 2 x 1G SFP

 24 x GE PoE
 2 x 1G SFP

 24 x GE PoE
 2 x GE Combo

Performance
Switch Capacity 10 Gbps 16 Gbps 20 Gbps 36 Gbps 52 Gbps 52 Gbps

Max. Packet
Forwarding Rate

 7.44 Mpps 11.90 Mpps 14.88 Mpps 26.78 Mpps 38.69 Mpps 38.69 Mpps
PoE
PoE Standard IEEE802.3af/at
 IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at
PoE Ports Port 1 ~ 4
 Port 1 ~ 4
 Port 1 ~ 8 Port 1 ~ 16 Port 1 ~ 24 Port 1 ~ 24
PoE Budget 60 W 60 W 125 W 240 W 240 W 370 W
Technical Specification
Fan Fanless Fanless Fanless 2 Smart fans 2 Smart fans 2 Smart fans
Power Supply Type
 External External Internal Internal Internal Internal
Learn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn More
