JustConnect 16-Channel PoE Network Video Recorder

DNR-2020-04P

  • Product Status (Revision A): End of Sale

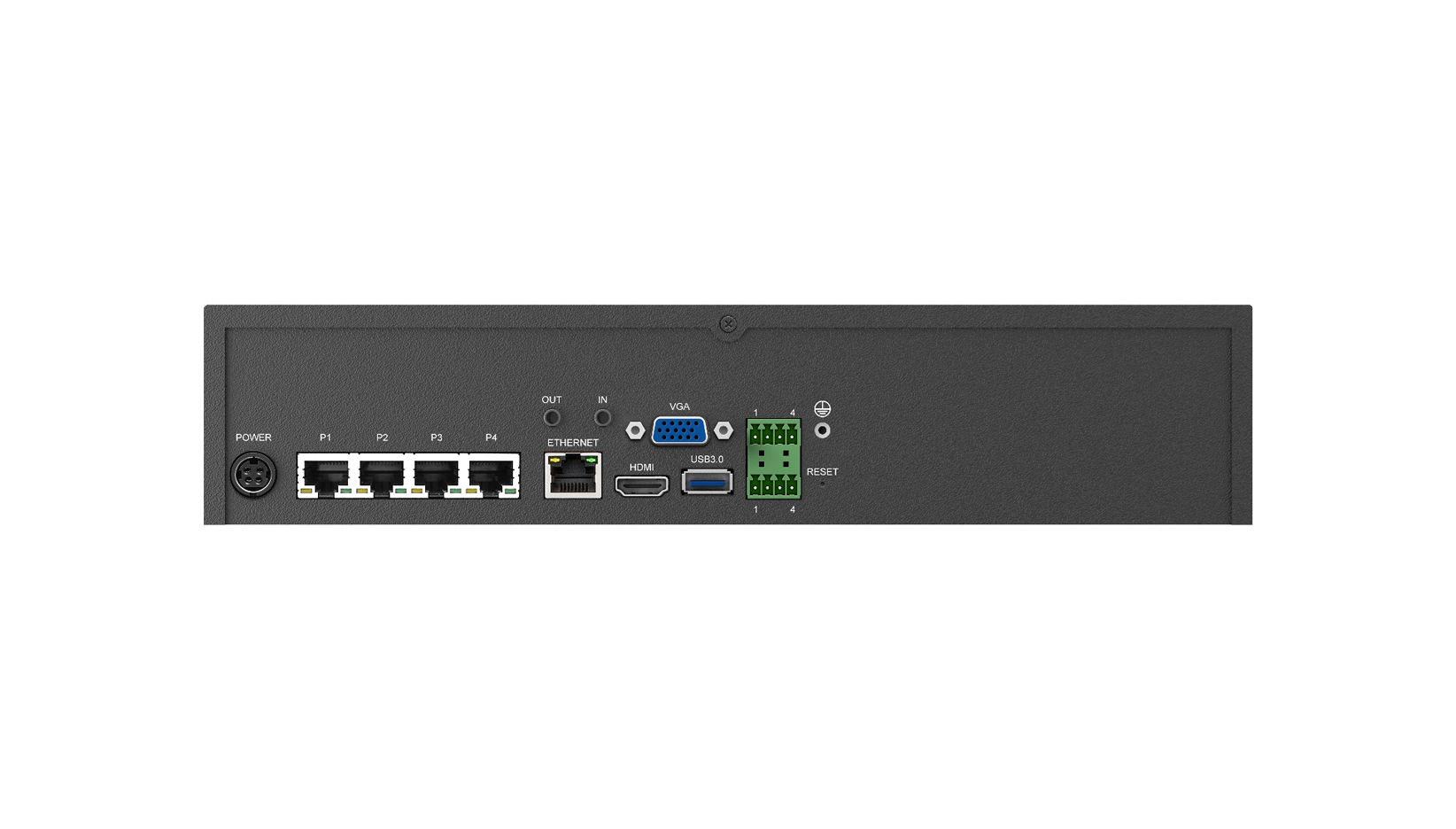

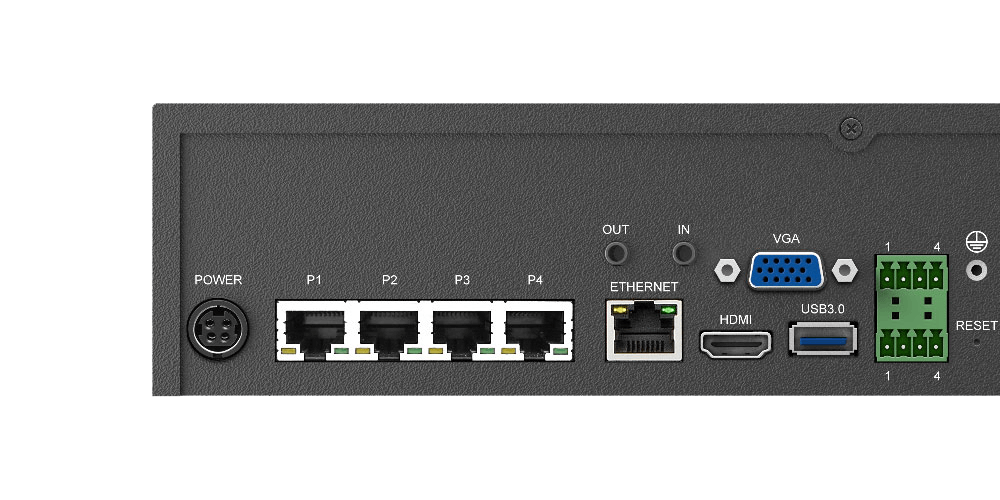

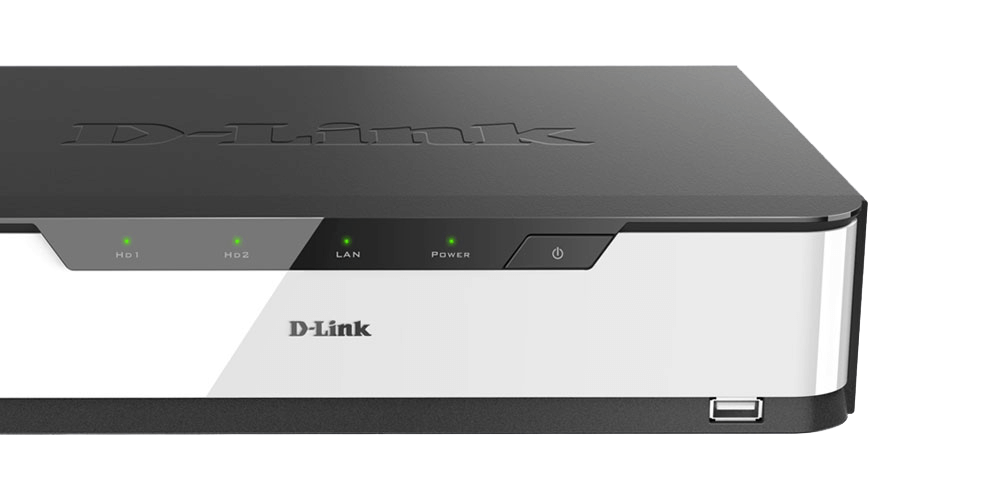

The DNR-2020-04P JustConnect 16-Channel PoE Network Video Recorder is an all-in-one network video recorder (NVR) that can record video from up to 16 network cameras1 to its dual HDD storage2. With the integrated HDMI/VGA display output and USB port3, users can view, control and configure the DNR-2020-04P without the need to turn on their PC.

Featuring Power over Ethernet (PoE), the NVR supplies power to up to four PoE cameras, saving valuable time and electrical installation costs during setup.

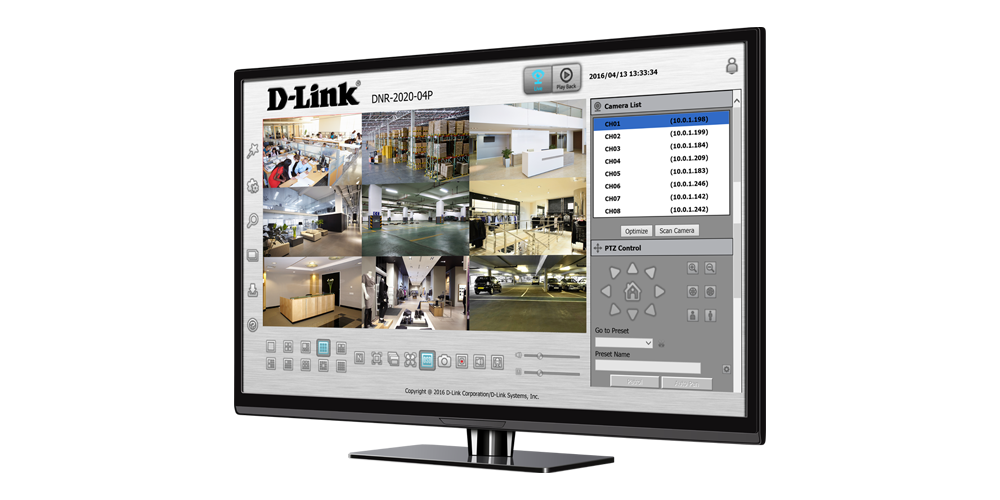

Powered by an embedded system, the DNR-2020-04P supports real-time remote monitoring and playback via a web browser using the NVR's web GUI. Additionally, support for audio in/out, DI/DO triggering, and external USB 3.0 storage for video export and backups fill the needs of small businesses.


The NVR also includes the option to protect data using a RAID 1 configuration, which duplicates recorded data onto two separate hard drives. In the event of HDD failure, data integrity is maintained on the secondary HDD. The recorded data can be backed up to external USB disks or additional storage locations such as FTP servers whenever required.

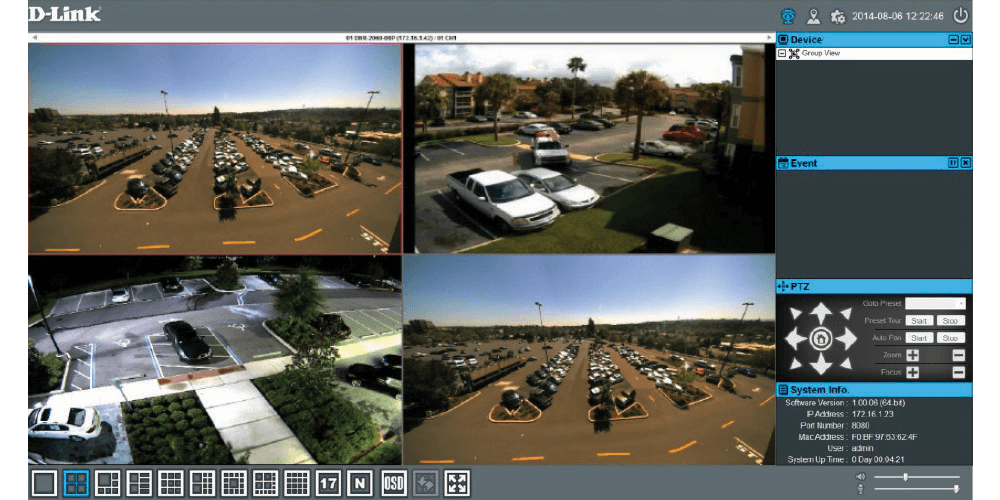

The included DCS-260 Multi-NVR Viewer is a comprehensive network surveillance software designed for SMB and enterprise users. Using an intuitive user interface, you can centrally manage up to 128 NVR devices and network cameras, allowing you to efficiently control multiple D-Link NVRs located in different areas.


Users can remotely monitor their surveillance network in real-time through the JustConnect+ mobile app for smart phones or tablets. It offers total peace-of-mind 24/7 for business owners to view live video or playback recorded footage, at anytime, when connected to the Internet.


1 Please see the camera compatibility list.
2 Hard disks are not included. Supports hard disks up to 8 TB each for a total of 18 TB.
3 This port is used for firmware updates, video exports to USB drives, and backups. Connection to a USB mouse/keyboard is supported.
4 RAID 0 and RAID 1 mirroring requires the use of two internal SATA drives. To avoid data incompatibility in RAID 1 operation, use identical SATA drives from the same manufacturer. Formatted drive capacity for RAID 1 operation is dependent on the drive capacity of the lowest-sized drive. Some older generation SATA drives may not be compatible. Click here for a list of SATA drives that have been tested to work with the NVR.
Channel Number
16 channels
Compression Format
H.264
MJPEG
MPEG-4
Video Output
HDMI
VGA
Display Mode
1, 4, 6, 9, 10, 13, 16 split screen
PTZ Control
Supported
Auto Pan/Petrol
Supported
Audio
2-way
Recording Type
Digital Input
Edge Motion Detection by Camera
Manual
Motion Event
Schedule
Pre-Recording Period
60 seconds
Post-Recording Period
300 seconds
Audio Recording
Supported
Auto/Scheduled Recycling
Supported
Simultaneous Playback
16 channels
Video Control
Play, stop, pause, forward, backward, next, previous
Digital Zoom
2X
Audio Control
Supported
Video Search
Camera
Event
Time
Video Export Format
ASF
AVI
MP4
Image Export File Format
JPG
Tamper-Proof (Digital Watermark)
Supported
Event to E-mail
Supported
Client Viewer
JustConnect+ App
Multi-NVR Viewer
Remote View
Supported
Playback Viewer
Playback manager via browser
Number of E-Map Layer
1
E-Map Image Format
JPG
Supported Camera
3rd party
D-Link
Auto Surveillance VLAN support
Supported
Number of HDD Bay
2
HDD Configuration
JBOD
RAID0/1
Single
Network Interface
1 x Gigabit port
4 x 802.3af Fast Ethernet ports
PoE support
802.3af
Backup Options
USB
Auto Boot-Up (Power Recovered)
Supported
This product was phased out on: 31/03/2021
