Gigabit Smart Managed Switches

DGS-1100 Series

  • Product Status (Revision V2): Live
  • Free centralised management with Nuclias Connect
  • Simple Layer 2 Management
  • Web-based User Interface
  • PoE options up to 370W power budget
  • Limited-Lifetime Warranty after registration

Download the datasheet.

Where to buy
Web UI

Easy to use web interface to access management features


Segment your network into VLANs.

Easy deployment with automatic configuration

Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration

Energy Efficient Design

Automatic power saving features to reduce power usage

Limited Lifetime Warranty & Next Day Service

Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.

Learn more

Simple. Easy. Smart.

DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.

Smart Web UI

The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.

Free Nuclias Connect remote network management software.

Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.

Learn more

PoE and PoE+, with budgets up to 370W

The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Easy Troubleshooting

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

Green Technology

D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

DGS-1100V2 Smart switch series

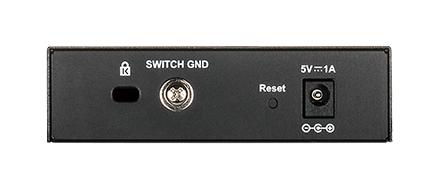

· 5 x 1000Base-T
· Fanless


· PoE Powered
· 3 x 1000Base-T
· 2 x 1000Base-T PoE
· Power Budget: 18W with 802.3at / 8W with 802.3af input power
· Fanless

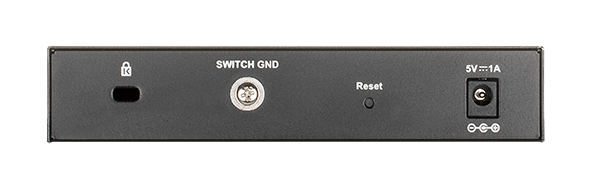

· 8 x 1000Base-T
· Fanless

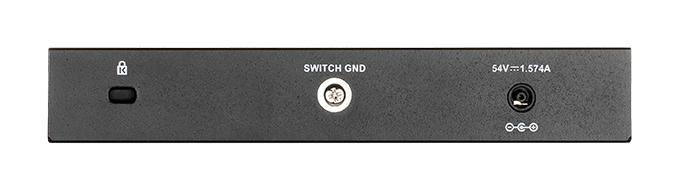

· 8 x 1000Base-T 802.3at PoE
· 64W PoE budget
· Fanless

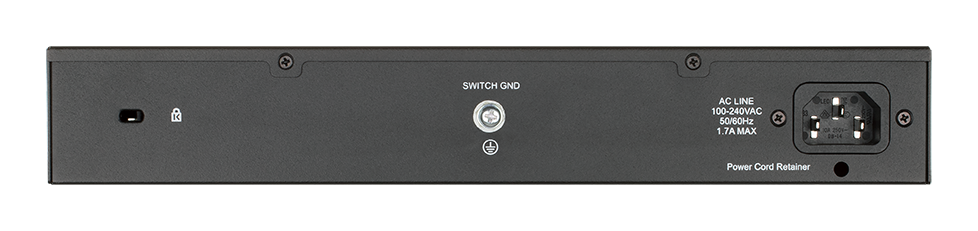

· 8 x 1000Base-T 802.3af/802.3at PoE
· 2 x SFP
· 130W PoE budget

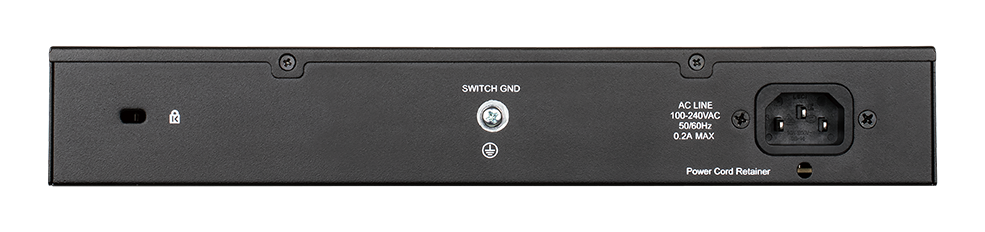

· 16 x 1000Base-T
· Fanless

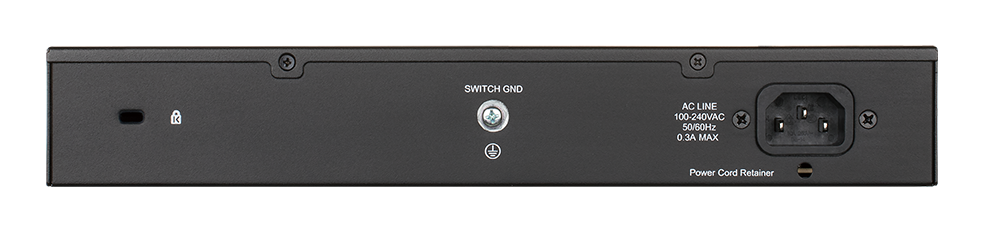

· 24 x 1000Base-T
· Fanless


· 12 x 1000Base-T
· 12 x 1000Base-T 802.3af/802.3at PoE
· 100W PoE budget

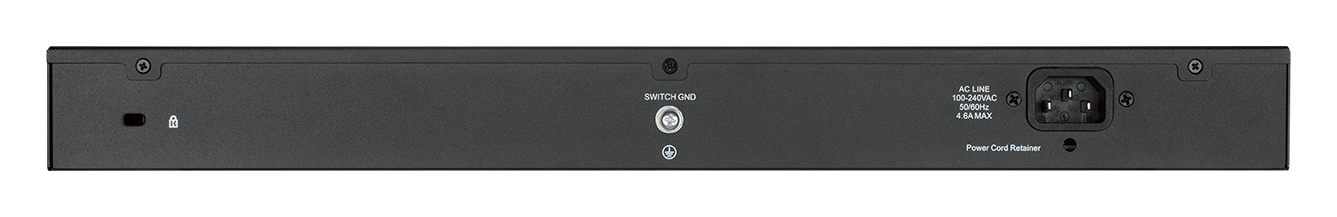

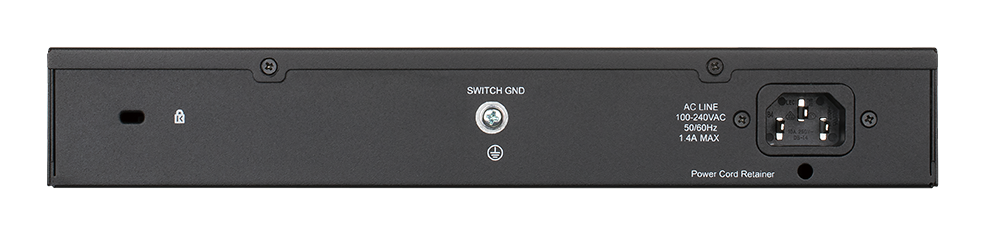

· 24 x 1000Base-T 802.3af/802.3at PoE
· 2 x Combo
· 370W PoE budget

Related Products

Smart+ Managed Gigabit Switches
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Find out more
Smart Managed Gigabit Switches
DGS-1210-08P, DGS-1210-16, DGS-1210-24, DGS-1210-24P, DGS-1210-48
Find out more
D-View 7 Network Management System
Find out more
Smart managed
Number of ports
16 to 30 ports

5 to 14 ports
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
Combo 1000BASE-T/SFP

Switching capacity
16 Gbps

20 Gbps

32 Gbps

36 Gbps

48 Gbps

52 Gbps
Powered by PoE
PoE options

Number of PoE ports

PoE power budget
See datasheet

See datasheet

See datasheet
D-Link Green
802.3az Energy-Efficient Ethernet support
Form Factor

Jumbo frame
Cable diagnostics
MAC address

Spanning Tree Protocol
802.1D STP

802.1w RSTP
Link aggregation

Static trunk
VLAN group (max static)

VLAN type
Advanced VLAN
Asymmetric VLAN

Auto Surveillance VLAN

Voice VLAN
Number of QoS queues per port
Bandwidth control
8 Kbps minimum granularity
Encryption protocol supported
SSL (v1/v2/v3)
