Wireless AC1200 Simultaneous Dual Band PoE Access Point

DAP-2660

  • Product Status: End of Sale

There's a new version of this product:

Wireless AC1200 Wave 2 Dual-Band PoE Access Point

DAP-2662

See Newer Product

There's a new version of this product:

DAP-2662

Wireless AC1200 Wave 2 Dual-Band PoE Access Point

Overview

  • 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
  • WiFi4EU ready, 2x2 MU-MIMO with beamforming
  • Gigabit, PoE-capable LAN port
  • Free Nuclias Connect network management software
  • Limited Lifetime Warranty & Free Next Business Day Service
See Newer Product

Overview

  • 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
  • WiFi4EU ready, 2x2 MU-MIMO with beamforming
  • Gigabit, PoE-capable LAN port
  • Free Nuclias Connect network management software
  • Limited Lifetime Warranty & Free Next Business Day Service
See Newer Product

Gestão Unificada gratuita

Nuclias Connect (DNC-100) é o software gratuito de gestão unificada de Pontos de Acesso Wi-Fi das famílias DAP e Switches Smart Managed da gama DGS-1210*

  • Gestão centralizada de Pontos de Acesso e Switches desde a web e/ou app gratuita, sem custos nem licenças.
  • Wireless: Análise de tráfego, gestão de RF e canais, portal cativo, SSIDs, etc.
  • Switching: Gestão de portas, segmentação com VLANs, listas de controle de acesso, Spanning Tree, etc.
  • Instalável em Windows ou Linux. Opção controladora física com custo (DNH-100)
  • Fácil descobrimento em layer 2/3 de Pontos Acesso e Switches.
  • Aprovisionamento em bloco de múltiplos pontos de acesso com móvel desde a app (iOS/Android)

*Requer instalar a última versão de Nuclias Connect (1.2.0.5). Switches compatíveis (após atualizar o seu firmware)

DGS-1210-10, DGS-1210-10P, DGS-1210MP, DGS-1210-20, DGS-1210-26, DGS-1219-28, DGS-1210P, DGS-1210-28MP, DGS-1210-52, DGS-1210-52MP.

Download

Nuclias hardware controller

The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

Learn more

Performance without Compromise

Utilising industry leading Wireless AC Chipset, the DAP-2660 delivers 4 times the speed of Wireless N by supporting simultaneous dual-band performance

Broadcast on 16 SSID Simultaneously

Supports up to 16 SSIDs, 8 per Band, including Station Isolation

Attractive Design

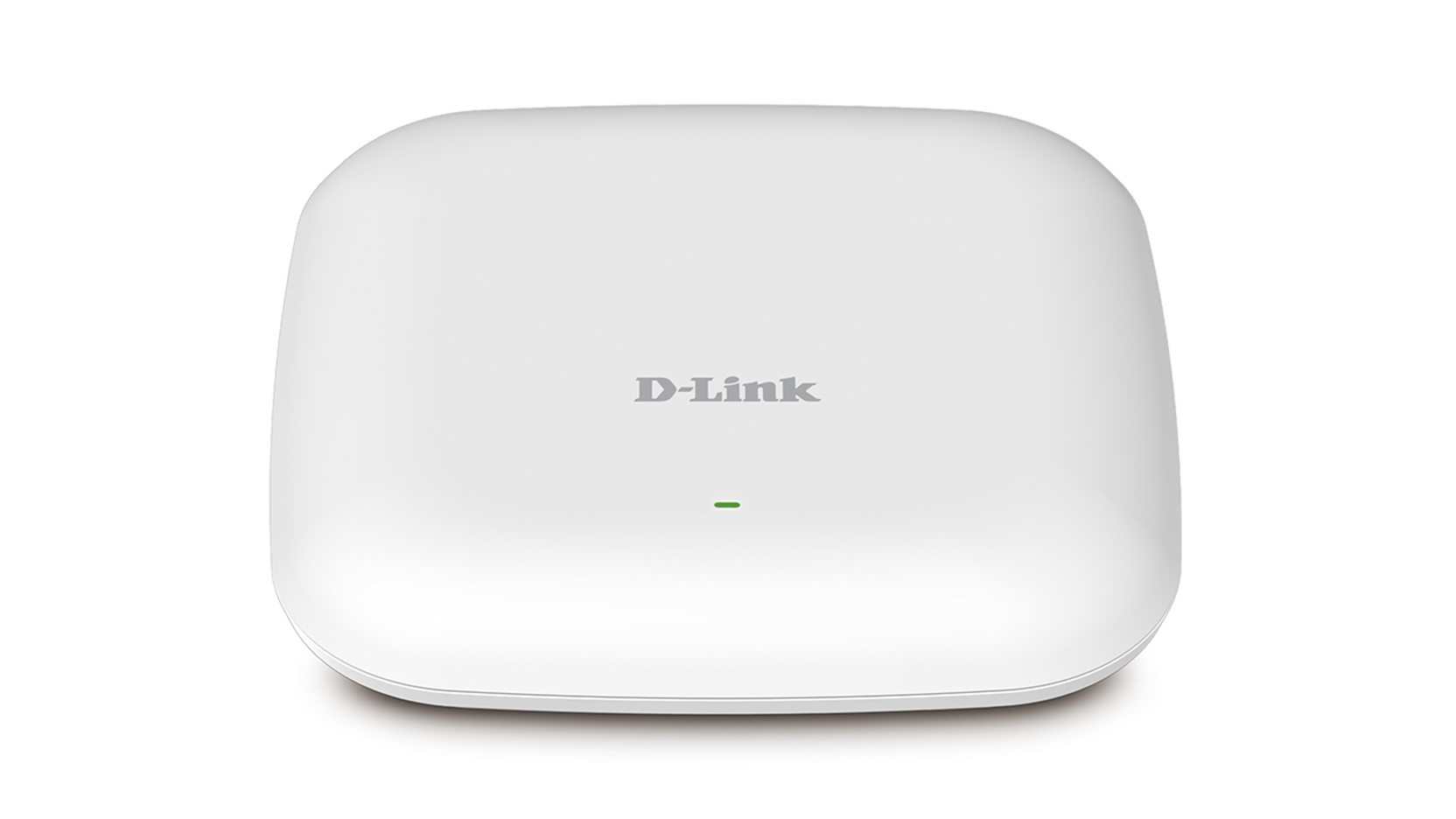

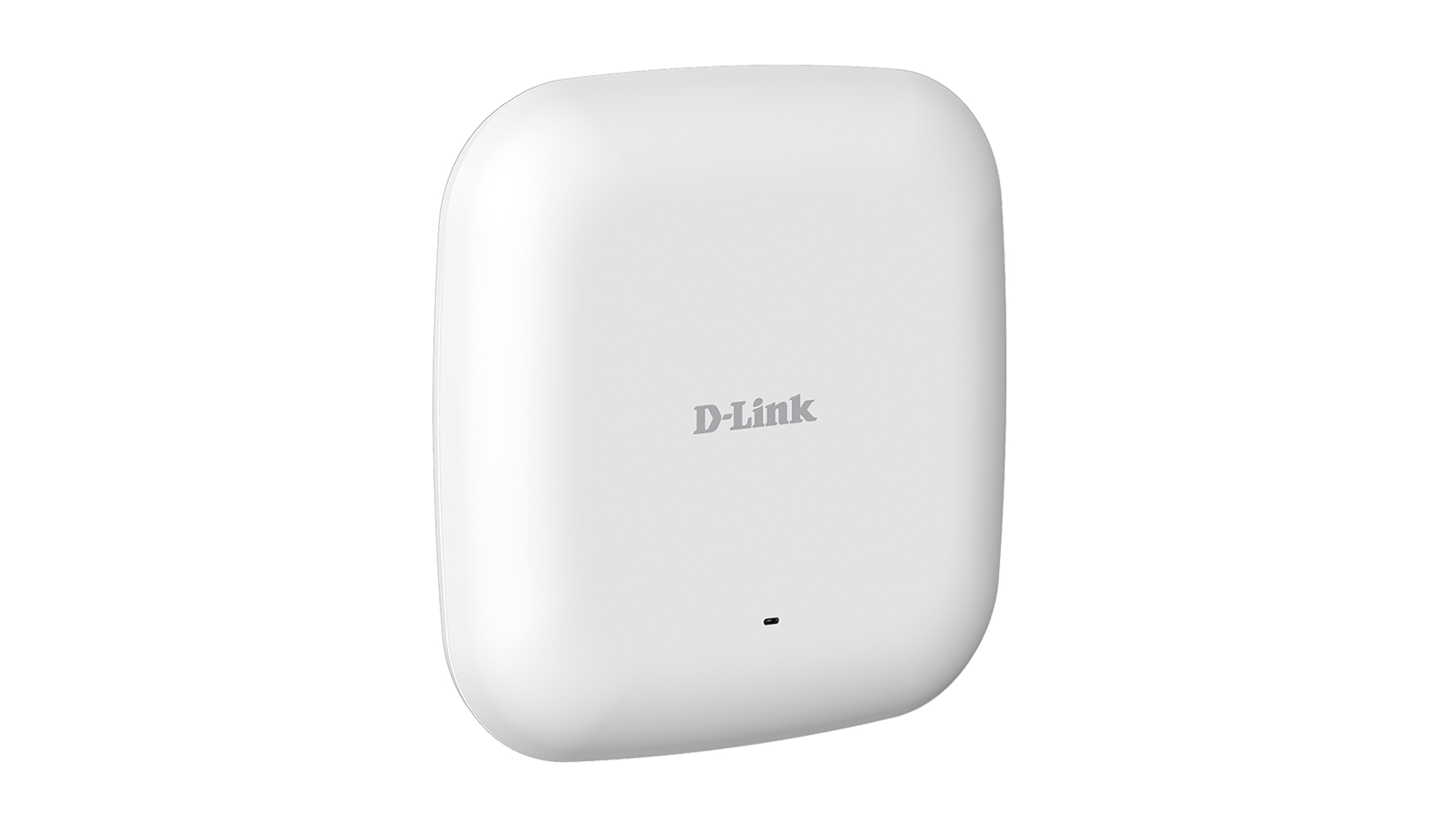

Featuring a clean modern design, the DAP-2660 can be mounted easily onto any wall or ceiling (mounting clips included). Designed with a standard PoE power requirements, the DAP-2660 can easily be deployed and configured in any network.



Wireless Range

The DAP-2660 has a wireless range of up to 100m and enhanced networking features like bandsteering to ensure wireless signal continuity.

Simultaneous Dual-Band Wireless

Supports up to 1200Mbps. Up to 900Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band

Manage up to 1000 APs

Manage up to 1000 Access Points located around the world from one virtual controller residing in your network or in the cloud.

Scalable, flexible, centralised AP management

Manage up to 1000 Access Points from a central location,  regardless of geography.



Product Comparison

Wireless AC


  DAP-2660 DAP-2695
Wireless Standard B, G, N, AC B, G, N, AC
Frequency 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps
5GHz Throughput 867Mbps 1300Mbps
Aspect Indoor Indoor
Range* 100m 100m


Wireless N


  DAP-2310 DAP-2360 DAP-2690
Wireless Standard B, G, N B, G, N B, G, N
Frequency 2.4GHz 2.4GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps 300Mbps
5GHz Throughput - - 300Mbps
Aspect Indoor Indoor Indoor
Range* 100m 100m 100m

* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.



Related Products

Nuclias Connect
DNC-100
Find out more
Smart+ Managed Gigabit Switches
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Find out more
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Find out more
Type
Software Managed AP
Wireless standard
Wireless AC
Frequency band mode
Dual-band simultaneous
Antenna type
Embedded omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz
4 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
MIMO
Maximum number of SSIDs
8 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
Management platform
Nuclias Connect
WEB
Supported
SNMP (v1, v2c, v3)
Supported
Telnet
Supported
SSH
Supported
This product was phased out on: 07/05/2021
