Can work at a local level without uploading data to the cloud, making the management as secure as your own network.

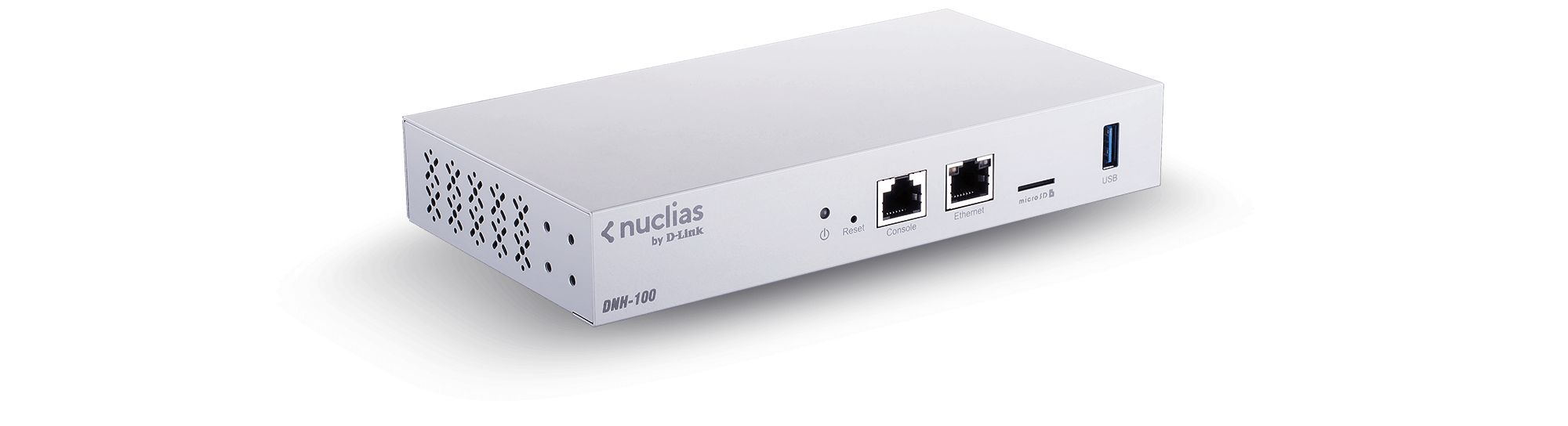

DNH 100 Nuclias Connect Hub
DNH-100
- Product Status (Revision A1): Live
- Built-in free Nuclias Connect software
- x1 GE port, x1 Console port, x1 USB 3.0, x1 MicroSD
- Manage up to 100 APs / smart-managed switches (DGS-1210 Series)
- Free Nuclias Connect app
- Rack-mounting kit included
- D-Link Limited Lifetime Warranty
Where to buy
Pre-loaded with Nuclias Connect Management Software
Authentication via Customisable Captive Portal, 802.1x and Radius Server, POP3, LDAP, AD
Backwards-Compatible with a Range of DAPs
Intuitive Interface
License-Free Centralised Management
Multi-Tenant & Role-Based Administration
Multilingual Support
Payment Gateway (Paypal) Integration and Front-Desk Ticket Management
Remote & Batch Configurations
Searchable Event Log and Change Log
Traffic Reporting & Analytics in Real-Time
Low Total Cost of Ownership

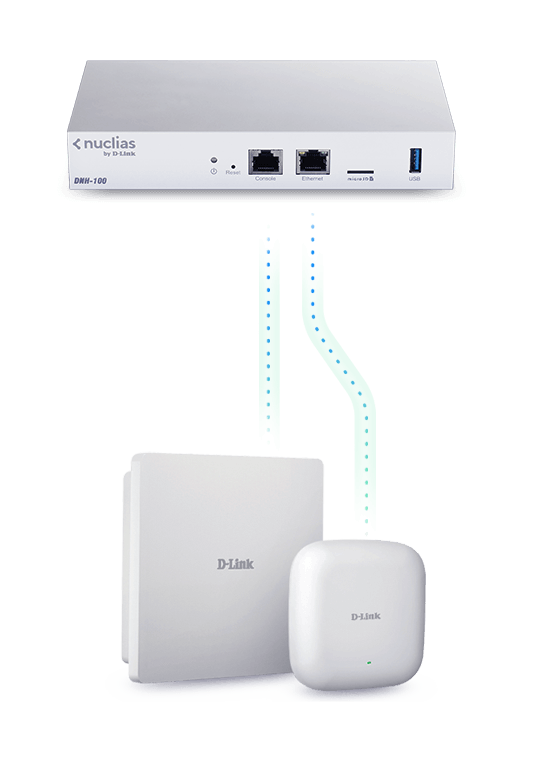

Dedicated Nuclias Connect hardware controller for centralised AP management.
Pre-loaded with Nuclias Connect centralised network management software, the professional Nuclias Connect Hub supports a large number of existing D-Link APs*, and can manage up to 100 Access Points (APs) and smart-managed switches (DGS-1210 Series). It can be deployed quickly and securely in a rack with the included rack-mounting kit and is designed to support small-to-medium business and larger enterprise network environments.
Industry-leading hardware that brings value to your business.
The Hub features centralised monitoring and management of all wireless APs on your network. Designed to perfectly fit in network environments, the DNH-100 Hub is an inexpensive dedicated hardware option with the Nuclias Connect software pre-installed, so you don’t need to purchase and install Nuclias Connect on a separate compatible third-party server.
Centralised management Local and multi-site access point management. Accessible through the free Nuclias Connect app or standard web browser. | |
Versatile installation Rack-mountable. Small form-factor for easy placement. Integrated hardware controller and self-contained application server in one device. | |
Cost-effective and scalable No extra server needed. Simply add more Hubs when you want to scale up your network. |
Make network tasks quicker and easier.
The Nuclias Connect Hub offers tremendous flexibility, from easier and more secure deployments to remote AP and switch management. And the built-in Nuclias Connect software makes monitoring easier with an intuitive dashboard, while functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improve overall user experience.

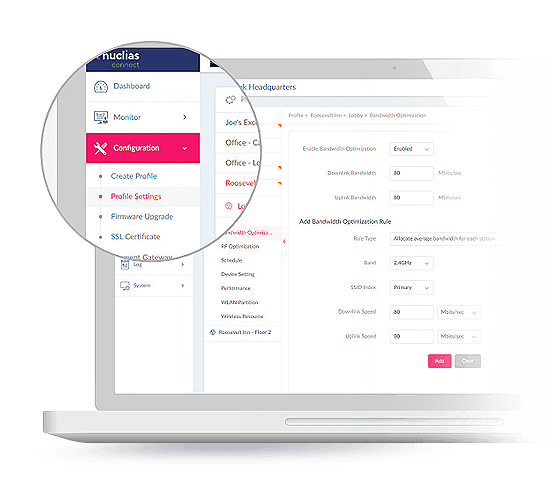

Role-based access with remote management Assign different privileges to users and conveniently configure all devices from the Nuclias Connect app or web UI. | |
Customisation and branding The display, analytics reporting, management can be customised in a variety of ways for greater control and convenience. Add your brand’s logo to your Wi-Fi login screen via the captive portal functionality. | |

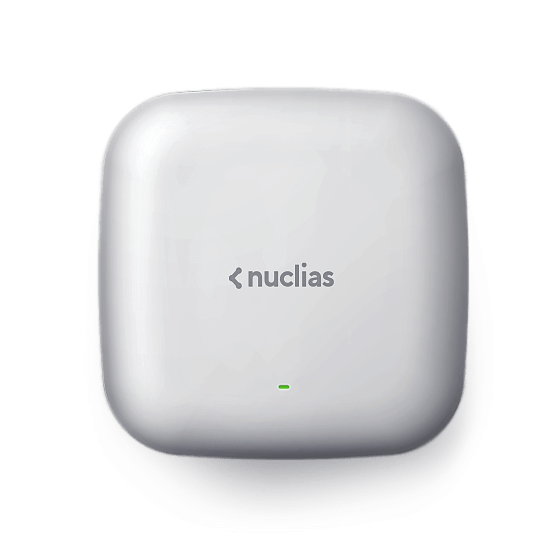

Existing infrastructure Works with a diverse range existing D-Link APs* and smart-managed switches (DGS-1210 Series) for added convenience, including PoE-enabled and Wave 2 access points. See the range. |
What Nuclias Connect means for administrators.

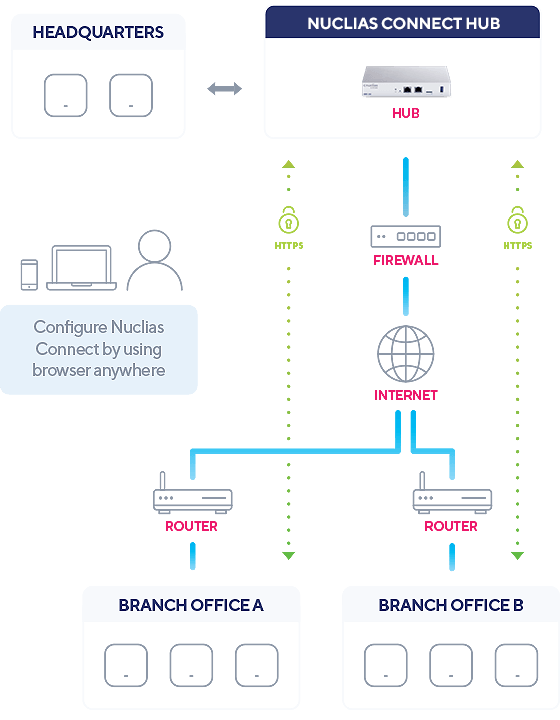

Since Nuclias Connect’s software operates transparently on the network, an AP or switch can be deployed anywhere in a NAT environment. Moreover, administrators can provide and manage a variety of distributed deployments, including the option to configure settings and administrator accounts for each deployment.
The built-in Nuclias Connect software allows for multiple user authentications and also makes it possible to configure specific access controls for each SSID, giving admins the option of configuring separate internal networks for different subnets. This means that more advanced Value-Added Services, such as Captive Portal or Wi-Fi Hotspot, can be used to help manage wireless network traffic.
Comprehensive controls for optimising the network.
Multi-tenancy Network admins can grant localised management authority for local networks. | |
x8 SSIDs per radio And the option of using one SSID to create a guest network for visiting. | |
AP discovery and provisioning It allows users to find APs on the same Layer 2/3 network and import profiles which can then be applied as needed to groups or individual APs for greater efficiency. | |
Schedules and automated tasks Batch configuration, automated network management and reporting, and searchable and auditable Event and Change Logs. | |
Diverse authentication options Captive Portal, 802.1x and RADIUS Server, and support for POP3, LDAP, AD |

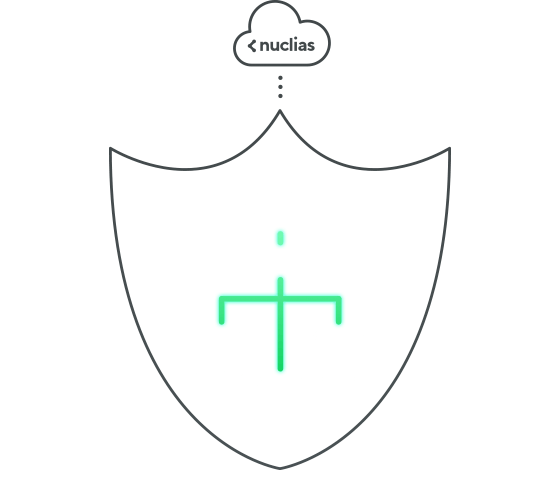

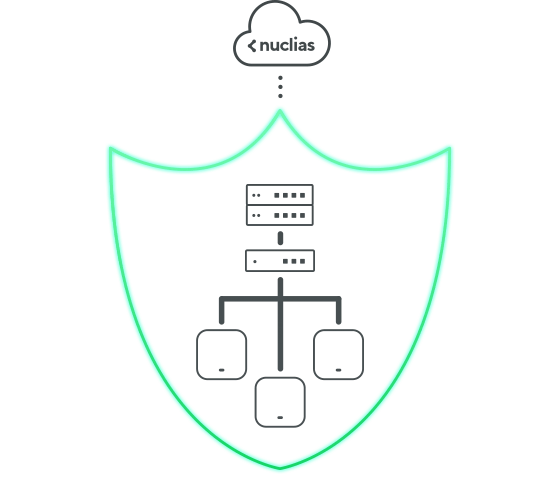

Data stays within your premises and follows your security measures.
With more devices being used on networks than ever before, privacy has become an essential requirement. The Nuclias Connect Hub is designed for businesses where privacy and security are mission-critical. User data never leaves your possession. The Hub saves power and improves security with the wireless scheduler feature which switches off wireless connectivity when not needed.
Local-based hardware controller
Encrypted communications
Communication between Nuclias Connect and APs via HTTPS for increased privacy.
Optional remote management
You can enable remote access, allowing network management from anywhere, free of charge.
Scale your network alongside your business.
The Nuclias Connect Hub gives you the financial and technical flexibility to scale up the network simply by adding more Hubs while retaining a robust and centralised management system. Device information is stored locally and the network can be monitored in real-time.
Cost-effective scaling Centralised configurations allow network expansion of up to 100 APs/switches per Hub which results in a lower total cost of ownership. | |
Free software Utilise the hub’s built-in free Nuclias Connect software with full functionality without any subscription or license fees. |

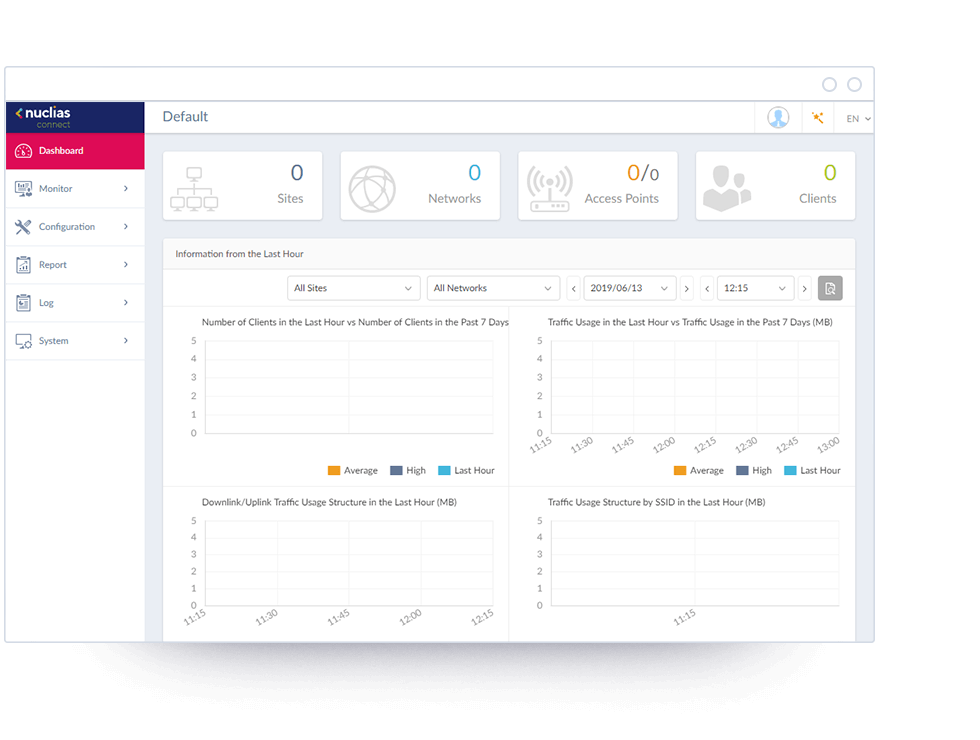

Know your business network, like never before.
Use the Hub’s built-in Nuclias Connect software to monitor and remotely manage your wireless networks. It also makes it easier to scale the network as new APs/switches are automatically discovered enabling them to be quickly configured and deployed.
Easily manage your network on the go, get an instant overview of live usage and your network’s health, and delegate access to your teams. You can even upload your own map to visually show the location of your devices and create Wi-Fi access log-in pages that can be fully branded.
Detailed statistics and reports of network usage across time and locations. | |
Customisable portal for brand awareness. |

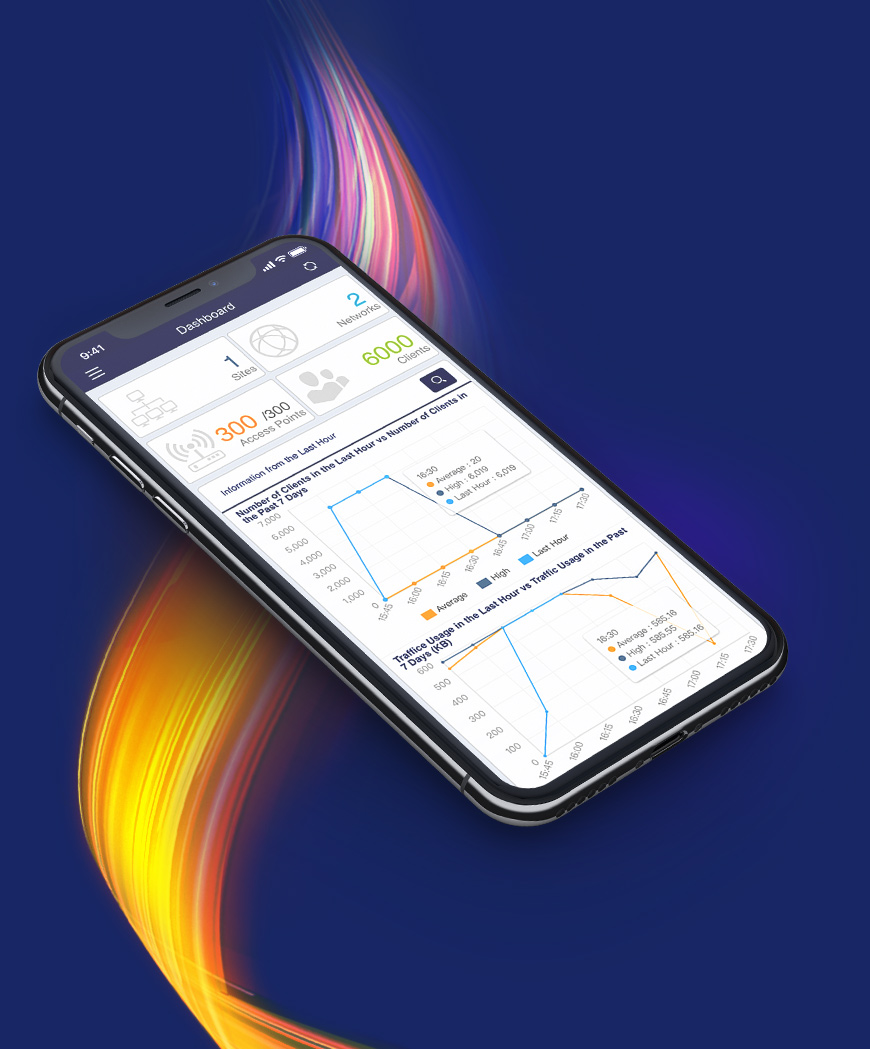

Free Nuclias Connect app.
Manage the network remotely with the free Nuclias Connect app. Instantly detect your devices in the network and push configurations remotely by using the app’s intuitive interface. Available on both iOS and Android phones, enjoy the convenience of remote network management on the go.
Start creating your Nuclias Connect network.
Deploy a Nuclias Connect network with our DGS-1210 Smart+ Managed Gigabit Switches and our range of compatible Wireless solutions today.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
Specs
Management platform
|
Hardware |
---|---|
Access point management - number supported per unit (default/upgradeable)
|
Up to 100 |
AP auto discovery and monitoring
|
Supported
|
Auto channel and power management
|
Supported
|
Band steering
|
Supported
|
Centralised AP firmware upgrade
|
Supported
|
Fast roaming
|
L2 |
Rogue AP/Client detection and mitigation
|
Supported
|
NAT pass-through
|
Supported
|
Multi-tenancy
|
Supported
|
Bandwidth optimisation
|
Supported
|
External user databae - POP3 and LDAP
|
Supported
|
Voucher-based authentication
|
Supported
|
Captive portal
|
Supported
|
*Compatible models at the time of writing: DAP-2230, DAP-2310, DAP-2360, DAP-2610, DAP-2660, DAP-2680, DAP-2695, DAP-3662. Devices require the latest firmware in order to be compatible.
Support
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet EN | - | 1.21mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
QIG 1.00 RevA1 | Qiuck Install Guide | 11/03/2020 | - | - | Download |
