How to Configure Port Rate Limiting - DGS-1510-Series
Scenario:
Ixia1 DGS-1510 ------------ ------------- Ixia2
(Traffic generator 1)
Ixia1 continually sends packets to 1G full speed (about 760000Kbps) to Ixia2, but we hope which was receiving Ixia2 these packages with a speed limit 50000 Kbps.
To perform the indicated configuration follow these steps:

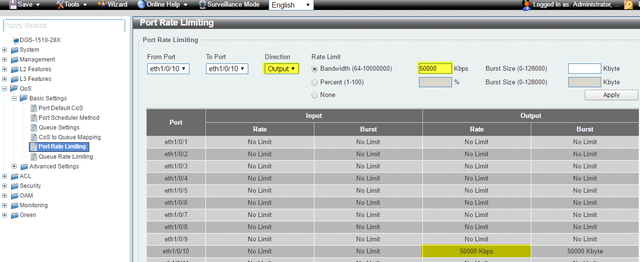

QoS > Port Rate Limiting
Port speed limit: set the output port10 (TX) speed limit 50000 Kbps, other parameters remain in default as follows.
![DGS-1510 Series Configure Port Rate Limiting](/it/it/-/media/faqs/es/dgs/dgs-1500/dgs-1510-series-configure-port-rate-limiting1.png)

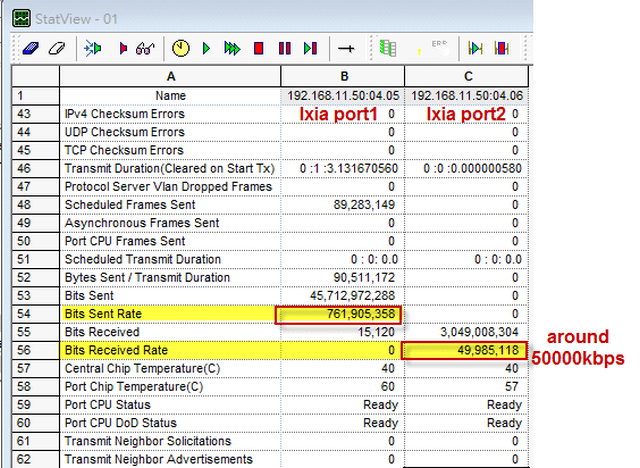

2. Ixia1 keeps sending packets with full speed,but we can see the Ixia2 receive these packages with speed limit of 50000 Kbps.
![DGS-1510 Series Configure Port Rate Limiting](/it/it/-/media/faqs/es/dgs/dgs-1500/dgs-1510-series-configure-port-rate-limiting2.png)
Ixia1 DGS-1510 ------------ ------------- Ixia2
(Traffic generator 1)
Ixia1 continually sends packets to 1G full speed (about 760000Kbps) to Ixia2, but we hope which was receiving Ixia2 these packages with a speed limit 50000 Kbps.
To perform the indicated configuration follow these steps:
QoS > Port Rate Limiting
Port speed limit: set the output port10 (TX) speed limit 50000 Kbps, other parameters remain in default as follows.
![DGS-1510 Series Configure Port Rate Limiting](/it/it/-/media/faqs/es/dgs/dgs-1500/dgs-1510-series-configure-port-rate-limiting1.png)
2. Ixia1 keeps sending packets with full speed,but we can see the Ixia2 receive these packages with speed limit of 50000 Kbps.
![DGS-1510 Series Configure Port Rate Limiting](/it/it/-/media/faqs/es/dgs/dgs-1500/dgs-1510-series-configure-port-rate-limiting2.png)
