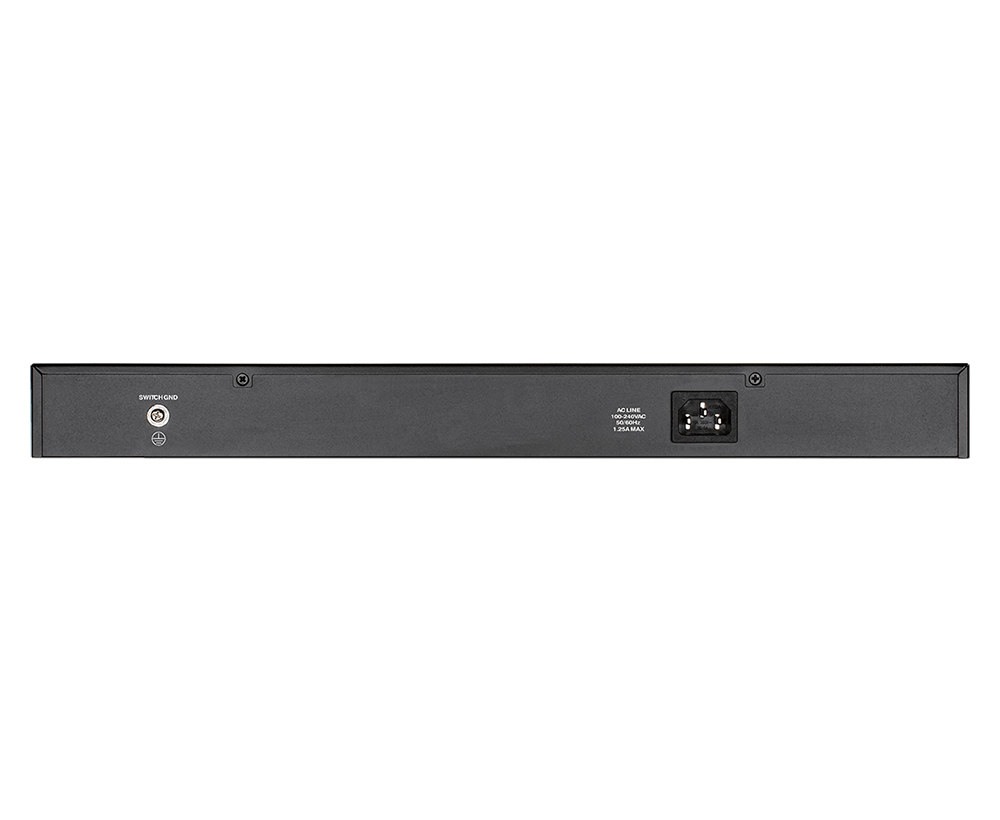

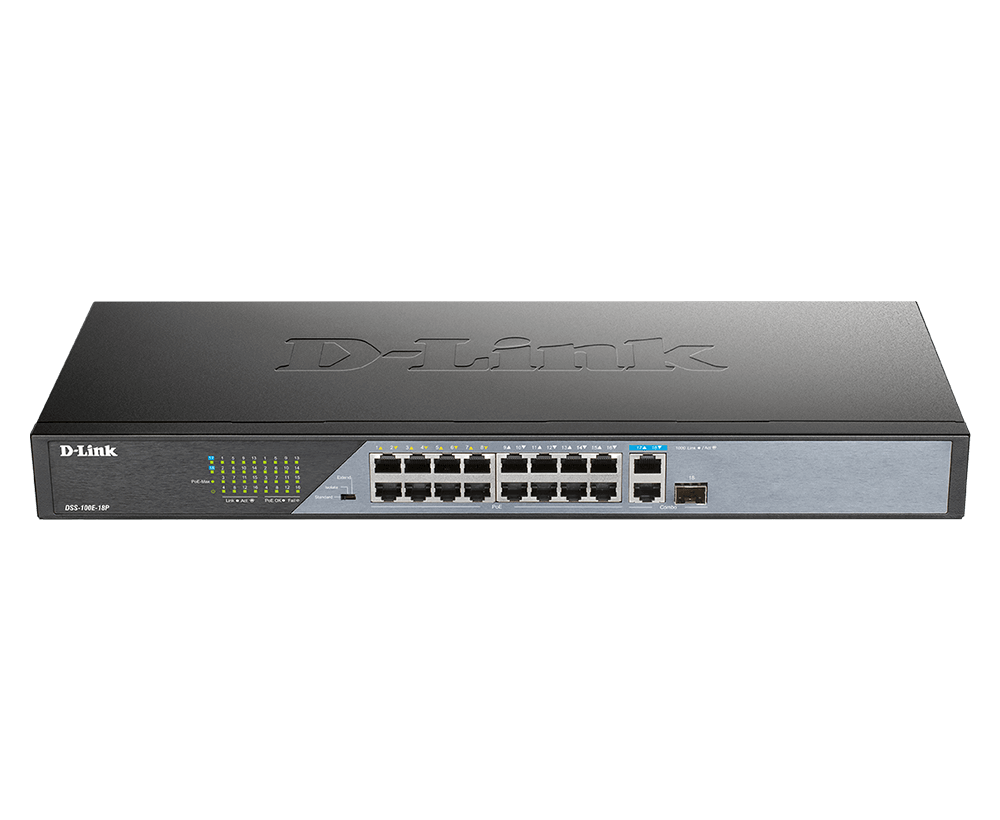

18-Port 10/100BASE-TX PoE Unmanaged Surveillance Switch


  • Product Status ($name): Live
  • Supports power delivery to devices up to 250m away
  • 16 x 10/100 Mbps PoE Ethernet ports
  • 230W power budget, with up to 30W per port
  • 1 x Gigabit Ethernet port and 1 x GbE/SFP combo port allows ample bandwidth for uplink connections
  • Equipped with 6kV surge protection to prevent damage from lightning and power surges
  • With plug & play, your network is ready to go immediately
  • IEEE 802.3az Energy Efficient Ethernet is not just good for the planet, but for your budget as well
  • RoHS Compliant

Download the datasheet.

Where to buy

Designed for Surveillance

The DSS-100E-18P has a total PoE power budget of 230W, with up to 30W on each port meaning it’s ready to power your PoE-ready cameras and other devices. Simply connect your PoE supported devices and you’ve got a capable surveillance network with minimal wiring required. Meanwhile, it has an extended PoE range of 250m, reaching devices further than before. Finally, its Gigabit uplink provides ample bandwidth. This ensures smooth transmission of footage when connecting to Network Video Recorder (NVR) or core switch.

Large PoE power budget
Extended range up to 250m
PoE LED Indicators
Gigabit Uplink


Reach Further

The DSS-100E-18P surveillance switch can be further combined with the DPE-302GE PoE Extender to maximize your PoE camera deployment distance to virtually anywhere, drastically lowering the cost for installing any PoE Ethernet devices. It provides you huge time and cost savings and greater flexibility of endpoint device positioning.

.Power your device up to a distance of 650 meters at 10 Mbps
.Innovative design reduces long distance power transmission loss
.Leverages existing copper twisted-pair cabling to deliver electrical power over the same network connection


* Please check with your local D-Link customer service for more information. Up to 650 metres connectivity may be affected by cabling quality. We recommend customers to test compatibility before actual physical deployment.


Versatility for a Range of Scenarios

The DSS-100E-18P is not just for cameras, it’s ready to support other surveillance-related devices as well. Simply plug in the devices you need to complete your setup; the switch can then automatically detect what has been connected. It then adjusts accordingly to provide optimal performance. Ideal for a power surveillance with minimal management fuss.

Compatible with:

- Network Attached Storage

- Laptops & Desktops

- Indoor/Outdoor IP Cameras

- PoE Extenders

Weather the Storm

The DSS-100E-18P is equipped with 6kV surge protection. This keeps the switch safe against lightning strikes or other power related incidents. This shield will prevent PoE devices from damage, ensuring your vital surveillance systems continue to function without interruption.


Plug & Play

The DSS-100E-18P is developed with simple setup in mind. No configuration is required, simply connect the switch to your network and you are ready to go. You can start adding IP cameras, IP phones and other PoE and non-PoE capable devices to your network. Meanwhile, the switch will automatically detect what has been connected and intelligently adjust to offer optimal performance. It is ideal for those who want a powerful network, without the fuss of managing it.

Compatible with a Wide Range of D-Link PoE-Enabled Cameras

Our switches are highly compatible with a variety of cameras. You can be safe in the knowledge that the cameras and devices you choose will easily integrate into your surveillance network.


Better for Your Budget, Better for the Planet

To further cut OPEX, the DSS-100E-18P supports IEEE 802.3az Energy Efficient Ethernet. The switch can automatically detect when network traffic is being passed through ports. Those that are not in use are powered down. Not just good for cutting operating costs, but better for the environment too.


Flexible Operation Modes


Standard mode

All ports can communicate with each other, working as a common unmanaged switch. Ports 1 to 16 support PoE to devices up to 100m away and transmit data at 10/100 Mbps.
Meanwhile ports 1 to 8 support port priority to optimize port cache.


Isolation mode

To enhance security, ports 1-16 are separated, allowing each to only communicate with ports 17 and 18. This protects the network from tampering.


Extend mode

Have a device more than 100m away? Use this mode to keep supplying PoE over distances of 100m, doing away with the need for more equipment such as PoE extenders.


Surveilance Switch Series

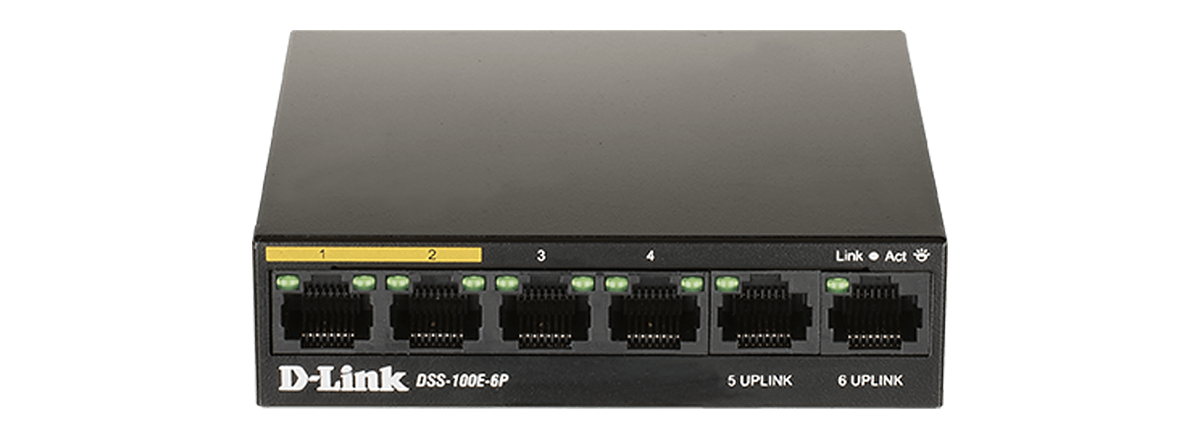

Product DSS-100E-6P
6 Port Unmanaged PoE Surveillance Switch
9 Port 10/100 PoE Unmanaged Surveillance Switch

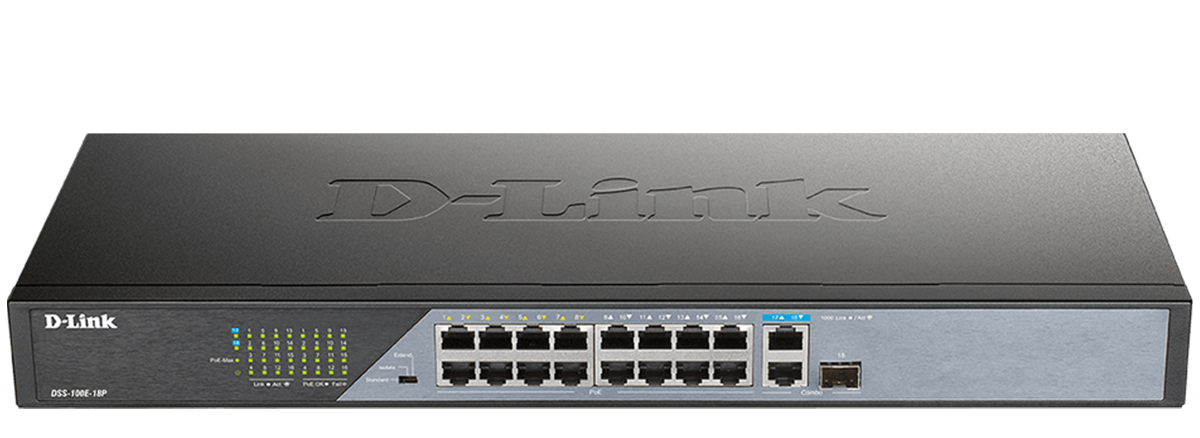

18 Port 10/100BASE-TX PoE Unmanaged Surveillance Switch

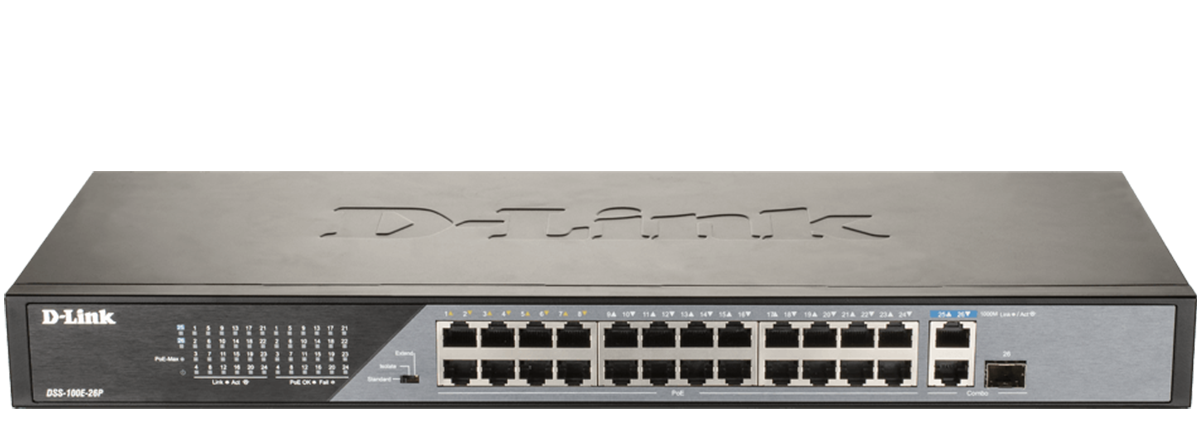

26 Port Unmanaged PoE Surveillance Switch
  • 4 x 10/100Base-T PoE ports
  • 8 x 10/100Base-T PoE ports
  • 1 x 1000Base-T port
  • 16 x 10/100BASE-T PoE ports
  • 1 x 1000BASE-T ports
  • 1 x 100/1000BASE-T/ SFP combo port
  • 24 x 10/100BASE-T PoE ports
  • 1 x 1000BASE-T ports
  • 1 x 100/1000BASE-T/ SFP combo port
Switch Capacity1.2 Gbps3.8 Gbps7.2 Gbps8.8 Gbps
Max. Packet Forwarding Rate0.89 Mpps2.6784 Mpps5.36 Mpps6.55 Mpps
PoE Budget55 W 92 W 230 W 230 W
Technical Specification
Maximum Power Consumption Maximum: 64.20 W (PoE on),
1.57 W (PoE off)
Maximum: 113.4 watts (PoE on),
4.57watts (PoE off)
Maximum: 265 watts (PoE on),
16.89 watts (PoE off)
Maximum: 269.28 W (PoE on),
14.84 W (PoE off)
Power Feature100 - 240 VAC100 - 240 VAC100 - 240 VAC100 - 240 VAC
Surge/Lightning Protection6kV6kV6kV6kV
Dimension177 x 104 x 26 mm177 x 104 x 26 mm440 x 178 x 44 mm440 x 178 x 44 mm

10 / 100 Mbps PoE ports
100 / 1000BASE-T / SFP combo port
1000BASE-T port
Power Feature
AC : 100 ~ 240V

DC : 53.5V/3.2A
Switch Capacity
7.2 Gbps
Surge Protection
Up to 6 kV
440 x 178 x 44 mm
Max. Packet Forwarding Rate
5.36 Mpps
Maximum Power Consumption
16.89 W (PoE off)

265 W (PoE on)
PoE Power Budget
