10-Port Gigabit PoE Metro Ethernet Switch

DGS-1210-10P/ME

  • Product Status (Revision Series_v1000WW): Live
  • 8 x 10/100/1000BASE-T PoE ports
  • 2 x SFP ports
  • Supports 802.3at Power over Ethernet
  • Comprehensive Layer 2 features including Link Aggregation, Port-based Q-in-Q, and VLAN trunking
  • Enhanced network security with IP-MAC Port-Binding (IMPB), Access Control List (ACL), and IEEE 802.1X
  • Embedded 6 kV surge protection, sub-50 ms recovery ERPS, and Dying Gasp provide optimal reliability

Download the datasheet.

Where to buy

Ideal for Metro Ethernet

The DGS-1210ME Series Metro Ethernet Switches feature a variety of port configurations, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1210ME Series Metro Ethernet Switches ideal for Metro Ethernet applications.

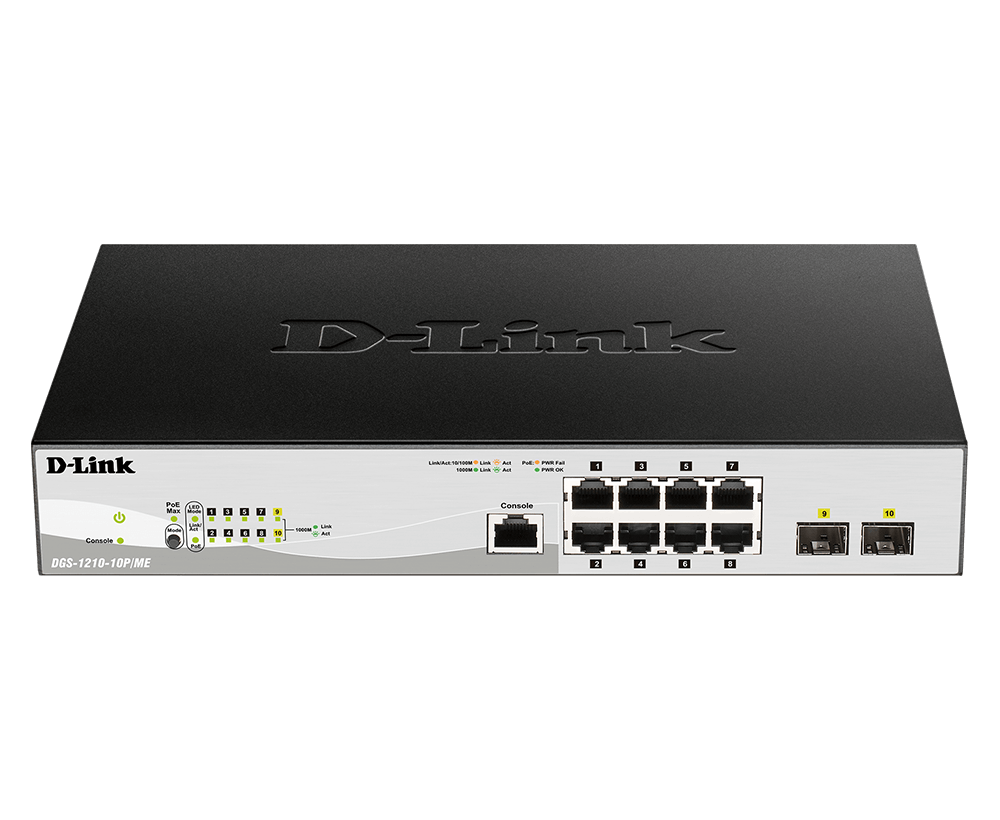

DGS121010PMEproductimagefront

Efficient and Resilient

For mission critical environments, the DGS-1210ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The switches also support IEEE 802.3ad link aggregation, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.

Security & Authentication

The DGS-1210ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to further enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding. In addition, the Access Control List (ACL) feature enhances network security and switch performance.

building-017
city006

Multicast Applications

The DGS-1210ME Series features a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, fast leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210ME Series is ready and capable of handling growing IPTV applications.

Management Capabilities

A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics to troubleshoot cable length and functionality problems remotely.

Traffic & Bandwidth Control

Integrated bandwidth control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64 Kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64 Kbps for egress queue bandwidth. The DGS-1210ME Series also supports traffic control, which optimizes overall performance, while port mirroring helps administrators perform traffic diagnostics and track network performance.

building-041

.
Product
DGS-1210-10/ME
DGS-1210-10/ME

10-Port Gigabit Metro Ethernet Switch

DGS-1210-10P/ME
DGS-1210-10P/ME

10-Port Gigabit PoE Metro Ethernet Switch

DGS-1210-12TS/ME
DGS-1210-12TS/ME

12-Port Gigabit Fiber Metro Ethernet Switch

DGS-1210-20/ME
DGS-1210-20/ME

20-Port Gigabit Metro Ethernet Switch

DGS-1210-28/ME
DGS-1210-28/ME

28-Port Gigabit Metro Ethernet Switch

DGS-1210-28MP/ME
DGS-1210-28MP/ME

28-Port PoE Gigabit PoE Metro Ethernet Switch

DGS-1210-28P/ME
DGS-1210-28P/ME

28-Port Gigabit PoE Metro Ethernet Switch

DGS-1210-28X/ME
DGS-1210-28X/ME

28-Port Gigabit Metro Ethernet Switch

DGS-1210-28XS/ME
DGS-1210-28XS/ME

28-Port Gigabit Fiber Metro Ethernet Switch

DGS-1210-52/ME
DGS-1210-52/ME

52-Port Gigabit Metro Ethernet Switch

DGS-1210-52MP/ME
DGS-1210-52MP/ME

52-Port Gigabit PoE Metro Ethernet Switch

DGS-1210-52MPP/ME
DGS-1210-52MPP/ME

52-Port Managed Gigabit PoE Metro Ethernet Switch

DGS-1210-52P/ME
DGS-1210-52P/ME

52-Port PoE Gigabit Metro Ethernet Switch

Interface
8 x
10/100/1000 BASE-T
12 x
SFP ports
8 x
10/100/1000BASE-T PoE ports
2 x
SFP ports
10 x
SFP ports
2 x
10/100/1000BASE-T ports
16 x
10/100/1000BASE-T ports
4 x
SFP ports
24 x
10/100/1000BASE-T ports
4 x
SFP ports
24 x
10/100/1000BASE-T PoE ports
4 x
SFP ports
24 x
10/100/1000BASE-T PoE ports
4 x
SFP ports
8 x
10/100/1000 BASE-T
12 x
SFP ports
24 x
SFP ports
4 x
10G SFP+ ports
48 x
10/100/1000BASE-T ports
4 x
SFP ports
48 x
10/100/1000BASE-T PoE ports
4 x
SFP ports
48 x
10/100/1000BASE-T PoE ports
4 x
SFP ports
24 x
10/100/1000BASE-T PoE ports
24 x
10/100/1000BASE-T ports
4 x
SFP ports
Performance
Switching Capacity
20 Gbps
20 Gbps
24 Gbps
40 Gbps
56 Gbps
56 Gbps
56 Gbps
128 Gbps
128 Gbps
104 Gbps
104 Gbps
104 Gbps
104 Gbps
Max. Packet Forwarding Rate
14.88 Mpps
14.88 Mpps
17.86 Mpps
29.8 Mpps
41.7 Mpps
41.7 Mpps
41.7 Mpps
95.24 Mpps
95.24 Mpps
77.4 Mpps
77.4 Mpps
77.4 Mpps
77.4 Mpps
PoE
PoE Budget
78 W
370 W
193 W
370 W
740 W
193 W
Technical Specification
Maximum Heat Dissipation
46.35 BTU/hr
307,703 BTU/hr
47.25 BTU/hr
47.67 BTU/hr
60.12 BTU/hr
1552.32 BTU/hr
857.98 BTU/hr
83.72 BTU/hr
115.17 BTU/hr
132.08 BTU/hr
1636.16 BTU/hr
3268.46 BTU/hr
932.23 BTU/hr
Maximum Heat Dissipation
13.38 W/100 V
13.59 W/240 V
101.7 W (PoE on)
17.9 W (PoE off)
13.6 W/100 V
13.85 W/240 V
13.81 W/100 V
13.97 W/240 V
19.05 W/100 V
19.14 W/240 V
455 W (PoE on)
35.6 W (PoE off)
251.5 W (PoE on)
28.7 W (PoE off)
24.5 W/100 V
24.4 W/240 V
32.9 W/100 V
33.4 W/240 V
38.85 W/100 V
38.35 W/240 V
479.5 W (PoE on)
54.4 W (PoE off)
957.9 W (PoE on)
56.8 W (PoE off)
273.2 W (PoE on)
47.9 W (PoE off)
MTBF
412,956 hours
315,336 hours
405,083 hours
349,836 hours
497,918 hours
267,960 hours
331,699 hours
450,021 hours
243,327 hours
381,999 hours
272,910 hours
265,457 hours
289,151 hours

Acoustic
0 dB
Aggregation
8 x Link Aggregation Group Per Device

8 x Max Port Per Link Aggregation Group

802.1AX Link

802.3ad Link
CPU Speed
400MHz
DRAM Size
256MB
Flash Memory Size
32 MB
IGMP Snooping
Max 1024 GMP Snooping Groups
Operating Altitude
1500 m
Spanning Tree Protocol (STP)
IEEE 802.1D STP

IEEE 802.1s MSTP

IEEE 802.1w RSTP
Control
802.3x Flow
Dimensions
280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in)
FAN
Fanless
Head-of-line (HOL) Blocking Prevention
Yes
Humidity
Operating: 0% - 95% RH

Storage: 0%-95% RH
Interfaces
2 x 1000M SFP

4 x max IP Interface

8 x 10/100/1000BASE-T PoE ports
Jumbo Frame
9,216 Bytes
MAC Address Table Size
16K
Maximum Forwarding Rate
14.88 Mpps
Maximum Heat Dissipation
307,703 BTU/hr
Maximum Power Consumption
101.7 W (PoE on)

17.9 W (PoE off)
MTBF
315,336 hours
Packet Buffer Size
1.5Mbits
PoE Power Budget
78 W
Power Input
100 to 240 V AC
Standby Power Consumption
10.3 W/100V

11.1 W/240V
Store & Forwarding Forwading
Yes
Switching Capacity
20 Gbps
Temperature
Operating: -5 to 50° C (23 to 122° F)

Storage: -20 - 70 ˚C
Weight
1.92 kg
