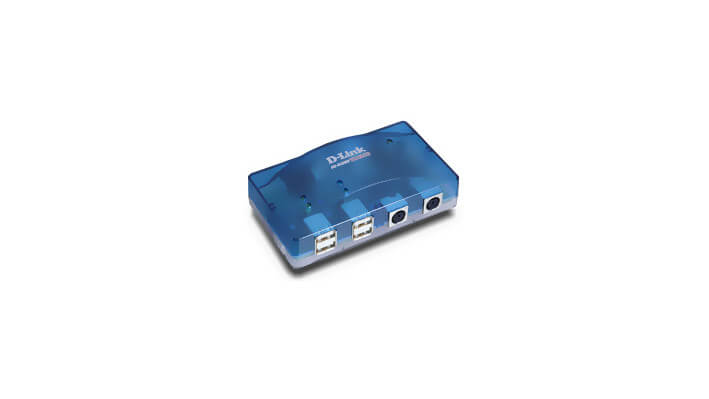

Multifunction USB Hub
DU-H4SMK
- Product Status (Revision A): End of Sale
Specs
Standards:
Data Speed:
LED indicators:
Upstream port:
Downstream port:
Legacy ports:
Output Voltage:
Output Current:
Dimensions:
Storage
Temperture:
Humidity:
Power Consumption:
- USB Specification V.1.1 compatibly
Data Speed:
- Low: 1.5Mbps
- High: 12Mbps
LED indicators:
- Power x 1, Port status x 4
Upstream port:
- Series-B Receptacle x 1
Downstream port:
- Series-A Receptacle x 4
Legacy ports:
- PS/2 keyboard port x 1
- PS/2 mouse port x 1
- DB-9 RS-232 serial port x 1
Output Voltage:
- Per port DC +5V
Output Current:
- Per port 500mA
Dimensions:
- 118 x 67 x 32 mm
Storage
- Storage: -25C ~ 70C
Temperture:
- Operation: 0C ~ 50C
Humidity:
- Storage: 10% ~ 90%
- Operation: 10% ~70% non-condensing
Power Consumption:
- 12 Watts (maximum)
Support
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual (English) | Manual (English) | - | 0.06mb | Download |
| Version | Description | Date | |
|---|---|---|---|
| DEU_Driver_win_xp_RevA | Driver for Windows XP | 01/04/2006 | Download |
| DEU_Driver_win2k_RevA | Driver for Windows 2000 | 01/04/2006 | Download |
| DEU_Driver_me_RevA | Driver for Windows ME | 01/04/2006 | Download |
| DEU_Driver_win98_RevA | Driver for Windows 98 | 01/04/2006 | Download |
| DEU_FTDI_win2k_v1_00_2051_RevA | This is a Windows 2000 driver release for products which use FTDI's FT8U100AX USB Controller and which use FTDI's generic VID and PID values. | 15/06/2000 | Download |
