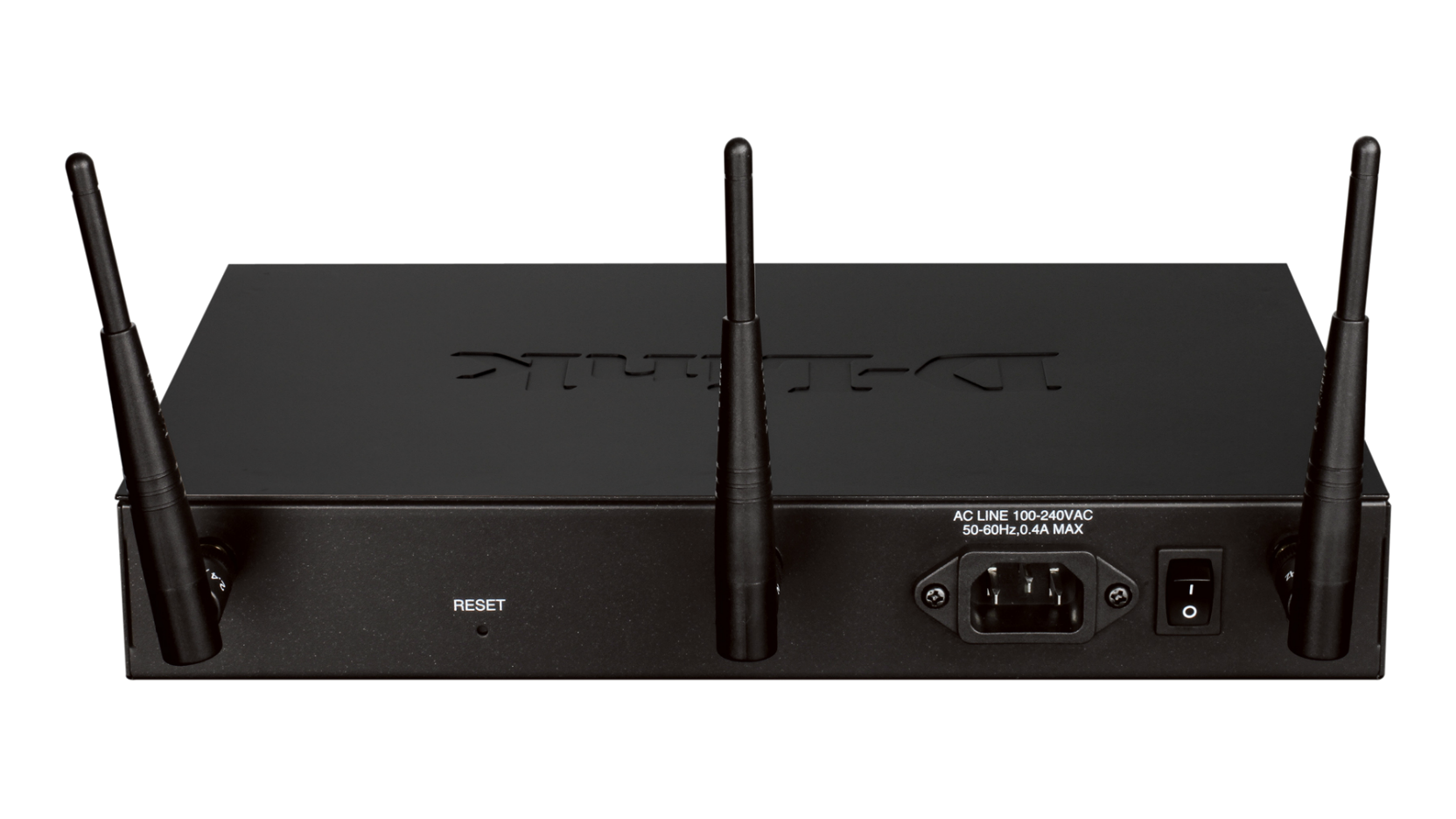

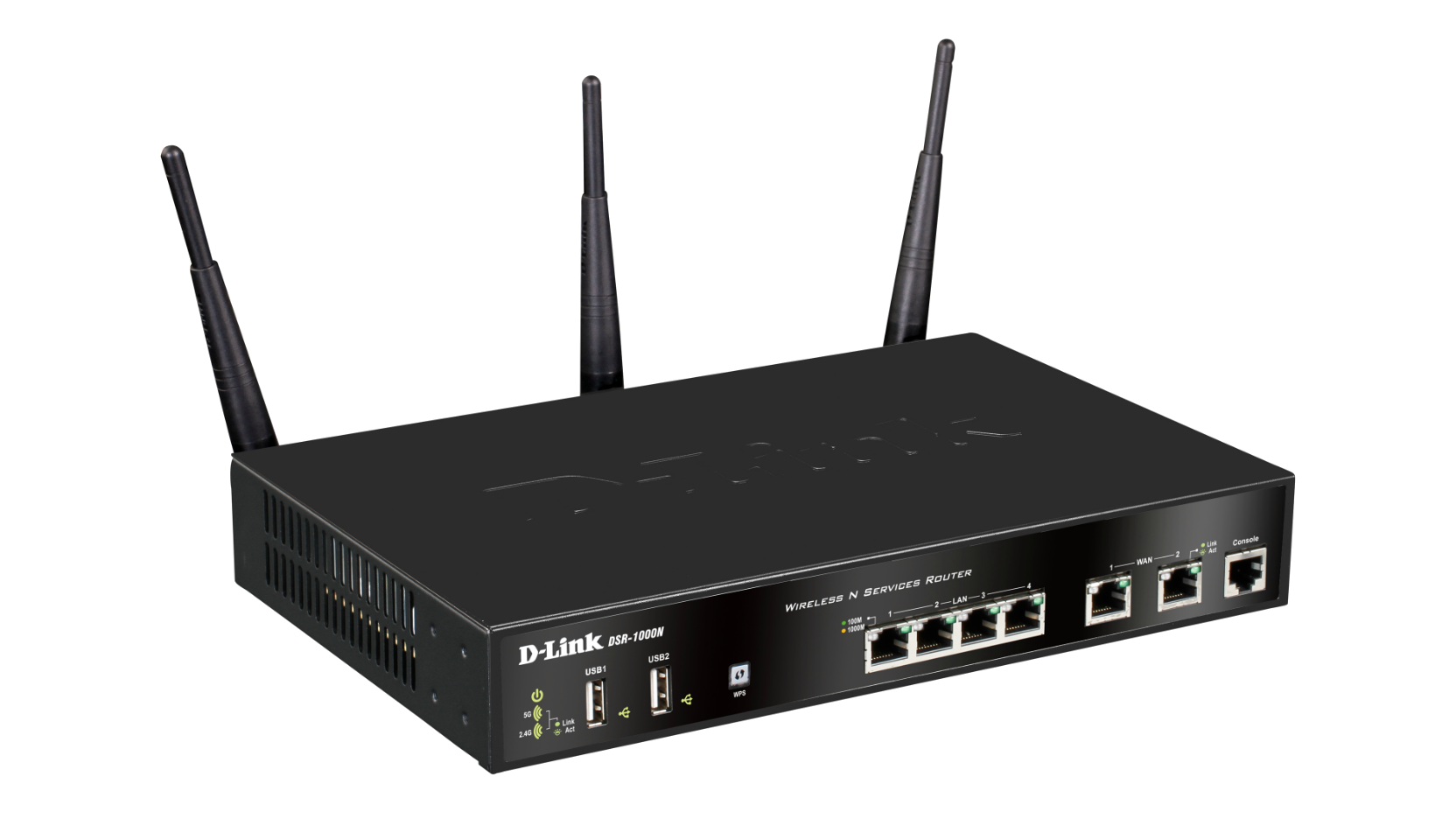

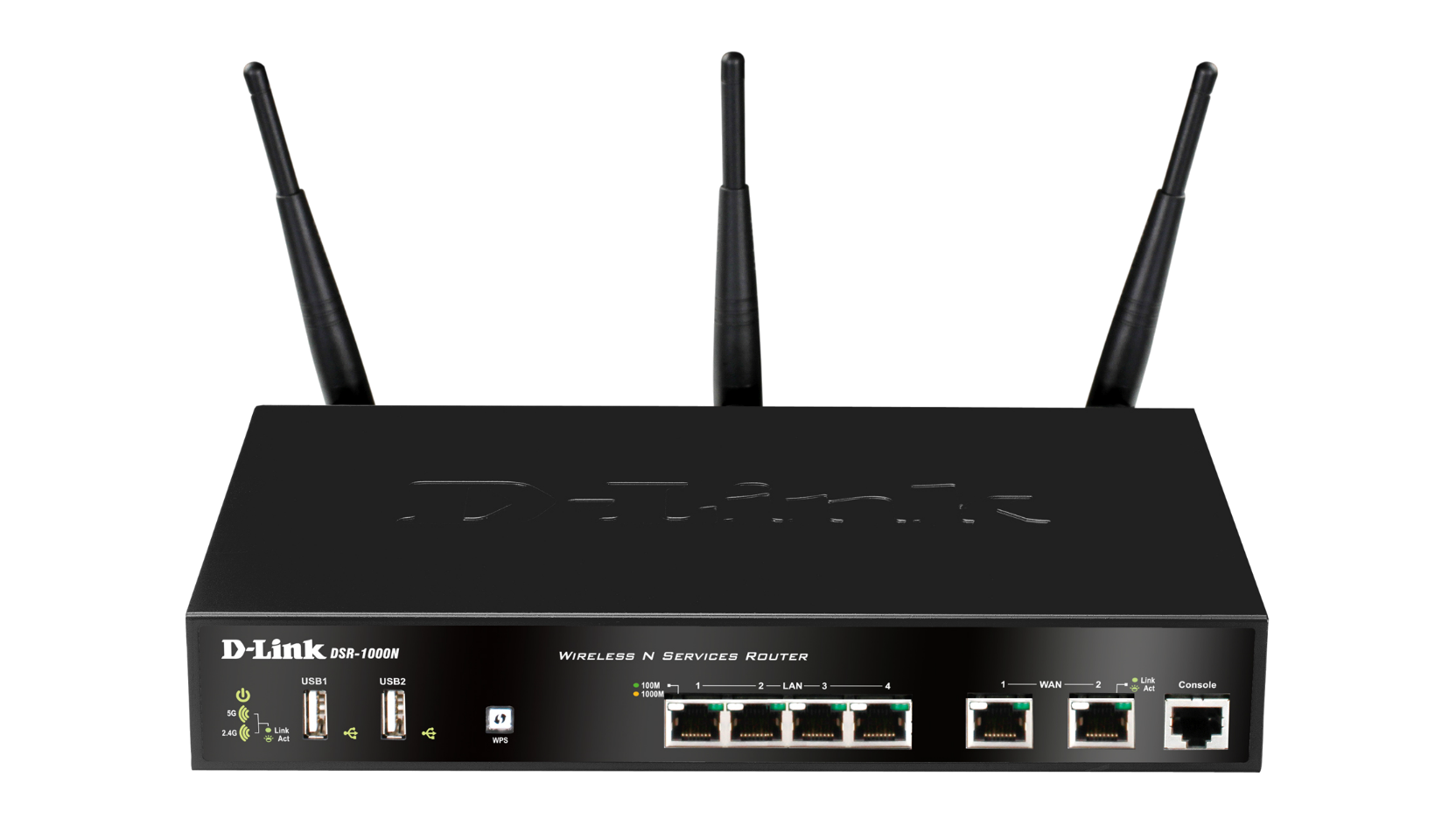

Wireless N Dual Band Unified Service Router

DSR-1000N

  • Product Status (Revision A1): End of Life

The D-Link DSR-1000N Unified Services Router, high-performance networking solutions to address the growing needs of small and medium businesses. The integrated high-speed IEEE 802.11n wireless technology in the D-Link DSR-100N Unified Services Router offers comparable performance to traditional wired networks, but with fewer limitations. Each router provides optimal network security via features such as Virtual Private Network (VPN) tunnels, IP Security (IPSec), Point-to-Point Tunnelling Protocol (PPTP), Layer 2 Tunnelling Protocol (L2TP), Generic Routing Encapsulation (GRE)2, and Secure Sockets Layer (SSL). This router also allow you to empower your road warriors with clientless remote access anywhere and anytime using SSL VPN tunnels.

Comprehensive Management Capabilities

The DSR-1000N include dual-WAN Gigabit Ethernet that provides policy-based service management to ensure maximum productivity for your business operations. The failover feature maintains data traffic without disconnecting when a landline connection is lost. The Outbound Load Balancing feature adjusts outgoing traffic across two WAN interfaces and optimises system performance, resulting in high availability. The second WAN port can be configured as a DMZ port, allowing you to isolate servers from your LAN.

Superior Wireless Performance

The D-Link DSR-1000N Unified Services Router include 802.11a/b/g/n, allowing for operation on either the 2.4 GHz or 5 GHz wireless LAN radio bands. Multiple In Multiple Out (MIMO) technology allows the DSR-1000N to provide high data rates and a wide wireless coverage area with minimised “dead spots.”

Flexible Deployment Options

The DSR-1000N supports Third Generation (3G) networks via an extendable USB 3G dongle1. This 3G network capability offers an additional data connection for critical or backup services. A 3G USB dongle can be configured as a third WAN port, performing Traffic Load Balancing and executing automatic failover whenever the primary WAN link gets lost.

Robust VPN Features

A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The D-Link DSR-1000N is capable of simultaneously managing 20 Secure Sockets Layer (SSL) VPN tunnels, as well as  20 Generic Routing Encapsulation (GRE) tunnels2, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunnelling Protocol (PPTP), or Layer 2 Tunnelling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. The DSR-1000N simultaneously support up to 70 IPSec VPN tunnels, and 25 additional PPTP/L2TP tunnels.

Efficient Green Technology

D-Link Green Wi-Fi and D-Link Green Ethernet features save power and help cut energy usage costs. The D-Link Green WLAN Scheduler shuts down your wireless network automatically according to a schedule you define, allowing you to turn off your wireless network during off-peak hours, saving energy and keeping your network secure. The D-Link Green Ethernet feature can detect if a link is down on a port, and automatically puts that port into a sleep mode that drastically reduces the amount of power used. In addition, compliance with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives make D-Link Green-certified devices an environmentally responsible choice.

1 The following 3G dongles are supported: DWM-152 A1/A2/A3, DWM-156 A1/A2/A3/A5*/A6*, DWM-157*, Huawei E1550, E173, and EC306.* The dongles marked with * will be supported through firmware upgrades.
2 Available through future firmware upgrade.

Type
VPN security router
Wireless standard
Wireless N
Frequency band mode
Dual-band selectable
Wireless speed
300 Mbps 2.4 GHz

300 Mbps 5 GHz
Antenna type
3 detachable omni-directional antennas
Antenna gain
2 dBi for 2.4 GHz
Wired interface
2 x Gigabit Ethernet WAN

4 x Gigabit Ethernet LAN
USB ports
2 x USB 2.0
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Metal
Wireless modes
Access Point (AP)
Advanced features
MIMO
Maximum number of SSIDs
4
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
Firewall throughput
950 Mbps
VPN throughput (3DES)
100 Mbps
Concurrent sessions
60000
Firewall policies
600
Internet connection type
Multiple PPPoE

PPPoE/L2TP/PPTP

Static/Dynamic IP
Firewall system
Dynamic DNS

Dynamic route

Inter-VLAN route

Intrusion prevention system (IPS)

NAT, PAT

Static route

Web content filtering
Networking
3G redundancy

DHCP relay

DHCP server/client

IEEE802.1q VLAN

IP multicast

IPv6

Outbound load balancing

Route failover

VLAN (port-based)
VPN tunnels
135
IPSec tunnels
70
PPTP/L2TP tunnels
20
Encryption methods
DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL

RC4-128, 3DES, AES
VPN features
Dead Peer Detection

Hub and Spoke

IP Authentication Header (AH)

IP Encapsulating Security Payload (ESP)

IPSec NAT Traversal

IPSec/PPTP/L2TP Server

VPN Tunnel Keep Alive
Bandwidth management
Maximum bandwidth control

Port-based QoS
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported

FAQ

This product was phased out on: 24/04/2016
This product's last date of support is on: 23/04/2021
