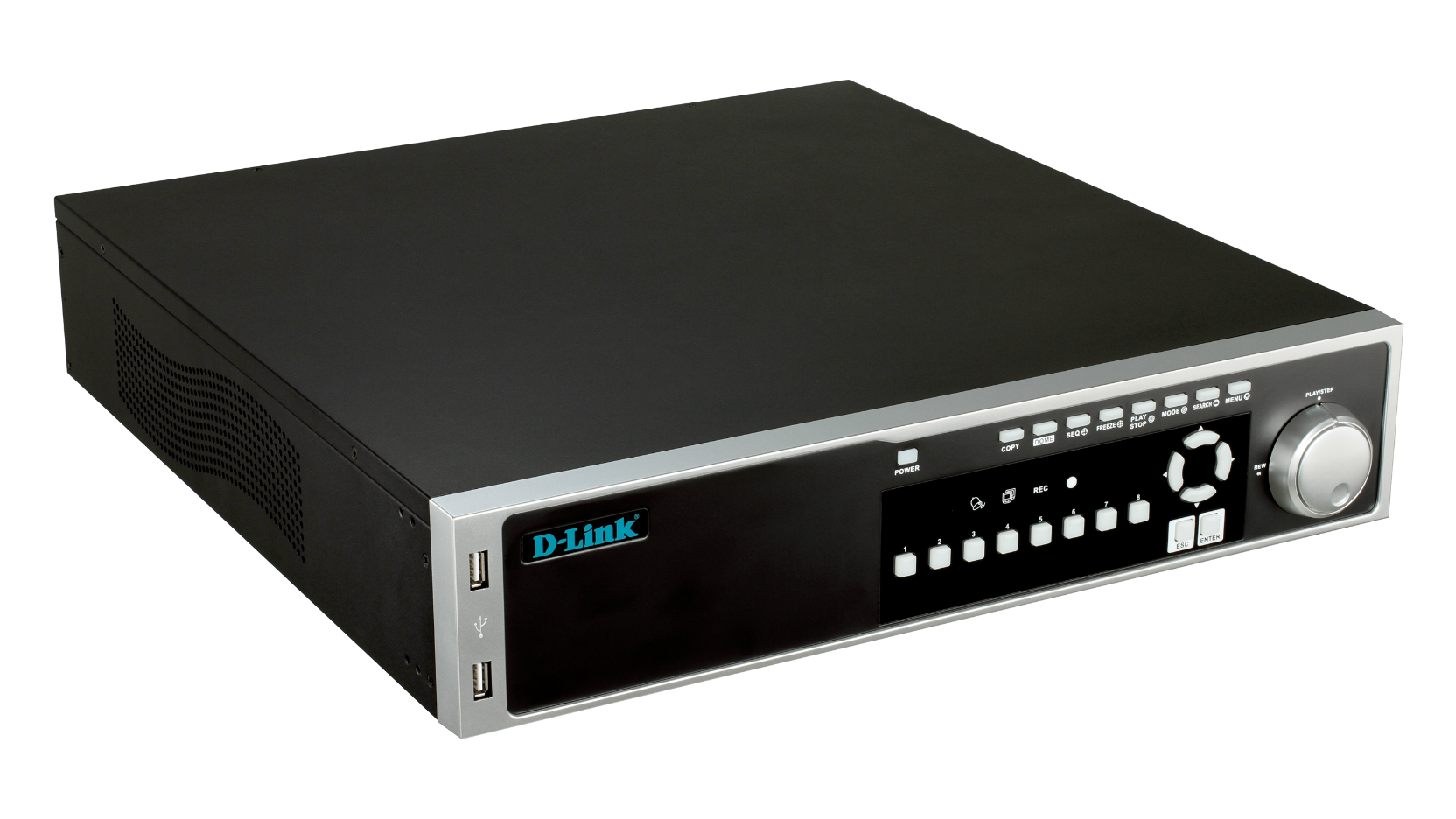

JustConnect Multifunctional Network Video Recorder


  • Product Status: Phased Out

The DNR-2060-08P JustConnect Network Video Recorder is a comprehensive standalone network video display, storage, and management solution providing reliable high quality monitoring for IP-based security systems. The DNR-2060-08P enables simultaneous recording and remote access to recorded videos as well as live view.

Download the datasheet.

List Retailers

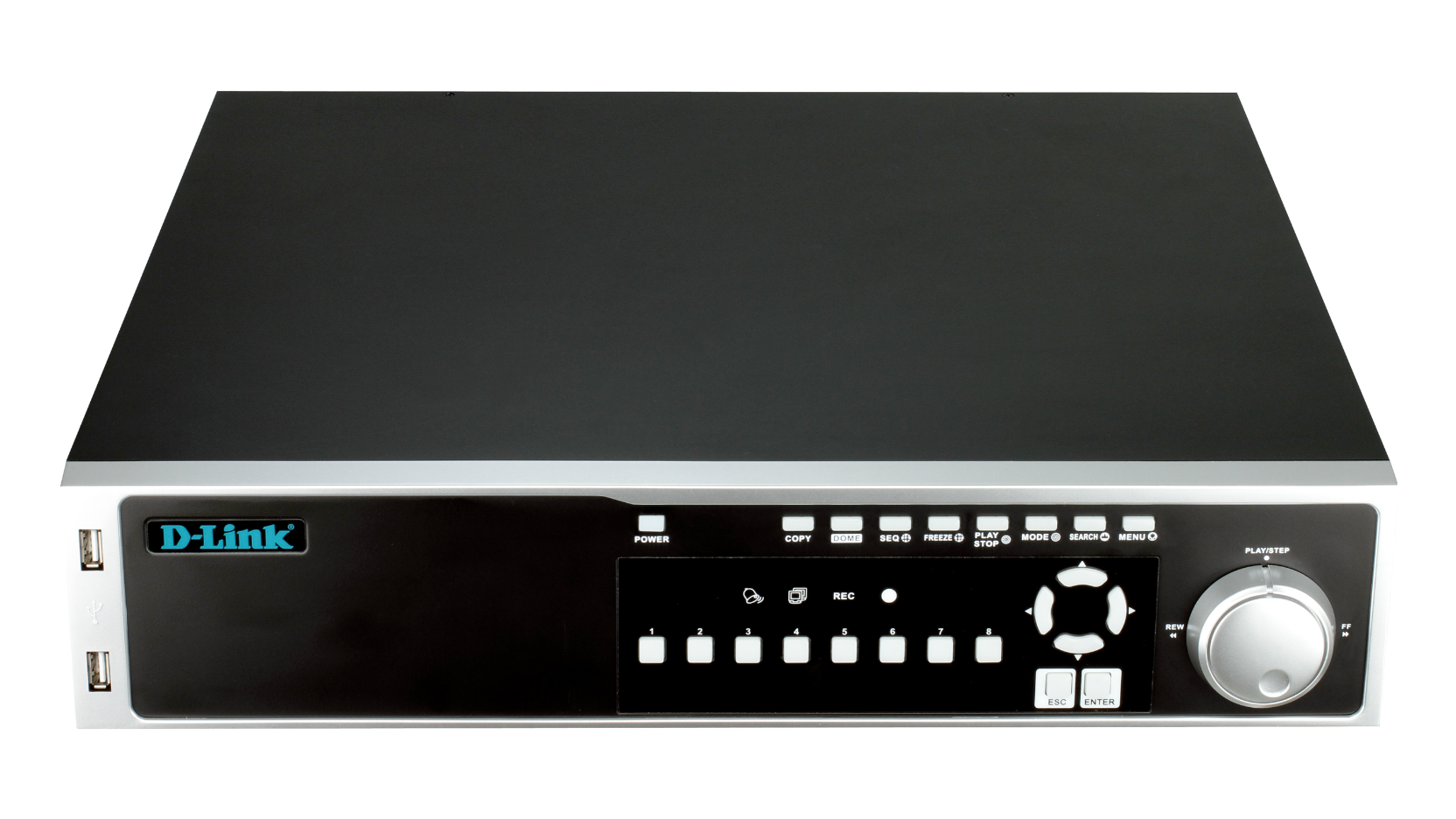

The DNR-2060-08P JustConnect Network Video Recorder is a comprehensive standalone network video display, storage, and management solution providing reliable high quality monitoring for IP-based security systems. The DNR-2060-08P enables simultaneous recording and remote access to recorded videos as well as live view. Controlling the DNR-2060-08P is exceptionally easy using conventional front panel controls, or with an optional keypad and mouse, or remote control handset. The highly flexible, simple-to-configure, and manage make the DNR-2060-08P a cost-effective upgrade addition to your security and surveillance infrastructure.

Maximising the potential

The latest multi-megapixel resolution cameras demand a new generation of network recording solutions. The DNR-2060-08P exceeds these demands and adds reliability, scalability, flexibility, ease of use and competitive pricing.

Robust Management Software

The standalone DNR-2060-08P includes a complete surveillance software package that enables you to view, manage, store, record, and search through footage from up to eight cameras in a central location, without the need of a computer. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.


The DNR-2060-08P has eight built-in 802.3at compliant PoE+ ports that simplifies camera installation by providing both power and network connectivity through a simple cable. Not only does this save overall installation cost by eliminating the need to install separate electrical wiring and power outlet, PoE+ allows you to power even the most demanding cameras. In addition, the included digital input and output connector enables further integration to external devices such as switches and alarm relays.

Product Awards

Business Computing World
D-Link’s DNR-2060-08P JustConnect Network Video Recorder is designed to bridge the gap between still very popular analogue CCTV and digital IP surveillance systems, the aim being to make IP systems as easy to install and use as analogue.

Technical Specifications


Video codec

  • H.264
Audio codec
  • PCM
  • G.711
Recording modes
  • Continuous
  • Schedule
  • Event (motion, alarm, video loss)
Recording performance
  • Up to eight channels
  • NTSC: 240pps at 1080P, 720P, 480P (camera dependent)
  • Pal: 200pps at 1080P, 720P, 480P (camera dependent)
  • 0 to 70 seconds



  • NTSC: 60pps at 1080P, 120pps at 720P, 240pps at 480P (camera dependent)
  • PAL: 50pps at 1080P, 100pps at 720P & 200pps at 480P (camera dependent) Playback search
  • Forward, reverse, step-by-step and different speed play/calendar, event & panorama
  • Front panel/keyboard and mouse via USB port/remote control handset Playback control
  • Play, pause, stop, reverse, play next, previous frame, next, previous video file, speed control
Playback features
  • Full screen display, video snapshot, digital zoom

Local Display

Video output

  • 1080 x 1920, 1280 x 1024, 1280 x 720, 1024 x 768
Display mode
  • 1/4/8 channels display

Backup and Export

Video Backup

  • External USB storage
  • eSata storage
  • Export to NAS
Export Formats
  • Export configuration to USB
External Device Interface
  • RJ45 port (auto MDI/MDIX) Gigabit LAN
  • Eight RJ45 port with PoE+ (IEEE 802.3at)
  • VGA
  • HDMI
  • DC-in jack
  • eSATA
  • Eight DI/DO
  • Audio out


Rights management

  • Multiple monitoring and playback account levels
Automatic log off
  • Idle user timeout on configuration pages
User management
  • Administrator/user group password authentication



  • Eight 10/100 TX IEEE 802.3at PoE+ Ethernet
  • Auto MDIX RJ-45 Gigabit Ethernet LAN
Network protocols
  • DHCP client
  • DNS client
  • SMTP client (SSMTP support)
  • HTTP server
  • PPPoE
  • RTP
  • RTSP

System Management

Remote management

  • Take snapshots/video clips via web browser
  • Configuration interface accessible via web browser
Event management
  • Motion detection
  • Event notification and upload snapshots/video clips via SMTP or FTP
  • Multiple SMTP servers.
  • Multiple event notification
System log
  • Status of active users and logon history
Mobile support
  • iOS devices


Built-in storage interfaces

  • Six 3.5” SATA I/II bays
  • eSata port
System requirements
  • Operating System: Microsoft Windows 7/Vista/XP
  • Web Browser: Internet Explorer 7 or higher
  • CE
  • CE LVD
  • FCC
  • C-Tick



  • 9.02 kg (19.9 lbs)
  • Input: 100 to 240 VAC at 50/60 Hz
  • Maximum consumption up to 200 Watts
  • Output: 5 VDC, 750 mA (via USB port)
  • Operating: 0 to 40°C (32 to 104°F)
  • Storage: -20 to 70°C (-4 to 158°F)
  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing
  • (H) 90.4 mm (3.56 inches)
  • (W) 440.4 mm (17.34 inches)
  • (D) 450.9 mm (17.75 inches)


  • How do I update the firmware on my DNR-2060-08P using USB? Read Answer
  • How to Update the Firmware - DNR-2060-08P? Read Answer
  • How to Upgrade Firmware via Web Interface - DNR-2060-08P Read Answer
This product was phased out on: 08/08/2017
Version Date Type File Size
Datasheet (English) - PDF 0.43mb Download
Storage Product Guide - PDF 2.63mb Download
IP Surveillance Product Guide - PDF 3.58mb Download
Version Description Date Type File Size
DNR-2060-08P manual DNR-2060-08P manual - - - Download
Version Description Date Type File Size
1.00 DNR-2060-08P quick installation guide - - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
Firmware 1.10.02


28/07/2014 Download
Firmware 1.10.00


27/03/2014 Download
Firmware 1.00.07


04/12/2013 Download
Version Description Date
D-ViewCam NVR PRO for Windows D-ViewCam NVR PRO for Windows
(inc. Multi-NVR Viewer)
03/12/2015 Download
Multi-NVR Viewer Multi-NVR Viewer 15/10/2015 Download
Version Description Date
CE declaration CE declaration 15/10/2014 Download
DEU_IP_Surveillance_Cheat_Sheet - 06/06/2014 Download

Compatible cameras for DNR-2060-08P

27/03/2014 Download
How_to_enable_Java_on_Mac_OS_X_for_mydlink How to enable Java on Mac OS X for mydlink 12/08/2013 Download
Compatible_Hard_Drives_RevA Compatible hard drives for DNR-2060-08P - Download
