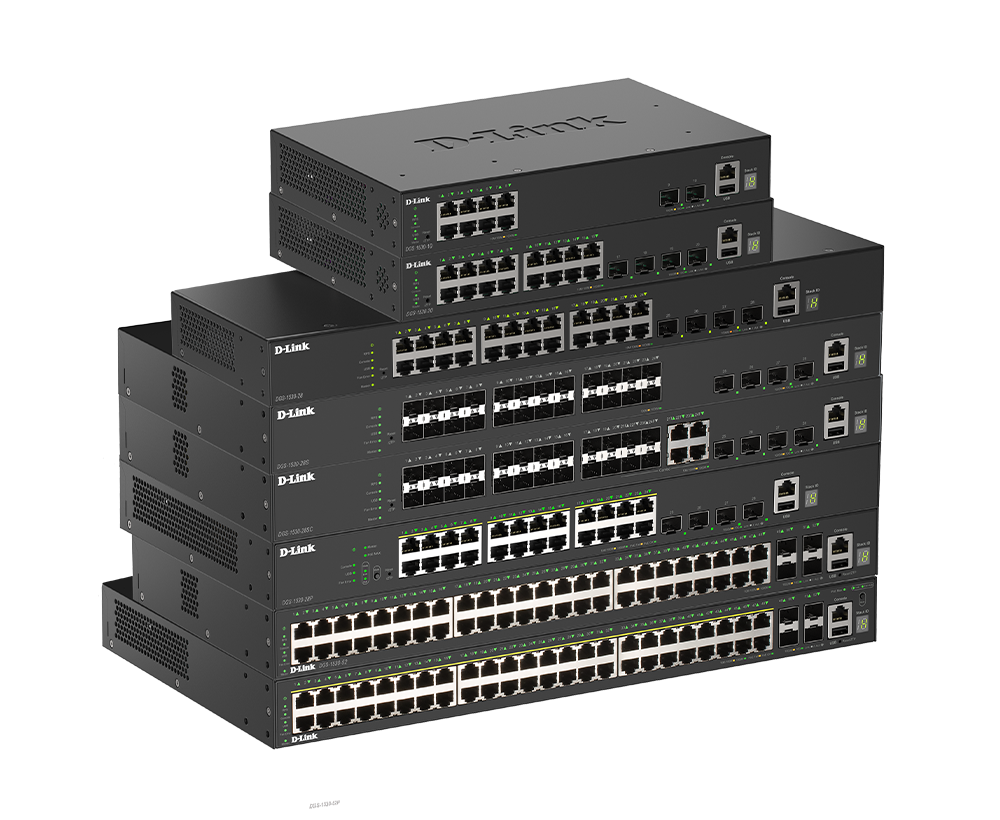

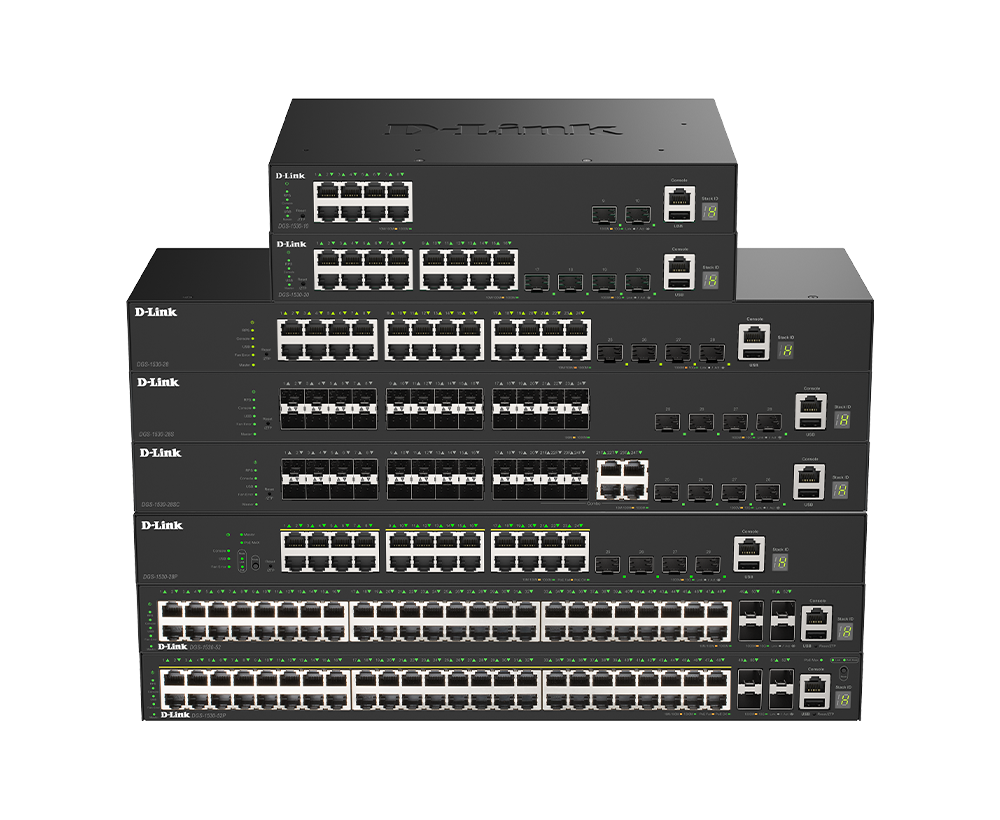

Gigabit Layer 2 Stackable Smart Managed Switches
DGS-1530 Series
- Product Status (Revision A): Live
- Support 1G for downlink ports
- Support 10G SFP+ for uplink ports
- PoE IEEE 802.3af/at with a robust power budget
- 6kV surge protection on all Gigabit Ethernet ports
- Physical stack of up to 9 units via 10G ports
- Supports 802.3ad LACP for link aggregation
- Support Static Routing and Loopback Detection
- AAA support for RADIUS/TACACS+
- Support D-Link Safeguard Engine
- Manage through the Nuclias Network Controller
*Nuclias Network Controller only include DNC-5000
Where to buy
Why You Need It

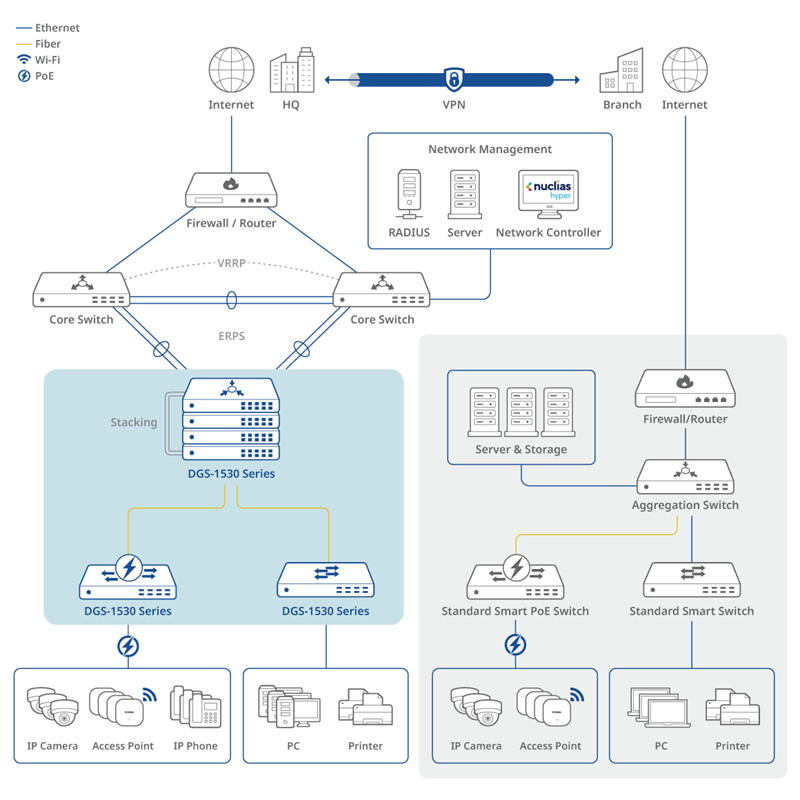

Physical Stacking
Physical stacking enables simplified management and scalable network expansion
Stay Connected
ERPS ensures fast, reliable network recovery and minimal downtime and ensure the continuous connectivity
Rich OAM Support
Comprehensive OAM streamlines monitoring, troubleshooting, and boosts network performance
Effortless Protection
Robust security strengthens safety, simplifies control, and prevents attacks for efficient operations
Static Routing
Static routes offer simplicity, stability, control, and enhanced security for network management
Uninterrupted Flow
Redundant power supply ensures uninterrupted services by backing up the built-in power and boosting PoE power
DGS-1530 Series Comparison
| Products | DGS-1530-10 | DGS-1530-20 | DGS-1530-28 | DGS-1530-28P | DGS-1530-28S | DGS-1530-52 | DGS-1530-52P | ||
|---|---|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  | |||
| Interface | 8 x 1GE | 16 x 1GE | 24 x 1GE | 24 x 1GE | 24 x 1G SFP | 24 x 1G SFP | 48 x 1GE 4 x 10G SFP+ | ||
| PoE | - | - | - | PoE+, with 370 W Power Budget | - | - | PoE+, up to 740 W (with DPS-700 RPS) Power Budget | ||
Related Products
DGS-1530 Series Specification
Products | DGS-1530-10 | DGS-1530-20 | DGS-1530-28 | DGS-1530-28P | DGS-1530-28S | DGS-1530-52 | DGS-1530-52P | ||
|---|---|---|---|---|---|---|---|---|---|
| | | | | |  | |||
| Interface | 8 x 1GE | 16 x 1GE | 24 x 1GE | 24 x 1GE PoE | 24 x 1G SFP 4 x 10G SFP+ | 48 x 1GE | 48 x 1GE PoE | ||
| Performance | |||||||||
| Switch Capacity | 56 Gbps | 112 Gbps | 128 Gbps | 128 Gbps | 128 Gbps | 176 Gbps | 176 Gbps | ||
Max. Packet | 41.67 Mpps | 83.33 Mpps | 95.24 Mpps | 95.24 Mpps | 95.24 Mpps | 130.95 Mpps | 130.95 Mpps | ||
| PoE | |||||||||
| PoE Standard | - | - | - | IEEE802.3af/at | - | - | IEEE802.3af/at | ||
| PoE Ports | - | - | - | Port 1 ~ 24 | - | - | Port 1 ~ 48 | ||
| PoE Budget | - | - | - | 370 W | - | - | 370 W (no RPS) 740 W (with DPS-700) | ||
| Technical Specification | |||||||||
| Surge Protection | 6kV Surge Protection on all ethernet ports | ||||||||
| Fan | Fanless | Fanless | 1 Internal Fan | 3 Internal Fans | 2 Internal Fans | 2 Internal Fans | 3 Internal Fans | ||
| Console Port | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| Power Supply Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | ||
