2-Port XFP 10GE Module for DES-6500
DES-6512
- Product Status (Revision A): End of Life
Description

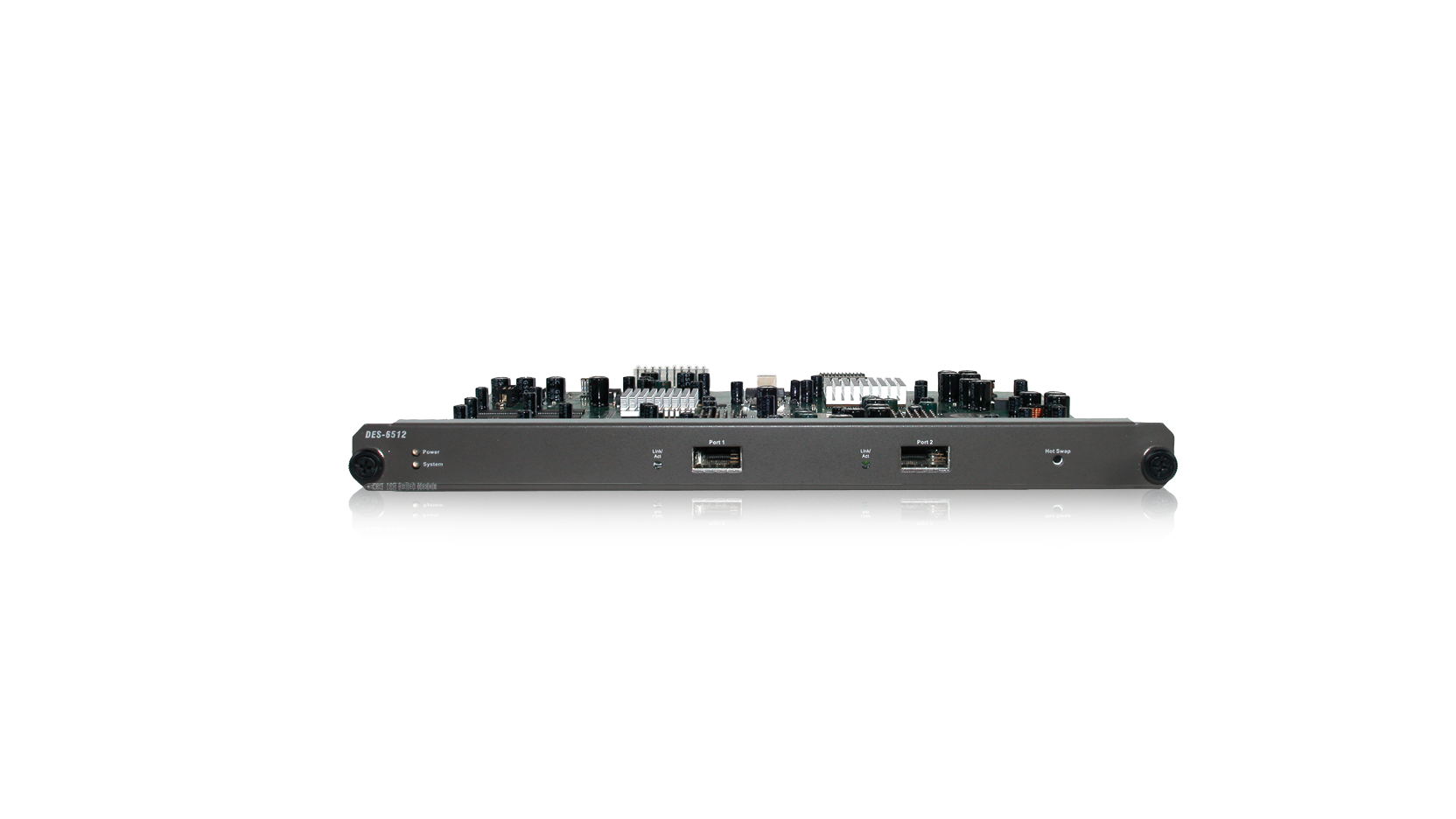

The DES-6512 is a 2-port 10Gbps XFP module for the DES-6500 chassis. It uses 10 Gigabit XFP transceivers for uplinking to servers, storage, or department level switches.
The DES-6512 is a 2-port 10Gig XFP card for the DES-6500 chassis. It uses standards-based IEEE 802.3ae 10Gigabit XFP modules to meet the demands of today’s Enterprise and Service Provider networking infrastructure. The DES-6512 is the perfect solution for uplinking to servers, storage, or department level switches such as D-Link’s xStack DXS-3200 series. Fiber media allows for increased distances over copper cabling. When used with D-Link’s DEM-422XT XFP fiber module a total distance of up to 10Km can be reached. This is often necessary when running across larger distances such as campus or multi-building environments. If shorter distances are required, the DEM-421XT module from D-Link provides 10Gigabit Multimode at distances of up to 300 meters.
The DES-6512 is a 2-port 10Gbps XFP module for the DES-6500 chassis. It uses 10 Gigabit XFP transceivers for uplinking to servers, storage, or department level switches.
The DES-6512 is a 2-port 10Gig XFP card for the DES-6500 chassis. It uses standards-based IEEE 802.3ae 10Gigabit XFP modules to meet the demands of today’s Enterprise and Service Provider networking infrastructure. The DES-6512 is the perfect solution for uplinking to servers, storage, or department level switches such as D-Link’s xStack DXS-3200 series. Fiber media allows for increased distances over copper cabling. When used with D-Link’s DEM-422XT XFP fiber module a total distance of up to 10Km can be reached. This is often necessary when running across larger distances such as campus or multi-building environments. If shorter distances are required, the DEM-421XT module from D-Link provides 10Gigabit Multimode at distances of up to 300 meters.
Specs
Specifications
Operating Temperature
Storage Temperature
Operating Humidity
Dimensions
Weight
IEEE
Power Consumption
Emission (EMI), Safety & Other Certifications
Emissions
Ordering Information
DES-6512
Supported XFPs
DEM-421XT
DEM-422XT
Operating Temperature
- 0 - 40°C
Storage Temperature
- -10 - 55°C
Operating Humidity
- 5% - 95% non-condensing
Dimensions
- 13 x 11 x 1in (330 x 281 x 27.5mm)
Weight
- 4.18lbs (1.9kg)
IEEE
- 802.3ae, 802.3x
Power Consumption
- 28 watts max
Emission (EMI), Safety & Other Certifications
Emissions
- FCC Class A, CE mark, CSA International
Ordering Information
DES-6512
- 2 Port 10G XFP Module for DES-6500
Supported XFPs
DEM-421XT
- 10GBASE-SR Multi-Mode XFP (up to 300m)
DEM-422XT
- 10GBASE-LR Single-Mode XFP (up to 10Km)
Support
This product was phased out on: 28/03/2010
This product's last date of support is on: 27/03/2015
