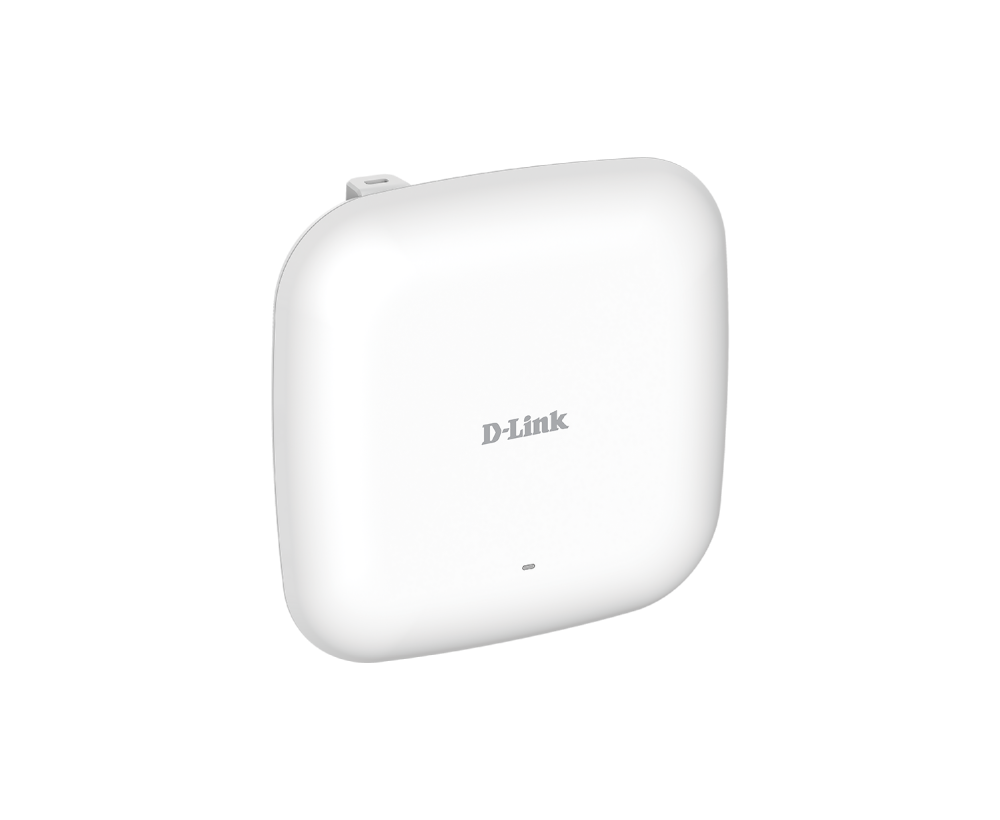

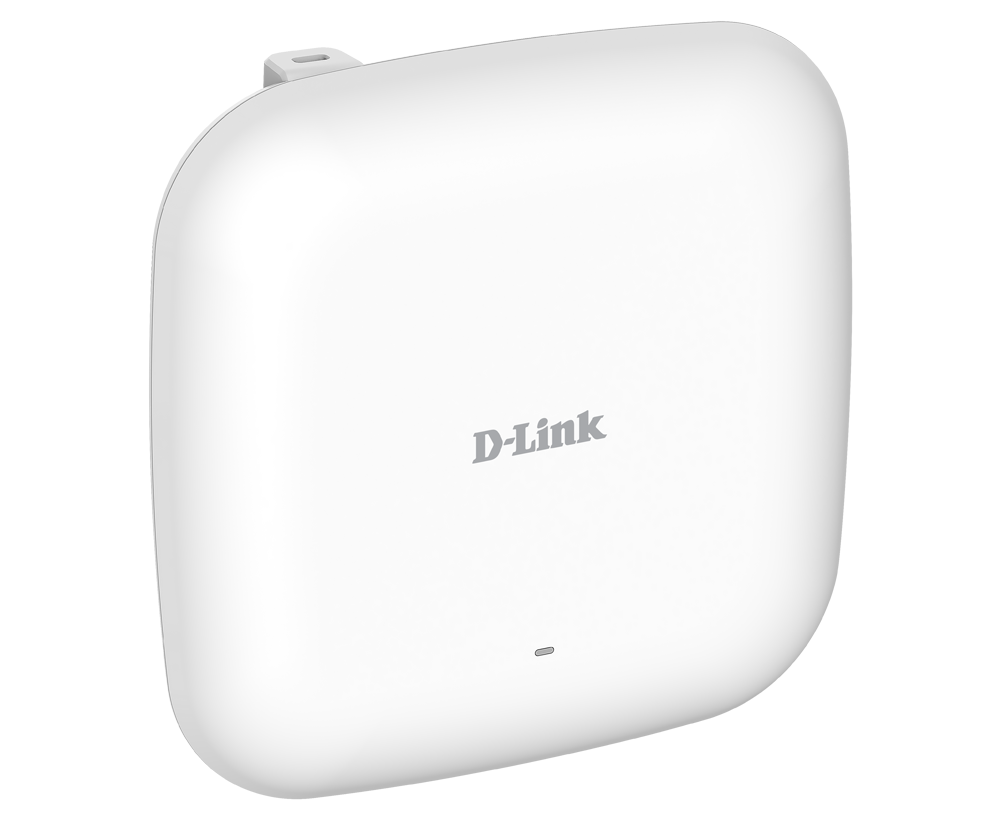

AX3000 Wi-Fi 6 智慧型無線基地台
DBR-X3000-AP
- Product Status (A1_Datasheet_v1.00(WW)): Live
- AX3000 Wi-Fi 6，最高 3.0 Gbps

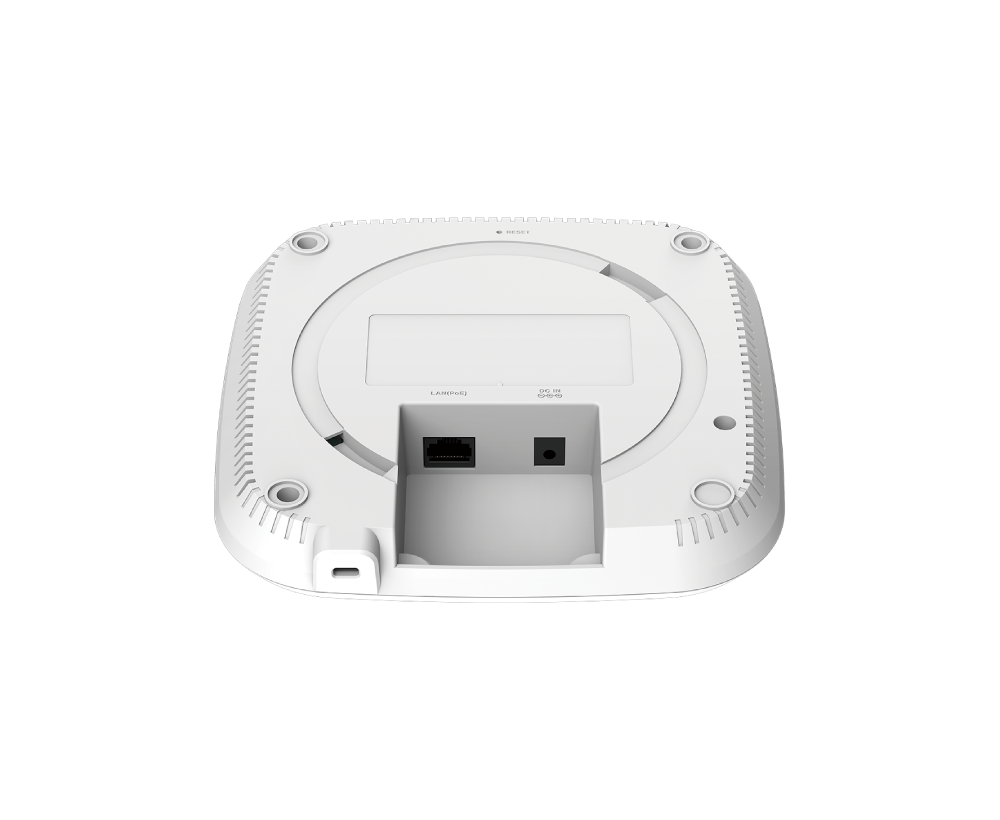

- 1 x GE PoE LAN 網路埠，安裝靈活

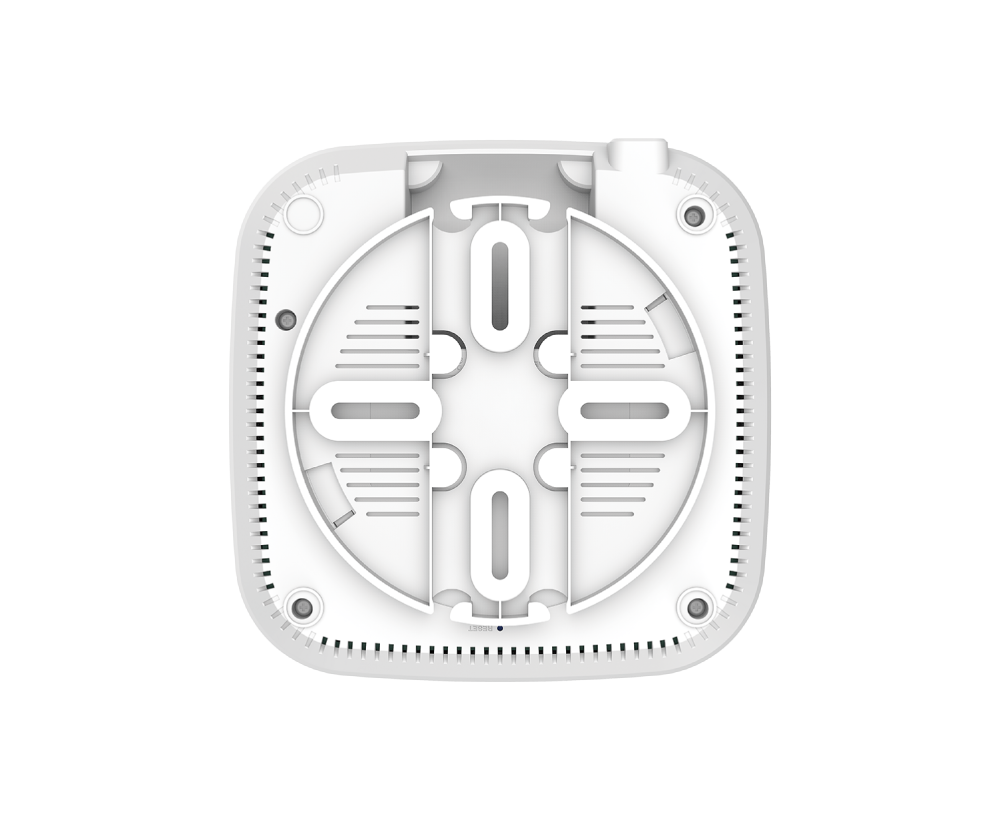

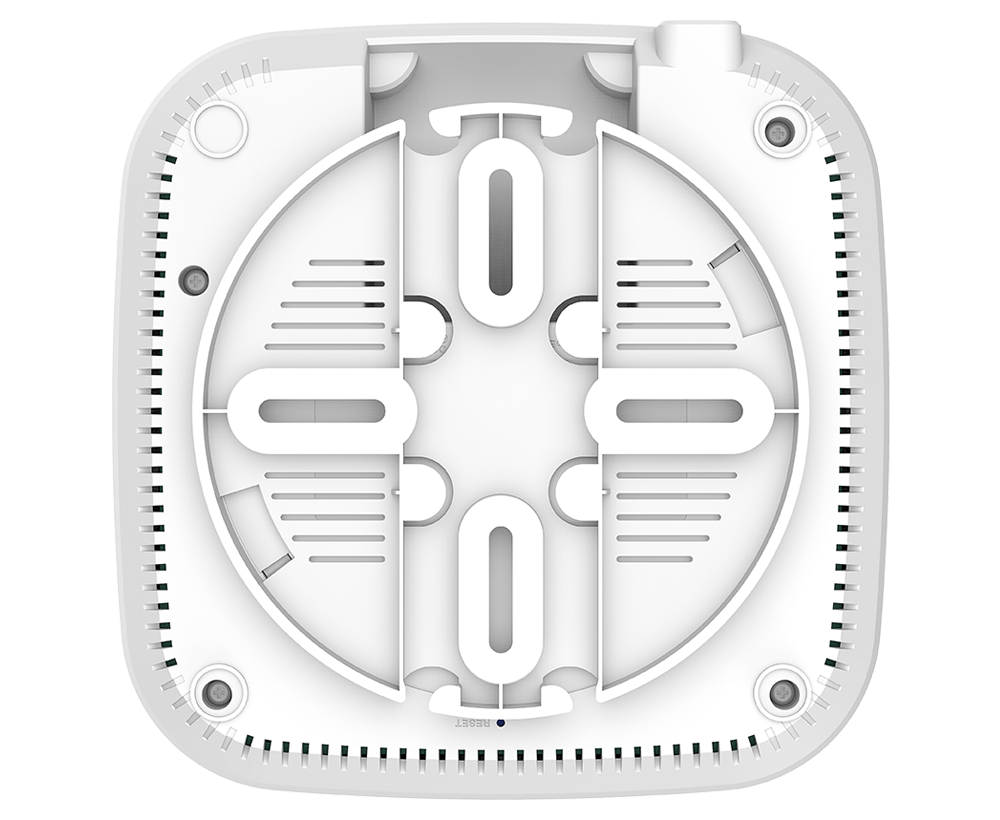

- 壁掛式或吸頂式安裝設計，適合各種空間
- 支援雙頻，性能更佳
- 無縫漫遊，裝置保持連接
- Mesh 技術輕鬆擴展覆蓋範圍
- WPA3 增強無線網路安全性
- 支援訪客 Wi-Fi，保護主網絡
- DBR 系列商用路由器集中管理
- 台灣製造
Where to buy
Wi-Fi 6 無線基地台實現無縫、更智慧的連接
Wi-Fi 6 Ready
Provides high efficiency and low latency, offering nearly 4x the capacity of previous Wi-Fi standards
Seamless Coverage
Easily expand coverage with mesh nodes, eliminating dead zones for seamless connectivity
Flexible Installation
Supports PoE for easy deployment, with wall-mount and ceiling design options for space efficiency
Worry-free Public Network
WPA3 encryption enhances network security, making browsing safer even in public spaces
Exclusive Guest Wi-Fi
Offers dedicated, secure network access to visitors without affecting the performance of the main network
Easy Management
Integrated with DBR Series routers for real-time monitoring and effortless device management
利用先進的 Wi-Fi 6 協助您的業務發展
保持連線，不錯過任何精彩
憑藉無縫漫遊功能，裝置可在無線基地台之間順暢切換，不會斷線。無論您是在進行視訊通話、串流媒體還是線上辦公，都能隨時隨地享受始終流暢可靠的網路體驗。
使用 DBR-X3000-AP，在整個商業區域體驗不間斷的連接和可靠的 Wi-Fi 覆蓋範圍。
專為不妥協的網路安全而打造
DBR-X3000-AP 支援 WPA3 個人/企業級和訪客 Wi-Fi，為您和您的訪客打造安全的數位環境。
WPA3 個人/企業級增強了對未經授權存取的防護，並保護敏感數據，讓您在咖啡館、機場或其他共享空間等公共場所連接時安心無虞。對於訪客，訪客 Wi-Fi 提供獨立的隔離連接，保護您的主網絡，確保敏感資料和裝置的安全。這些先進的安全功能使 DBR-X3000-AP 成為需要高品質網路安全的家庭和企業的理想解決方案。
幾分鐘內完成設定及管理
Related Products

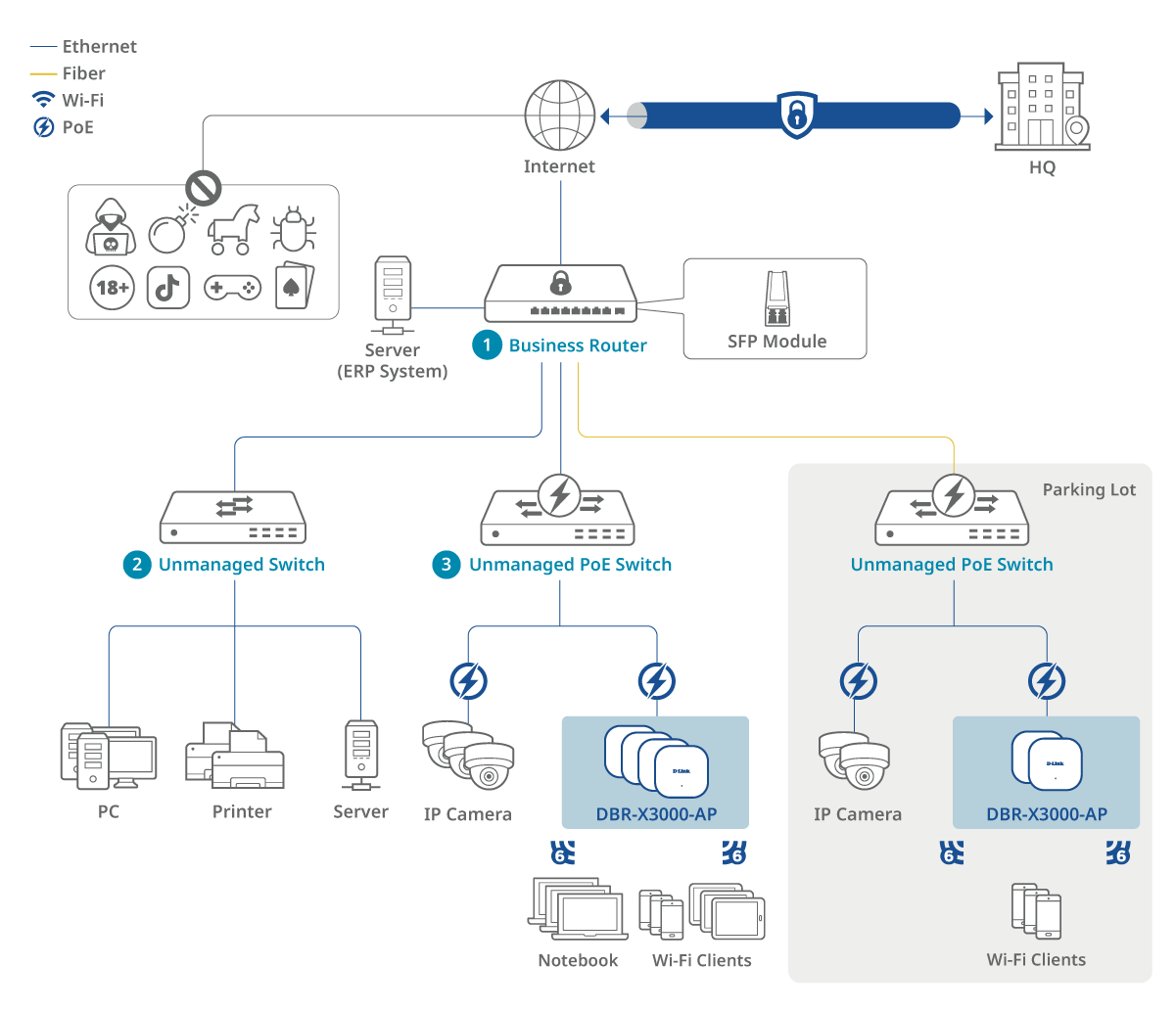

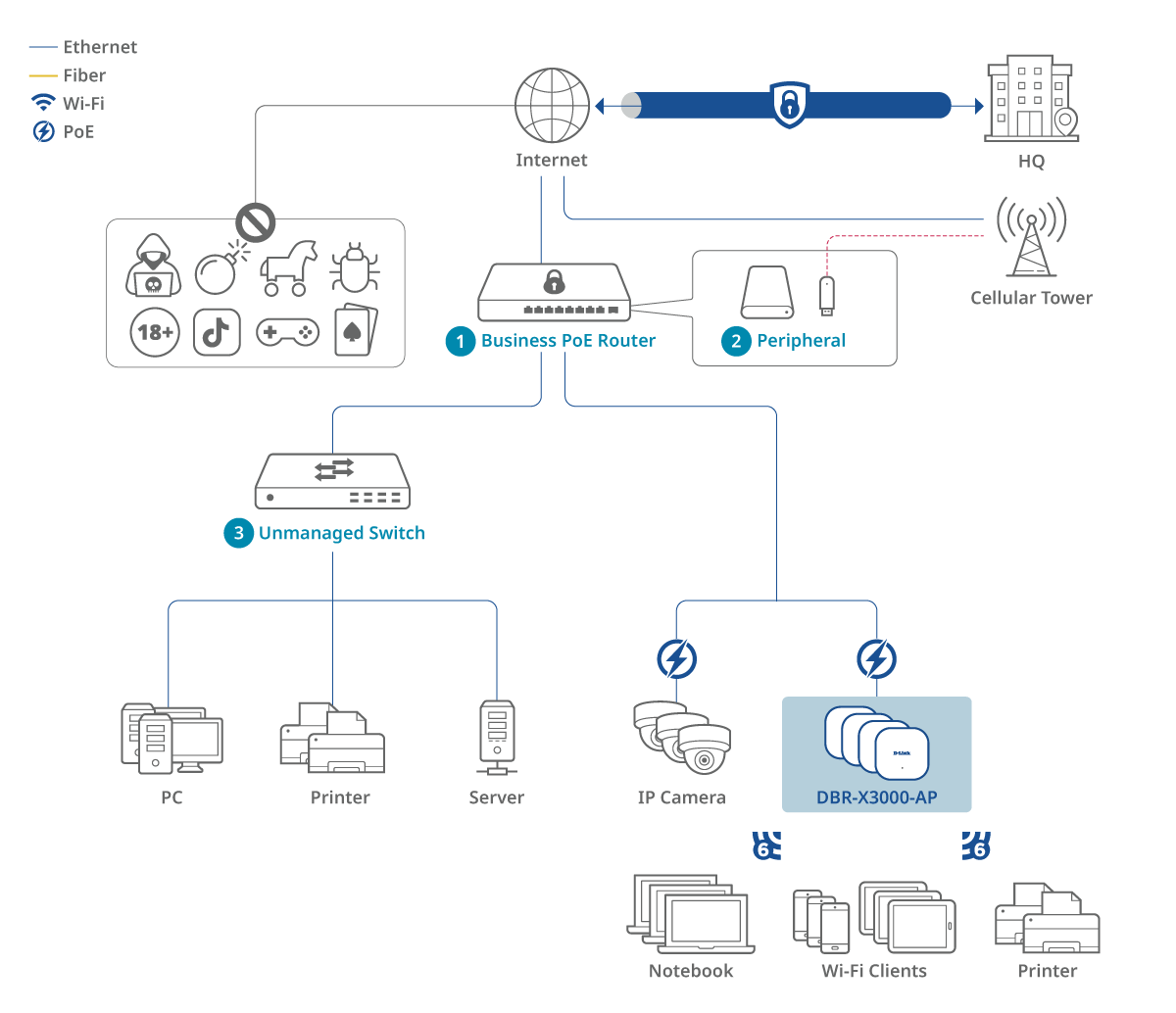

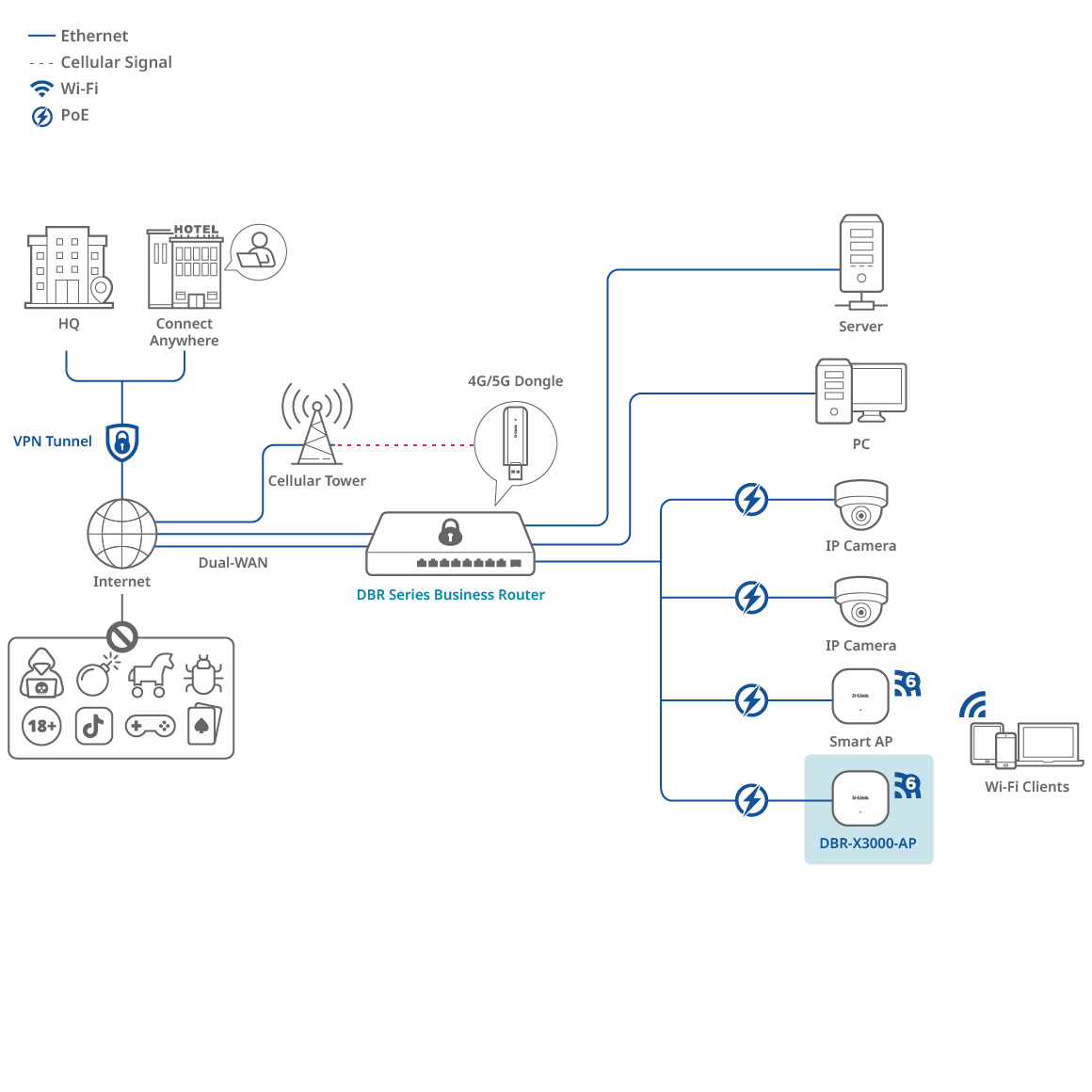

網路連接圖
D-Link 智慧無線基地台專為高效能、強大的安全性和高效的網路管理而設計，採用 Wi-Fi 6 雙頻技術和 PoE 供電，提供快速可靠的連接。 WPA3 個人/企業和訪客 Wi-Fi可隔離流量以保護敏感數據，降低安全風險，同時透過 D-Link 商用路由器進行集中管理，確保輕鬆部署和控制。憑藉先進的 Mesh 技術，它可在整個建築內實現靈活快速的網路擴展。 DBR-X3000-AP 專為中小型企業設計，可確保多個使用者和裝置獲得流暢、高效能的網路存取。
產品規格
|
Wireless Standard
|
802.11ax Wi-Fi 6 |
|---|---|
|
Frequency band mode
|
2.4G,5G Dual-band simultaneous |
|
Wireless Speed
|
2402 Mbps 5GHz 574 Mbps 2.4GHz |
|
Antenna gain
|
3 dBi for 5GHz 4 dBi for 2.4GHz |
|
MIMO
|
2.4G : 2T 2R 5G : 2T 3R |
|
Interfaces
|
1 x Gigabit Ethernet LAN |
|
PoE Standard
|
IEEE802.3at |
|
Mounting
|
Wall/Ceiling |
|
Support Mode
|
AP, Extender Mode |
|
Wi-Fi Security
|
WPA/WPA2/WPA3 Enterprise WPA/WPA2/WPA3 Personal |
|
Multiple SSID
|
Up to 7 per device |
|
Guest Mode
|
Yes |
|
Central Management
|
Managed by DBR-600-P/DBR-700 |
|
Captive Portal
|
Click Through, Local DB when managed by DBR-700 /DBR-600-P |
|
Dimensions
|
170 x 170 x 28 mm |
|
Operating Temperature
|
0 - 40 °C (32 - 104 °F) |
|
Storage Temperature
|
-10˚C to 70˚C (-4˚F to 158˚F) |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Storage Humidity
|
5% to 95% non-condensing |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
