商用PoE路由器

DBR-600-P

  • Product Status: Live
  • 1 x 2.5G WAN網路埠提供高速連接
  • 8 x 2.5G PoE 網路埠,提供最高123W 供電
  • USB 3.0 與 D-Link 4G/5G網路卡連接
  • 提供多個 WAN 網路埠,具備負載平衡功能
  • 先進的防火牆保護網路免受威脅
  • 全面的網路功能,滿足各種設置和部署需求
  • 最多可管理 10 個 D-Link 智慧 AP 系列
  • 頻寬管理最佳化服務優先級
  • 便捷的 Web GUI,用於集中監控和管理
  • 台灣製造
Where to buy

內建管理功能的商務 VPN 路由器

DBR-600-P 配備全連接埠 2.5G 介面和強大的處理器,可提供高效能吞吐量和跨網路裝置的連接。多 WAN 功能可提供全天候且持續可靠的網路服務。其強大的防火牆和 VPN 功能可確保網路存取的安全性,確保所有連接裝置和遠端站點的資料傳輸安全可靠。內建 AP 管理和 PoE 功能簡化了無線存取點的維護和安裝,使其成為尋求高效、全方位功能的小型企業的理想解決方案。

Send Large Files in a Snap

Enjoy faster 2.5Gbps data transfers, saving time and reducing wait

Reliable Multi-WAN Connectivity

up to 3 WAN ports for uninterrupted connectivity and optimized traffic

PoE Ports for Hassle-Free Deployment

PoE-enabled ports simplify installation and power up 8 devices

Comprehensive and Robust VPN

Powerful VPN ensures secure access for business offices and remote workers

Access Under Protection

Firewall protection keeps your network safe from unauthorized access and cyber threats

One-stop APs Management

Monitor and control smart access points easily via the built-in management platform

USB Port More Than Just a Port

Extend service with D-Link 4G/5G dongles as a backup WAN connection or additional external storage

Smart Performance Optimization

Prioritizing critical applications and balancing traffic to avoid congestion

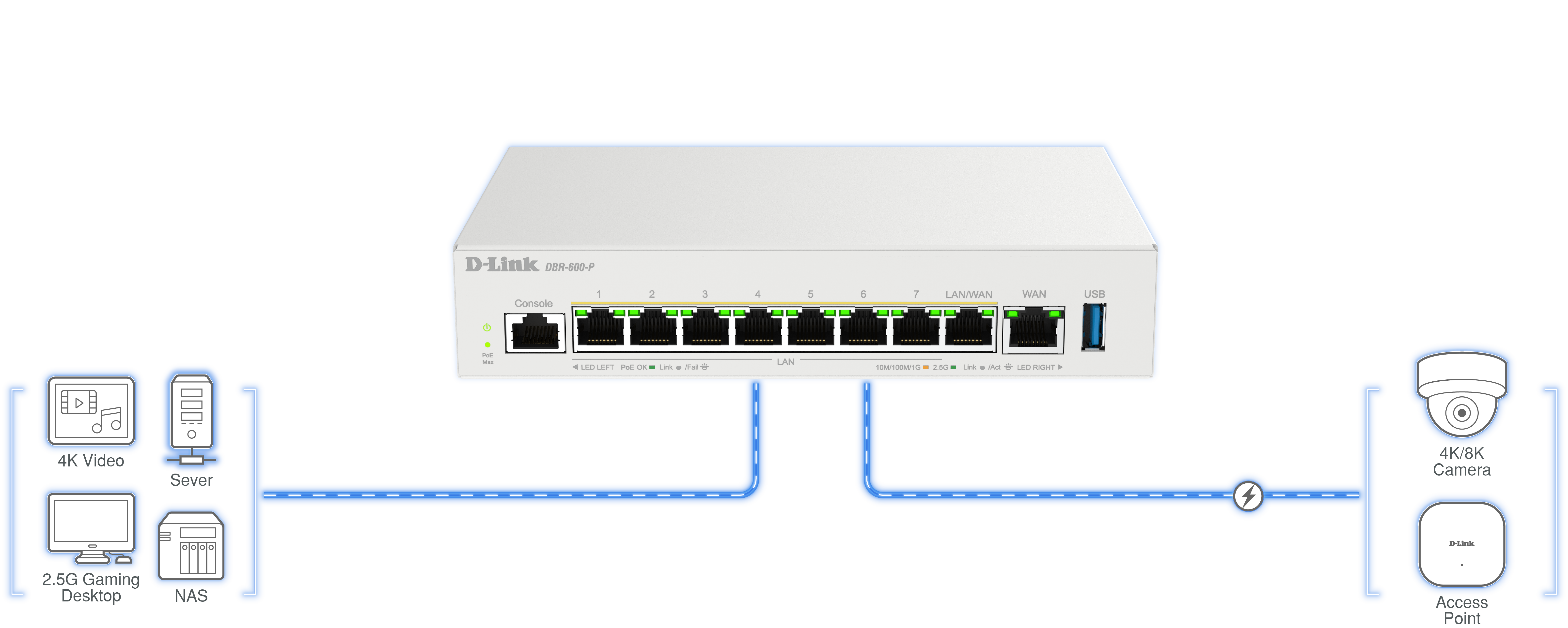

2.5G Connectivity
Drive Tomorrow's Success with Enhanced Performance

The DBR-600-P features a 2.5G interface, providing higher throughput to support faster file transmission and triple play service without congestion and latency, benefiting your business in real-time communication, enabling more stable and reliable connectivity. Its eight PoE-enabled ports up to 123W power budget make installation easily and costless by delivering both power and data through a single cable, making it perfect for devices like IP cameras and access points.

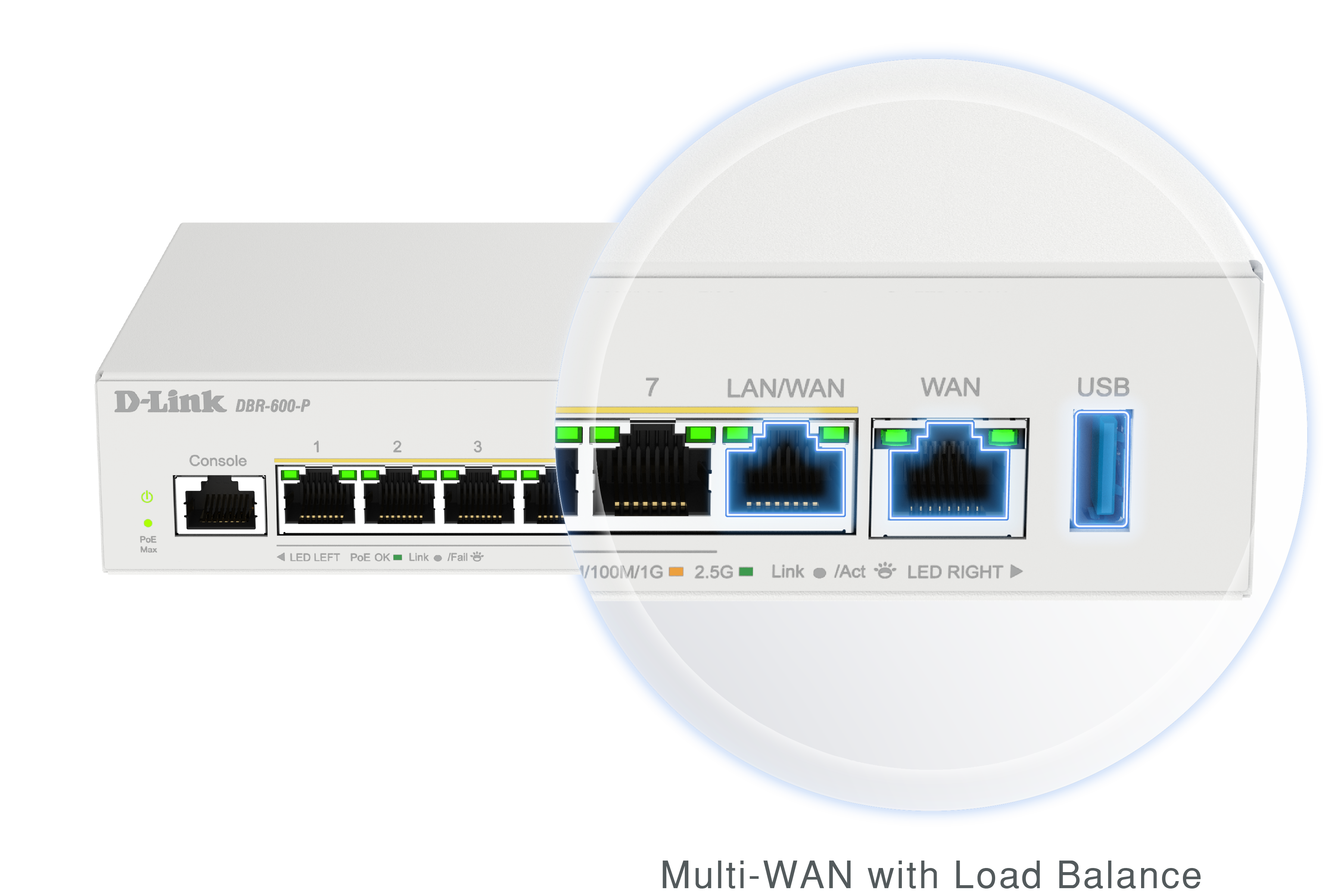

Multi-WAN
Experience Unbeatable Network Stability

In addition to one WAN/LAN port that can be set as the secondary WAN, the USB port not only extends the service by integrating with the D-Link 4G/5G dongle for WAN failover or load balance but also allows it to serve as external storage for file sharing or logging saving.

With up to 3 WAN ports, the DBR-600-P stays connected even if your primary connection goes down—automatic failover seamlessly switches to a backup. Load balancing distributes network traffic across multiple WAN connections, ensuring reliable performance and optimized traffic flow to keep your business always online and efficient without service downtime.

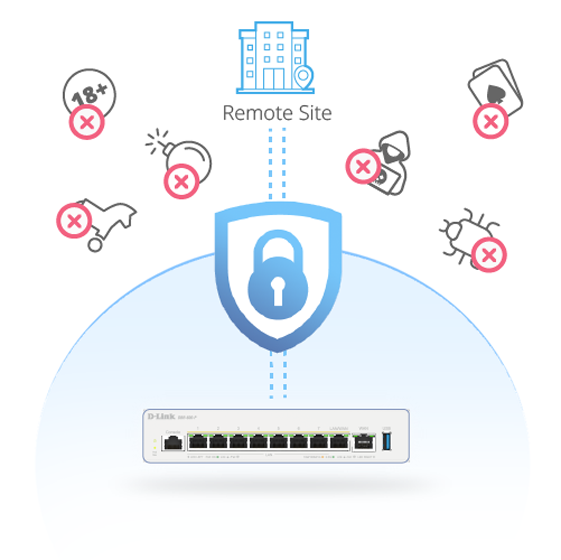

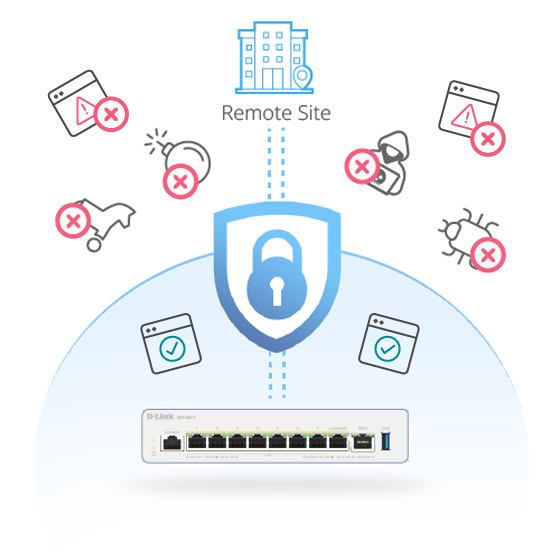

Robust Security
Always Secure Your Network and Access

Comprehensive built-in advanced security features, such as a firewall, IPS and web filtering, ensure that the internal network is securely protected. Enhanced VPN interoperability and strong encryption improve secure connection establishment with any device, deeply protecting data from unauthorized access and maintaining privacy across all network interactions.

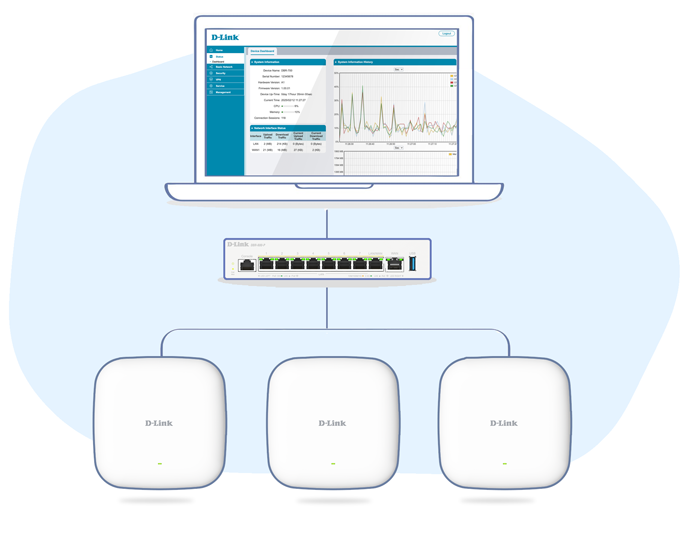

One-stop APs Management

Through an intuitive web UI, the DBR-600-P centrally monitors the entire network status and easily manages the configuration of advanced features. Integrated wireless management supports up to 10 Smart AP(DBR-X3000-AP) devices, simplifying administrative tasks such as radio settings, client monitoring, and access control. Hassle-free management and real-time insights into network activity help small business owners enhance overall operational efficiency.

Related Products

商用路由器
DBR-700
Find out more

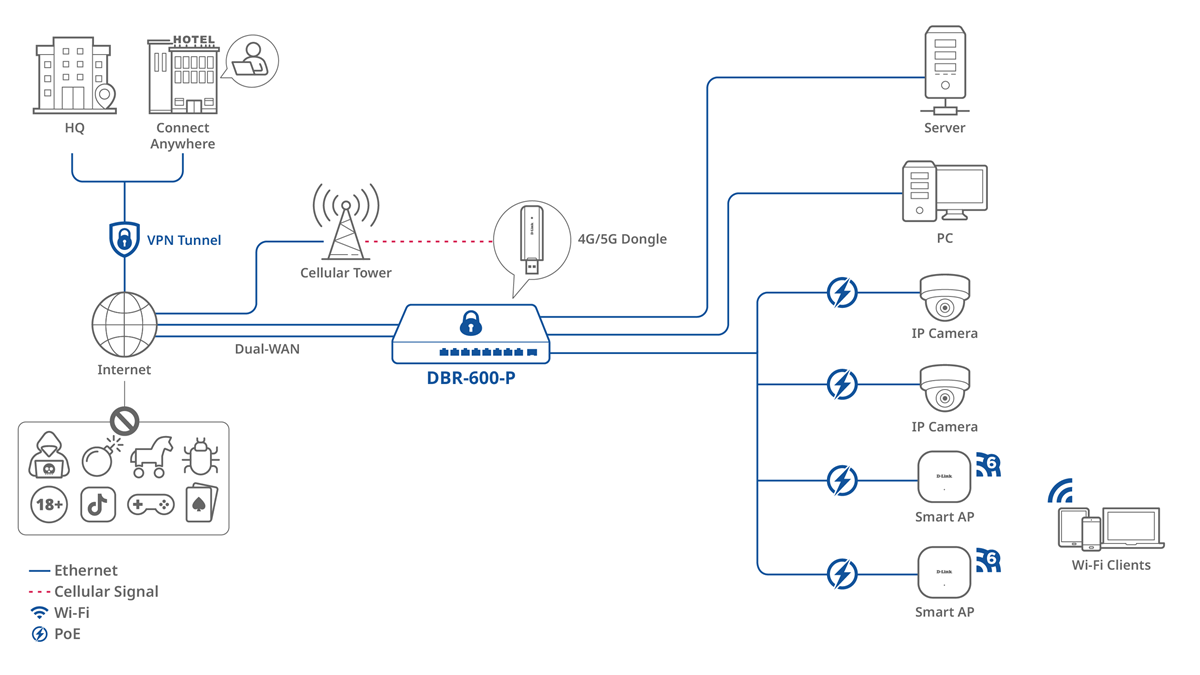

Connection Diagram

Discover the DBR-600-P business router's capabilities through our detailed topology diagram.
It offers high port density with 2.5G-speed connectivity and can rapidly and flexibly expand network capacity through its diverse interface. For teleworkers, the DBR-600-P ensures seamless access to the office network anytime, anywhere. For small offices, it effectively blocks malicious traffic, safeguarding your network. Additionally, the built-in management platform simplifies AP management, boosting efficiency and overall performance.

Applications

Startup Office (Enterprise)

Kindergarten (Education)

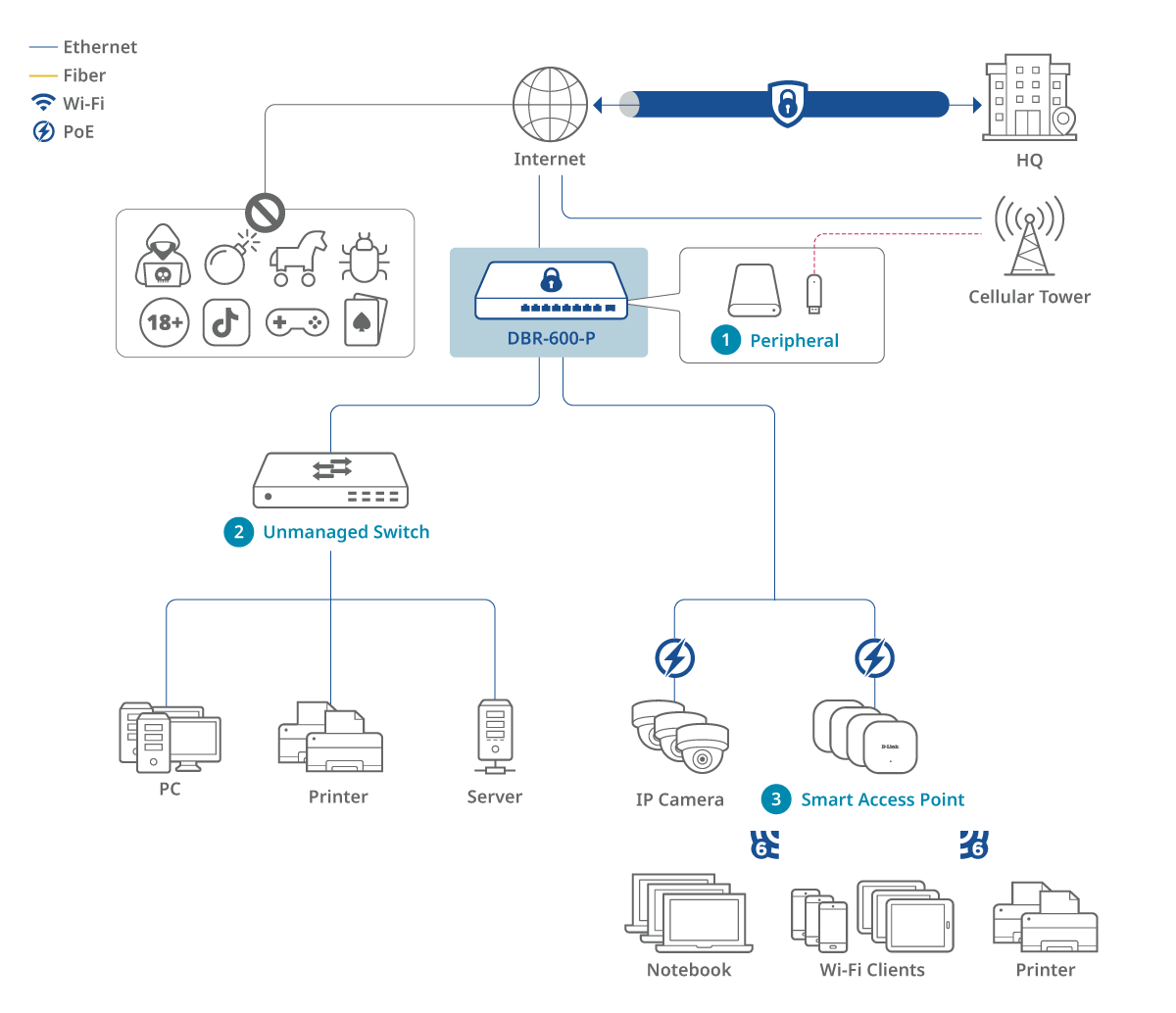

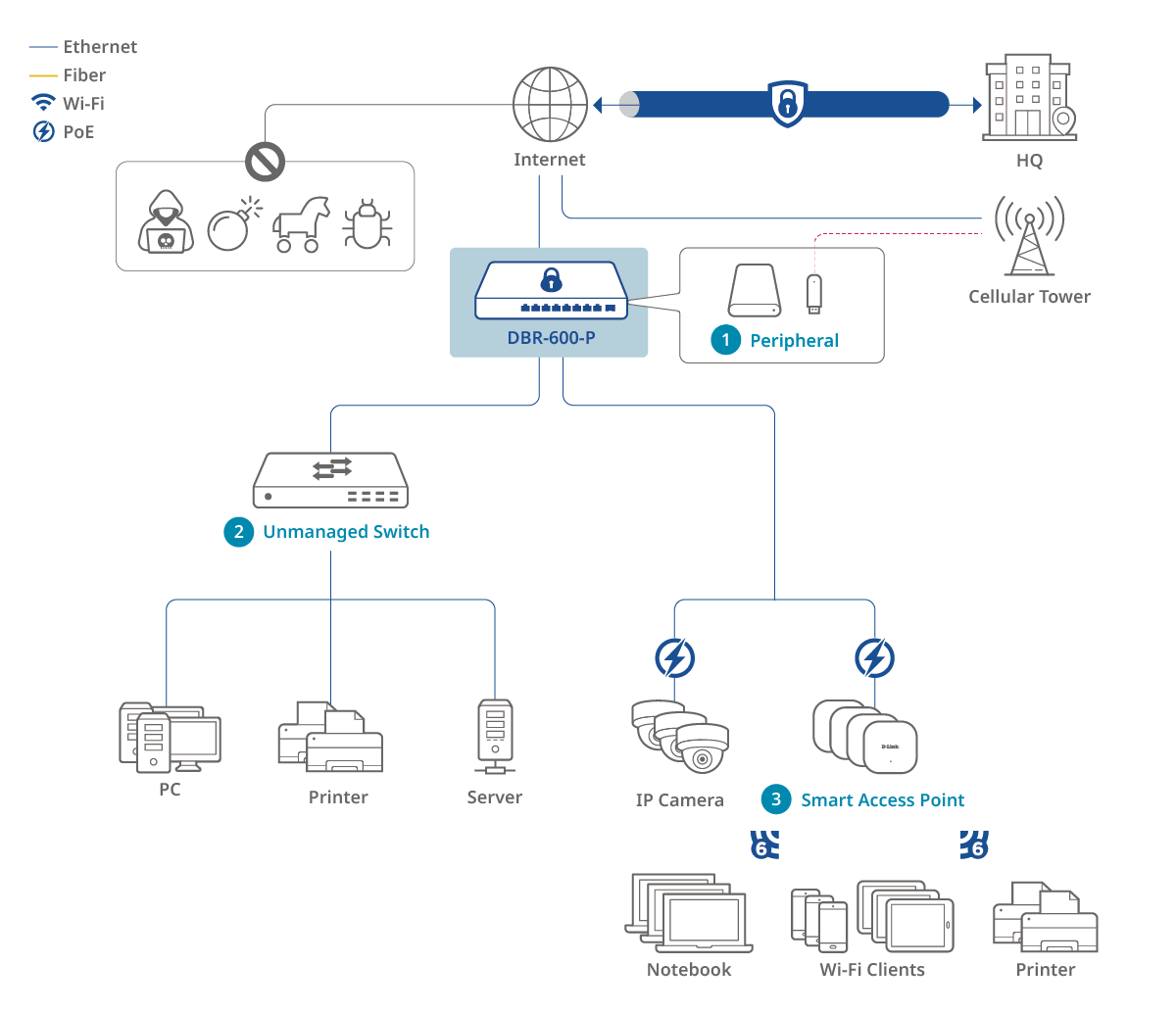

Startup Office (Enterprise)

User benefits :

  • Ensuring secure remote access with robust protection
  • 2.5G high-speed connectivity for efficient productivity
  • Multi-WAN offers non-stop network services
  • Effortless and budget-friendly PoE deployment
  • Centralized wireless monitoring and management

Learn more :

  1. Peripheral : D501 (Coming Soon)
  2. Unmanaged Switch : DMS-1016
  3. Smart Access Point : DBR-X3000-AP

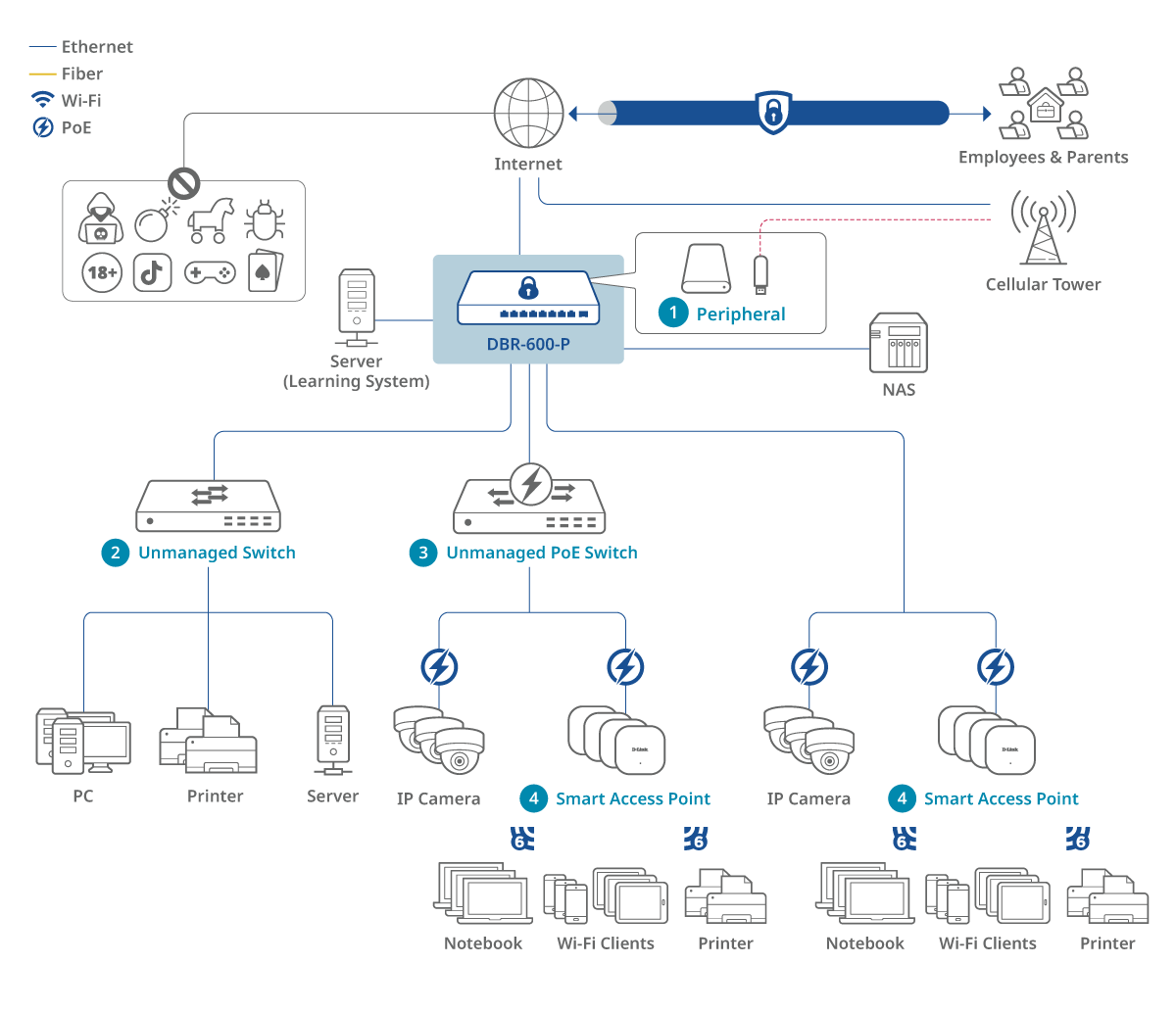

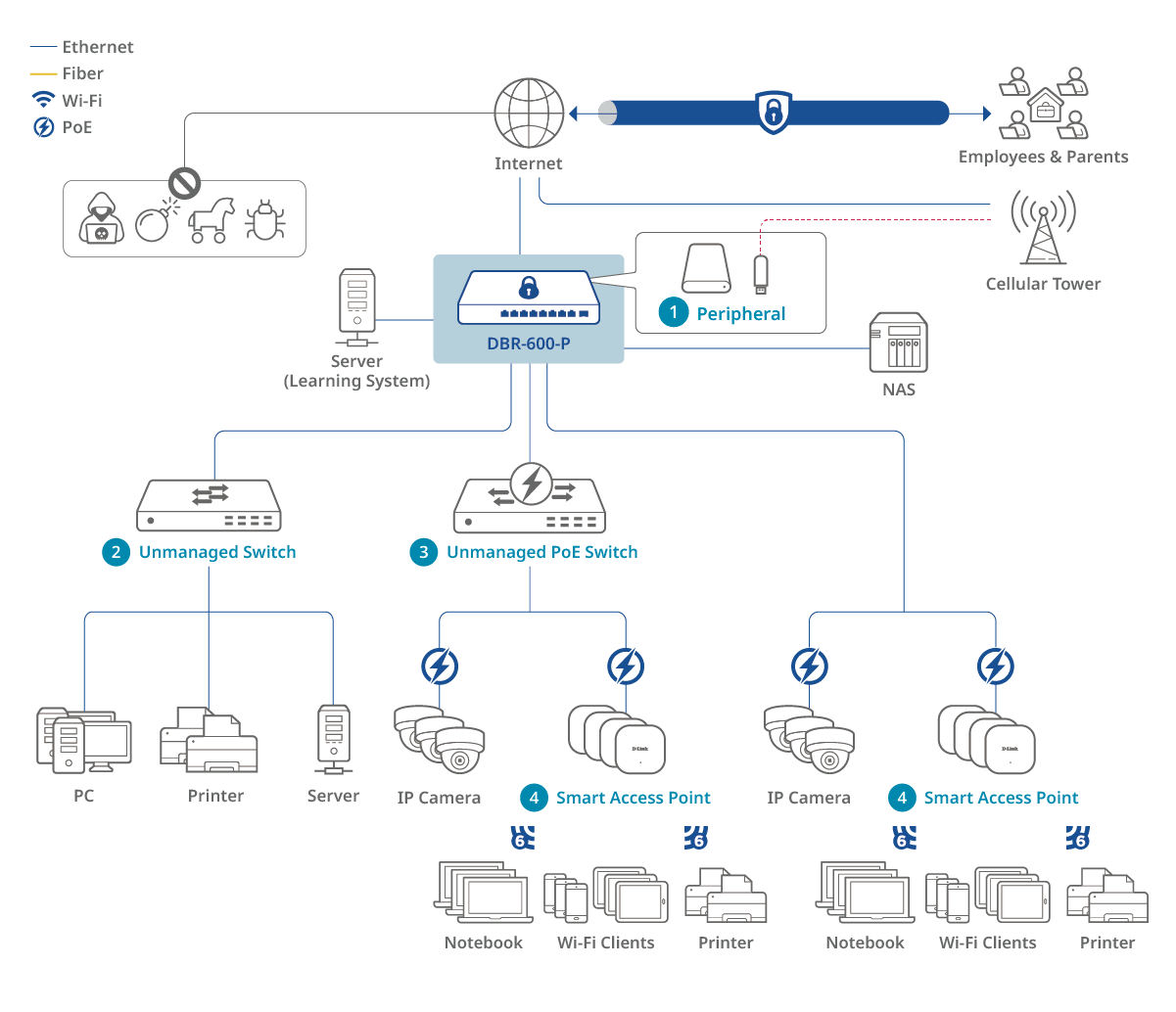

Kindergarten (Education)

User benefits :

  • Multiple PoE ports power up devices and simplify installation
  • Multi-WAN with load balancing for uninterrupted service
  • Secure parent access to the learning system and area footage
  • Set browsing levels to safeguard children's online behavior
  • Unified configuration of wireless devices for easy management

Learn more :

  1. Peripheral : D501 (Coming Soon)
  2. Unmanaged Switch : DMS-1024
  3. Unmanaged PoE Switch : DMS-108P
  4. Smart Access Point : DBR-X3000-AP

產品規格

Interfaces
1 x 10/100/1000/2.5G WAN port
1 x 10/100/1000/2.5G WAN/LAN Configurable ports
7 x 10/100/1000/2.5G LAN port
1 x USB 3.0
WAN load balance
Yes
PoE Standards
IEEE 802.3at
PoE Power Budget
123 W
Firewall throughput
2Gbps
IPsec Tunnel
50
Firewall
IPS/IDS
SPI Firewall
MAC/IP Filtering
URL Blocking
VPN tunnels
IPSec
PPTP
OpenVPN
L2TP
WireGuard
IPS/DoS/DDoS
Yes
AP Management
Up to 10 DBR-X3000-AP
Captive Portal
Yes
Dimensions
120 x 190 x 38 mm
Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -10 to 70 °C (14 to 158 °F)
Humidity
Operating: 10% to 90% non-condensing
Storage: 0% to 95% non-condensing
