商業路由器
DBR-700
- Product Status: Live
•便於集中監控和管理的 Easy Web GUI
Where to buy
Powerful Business VPN Router for Small Office Connectivity
The DBR-700 is a high-performance business router featuring 2.5G interfaces, including SFP ports, providing flexible and stable wired connectivity, particularly for long-distance transmission. Multi-WAN functionality ensures uninterrupted network services by automatically switching to a backup WAN connection and load-sharing internet access. With a powerful firewall and supports IPsec VPN tunnels, your remote access is always secured and encrypted. Enhanced AP management simplifies centralized control of multiple access points, making the DBR-700 an excellent choice for businesses seeking reliable, secure, and high-speed networking.
Send Large Files in a Snap
Enjoy faster 2.5Gbps data transfers, saving time and reducing wait
Reliable Multi-WAN Connectivity
up to 3 WAN ports for uninterrupted connectivity and optimized traffic
Built-in Fiber Port for Long-distance
Offers degradation-free signals for long-distance data transmission
Comprehensive and Robust VPN
Powerful VPN ensures secure access for business offices and remote workers
Access Under Protection
Firewall protection keeps your network safe from unauthorized access and cyber threats
One-stop APs Management
Effortlessly monitor and control smart access points with the built-in management platform
Intelligent Network Optimization
Prioritizing critical applications, balances traffic to avoid congestion, and efficiently use the resources
User-friendly Web UI Platform
Intuitive web UI streamlines management, enhances operational efficiency and minimizes errors

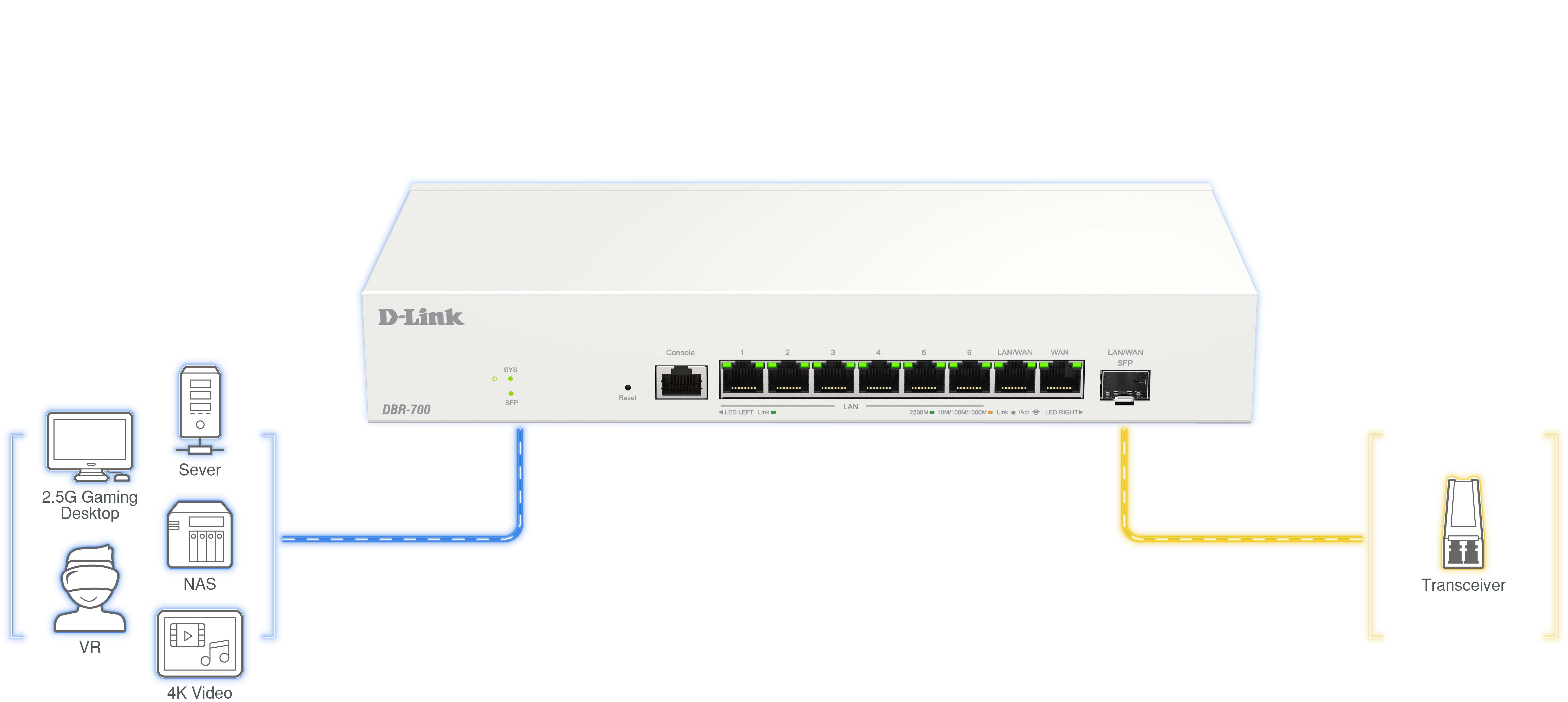

2.5G 連接
透過強大的介面，最大限度地提高效率和成長
透過強大的介面，最大限度地提高效率和成長
DBR-700 配備 2.5G 連接，提供更高的頻寬以支援更快速的檔案傳輸和無延遲的高品質 4K/8K 影音串流，透過更穩定、可靠的連接來提高日常工作效率。SFP(Small Form-Factor Pluggable) 網路埠則可實現長距離數據傳輸，為網路設計提供更大的靈活性和可擴充性，而借助光纖網路埠，企業可以輕鬆擴展其網路，突破區域限制。

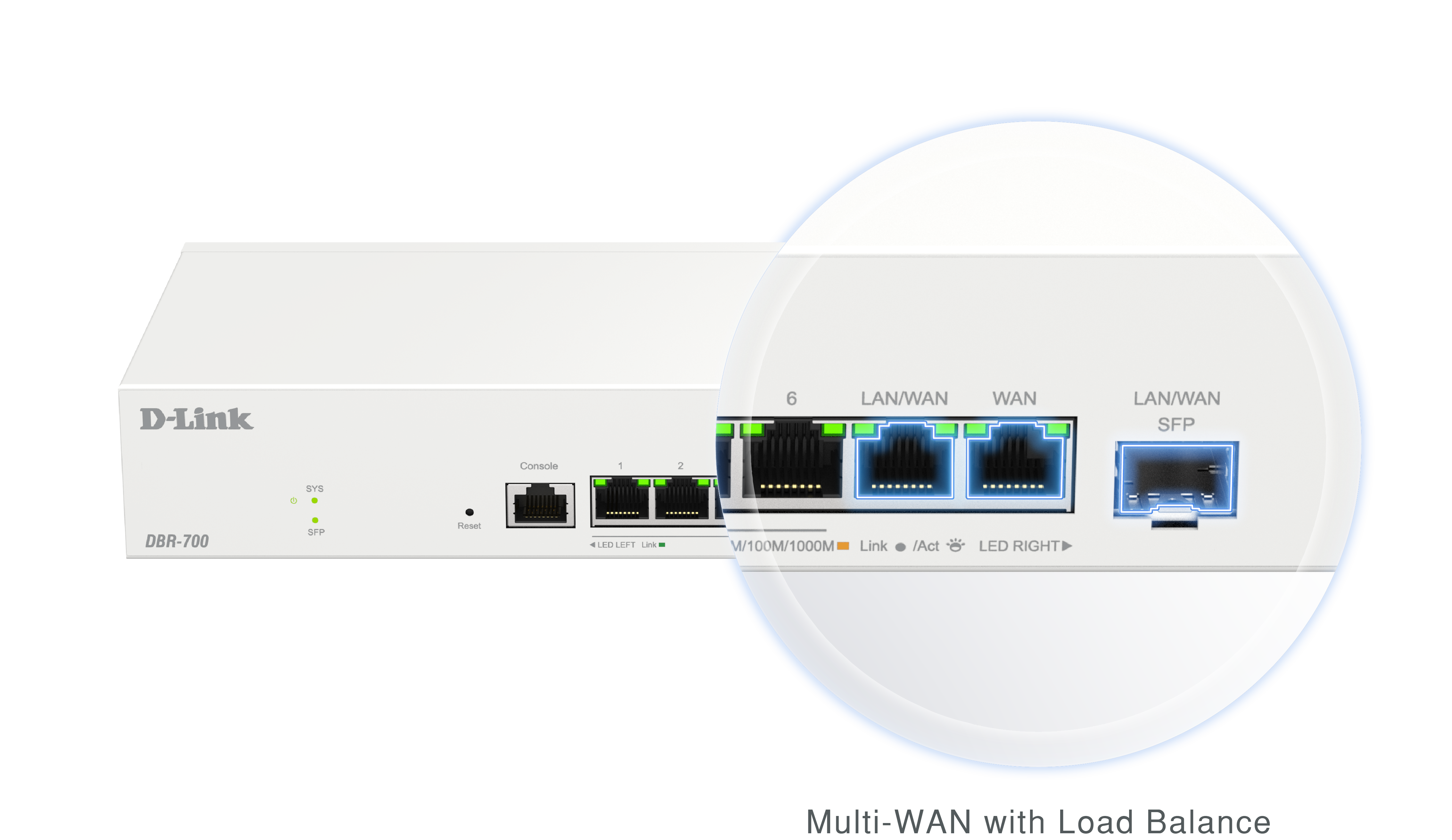

多 WAN 網路埠
始終在線，始終可靠
始終在線，始終可靠
除了可設定為第二個 WAN 連線的 WAN/LAN 網路埠外，SFP 網路埠也可用作第三個 WAN。多 WAN 功能增強了網路可靠性，並確保穩定的網路服務。
DBR-700 具備多達 3 個 WAN 網路埠，讓您的企業始終保持連接。負載平衡功能可分配網路流量到多個 WAN，防止單一連線過載，平均整體網路用量，並在連線發生故障時，確保仍有備用連線。

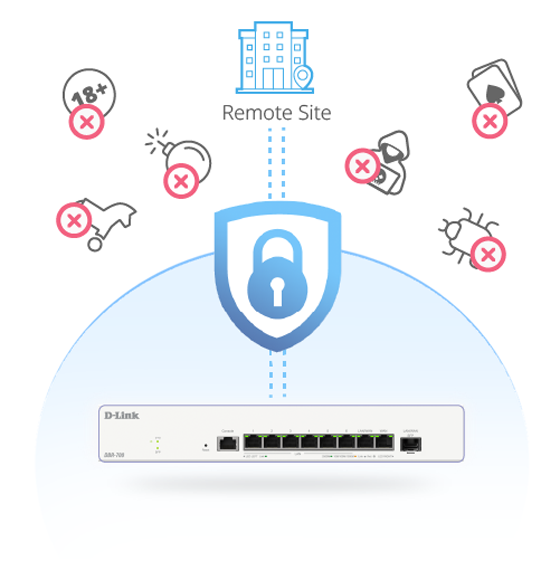

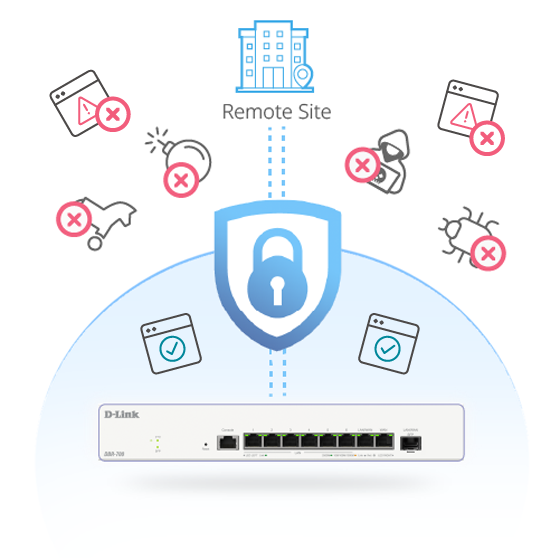

強大資安
始終保護您的網路
始終保護您的網路
內建全面的進階安全功能，例如：防火牆、IPS 和網頁過濾功能，確保內部網路得到安全保護。增強的 VPN 互通性和強大的加密技術，可改善與裝置之間的安全連接，深度保護數據免遭未經授權的訪問，並在所有網路互動中維護隱私。

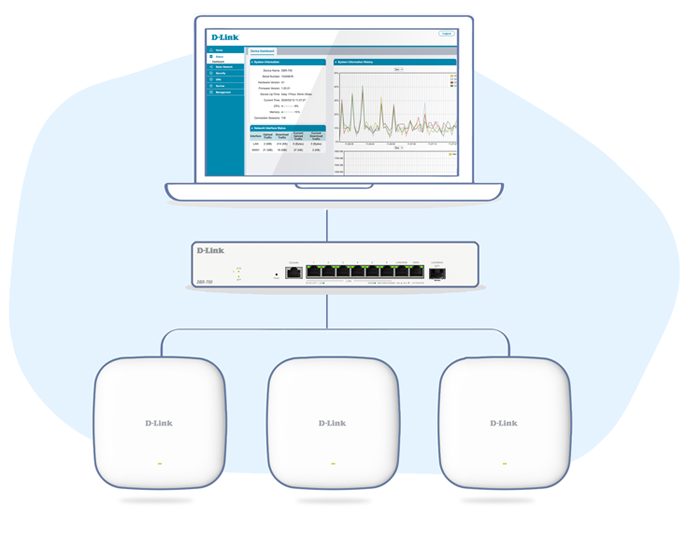

一站式 AP 管理
透過直覺式 Web UI，DBR-700 可集中監控整個網路狀態，並輕鬆管理進階功能配置。可整合無線管理，並支援多達 15 個智慧 AP 設備 (DBR-X3000-AP)，簡化無線設定、用戶端監控和存取控制等管理工作。具有輕鬆管理和對網路活動的即時洞察等特點，幫助小型企業主提高整體營運效率。
Related Products

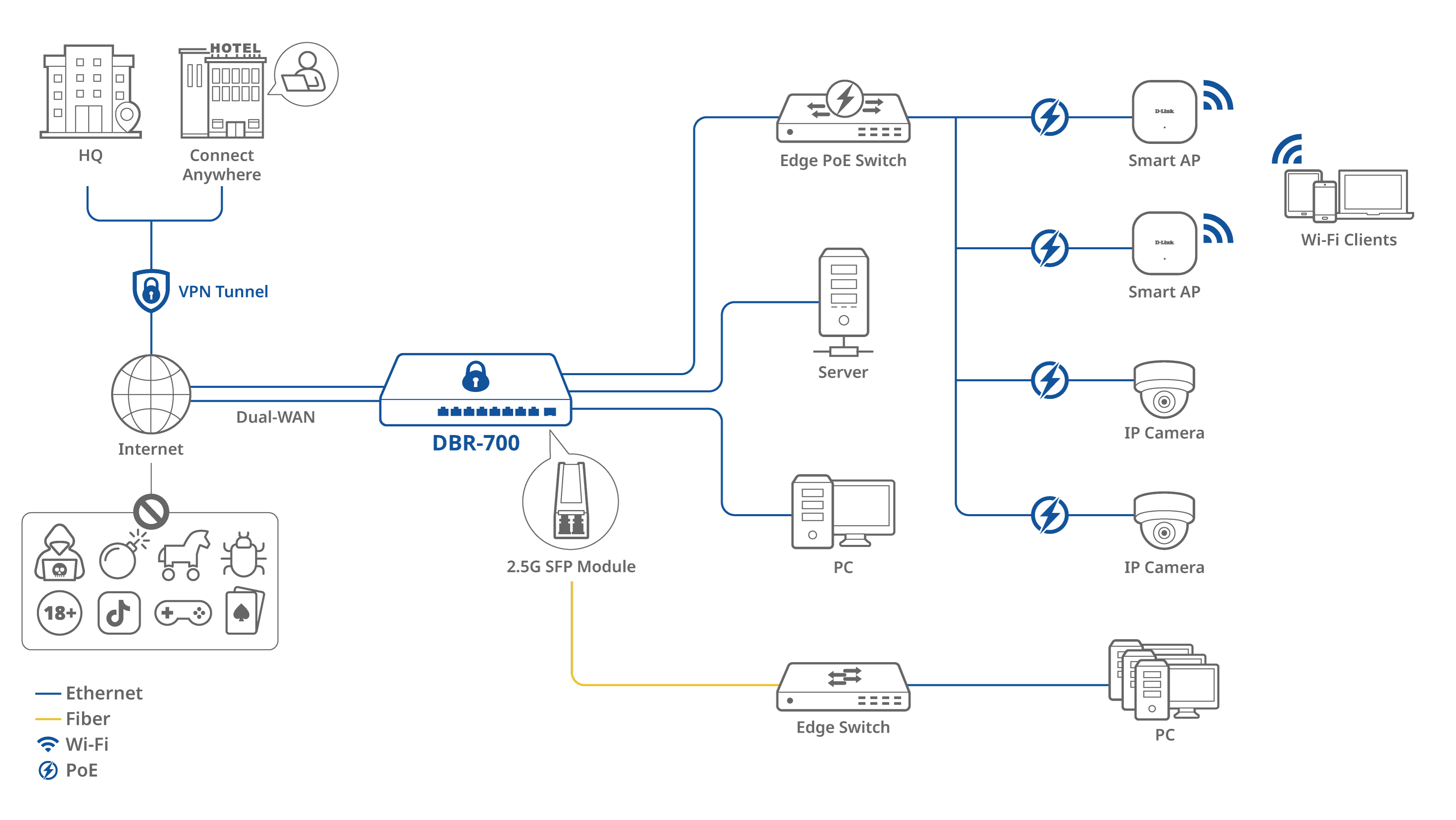

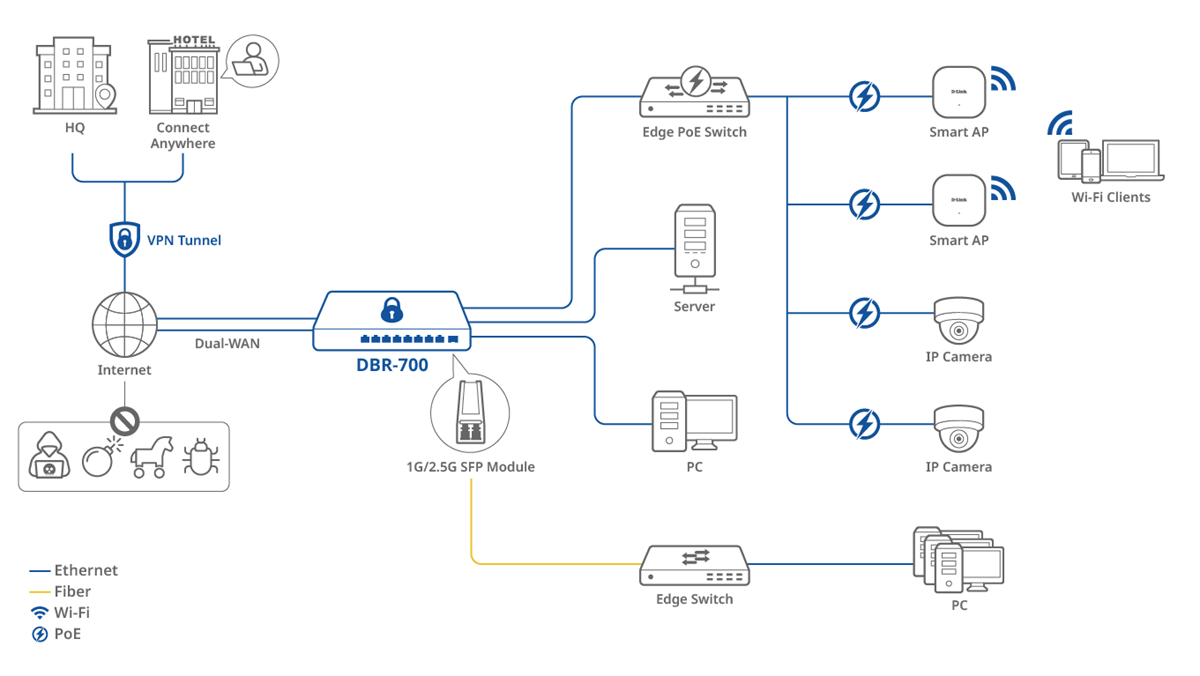

Connection Diagram
The DBR-700 offers seamless connectivity through its 2.5G high-density ports, while the SFP port enables long-range and flexible network expansion. Multiple WANs provide reliable and stable network services, efficiently balancing traffic. The VPN tunnel allows users to join the office network at all times and ensures internet restrictions enhance productivity. Additionally, the built-in AP management system provides centralized control over wireless client status and authentication.DBR-700 is the perfect for businesses looking to optimize network performance and productivity.

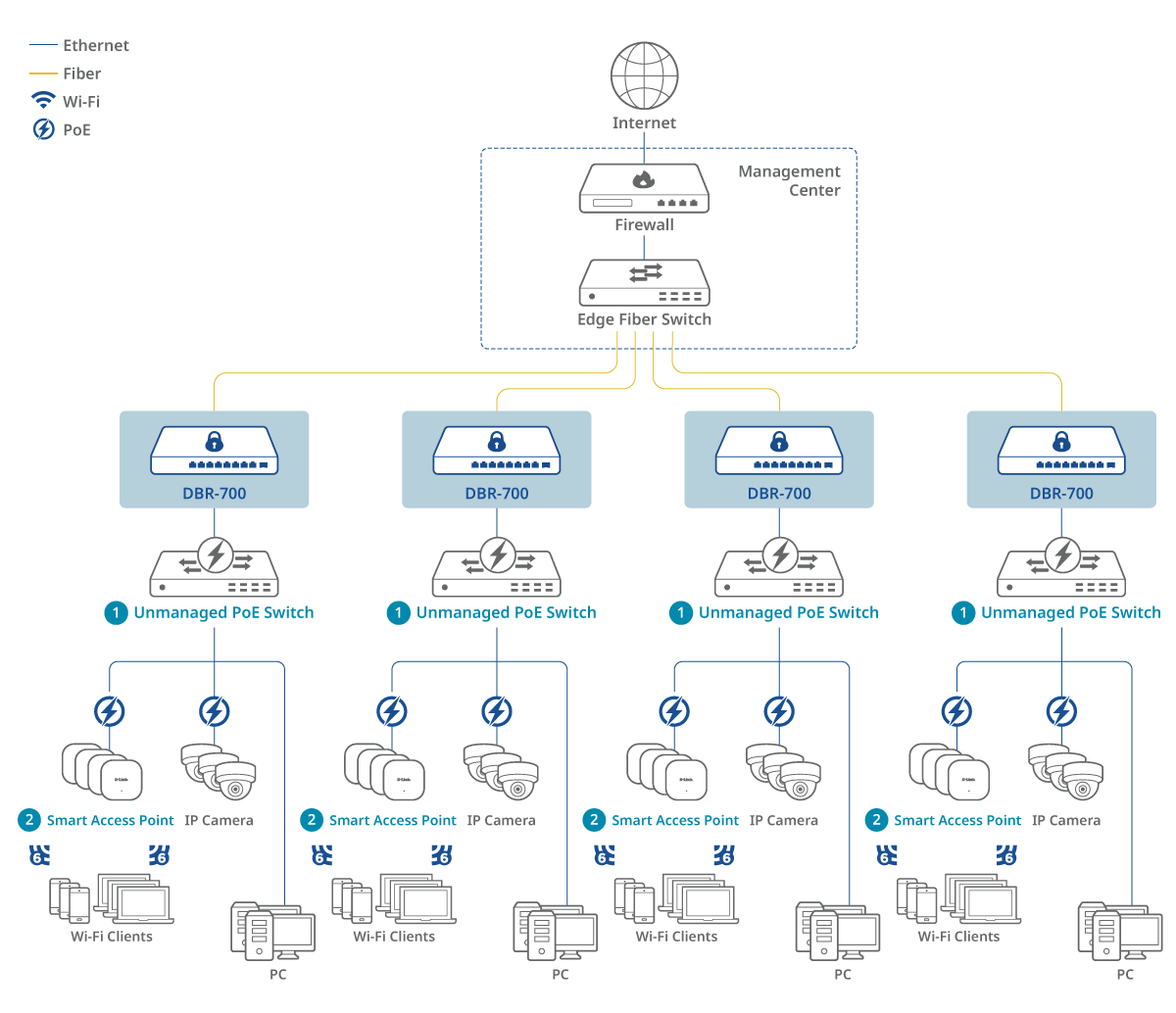

Villa Resort (Building)
User benefits :
- Extend the transmission range without requiring additional devices
- Reduce deployment costs and streamline installation with PoE switch
- Centrally control wireless devices through a unified dashboard
- Easily manage and allocate bandwidth for various network services
Learn more :
- Unmanaged PoE Switch : DMS-108P
- Smart Access Point : DBR-X3000-AP
產品規格
|
Interfaces
|
1 x 2.5GE WAN 1 x 2.5GE WAN/LAN 6 x 2.5GE LAN 1 x 2.5 Gigabit SFP WAN/LAN |
|---|---|
|
WAN load balance
|
Yes |
|
Firewall throughput
|
2Gbps |
|
IPsec Tunnel
|
100 |
|
Firewall
|
IPS/IDS SPI Firewall MAC/IP Filtering URL Blocking |
|
VPN tunnels
|
IPSec PPTP OpenVPN L2TP WireGuard |
|
IPS/DoS/DDoS
|
Yes |
|
AP Management
|
Up to 15 DBR-X3000-AP |
|
Captive Portal
|
Yes |
|
Dimensions
|
120 x 280 x 45 mm |
|
Temperature
|
Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 70 °C (-4 to 158 °F) |
|
Humidity
|
Operating: 10% to 90% non-condensing Storage: 0% to 95% non-condensing |
