Unified Wireless N PoE Access Point
DWL-2600AP
- Product Status: End of Life

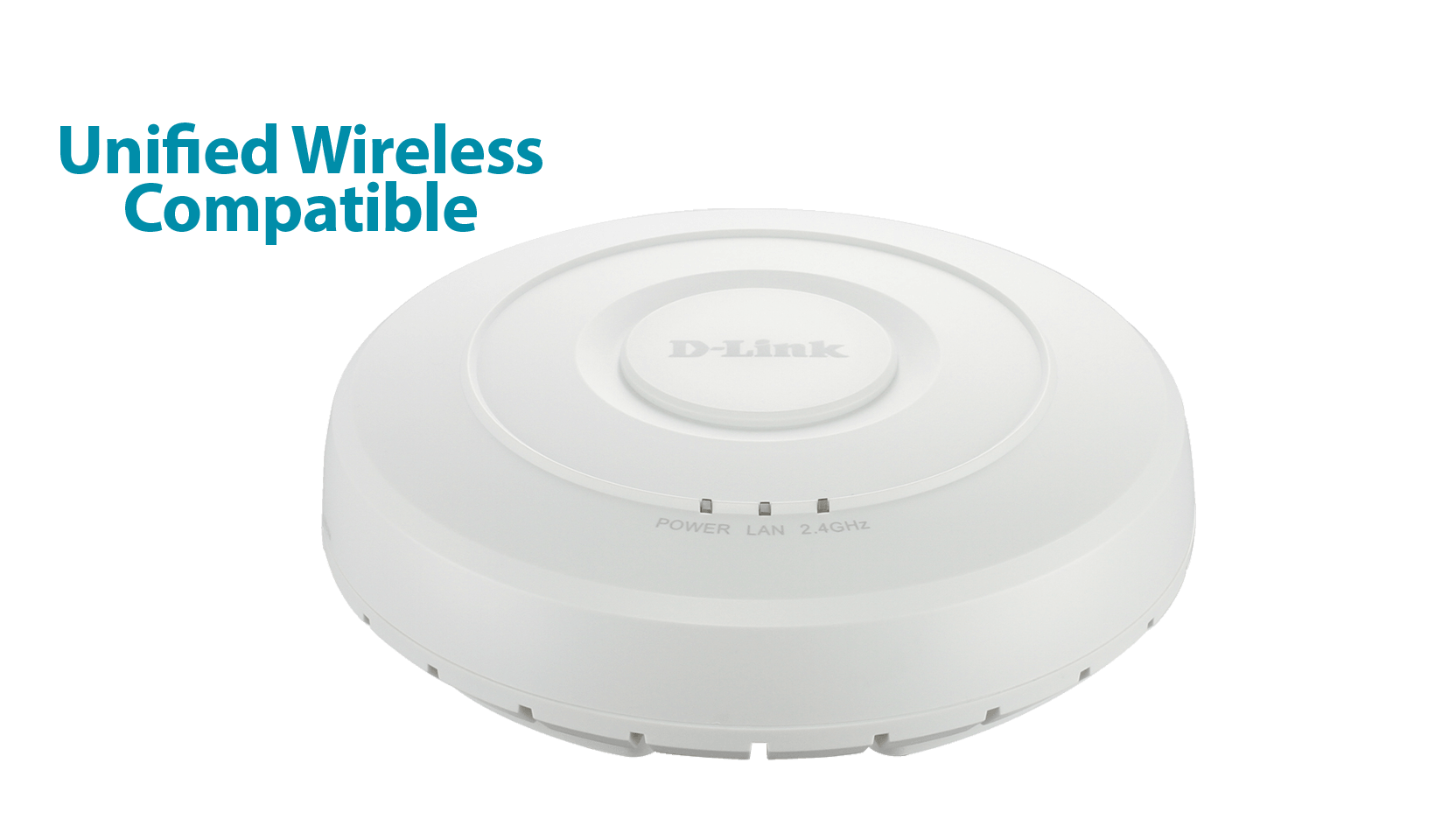

Smart Low Profile Design
The DWL-2600AP is an entry-level access point with the appearance of a smoke detector that can be discretely deployed onto any wall or ceiling (mount included).
Performance without Compromise
Incorporating the latest generation of Wireless N technology, the DWL-2600AP delivers great wireless performance and coverage in a compact design without breaking the bank.
Broadcast on 16 SSIDs Simultaneously
Fast seamless roaming
Combining the DWL-2600AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.
Managed using D-Link’s Wireless Controller or Unified Wireless Switch
All D-Link’s Unified Wireless Access Points can be managed using D-Link’s Wireless Controller or Unified Switch.
Single Band Wireless N
DWL-2600AP supports up to 300Mbps on the 2.4Ghz band
Secure and Green Design
The DWL-2600AP doesn’t compromise on functionality, it has a wireless scheduler feature, which turns off wireless operation when it isn’t needed, saving power and increasing network security.
Versatility built as Standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-2600AP coupled with D-Link's Wireless Controller or Switch makes managing your wireless network simple.
Standalone
Large Deployment
Product Comparison
 |
 |
 |
 |
|
|---|---|---|---|---|
| DWL-2600AP | DWL-3600AP | DWL-6600AP | DWL-8610AP | |
| Wireless Standard | B, G, N | B, G, N | B, G, N | B, G, N, AC |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz |
| 2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | 450Mbps |
| 5GHz Throughput | - | - | 300Mbps | 1300Mbps |
| Aspect | Indoor | Indoor | Indoor | Outdoor |
| Range* | 100m | 100m | 100m | 100m |
| Suggested number of users | Up to 25 users |
Up to 40 users |
Up to 75 users |
Up to 250 users |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Specs
|
Type
|
Hardware-managed AP |
|---|---|
|
Wireless standard
|
Wireless N |
|
Wireless speed
|
300 Mbps 2.4 GHz |
|
Advanced features
|
MIMO |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
1 x Fast Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP |
|
Maximum number of SSIDs
|
16 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
Rogue AP mitigation L2/L3 fast roaming WIDS/WIPS Auto-channel, auto-RF management AP load balance Captive portal View neighbour AP information |
|
Management platform
|
Hardware controller: DWC Series |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
|
Frequency band mode
|
Single-band |
|
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 DWS-3160 DWS-4026 |
|
O desempenho real pode variar devido a configurações, cablagem, temperatura, configuração de rede, interface, compatibilidade de dispositivos, condições ambientais e locais e outros fatores semelhantes. As referências à capacidade de energia, velocidade de sinal ou processamento, alcance ou distância do sinal, encriptação de dados, capacidade de armazenamento, propriedades de exibição ou outras métricas de desempenho são baseadas em condições ideais derivadas de padrões da indústria e fornecidas apenas para fins informativos. As especificações estão sujeitas a alterações sem aviso prévio. |
|
