Smart Managed Gigabit Switches

DGS-1210 Series

  • Product Status (Revision G): Live
  • Free centralised management with Nuclias Connect
  • Layer 2 management and security
  • Web-based User-Interface
  • PoE options up to 193W power budget
  • Dual config files
  • Limited-Lifetime Warranty after registration

Download the datasheet.

Where to buy
Static Routing

Route Layer 3 traffic between switches, even if they're segmented in VLANs.

Fibre Uplink Ports

Connect to other areas of your network at fibre-optic Gigabit speeds, and reach even further distances.

Surveillance Mode Interface

D-Link’s exclusive, easy-to-use Surveillance Mode interface gives you a snapshot of your security topology in an instant.

PoE Capable

Up to 370 W PoE output per switch

VLANs

Segment your network into VLANs.

Promoção B2B

Promo de Canal B2B

 Descontos* até 43% para redes empresariais

A promoção oferece soluções versáteis para qualquer necessidade ou orçamento com incríveis descontos

  • Switches Power Over Ethernet (PoE) sem gestão para alimentação e dados através do mesmo cabo de rede, ideais como switches de extremidade.
  • Switches administrados, DGS-1210 e DGS-1250, de 8 a 52 portas Gigabit, com uplinks de fibra e várias opções PoE. Gestão completa L2 e L3 com routing estático. Gestão através de GUI Web ou gestão unificada com pontos de acesso Wi-Fi no software gratuito D-Link Nuclias Connect.
  • Pontos de acesso Wi-Fi, projetados para alta densidade de utilizadores, com Fast Roaming. Gestão unificada com os Switches DGS-1210 na plataforma gratuita Nuclias Connect.

Se já é parceiro do Programa de Canal VIP+ da D-Link pode descarregar a promoção acedendo ao portal VIP+ aqui.Se é revendedor ou instalador profissional pode registar-se em VIP+ sem custos neste link, pedir informação no chat B2B desta página ou mandar um email aqui.

Descubra todos os produtos incluidos e os descontos* nesta ligação.

*Promoção exclusiva de canal profissional para revendedores e parceiros do Programa de Canal VIP+ da D-Link.

Válida até 31 de Dezembro de 2024. Não é válida para cliente final

With increased PoE output and advanced Layer 2 management and security features, D‑Link’s DGS‑1210 Smart Managed Gigabit Switches provide a cost‑efficient and flexible solution for expanding any business network.

Advanced Layer 2 Management

The DGS-1210 Smart family features advanced network management accessible via the Web-based UI that equip your business with network capabilities such as VLANs, Spanning Tree Protocol (STP), link aggregation, and dual configuration files.

With powerful security features including IGMP snooping, access control lists, and port security the DGS-1210 Smart family is a versatile solution for access-edge network environments.

Fibre Uplinks

Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

PoE and PoE+, with budgets up to 193W

The DGS-1210 Smart Series includes a range of PoE-enabled switches for businesses looking to power VoIP phones, wireless access points or network cameras.

Free Network Design and Management Software

D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Learn more about D-View 7

Smart Energy-Saving Design

D-Link Green technology enables the DGS-1210 Smart series to save power without any sacrifices. The majority of the family utilises a fanless design, helping reduce energy usage.

Surveillance Mode

Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.



Free Next-Business-Day Service

Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

DGS-1210 Smart switch series

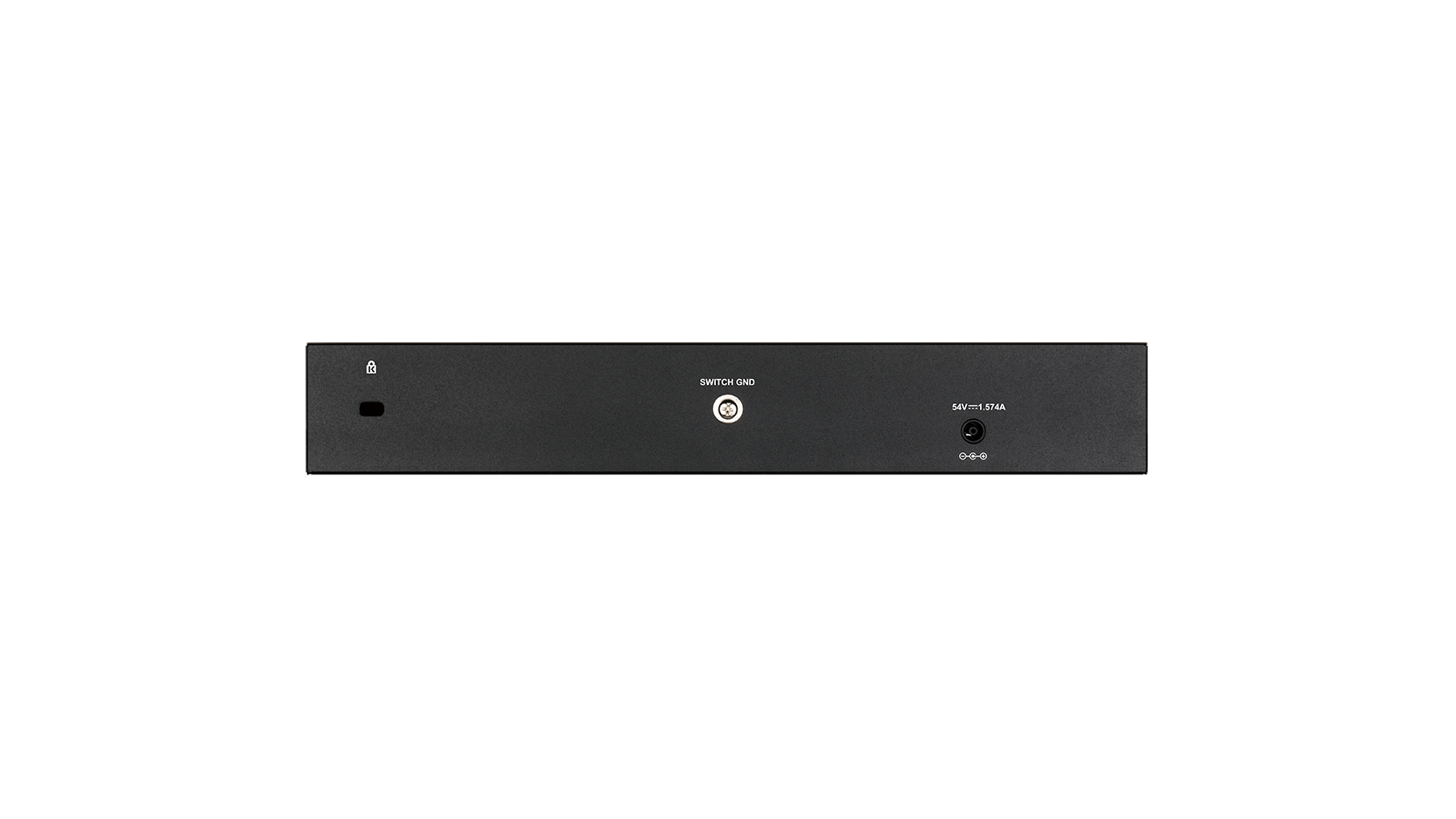

DGS-1210-08P

· 8 x 1000Base-T 802.3af/802.3at PoE
· 2 x SFP
· 65W power budget
· Fanless

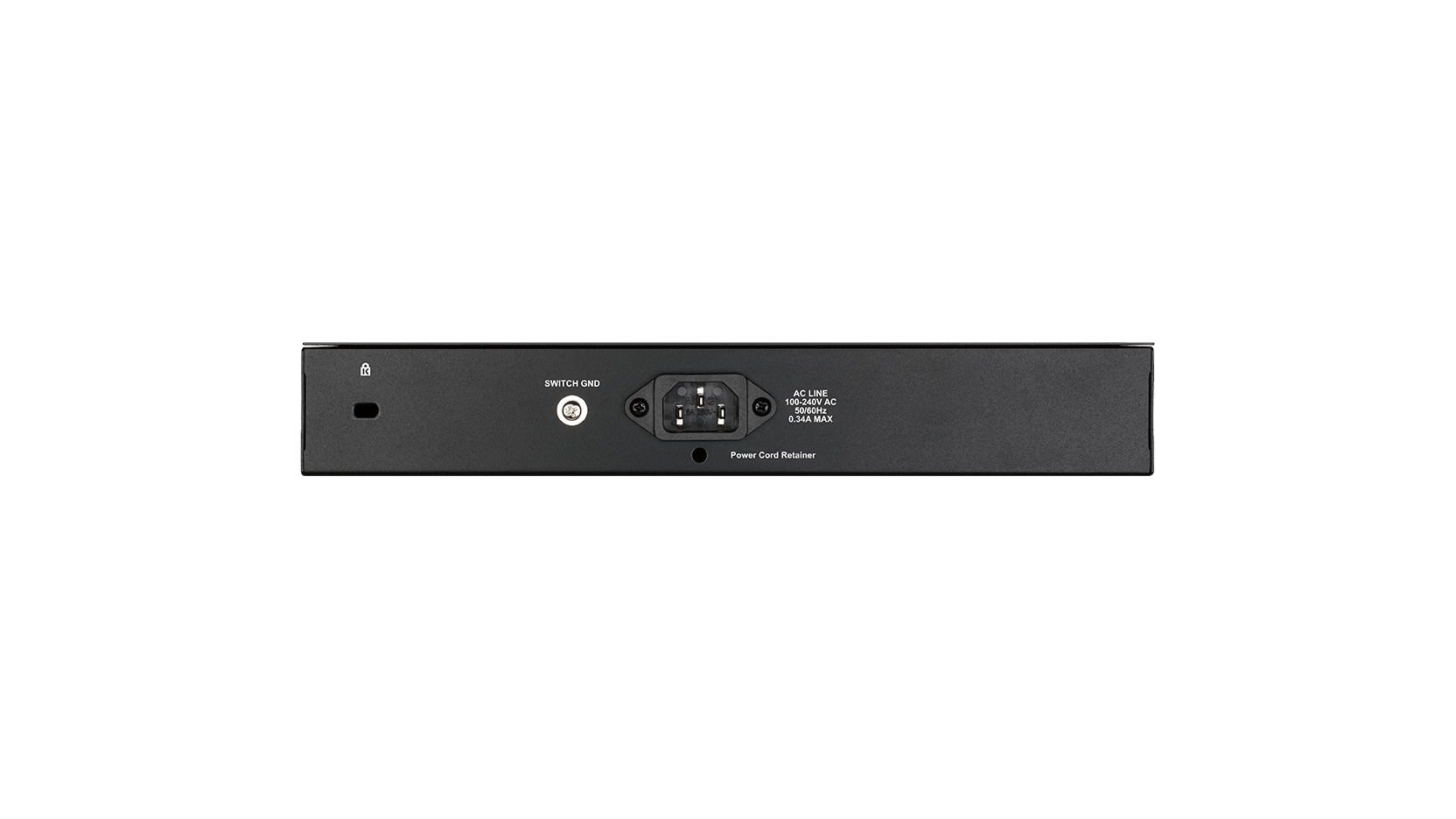

DGS-1210-16

· 16 x 1000Base-T
· 4 x Combo
· Fanless

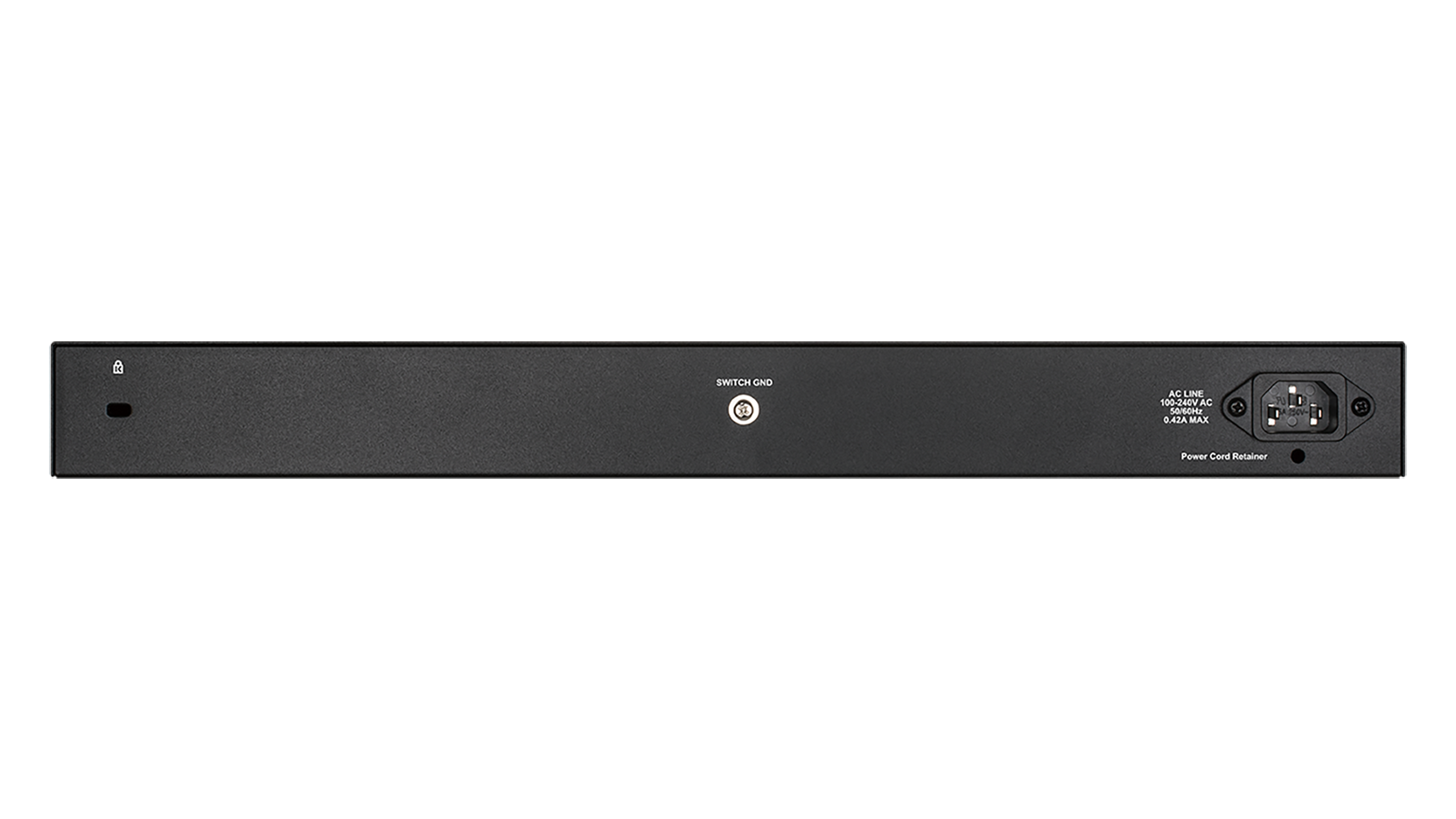

DGS-1210-24

· 24 x 1000Base-T
· 4 x Combo
· Fanless

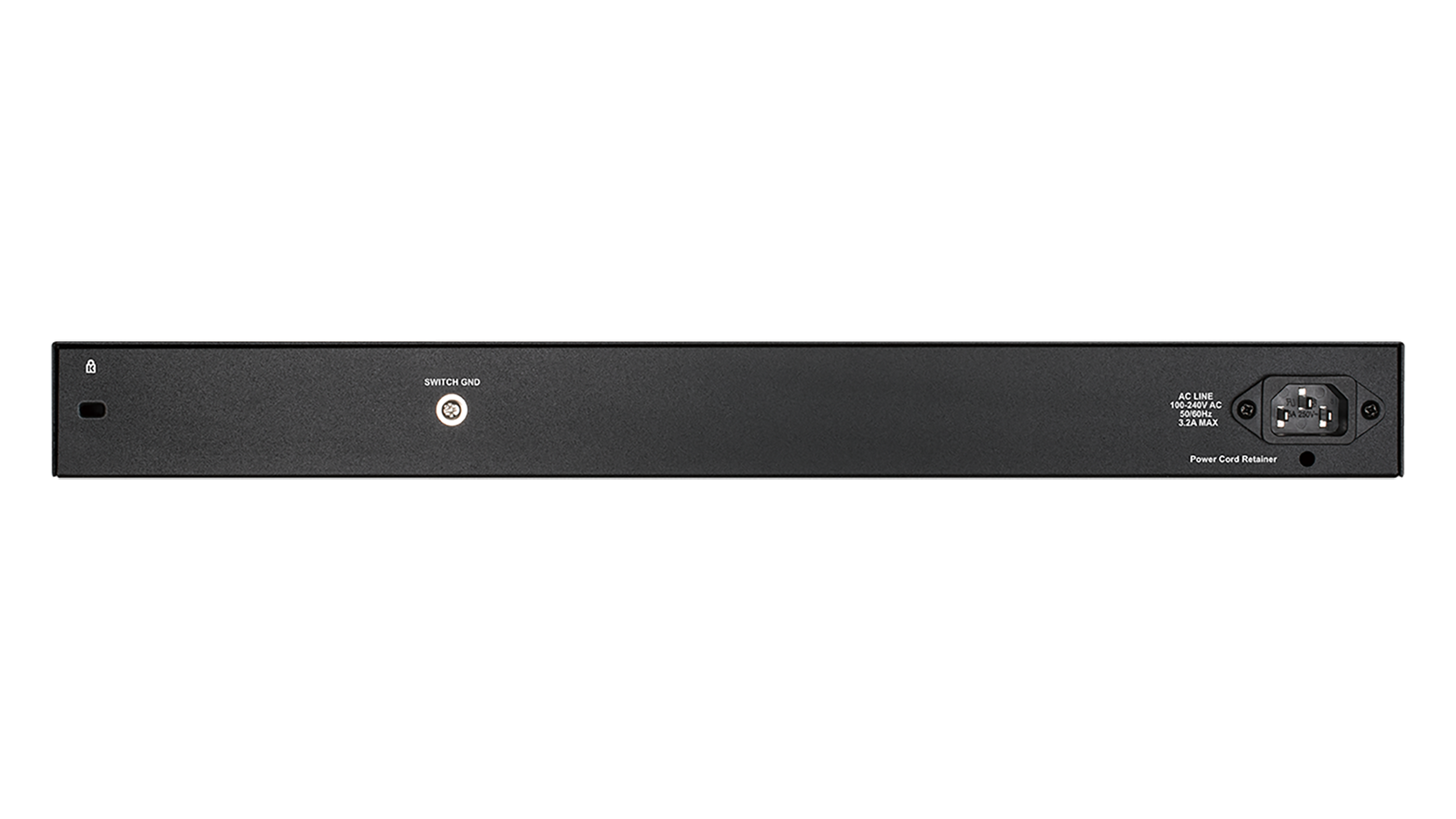

DGS-1210-24P

· 24 x 1000Base-T 802.3af/802.3at PoE
· 4 x Combo
· 193W PoE budget

DGS-1210-48

· 48 x 1000Base-T
· 4 x Combo
· Fanless

Related Products

D-View 7 Network Management System
DV-700
Find out more
1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)
DEM-310GT
Find out more
SFP 1000Base-SX Multi-mode Fibre Transceiver
DEM-311GT
Find out more

Specs

Download the datasheet.

Layer
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Number of ports
5 to 14 ports
16 to 30 ports
48 to 54 ports
Type of uplink ports
Combo 1000BASE-T/SFP
SFP
Switching capacity
20 Gbps
40 Gbps
96 Gbps
PoE options
802.3at
802.3af
Number of PoE ports
8
24
PoE power budget
See datasheet
See datasheet
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Desktop
Rackmountable
MAC address
8K
16K
Spanning Tree Protocol
802.1D STP
802.1w RSTP
Link aggregation
802.3ad
VLAN group (max static)
256
Advanced VLAN
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
15 Kbps minimum granularity
ACL type
Ingress
ACL based on packet contents
Supported
Encryption protocol supported
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
802.1X access control
Supported
SNMP (v1/v2c/v3)
Supported
LLDP-MED
Supported
ICMPv6
Supported
Type
Smart managed

O desempenho real pode variar devido a configurações, cablagem, temperatura, configuração de rede, interface, compatibilidade de dispositivos, condições ambientais e locais e outros fatores semelhantes. As referências à capacidade de energia, velocidade de sinal ou processamento, alcance ou distância do sinal, encriptação de dados, capacidade de armazenamento, propriedades de exibição ou outras métricas de desempenho são baseadas em condições ideais derivadas de padrões da indústria e fornecidas apenas para fins informativos. As especificações estão sujeitas a alterações sem aviso prévio.
