12-Port Gigabit Smart Managed Industrial PoE Switch-Wide Temp-240W PoE Budget
DIS-200G-12PSW
- Product Status (Revision A1 v104): Live

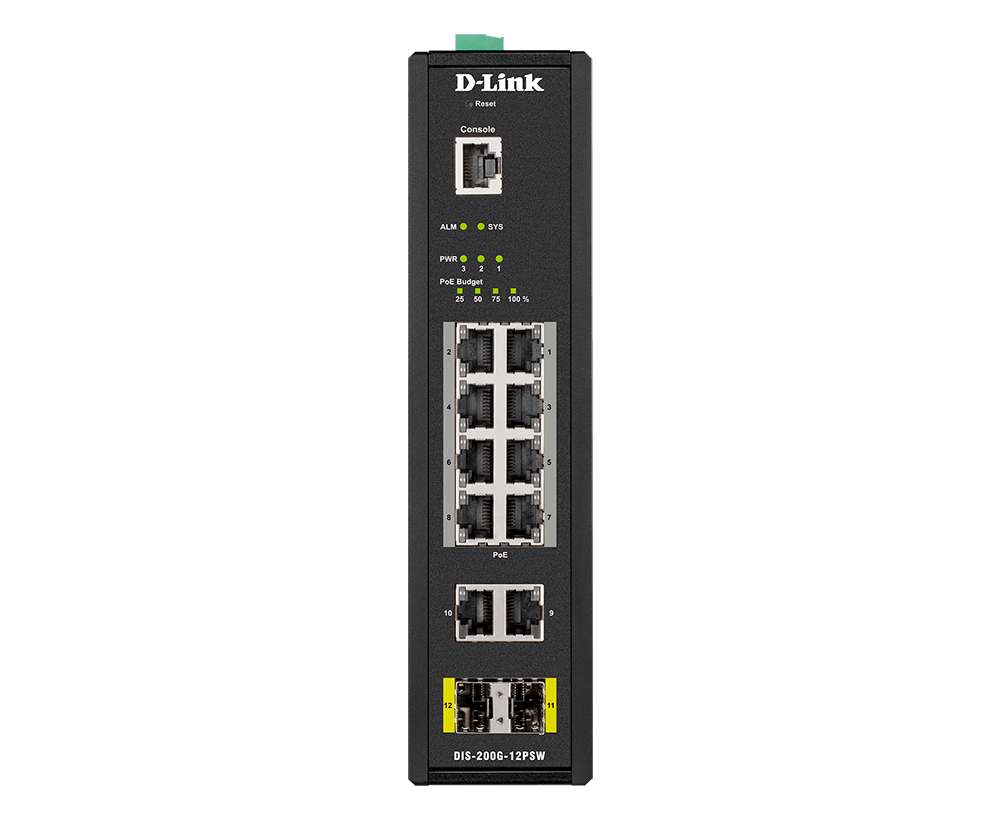

- 8 x 10/100/1000BASE-T PoE ports
- 2 x 10/100/1000BASE-T ports
- 2 x SFP ports
- 1 x RJ-45 Console port
- Wide operating temperature: -40 to 75 °C (-40 to 167 °F)
- Robust industry-standard enclosure
- ERPS for quick failover recovery
- High EMC endurance
- Built-in 6 kV surge protection
Where to buy

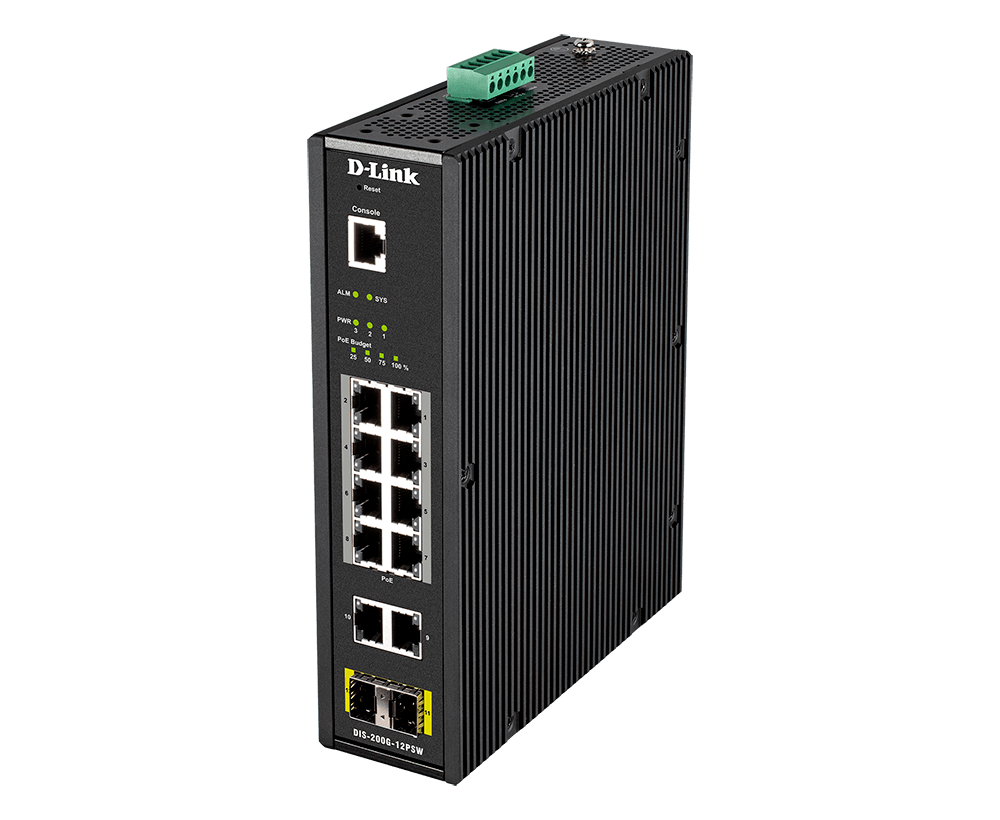

Durable and Reliable Design
The DIS-200G Series switches are housed in a highly resistant IP30-rated metal casing to protect them from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted effects when operating in environments with strong electromagnetic interference.
High Redundancy and Reliability
The DIS-200G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.
Surveillance Traffic Optimization
The DIS-200G Series supports the Auto-Surveillance VLAN (ASV) feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting this type of traffic from the rest of the network.
Easy Troubleshooting
The DIS-200G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port.
Industrial Switches
Our industrial-grade switches are certified to endure and perform even in the toughest of environments
Specification
AAA
|
RADIUS Web_based Access Control _WAC |
---|---|
Aggregation
|
6 x Link Aggregation Group Per Device 8 x Max Port Per Link Aggregation Group 802.1AX Link 802.3ad Link |
Comply with RoHS 6
|
Yes |
Console Port
|
Yes |
Control
|
802.3x Flow |
CPU Speed
|
416MHz |
D-Link Network Assistant
|
Yes |
Dimensions
|
210 x 171.2 x 53mm |
Discharge
|
Air Discharge 8KV Contact Discharge 6KV |
DRAM Size
|
128 MB |
Dual Configurations
|
Yes |
Energy Efficiency Ethernet (EEE)
|
Yes |
Ethernet Ring Protection Switching(ERPS)
|
G.8032 |
Features
|
Loopback Detection (LBD) Port Mirroring |
Flash Memory Size
|
32 MB |
Head-of-line (HOL) Blocking Prevention
|
Yes |
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
IGMP Snooping
|
256 IGMP snooping groups (shared with MLD snooping) IGMP Snooping Fast Leave |
Interfaces
|
2 x 1000Base-T 2 x 1000M SFP 8 x 1000Base-T PoE Auto MDI/MDIX |
Jumbo Frame
|
9600 bytes |
MAC Address Table Size
|
8000 |
Management
|
Command Line Interface (CLI) DHCP Client D-Link Discover Protocol (DDP) Dual Images LLDP RMONv1 Simple Network Time Protocol (SNTP) SNMP SNMP Trap System Log Telnet Server TFTP Client Web_based GUI |
Maximum Forwarding Rate
|
17.856 Mpps |
Maximum Heat Dissipation
|
36.85 BTU/hr 887.16 BTU/hr |
Maximum Power Consumption
|
10.8W (PoE off) 260W (PoE on) |
MLD
|
Snooping Snooping Fast Leave Snooping Groups |
MTBF
|
156,452 hours |
OAM
|
Cable Diagnostics Optical Transceiver Digital Diagnostic Monitoring (DDM) |
Operating Altitude
|
up to 2000M |
Packet Buffer Size
|
4 Mbits |
Ping
|
Yes |
PoE Power Budget
|
240 W max |

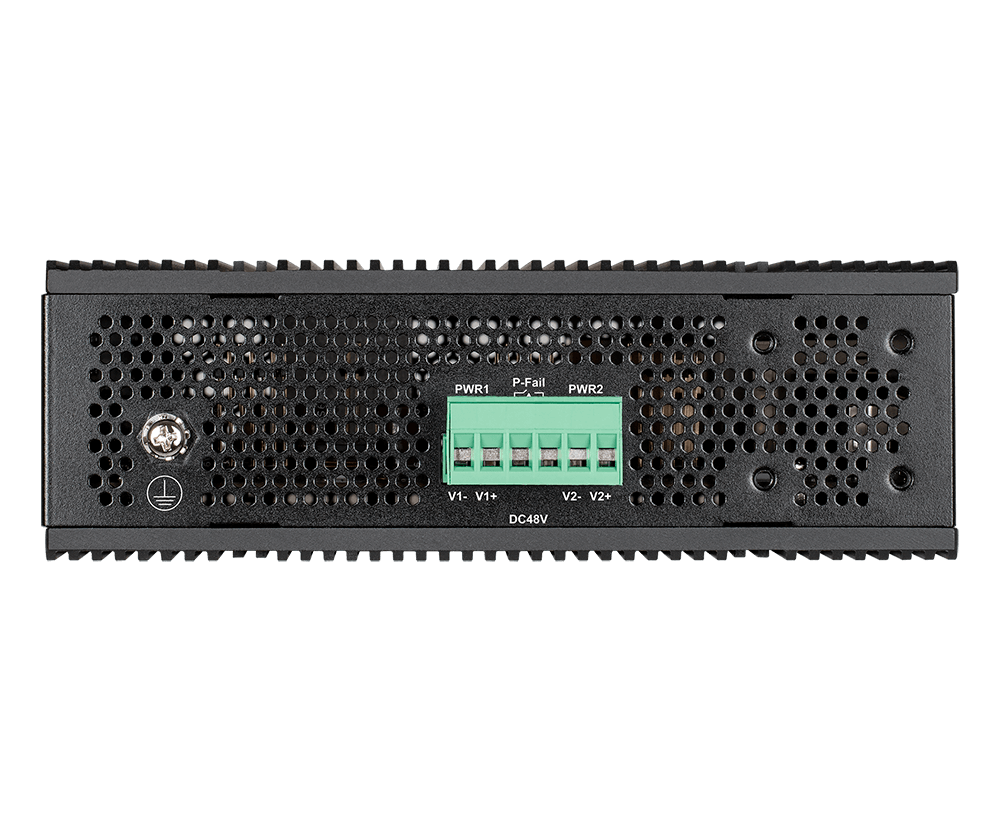

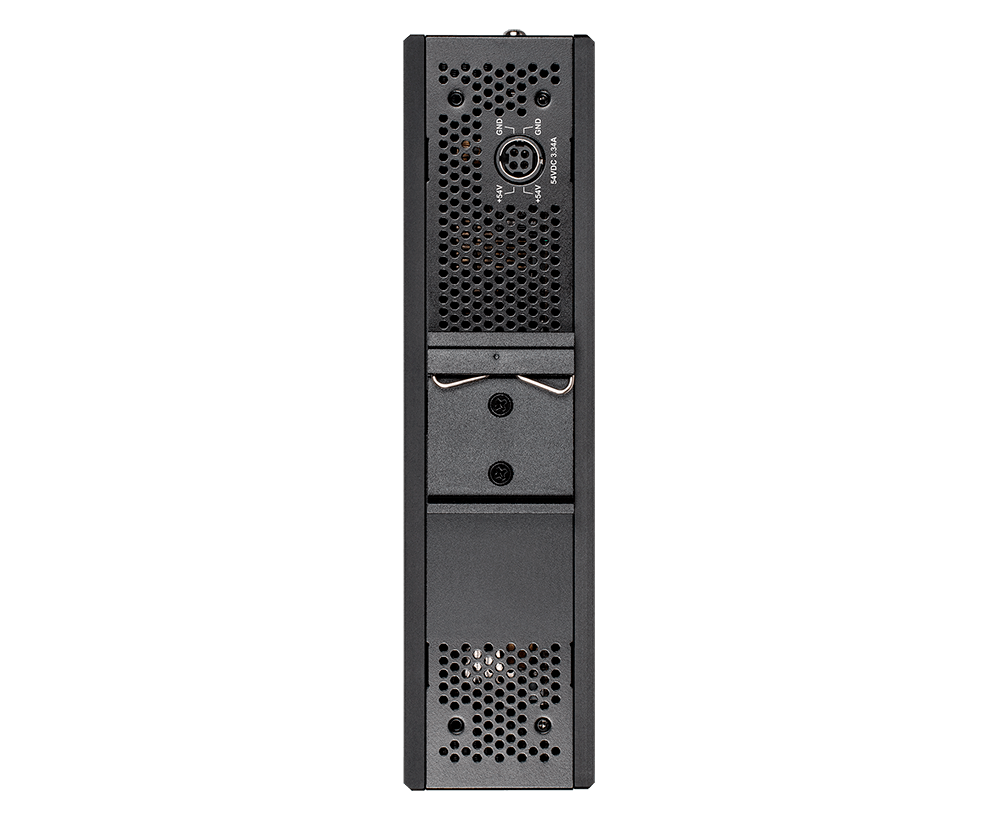

Power Input
|
46-54Vdc redundant dual inputs throught ternimal block/54Vdc through 4-pin power din |
Power Saving
|
By LED Shut-Off By Link Status By Port Shut-Off By System Hibernation |
Protection
|
Surge/Lightning Protection (AC Power Inet) 2KV Surge/Lightning Protection (All Ethernet Ports) 6KV |
QoS
|
4 x Queue Class of Service (CoS) Port-based Bandwidth Control Queue Handling Strict Priority Queue (SPQ) Weighted Round Robin _WRR |
Security
|
Broadcast/Multicast/Unicast Storm Control D-Link Safeguard Engine DoS Attack Prevention Port Security Traffic Segmentation |
Spanning Tree Protocol (STP)
|
IEEE 802.1D STP IEEE 802.1s MSTP IEEE 802.1w RSTP |
Standby Power Consumption
|
7.02W |
Store & Forwarding Forwading
|
Yes |
Switching Capacity
|
24 Gbps |
Temperature
|
Operating -40 ~ 75℃ Storage -40 ~ 85℃ |
VLAN
|
802.1Q Asymmetric VLAN Auto Surveillance VLAN GVRP Port-based VLAN Surveillance VLAN VLAN Groups Voice VLAN |
Weight
|
1.76kg (3.88lbs) |
