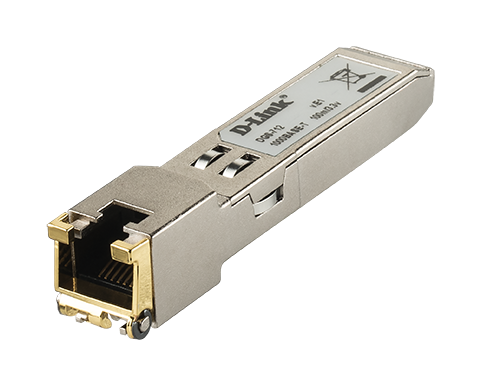

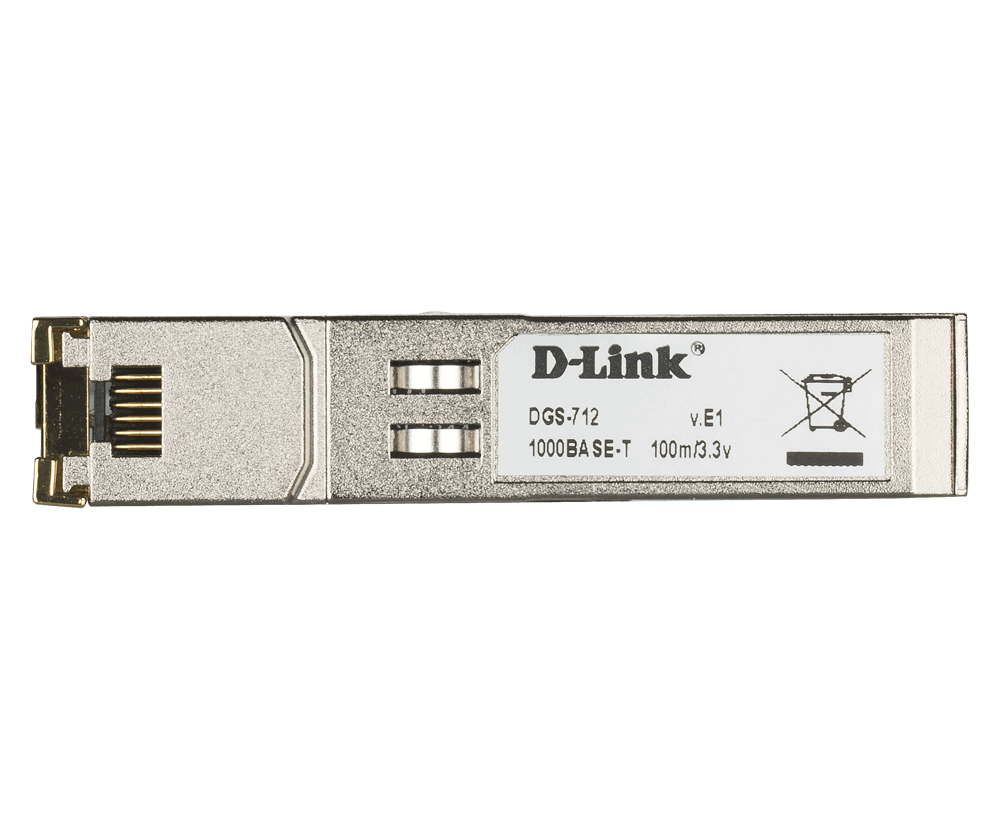

1000Base-T Copper SFP Transceiver

DGS-712

  • Product Status ($name): Live
  • Compliant with IEEE 802.3ab Gigabit Standard
  • MSA, RoHs Compliant
  • Maximum distance of 100 m
  • RJ-45 connector type

Download the datasheet.

Where to buy

Gigabit Ethernet connectivity for data centers, enterprise wiring closets, and service provider transport applications

The D-Link DGS-712 1000Base-T Copper SFP Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports Gigabit Ethernet. The DGS-712 offers a wide variety of Gigabit Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DGS-712 is an external transceiver designed for insertion into SFP slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide Gigabit operation and physical compactness to deliver the speed, reliable data transfer, and deployment flexibility that today’s networks require.

Compliant Standard
IEEE 802.3 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
Note: Conditionally support 10/100BASE-T operation in host system with SGMII interface. Please check switch system whether there is SGMII reserved
Transceiver Type
RJ45
Distance Capacity
100m
Speed
1Gbps
Note: Conditionally support 10/100BASE-T operation in host system with SGMII interface. Please check switch system whether there is SGMII reserved
Cable Type
Cat5
Cat5e
Cat6
Power Feature
3.3 V
Max Input Current
375mA
MTBF
5,617,000 hours
Temperature
Operating: 0 ~ 85 °C
Storage -40 ~ 85℃
Humidity
Operating: 0~80% RH
Storage: 0%-80% RH
Dimensions
13.7mm(W)x 70.2mm(D)x13.4mm(H)
Weight
20g
