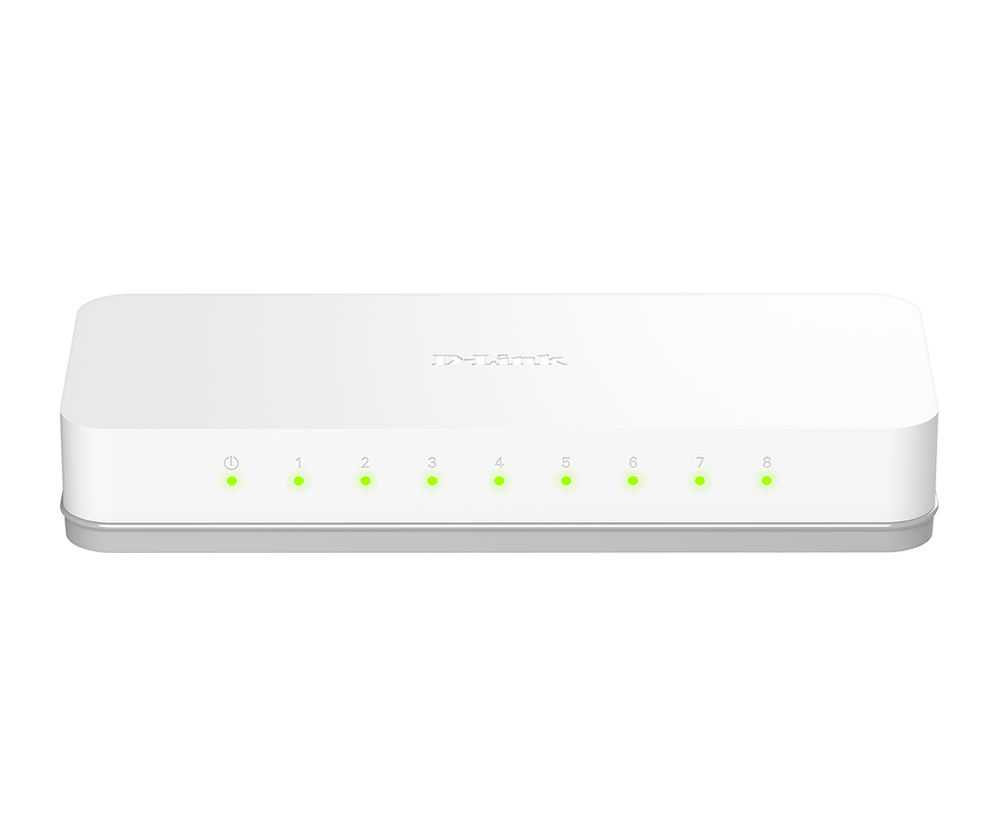

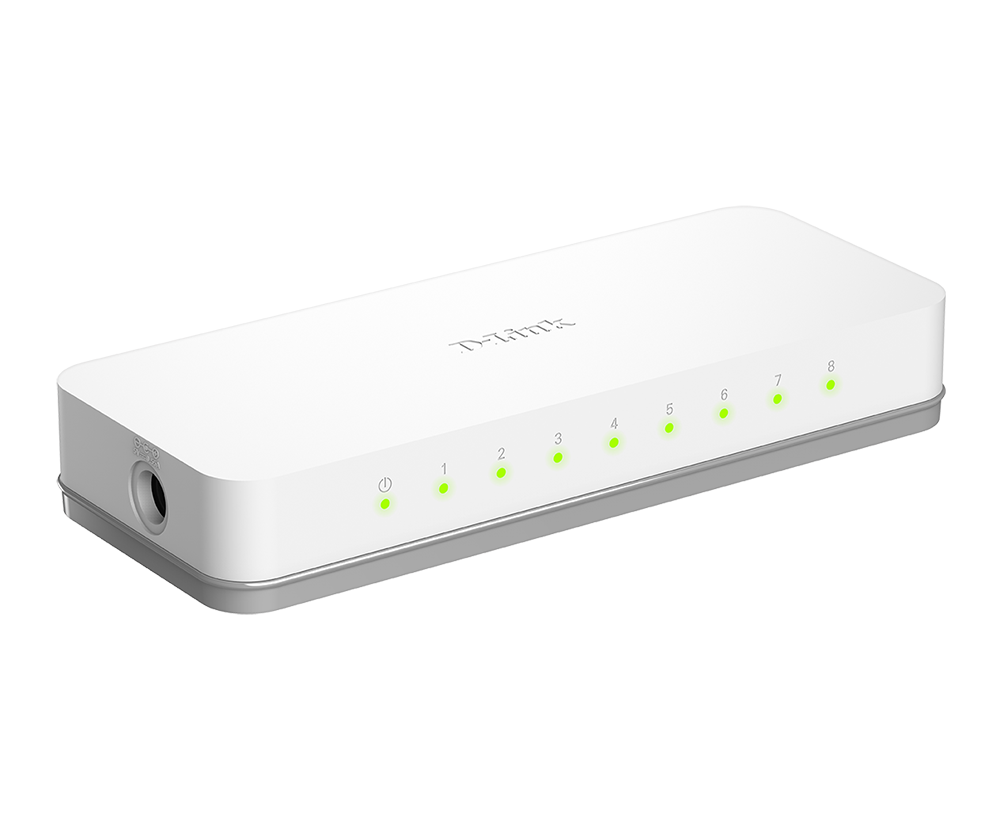

8-Port 10/100 Switch

DES-1008A

  • Product Status (Revision E1_v100): Live

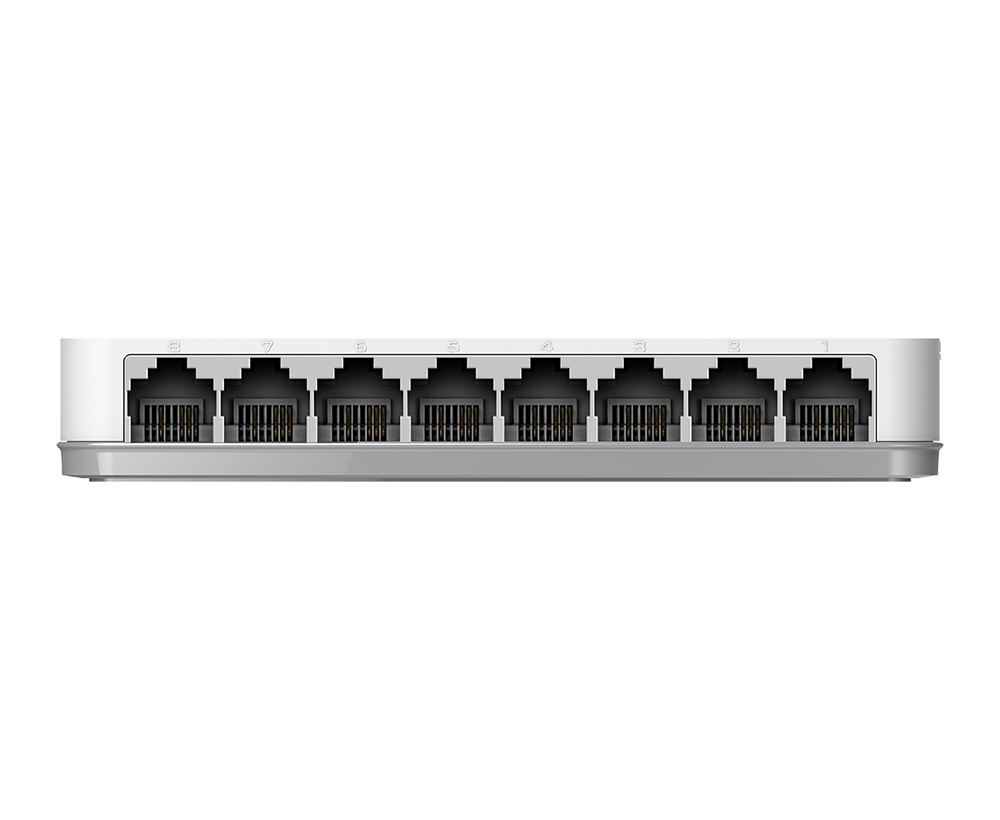

  • Eight Fast Ethernet LAN ports for high-speed wired connections
  • Compliant with IEEE 802.3az Energy-Efficient Ethernet (EEE)
  • D-Link Green Technology features power-saving by link status and by cable length
  • Auto-sensing ports automatically detect network connections and adjust accordingly

Download the datasheet.

Where to buy

Wired Network Setup Made Faster

The DES-1008A 8-Port 10/100 Switch is an 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Use the DES-1008A to connect multiple computers together to share files and folders, or connect it to a router to share an Internet connection.

Auto-sensing 10/100 Ports

The DES-1008A 8-Port 10/100 Switch is an 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Use the DES-1008A to connect multiple computers together to share files and folders, or connect it to a router to share an Internet connection.



Flow Control for Secure Transmission

802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices, ensuring a smooth and uninterrupted network connection.



Auto-MDI/MDIX Crossover

All ports support auto-MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be directly connected to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

Building

Acoustic
0 dB
Auto MDI/MDIX
Yes
Comply with RoHS 6
Yes
Control
802.3x Flow
Dimensions
141.5×78.5×23.8mm
FAN
Fanless
Interfaces
8 x 100Base-TX
MAC Address Table Size
1,024
Max. Packet Forwarding Rate
1.19 Mpps
Maximum Heat Dissipation
7.47228 BTU/hr
Maximum Power Consumption
2.19 W
MTBF
2,137,319 hours
Operating Humidity
10% ~ 90% RH
Operating Temperature
0 ~ 40 °C
Packet Buffer Size
0.06 MB
Power Input
AC:100 ~ 240 V
Storage Humidity
5% ~ 90% RH
Storage Temperature
- 10 ~ 70 °C
Store & Forwarding Forwading
Yes
Switching Capacity
1.6 Gbps
Weight
128 g
