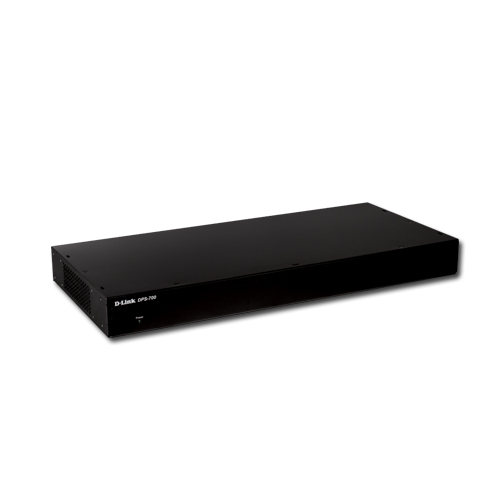

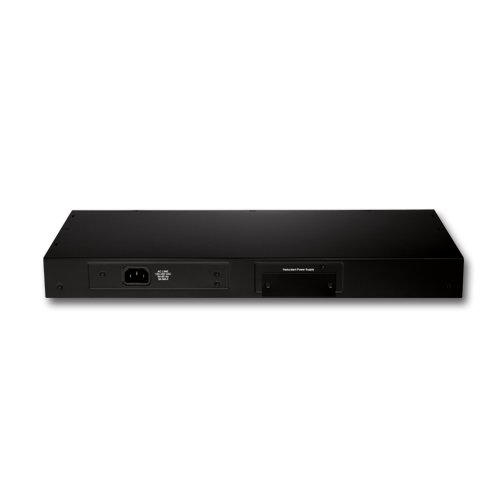

589W externes redundantes Netzteil
DPS-700
- Produkt Status (Revision A): Live
- Bis zu 589W Ausgangsleistung für PoE-Switches
- Passend für PoE Modelle der DGS-3120 Serie
- Universales externes Wechselstrom-Netzteil für Eingangs-Spannungen von 90-264VAC und 47-63Hz
- Permanente Überwachung des eingebauten Netzteiles und Regulierung der Switch-Stromversorgung
- 1+1 Power Modus zur Erhöhung der Gesamt PoE-Kapazität
- Kurzschluss- und Überspannungsschutz
- Standard Rackeinbau Metallgehäuse mit 1HE
- 1m DC Verbindungskabel im Lieferumfang
Projektbasiertes Produkt - bitte wenden Sie sich an unsere Vertriebsmitarbeiter.
Die Abbildung kann vom tatsächlichen Produkt abweichen.
Weitere Produkte
![](/de/de/-/media/product-pages/dgs/1520/dgs_1520_28_28mp_52_52mp_a1_front.png?h=100&w=191&la=de-DE&hash=1AEC6573136D38C6475AC00384F5A441)
Layer-3-Stackable Smart Managed Switches
DGS-1520-28, DGS-1520-28MP, DGS-1520-52, DGS-1520-52MP
![](/de/de/-/media/product-pages/dgs/3130/dgs_3130_30ts_30s_30ps_54ts_54s_54ps_side.png?h=100&w=140&la=de-DE&hash=BB6B09587A2EB7D1EE0500AF1C31ED3C)
Gigabit Layer 3 Stackable Managed Switches
DGS-3130-30TS, DGS-3130-30S, DGS-3130-30PS, DGS-3130-54TS , DGS-3130-54S, DGS-3130-54PS
![](/de/de/-/media/product-pages/dgs/1510/dgs1510seriesa1image-lfront.png?h=100&w=178&la=de-DE&hash=534385170DFBF8EFB50B37DAA2A10042)
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
![](/de/de/-/media/product-pages/dgs/3630/series/dgs363028sc28tc28pc52tc52pca1image-lfront.png?h=100&w=178&la=de-DE&hash=DC1A8E906A5CA39672B10380F17ED691)
Layer 3 Managed Gigabit Stack Switches
DGS-3630-28SC, DGS-3630-28TC, DGS-3630-28PC, DGS-3630-52TC, DGS-3630-52PC
Specs
Input Voltage Range
Input Frequency Range
Maximum Input Current
Maximum In-rush Current
Leakage Current
Output Voltage
Total Output Power
Efficiency
Over Voltage Protection
LED Status
Dimensions (LxWxH)
Weight
Operating Temperature
Storage Temperature
Safety Standards
Safety Approvals
EMI
MTBF
Redundant Power Supply & Lan Switch Compatibility
DPS-700
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted. See inside package for warranty details.
- 90VAC to 264VAC
Input Frequency Range
- 47 Hz to 63 Hz
Maximum Input Current
- 7.5A at 115VAC, 60Hz
- 3.7A at 230VAC, 50Hz
Maximum In-rush Current
- 30A @ 115VAC, 60Hz
- 30A @ 230VAC, 50Hz
Leakage Current
- 3.5mA max.
Output Voltage
- +54VDC
- +12VDC
Total Output Power
- 589 watts
Efficiency
- 80%
Over Voltage Protection
- Trip point: below 16V for +12V output
- Auto-recovery mode against short circuit or over load conditions
- -59V output below -57V will protect itself against short circuit or over load condition
LED Status
- On: RPS good
- Off: RPS failed
Dimensions (LxWxH)
- 196mm x 195mm x 50mm
Weight
- 3.7 kg
Operating Temperature
- 0° to 65° C
Storage Temperature
- -40° to 70° C
Safety Standards
- UL 60950 3rd Edition
- CSA 22.2 NO.234
- EN 60 950
Safety Approvals
- UL
- CUL
EMI
- FCC Class B
- CE
MTBF
- 624,961 hours
Redundant Power Supply & Lan Switch Compatibility
DPS-700
- DGS-1510-52XMP
- DGS-1520-28MP
- DGS-1520-52MP
- DGS-3120-48PC
- DGS-3120-24PC
- DGS-3130-30PS/SI
- DGS-3130-54PS/SI
- DGS-3420-28PC
- DGS-3420-52PC
- DGS-3620-28PC
- DGS-3620-52PC
- DGS-3630-28PC
- DGS-3630-52PC
Warranty and Service Information
All DPS-SKU
- 2 Year Warranty
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted. See inside package for warranty details.
