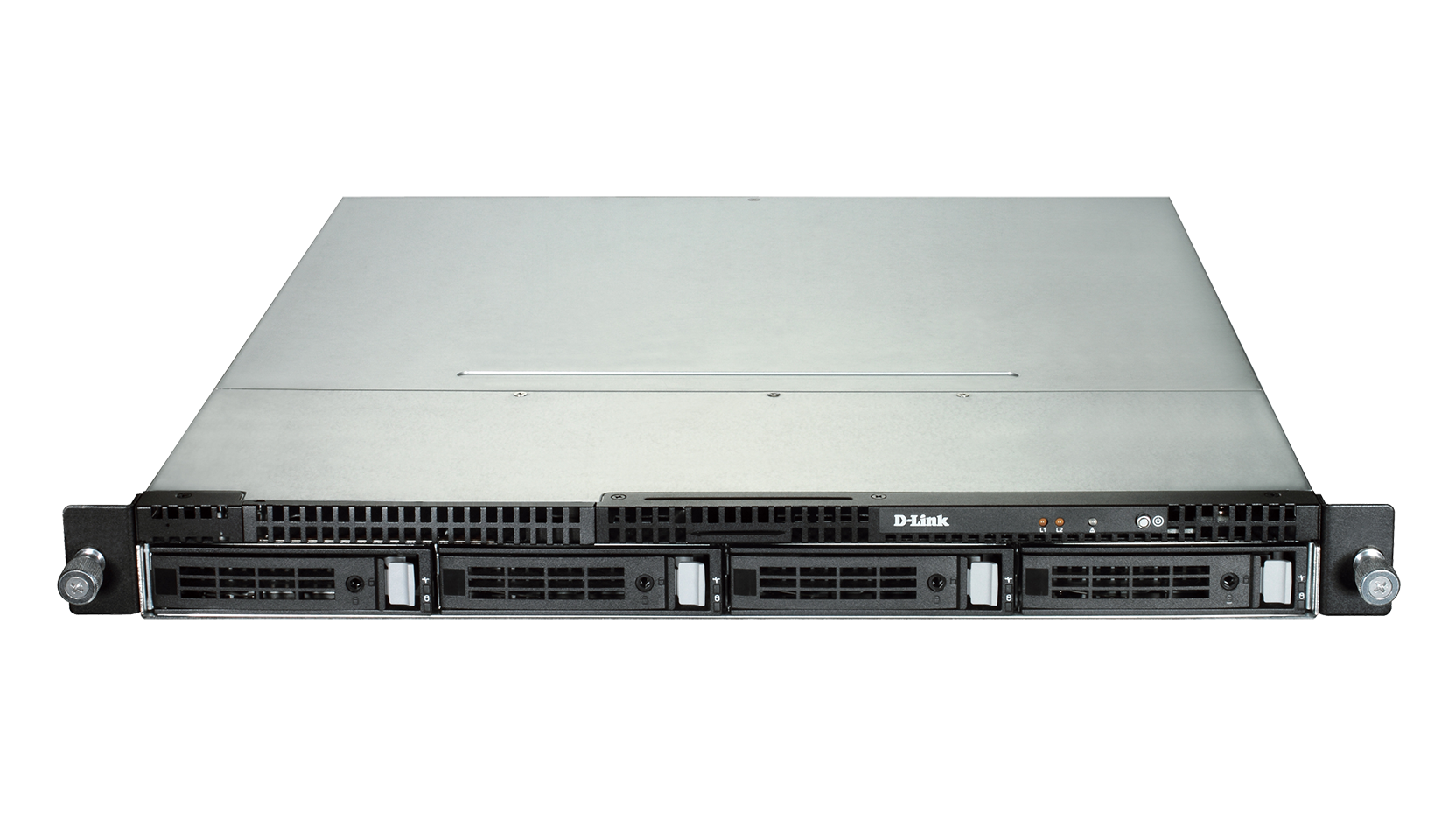

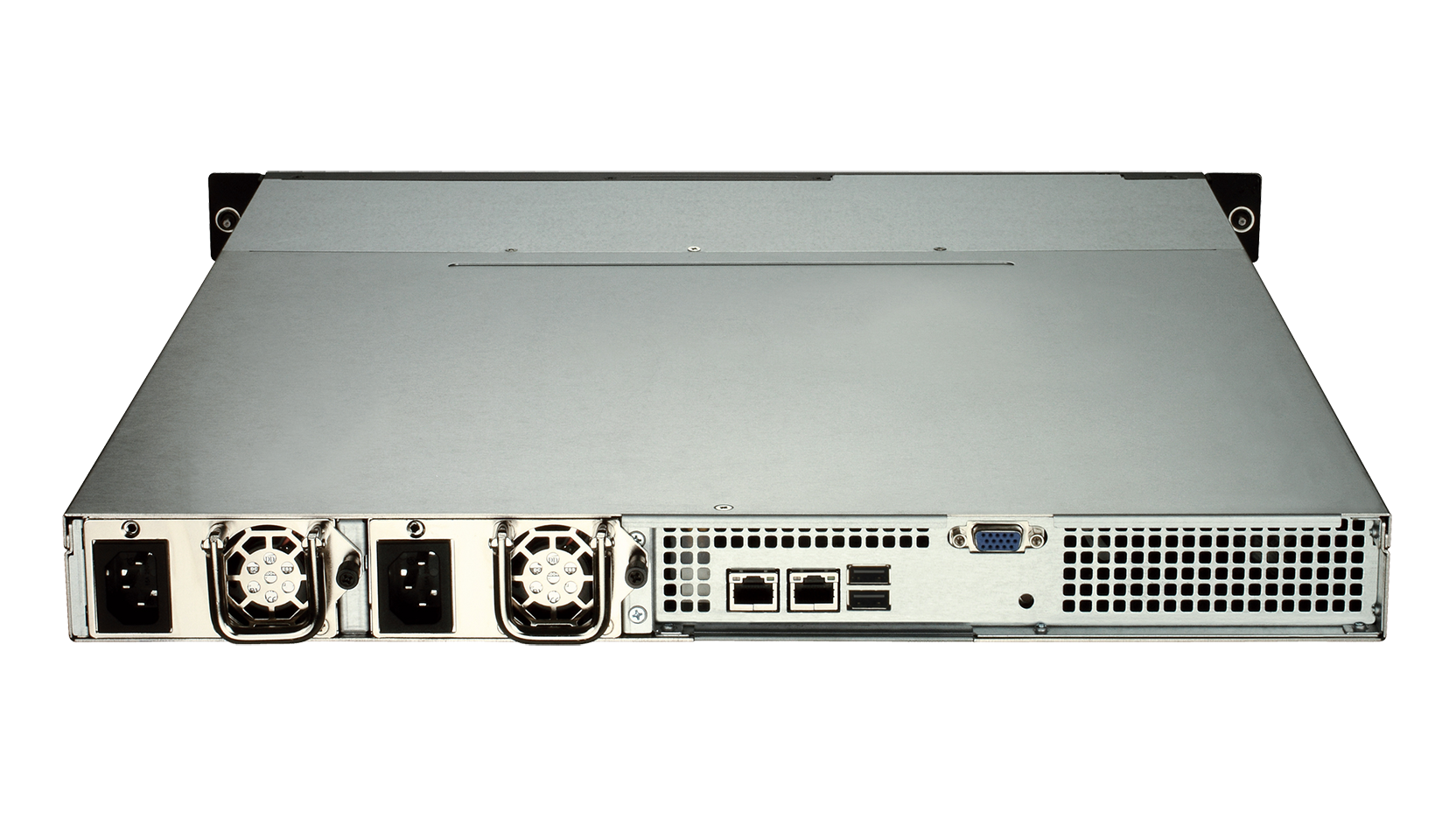

ShareCenter™ Pro 4-Bay 1U Rackmount Unified Storage

DNS-1560-04

  • Produkt Status (Revision A): End of Life

Small and medium sized businesses face an ever-increasing need for data consolidation and sharing. D-Link’s DNS-1560-04 is a unified solution for these growing data storage requirements, and provides a multitude of options for managing and securing important files. The ShareCenter™ Pro 4-Bay 1U Rackmount Unified Storage enables users to safely share and back-up mission critical data. This NAS/iSCSI storage solution includes advanced features such as ZFS file system, thin provisioning, compression, snapshots and replication usually found only in higher-end devices, with no need to purchase additional licenses. The DNS-1560-04 also includes an intuitive user interface to ensure it can be quickly installed, and easily managed, even by users with limited IT experience.

Unified Storage Solution

The DNS-1560-04 is a unified solution that provides iSCSI and NAS functionalities. It boasts strong iSCSI read/write performance with average data throughput higher than many competing products. It also provides versatile RAID support meaning you never run the risk of losing valuable data. It features 4 Serial ATA (SATA) disk drive bays that support hard drives in RAID level 0, 1, 5, 6, 10, or JBOD configurations. DNS-1560-04 supports multiple protocols including SMB, NFS, AFP, FTP, WebDAV as well as iSCSI. This combination delivers storage solutions with great performance, manageability and efficiency

Variety of Backup Options

The DNS-1560-04 offers several backup options which allow administrators and users to control how, when, and where their data is stored. Share files across the network or over the Internet via FTP or access them via the easy-to-use web file manager. Remote back-up enables users to keep a copy of their files on a remote NAS for a disaster recovery solution, providing extra data protection, and volume snapshots can restore a whole volume in a matter of minutes; in contrast to traditional backup schemes that can take hours. Users can also take a volume snapshot, backup to Amazon S3 cloud storage, or remotely back up to a server by using an rsync backup utility.

Efficiency and Redundancy

The DNS-1560-04 features thin provisioning allocating disk storage space in a flexible manner based on the minimum space required. It also addresses the explosion of unstructured data and files, where reads/writes are random, by treating random writes as sequential blocks.

Furthermore, the 4 Serial ATA (SATA) disk drive bays supports RAID level 0, 1, 10, 5, 6 or JBOD configurations. Administrators can quickly deploy a network storage solution using inexpensive SATA disk drives, and depending on storage needs, can add more drives as they go. Additionally, S.M.A.R.T. disk diagnostics help to ensure data integrity.

Energy Efficient

The DNS-1560-04 is 80 PLUS certified. 80 PLUS certification is granted to products that have more than 80% energy efficiency at certain levels of rated load. This enables the DNS-1560-04 to run more efficiently by using less electricity, allowing it to run cooler and with reduced operating costs.

Manageability

The DNS-1560-04 has an intuitive web user interface, which dramatically increases usability for enterprise users, making it easy to setup, configure and manage. It also integrates Windows Active Directory and LDAP for IT administrators to easily manage accounts in enterprise environments.

Weitere Produkte

Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Mehr erfahren
Type
NAS/iSCSI Unified Storage
Enclosure form factor
1 U rack-mountable
CPU
Intel Atom D2550
SDRAM
4 GB
Number of drive bays
4
Drive interface
SATA I/II
Drive form factor
3.5/2.5 inch
Maximum storage capacity
16 TB
Network interface
2 x Gigabit Ethernet
Number of USB ports (for storage backup, printer sharing or UPS monitoring)
2
Link aggregation group (LAG) support
Supported
CHAP
Supported
802.1 q VLAN
Supported
Multiple drive configuration
JBOD
RAID 0/1/5/6/10
standard
Drive format
EXT3
EXT4
ZFS
SMART
Supported
Windows Active Directory service support
Supported
User account management
Supported
Group account management
Supported
Maximum number of group accounts
512
User/group quota management
Supported
Network share management
Supported
Maximum number of managed shared forlders
256
Maximum concurrent connections via FTP
512
Maximum concurrent connections via Samba
512
Schedule local backups
Supported
Schedule remote backups
Supported
Cloud storage backup
Amazon S3
D-Link Vault
Dropbox
Google Drive
Built-in snapshot
Supported
Replication
Supported
Thin provisioning
Supported
SSL
Supported
Web interface through browser
Supported
E-mail/SMS notification
Supported
System/FTP log
Supported
SNMP
Supported
Resource monitor
Supported
This product was phased out on: 06/06/2017
This product's last date of support is on: 05/06/2022
