AX3000 Wi-Fi 6 Smart Access Point

DBR-X3000-AP

  • Produkt Status (A1_Datasheet_v1.00(WW)): Live
  • AX3000 Wi-Fi 6, up to 3.0 Gbps
  • 1 x GE PoE LAN port enables flexible installation
  • Wall-mount or ceiling options to suit diverse spaces
  • Support dual-band to deliver optimal performance
  • Seamless roaming allows devices to keep connected
  • Effortlessly expands coverage with mesh technology
  • WPA3 enhanced security for wireless networks
  • Guest Wi-Fi support to protect the main network
  • Central management by DBR series business router
  • Made In Taiwan

Datenblatt downloaden.

Bezugsquellen

Wi-Fi 6 Access Point for Seamless, Smarter Connectivity

The DBR-X3000-AP delivers fast, reliable Wi-Fi 6 performance and supports PoE for flexible, space-saving installation options. It supports mesh technology to ensure seamless wireless coverage throughout the entire business environment. With centralized wireless monitoring and management, IT teams can easily overlook and maintain network performance. Advanced WPA3 encryption and dedicated Guest Wi-Fi access provide secure, reliable connectivity for both business owner and visitors. Engineered to meet the evolving needs of modern small businesses, the DBR-X3000-AP combines performance, security, and ease of management in one powerful device.

Wi-Fi 6 Ready

Provides high efficiency and low latency, offering nearly 4x the capacity of previous Wi-Fi standards

Seamless Coverage

Easily expand coverage with mesh nodes, eliminating dead zones for seamless connectivity

Flexible Installation

Supports PoE for easy deployment, with wall-mount and ceiling design options for space efficiency

Worry-free Public Network

WPA3 encryption enhances network security, making browsing safer even in public spaces

Exclusive Guest Wi-Fi

Offers dedicated, secure network access to visitors without affecting the performance of the main network

Easy Management

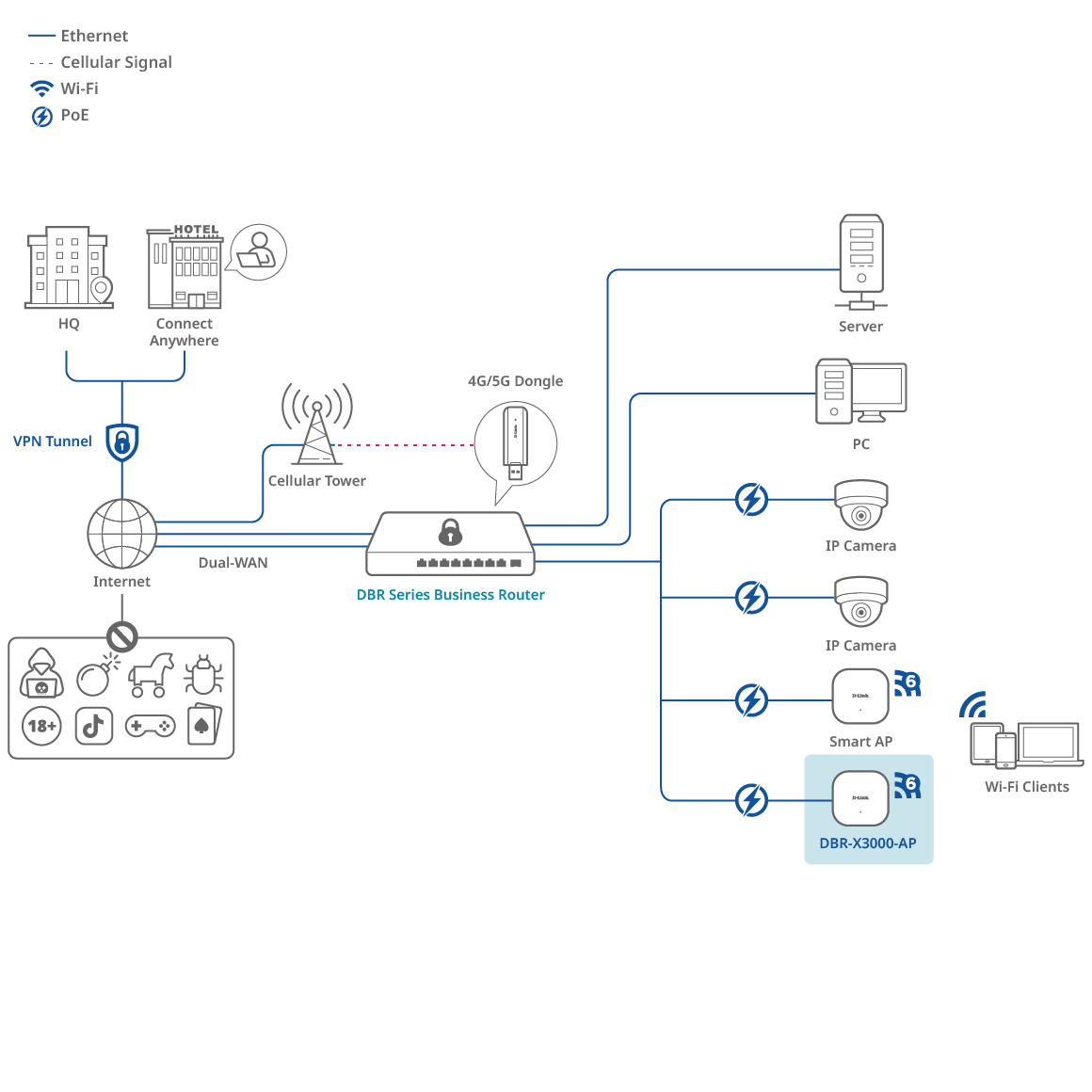

Integrated with DBR Series routers for real-time monitoring and effortless device management

Boosts Your Business with Advanced Wi‑Fi 6

Powered by advanced Wi-Fi 6 and dual band technology, the DBR-X3000-AP enables high-speed data transfers and superior-quality video streaming while connecting multiple devices at once without interference. It delivers a reliable and responsive wireless experience, even in highly congested environments.

Mbps

Channels

2.4G / 5G

802.3at

Geschwindigkeit von 2,5 Gigabit, unterstützt Wi-Fi 6 und mehr

Erweitern Sie mit den Switches der DMS-1250 Serie Ihr Netzwerk, indem Sie einen Wi-Fi 6 Access Point an einen der 2,5-Gbit/s-Ports anschließen und so den Durchsatz und die Geschwindigkeit effektiv maximieren. Multi-Gigabit-Ethernet mit Wi-Fi 6 Access Points beseitigt potenzielle Engstellen, sodass Ihr Netzwerk die Effizienz und Geschwindigkeit von Wi-Fi 6 voll ausschöpfen kann.

Überspannungsschutz bis 6 kV für alle Ethernet-Ports

Die Switches der DMS-1250 Serie bieten einen verbesserten Überspannungsschutz bis 6 kV an allen 2,5-Gigabit-Ethernet-Zugangsports, um sicherzustellen, dass Ihr Netzwerk widerstandsfähig bleibt und Ihre Geräte vor Spannungsspitzen geschützt bleiben.​

Unterstützte L2+-Funktionen

Die Switches der DMS-1250 Serie bieten eine umfassende Palette an Layer 2+-Funktionen, darunter:

  • statisches Routing
  • IPv4/IPv6
  • DHCP-Relay*
  • DiffServ QoS
  • Port Mirroring
  • Spanning Tree Protocol (STP/MSTP/RSTP)
  • Link Aggregation Control Protocol (LACP)
  • IGMP- und MLD-Snooping
* Bitte beachten Sie, dass die Unterstützung nur bei Version R2 oder höher verfügbar ist.

Weitere Produkte

Business Router
DBR-600-P
Mehr erfahren
Business Router
DV-700
Mehr erfahren

Unterstützte L2+-Funktionen

Die Switches der DMS-1250 Serie bieten eine umfassende Palette an Layer 2+-Funktionen, darunter:

  • statisches Routing
  • IPv4/IPv6
  • DHCP-Relay*
  • DiffServ QoS
  • Port Mirroring
  • Spanning Tree Protocol (STP/MSTP/RSTP)
  • Link Aggregation Control Protocol (LACP)
  • IGMP- und MLD-Snooping
* Bitte beachten Sie, dass die Unterstützung nur bei Version R2 oder höher verfügbar ist.

Applications

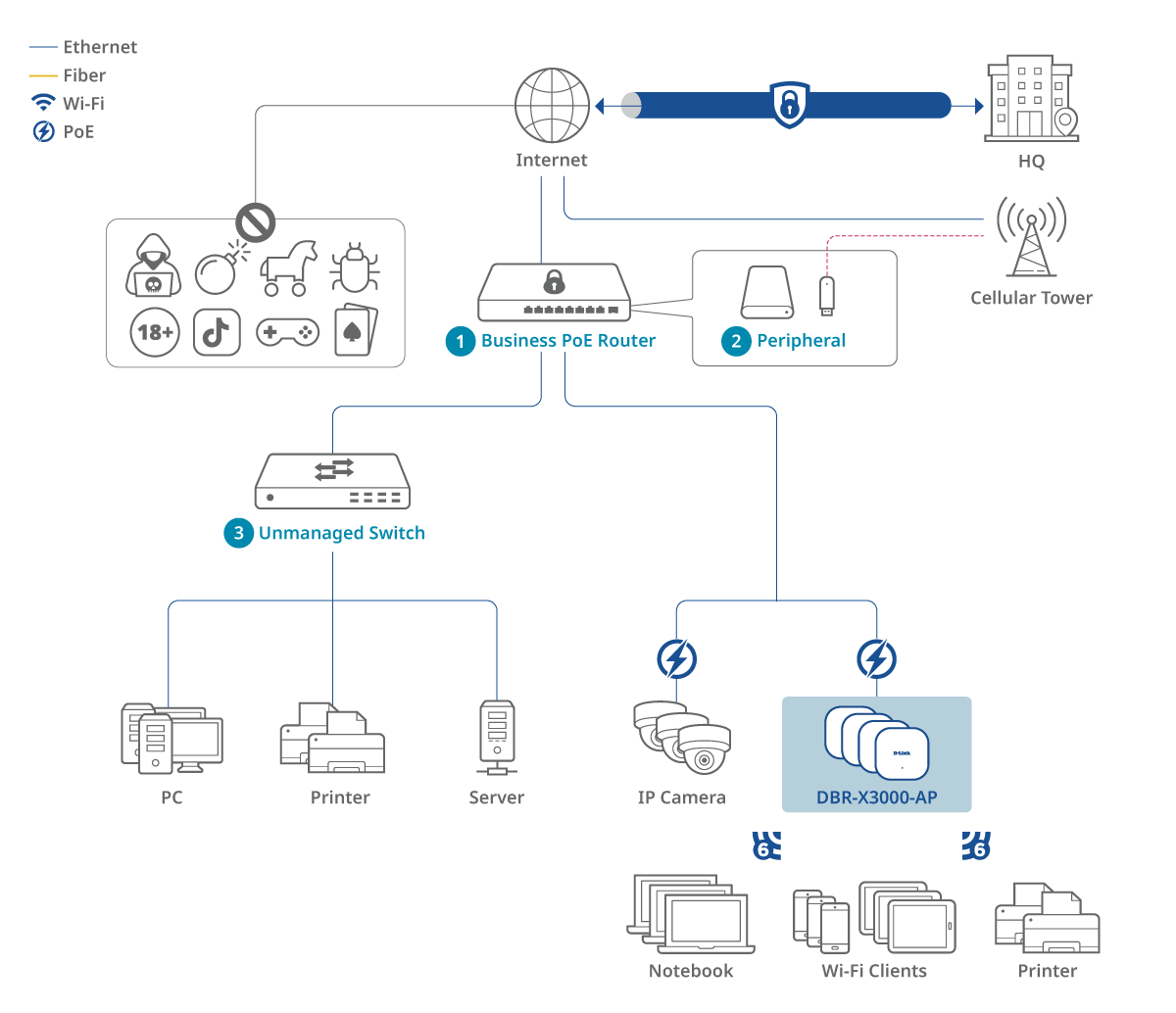

Small Office (Enterprise)

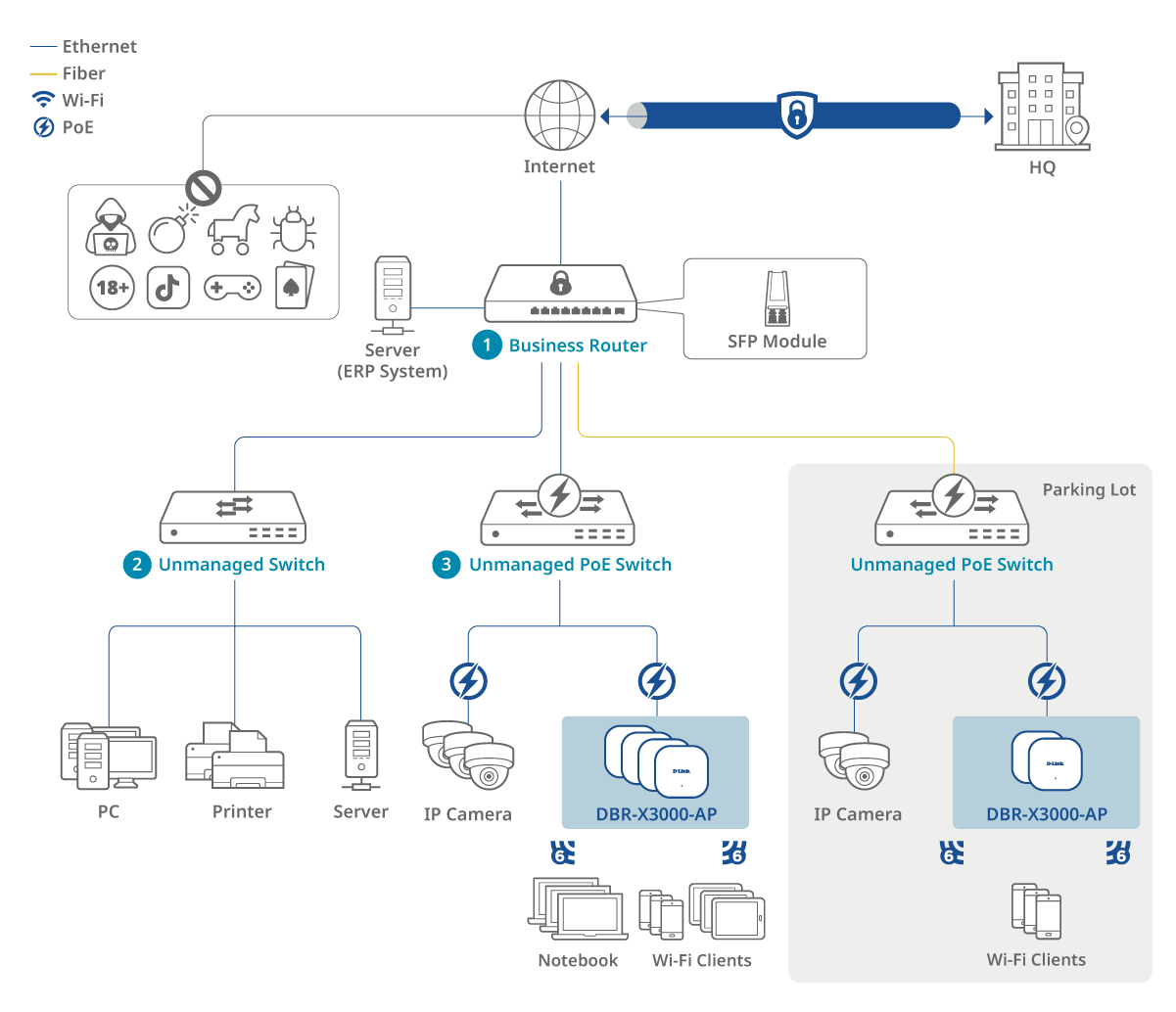

Hotel (Building)

Die beste Wahl für SOHO, SMB und MDU

Die Switches der DMS-1250 Serie sind vielseitig einsetzbar und eignen sich für SOHO-, SMB- und MDU-Umgebungen. Sie bieten mit 2,5 GB eine Datenübertragung in Hochgeschwindigkeit und für externe Konnektivität eine essenzielle Uplink-Geschwindigkeit von 10 GB. Diese hohe Uplink-Geschwindigkeit stellt sicher, dass die gesamte MDU ohne Datenengpässe auf externe Dienste zugreifen kann. Darüber hinaus sind in den Modellen DMS-1250-10SP, 10SPL und 12TP die Standards IEEE 802.3at oder IEEE 802.3bt implementiert.​

Hotel (Building)

Vergleich der Switches der DMS-1250 Serie



DMS-1250-10S
DMS-1250-10S
DMS-1250-10SP
DMS-1250-10SPL
DMS-1250-12TP
DMS-1250-10SP
DMS-1250-10SPL
DMS-1250-12TP
Schnittstelle
8 x 2,5GE
2 x 10G SFP+
8 x 2,5GE PoE
2 x 10G SFP+
8 x 2,5GE PoE
2 x 10G SFP+
8 x 2,5GE PoE
2 x 10GE
2 x 10GE SFP+
Leistung
Switchkapazität 80 Gbit/s 80 Gbit/s 80 Gbit/s 120 Gbit/s
Max. Weiterleitungsrate für Pakete 59,53 Mio. Pakete/s 59,53 Mio. Pakete/s 59,53 Mio. Pakete/s 89,29 Gbit/s
PoE
PoE-Standard n. v. IEEE802.3bt + IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at
PoE-Ports n. v. Port 1 ~ 2 (IEEE802.3bt)
Port 3 ~ 8 (IEEE802.3af/at)
Port 1 ~ 8 Port 1 ~ 8
PoE-Kapazität n. v. 120 W 240 W 240 W
Technische Spezifikation
Überspannungsschutz ・Überspannungsschutz gemäß IEEE61000-4-5
・Überspannungsschutz bis 6 kV an allen 2,5-Gigabit-Ethernet-Ports
Maximale Leistungsaufnahme 13,58 W 147 W (PoE an) 287,58 W (PoE an) 289,74 W (PoE an)
Lüfter Lüfterlos Lüfterlos 2 interne Lüfter 2 interne Lüfter
Konsolenport ja Nein ja ja
Stromversorgungstyp intern extern intern intern

Wireless Standard
802.11ax Wi-Fi 6
Frequency band mode
2.4G,5G Dual-band simultaneous
Wireless Speed
2402 Mbps 5GHz
574 Mbps 2.4GHz
Antenna gain
3 dBi for 5GHz
4 dBi for 2.4GHz
MIMO
2.4G : 2T 2R
5G : 2T 3R
Interfaces
1 x Gigabit Ethernet LAN
PoE Standard
IEEE802.3at
Mounting
Wall/Ceiling
Support Mode
AP, Extender Mode
Wi-Fi Security
WPA/WPA2/WPA3 Enterprise
WPA/WPA2/WPA3 Personal
Multiple SSID
Up to 7 per device
Guest Mode
Yes
Central Management
Managed by DBR-600-P/DBR-700
Captive Portal
Click Through, Local DB when managed by DBR-700 /DBR-600-P
Dimensions
170 x 170 x 28 mm
Operating Temperature
0 - 40 °C (32 - 104 °F)
Storage Temperature
-10˚C to 70˚C (-4˚F to 158˚F)
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
Wireless standard
802.11ax Wi Fi 6
Indoor/outdoor
Indoor
