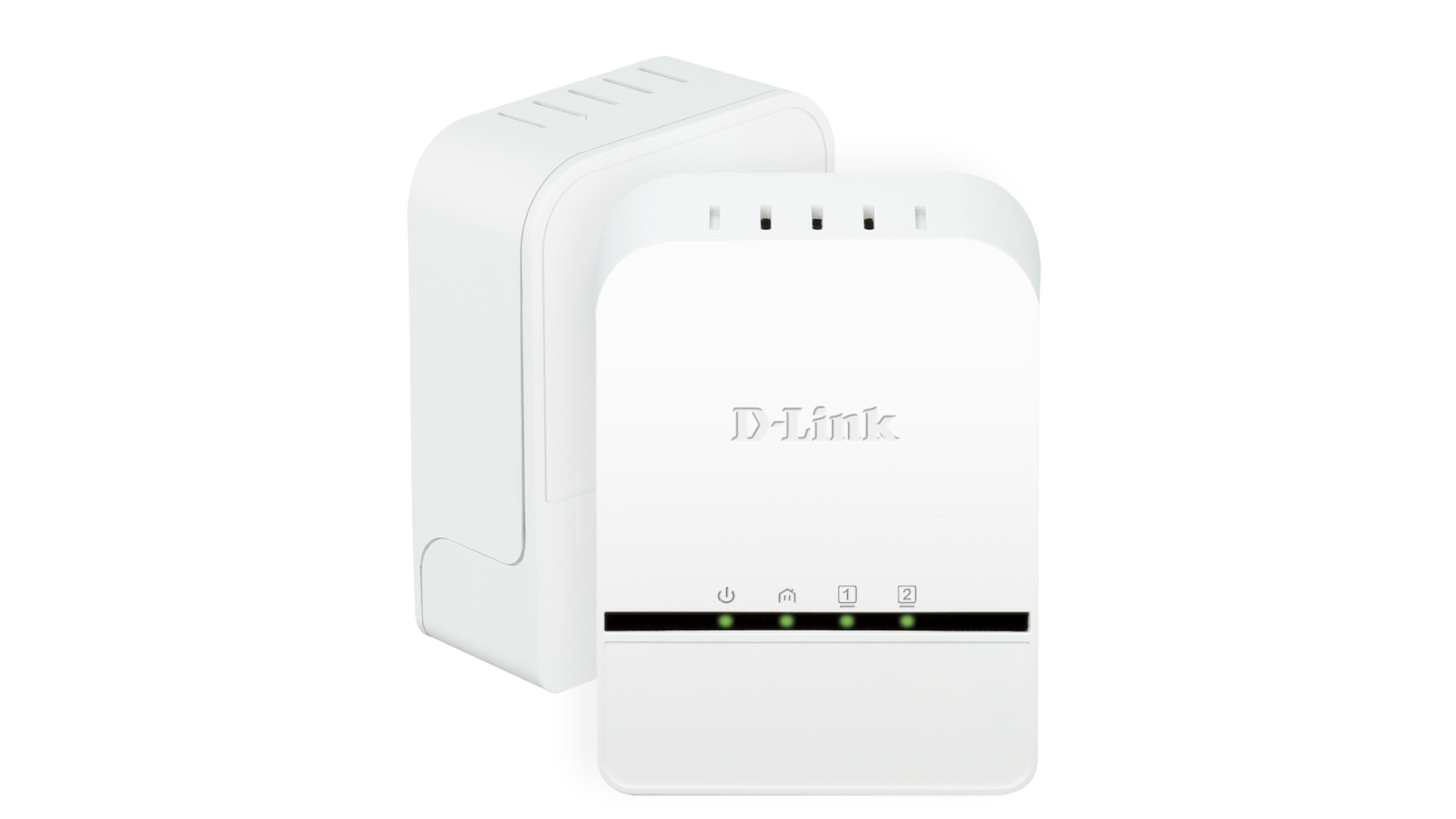

PowerLine AV 2-Port Mini Adapter Starter Kit

DHP-329AV

  • Estado del producto: Descatalogado
D-Link’s PowerLine AV 2-Port Mini Adapter Starter Kit uses standard electrical wiring to extend your home network. Simply plug one adapter into your existing router to turn any power outlet in your home into an Internet connection. With two Ethernet ports you can connect up to two Internet-enabled devices, such as your computer, game consoles, smart TVs. This Starter Kit is ideal if you are setting up PowerLine for the first time in your home.


Descargar el datasheet.

Lista de puntos de venta



Internet en cualquier enchufe con los PLC Powerline, ¡adiós a los problemas de cobertura!


PowerLine AV 2-Port Mini Adapter uses your home’s existing electrical wiring to extend your existing network1. It turns every power outlet into a high speed network connection. Compliant with the HomePlug AV standard, it provides network access to your computers, game consoles, televisions, and any other Internet-enabled devices throughout your home. With two network ports you can connect up to two devices. Also available as a single unit (DHP-328AV).

Data transmission over electrical wiring
The D-Link DHP-329AV PowerLine AV Mini Adapter Starter Kit, compliant with the HomePlug AV standard, uses your home’s existing electrical wiring to create a network or extend your existing network. It turns every power outlet into a potential network connection to access digital media devices, game consoles, print servers, computers, and network storage devices throughout your home.

Ideal for bandwidth-intensive applications
The 2-Port Mini Adapters features PowerLine AV, enabling it to deliver data transfer rates at up to 200 Mbps, faster than regular PowerLine products. This rapid transmission speed makes it ideal for bandwidth-intensive applications, guaranteeing smooth HD video streaming, VoIP phone calls, and lag-free online gaming experiences. This device provides ample network bandwidth, enabling you to tap into existing electrical wiring for high-quality multimedia streaming. Additional Quality of Service (QoS) support prioritises multimedia traffic over other types of traffic on your network connection, ensuring faster transmission.

Convenient setup and secure operation
Plugs directly into a power outlet, and does not require any additional cables. Extend your home network by connecting up to two devices in the farthest corners of your home, or attach a switch or wireless access point to the adapter to connect even more devices. The adapter implements 128-bit AES data encryption at the push of a button to protect your network from unauthorised wiretapping. With hassle-free plug and play installation, it’s an ideal solution to create a wall-to-wall home network.

Technical Specifications

Standards

  • IEEE 802.3
  • IEEE 802.3u
  • HomePlug AV
  • IEEE 1901

PowerLine interface

  • Power plug (country-dependent)

Ethernet interface

  • 2 x 10/100BASE-TX Ethernet port with Auto MDI/MDIX
  • RJ-45 connector

Input Power

  • 100V ~ 240V, 50/60 Hz, 0.1A
  • 3.01 W maximum

PowerLine modulation scheme

  • OFDM symbol modulation

PowerLine frequency band

  • 2 MHz to 30 MHz

Data rates

  • PowerLine: up to 200 Mbps (PHY rate)1
  • Ethernet: 10/100 Mbps (auto negotiation)

Security

  • 128-bit AES link encryption

Minimum system requirements (For PC Utility Software)

  • Windows 7/Vista/XP SP3
  • Ethernet interface (100 Mbps)

LEDs

  • Power
  • PowerLine
  • Ethernet 1
  • Ethernet 2

Dimensions (H x L x W)

  • 81 x 61 x 27 mm (each adapter)

Weight

  • 99.3 g (EU, each adapter)
  • 103 g (UK, each adapter)

Operating temperature

  • 0 to 40 ºC

Operating humidity

  • 10% to 90% non-condensing

Certifications

  • FCC
  • CE EMC Class B
  • UL
  • CE LVD

1Maximum throughput is based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch or a touch-sensitive on/off feature, short wave radios, or other Powerline devices that do not follow the HomePlug AV standard.

FAQ

  • Why is my powerline ethernet adapter slower than advertised? Ver respuesta
