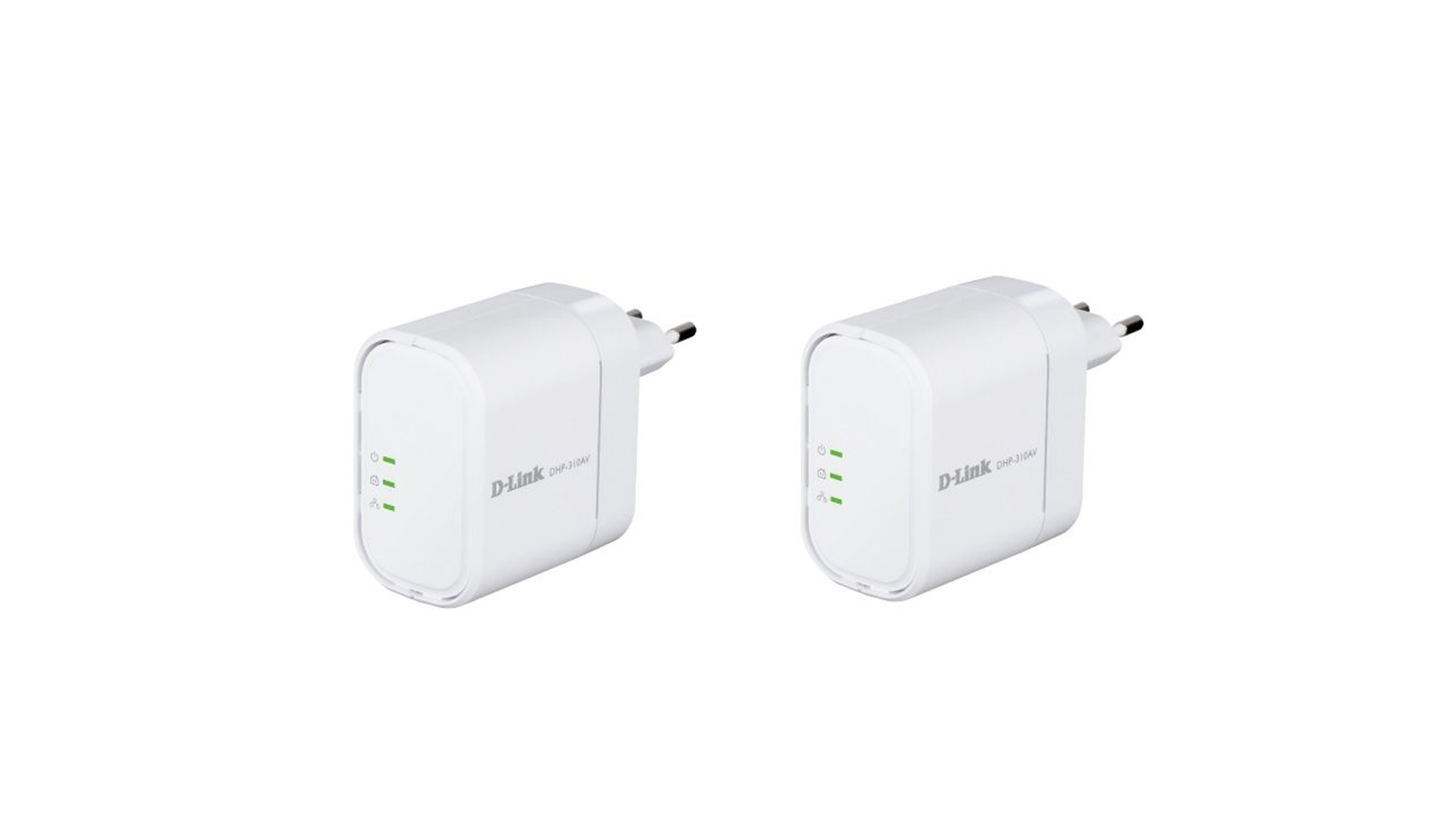

PowerLine AV Mini Starter Kit

DHP-311AV

  • Estado del producto: Descatalogado
The D-Link PowerLine AV Mini Adapter Starter Kit includes two adapters that use the electrical wiring already in your house and turn it into a high-speed network. With its compact design, the PowerLine AV Mini Adapter only takes up one plug in an outlet so you can plug in other devices too.

Descargar el datasheet.

Lista de puntos de venta
  • Converts any power socket into a wired or connection point
  • Small size: blends into any home environment
  • Simple push-button setup, with sophisticated data encryption for total security
  • 200 Mbps data transfer rates over the existing electrical wiring
  • Improved resistance to electrical interference
  • Reddot design award 2011
  • D-Link Green™: energy-saving design

The D-Link PowerLine AV Mini Starter Kit turns every power socket into a possible wired network connection by using the existing electrical wiring in your home. This kit contains all you need to get up and running with PowerLine technology.

Convenient setup and secure operation

The two adapters included in the Starter Kit plug directly into a power outlet1, so you can extend your home network by plugging one adapter into your router, and the other adapter into the room you want to extend your connection to. For convenient setup, security can be quickly configured at the push of a button on the device, to protect your network from any intruders. With hassle-free plug and play installation, the DHP-311AV is an ideal solution for creating a wall-to-wall home network.

Compact design, award winning design

Small and discreet, these adapters do not block access to neighbouring power outlets, allowing it to be plugged in anywhere alongside other devices. The adapters are designed to blend into any home environment while still providing the stable and reliable connection you need.

Ideal for bandwidth-intensive applications

These PowerLine adapters are capable of delivering wired data transfer rates of up to 200 Mbps. Advanced technology built into these devices make them more resistant to electrical interference from other household appliances, so users can fully benefit from the maximum transmission speeds.This makes them ideal for bandwidth-intensive applications, guaranteeing smooth video streaming, VoIP calls, and lag-free online gaming experiences.

Compatibility

Based on the industry-leading PowerLine Alliance technology, the adapters are compatible with products implementing the PowerLine AV 500 standard, such as D-Link’s DHP-500AV/-501AV, and DHP-P500AV/P501AV. they are furthermore compatible with other brands’ devices based on the PowerLine AV standard.

D-Link Green™

The PowerLine Mini Starter Kit is part of D-Link Green, D-Link’s program for providing eco-friendly alternatives without compromising performance: if data transmission does not occur over a certain period of time, the adapter will automatically go into sleep mode to save power.

1 Power outlets and electrical wiring must all be part of the same electrical system.

La apariencia real del producto podría diferir de la imagen mostrada en esta página
PowerLine AV Mini Adapter
Find out more
Adaptador PowerLine (PLC) HD Ethernet AV
Find out more
Kit PowerLine (PLC) HD Ethernet AV
Find out more
PowerLine Inalámbrico Wireless N
Find out more
Kit PowerLine Inalámbrico Wireless N
Find out more

Technical Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • HomePlug AV

PowerLine interface
  • Power plug (country-dependent)

Ethernet interface
  • 10/100BASE-TX Ethernet port with Auto MDI/MDIX
  • RJ-45 connector

Input Power
  • 100V ~ 240V, 50/60 Hz, 0.1A
  • 4 W maximum

PowerLine modulation scheme
  • OFDM symbol modulation

PowerLine frequency band
  • 2 MHz to 30 MHz

Data rates
  • PowerLine: up to 200 Mbps (PHY rate)
  • Ethernet: 10/100 Mbps (autonegotiation)

Security
  • 128-bit AES link encryption

Minimum system requirements (For PC Utility Software)
  • Windows 7/Vista/XP SP3
  • Ethernet interface (100 Mbps)

LEDs
  • Power
  • PowerLine
  • LAN

Dimensions (L x W x H)
  1. 61 x 42.4 x 68 mm (each adapter)

Weight
  • 125.6 g (each adapter)

Operating temperature
  • 0 to 40 ºC

Operating humidity
  • 10% to 90% non-condensing

Certifications
  • FCC
  • CE EMC Class B
  • UL
  • CE LVD

FAQ

Versión Fecha Tipo Tamaño de archivo
Datasheet - PDF 1.23mb Descargar
Versión Descripción Fecha Tipo Tamaño de archivo
Manual Manual 27/04/2011 PDF 3.86mb Descargar
Versión Descripción Fecha Tipo Tamaño de archivo
Quick Installation Guide - PDF 0.63mb Descargar
Versión Descripción Fecha
Firmware 1.01 Firmware 30/11/2011 Descargar
Versión Descripción Fecha
Software 2.12 Software 12/05/2011 Descargar
