Cámara de red de día y de noche PoE para exteriores

DCS-7410

  • Estado del producto: Descatalogado
The DCS-7410 is a day and night outdoor camera with built-in infrared LEDs, ideal for 24-hour surveillance. It is designed for small organisations to increase the value they get from their data network.

Descargar el datasheet.

Lista de puntos de venta
  • Built-in 1/3” SONY interlaced CCD sensor
  • Infra-Red LEDs, for movement detection in total darkness up to 30 m away
  • Weatherproof casing (IP66 certified against rain and dust) with detachable sun shield
  • 16x digital zoom
  • 3G mobile video, for live video streams on a 3G mobile phone or PDA
  • Simultaneous Motion JPEG, MPEG-4 streaming
  • Digital I/O for connection to sensors and alarms
  • Supports 2-way audio*
  • RS-485 port for connection to an external Pan/Tilt device
  • Direct recording to a NAS box or Network Video Recorder
  • Free D-ViewCam software included
*requires connection to external speaker and microphone

The DCS-7410 is a day and night outdoor camera with built-in infrared LEDs, ideal for 24-hour surveillance. It is designed for small organisations to increase the value they get from their data network.

Weatherproof housing

The camera is housed in an IP66 certified weatherproof casing, which protects it against rain and dust. An adjustable top shields the camera sensor from direct sunlight while providing air ventilation for the camera.

Day & night powerful surveillance

Equipped with a high-resolution Sony CCD image sensor, the camera delivers excellent image quality and level of detail. Embedded with a powerful SoC (System-on-Chip), the camera provides high-quality, real-time video compression in MPEG-4 and motion JPEG formats. The built-in Infra-Red LEDs turn on automatically when light fades; the camera can then detect moving objects in total darkness, for distances of up to 30 m.

Easy to set up with wired PoE access

The DCS-7410 includes built-in support for 802.3af Power Over Ethernet (PoE). This allows the camera to be powered directly from a PoE Ethernet switch, giving you the freedom to place the camera anywhere you need, including high walls and covert locations.

Recording & storage

Two video streams in either MPEG-4 or MJPEG can be activated simultaneously to address different requirements, for example live viewing and recording. You can save snapshots and automatically start recording video and audio  when motion is detected. With the built-in Samba client, software is not required to record the action directly on to a network storage device.

Alternatively, you can record videos to a Network Video Recorder (NVR), such as the D-Link DNS-722-4 or DNS-726-4. These devices can control multiple cameras and support RAID-1 for backup of the video footage.

You can also connect the cameras to I/O sensors, and set up the system to send automated e-mail notifications for unusual events.

Remote monitoring

With the D-ViewCam software included, up to 32 cameras may be monitored on a single computer screen in one central location. The DCS-7410 also features 3G mobile video support, enabling you to view a live video feed from the camera on a compatible 3G mobile phone or PDA anywhere in your 3G coverage area.

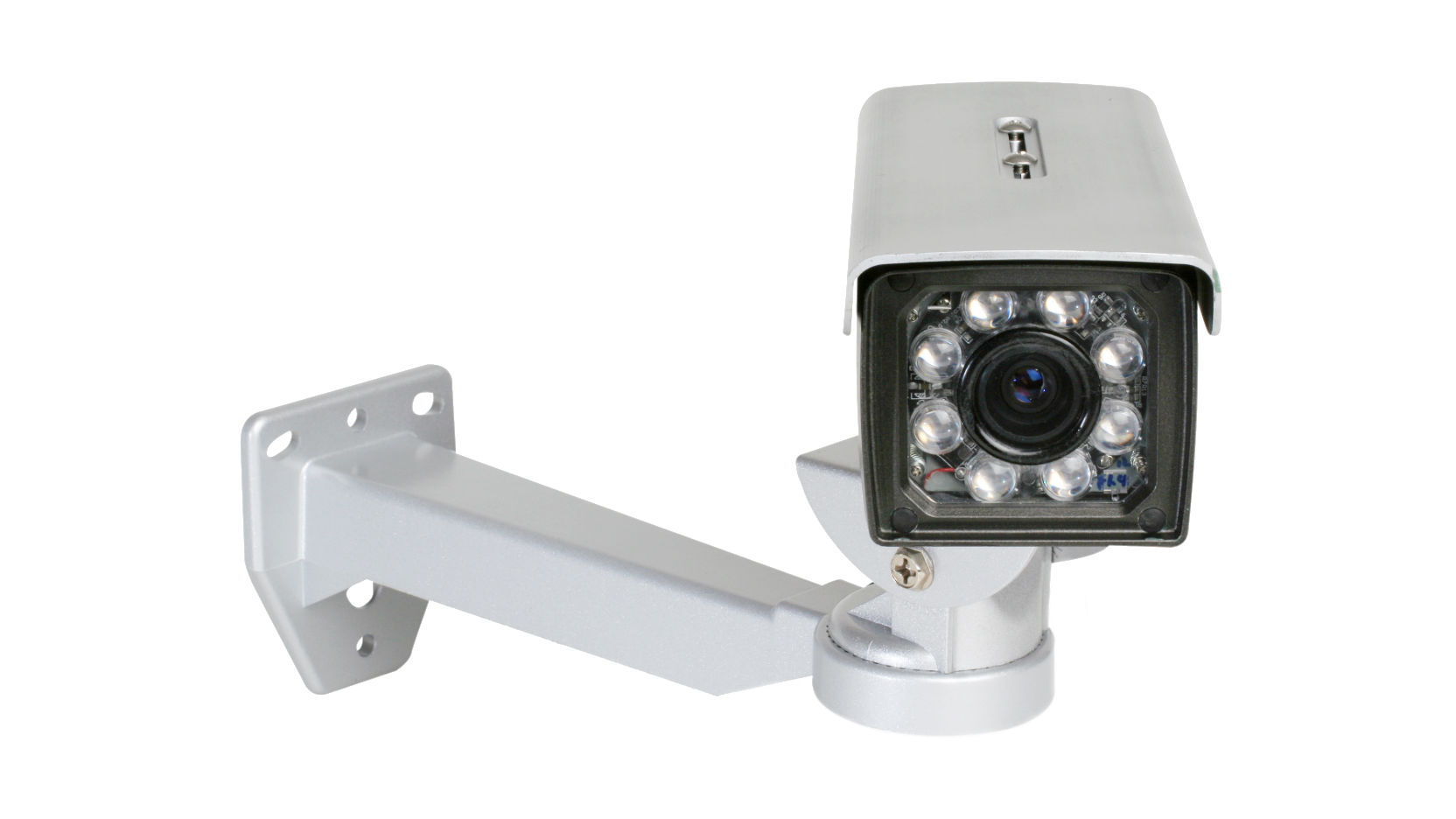

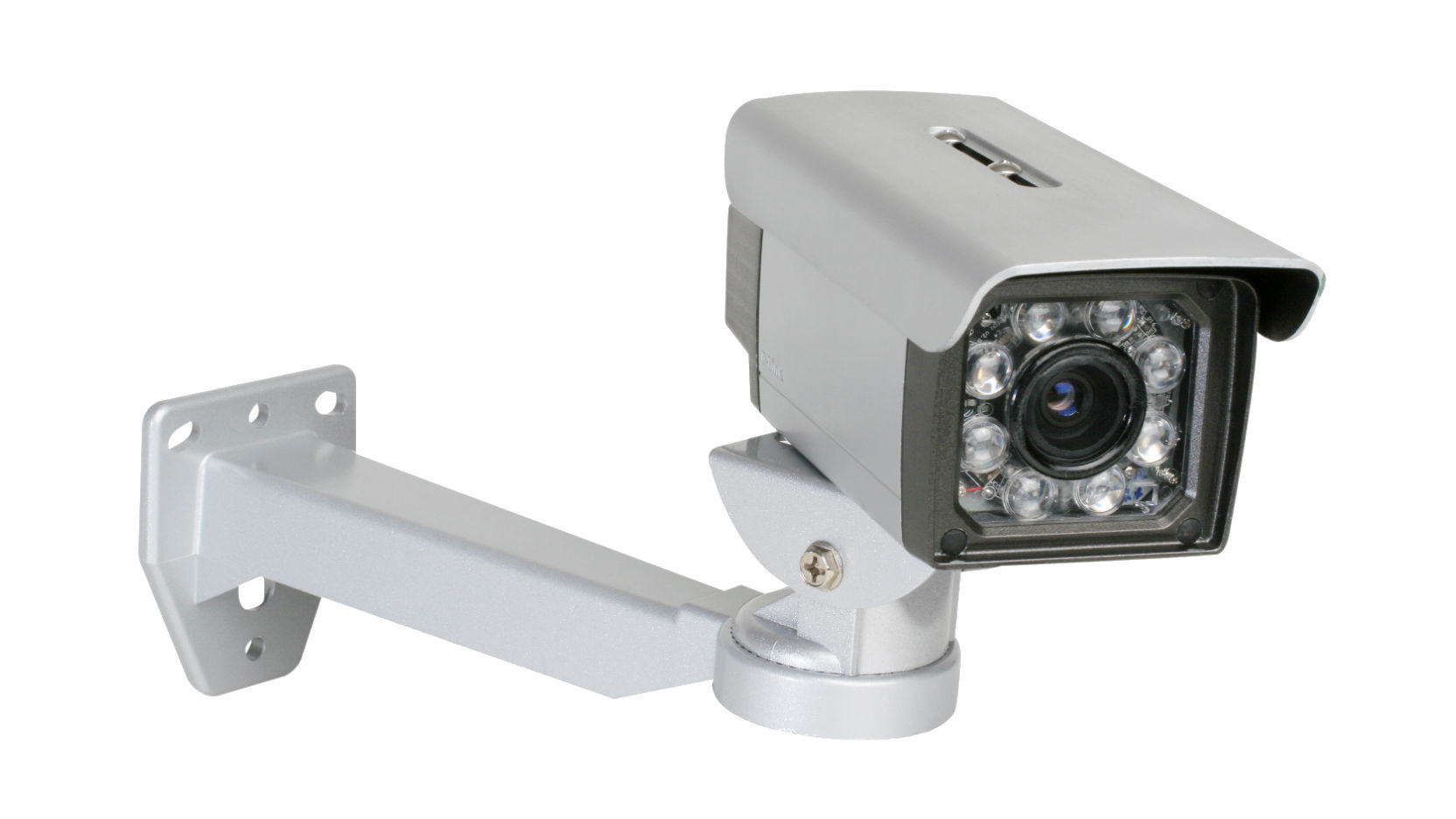

Actual product appearance may differ from the image displayed on this page

Technical Specifications

Cámara
  • Sensor CCD 1/3” Sony incorporado.
  • LED infrarrojos: distancia de iluminación de 30 m.
  • Lente: Distancia focal 12 mm, F1.4.
  • Iluminación mínima: 0,7 Lux @F1.4.
  • Puerto RS-485 para conectar un dispositivo Pan/Tilt externo.
  • I/O digital para conectar sensores y alarmas.

Red

  • 1 puerto Ethernet 10/100Base-TX.
  • Soporte para PoE (Power over Ethernet) IEEE 802.3af.
  • Soporte para DNS dinámico.
  • Configuración basada en web.

Vídeo
  • Doble formato de compresión, Motion JPEG y MPEG-4.
  • Hasta 4 perfiles de vídeo simultáneos.
  • JPEG para imagen fija.
  • Tamaño y calidad de la imagen ajustables.

Audio
  • Entrada para micrófono externo, salida para altavoz externo.

Monitorización y grabación
  • Transferencias de vídeo en directo desde un teléfono móvil o PDA 3G.
  • Gestión y control remoto de hasta 32 cámaras por medio del software D-ViewCam.
  • Grabación directa a un dispositivo NAS (no se requiere software).
Versión Fecha Tipo Tamaño de archivo
Datasheet - PDF 0.54mb Descargar
Versión Descripción Fecha Tipo Tamaño de archivo
D-ViewCam Manual D-ViewCam Manual - PDF 13.84mb Descargar
User Manual User Manual - PDF 0.54mb Descargar
Versión Descripción Fecha Tipo Tamaño de archivo
Quick Installation Guide (English) - PDF 0.99mb Descargar
Este producto de D-Link utiliza programación de software realizada por terceros, incluyendo código software sujeto a la GNU General Public License ("GPL") o GNU Lesser General Public License ("LGPL"). Los términos de uso de GPL y LGPL, así como información de acceso al código GPL y LGPL usados en este producto, están disponibles en:

http://tsd.dlink.com.tw/GPL.asp

Los códigos GPL y LGPL usados en este producto se distribuyen SIN GARANTIA y están sujetos a los derechos de uno o más autores. Para más detalles, vea los códigos GPL y LGPL para este producto y los términos de uso de GPL y LGPL.
Versión Descripción Fecha
Firmware 1.00.3710 Firmware 25/03/2011 Descargar
Versión Descripción Fecha
Setup Wizard 1.05 Setup Wizard 19/04/2011 Descargar
Versión Descripción Fecha
DEU_CE_Declaration_RevA Declaration of conformity 27/10/2009 Descargar
