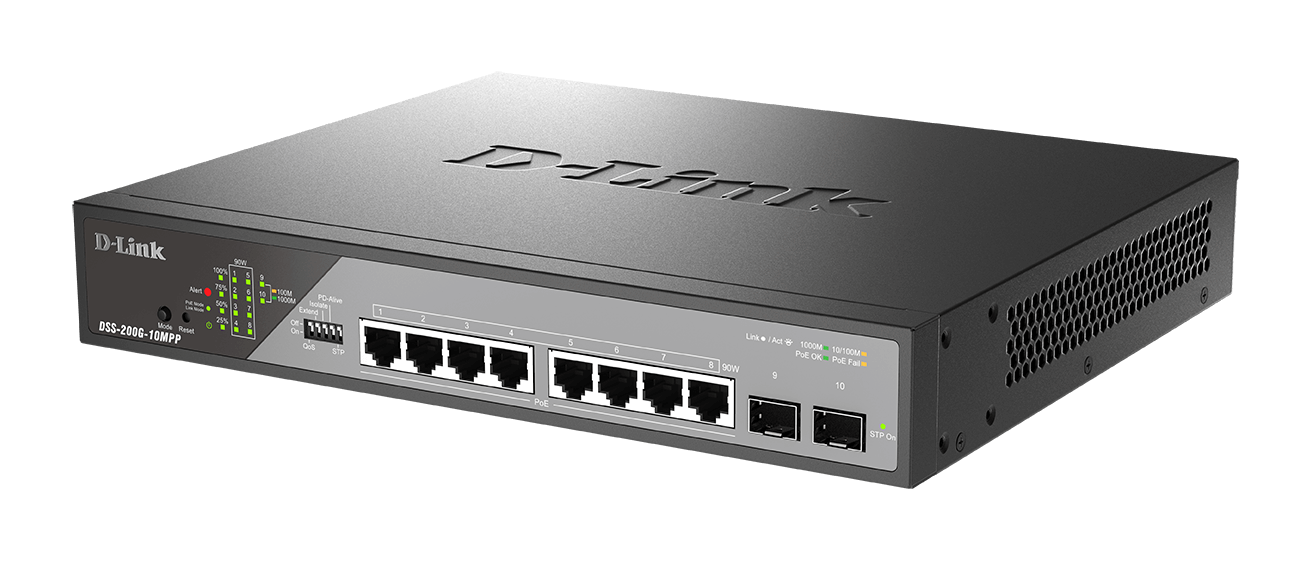

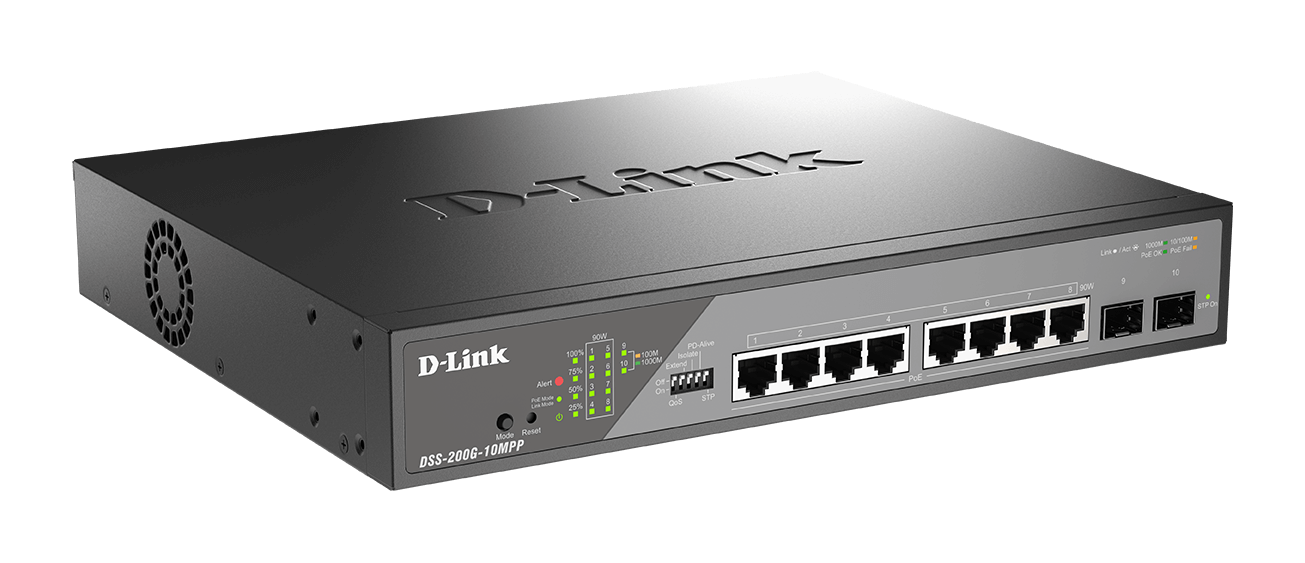

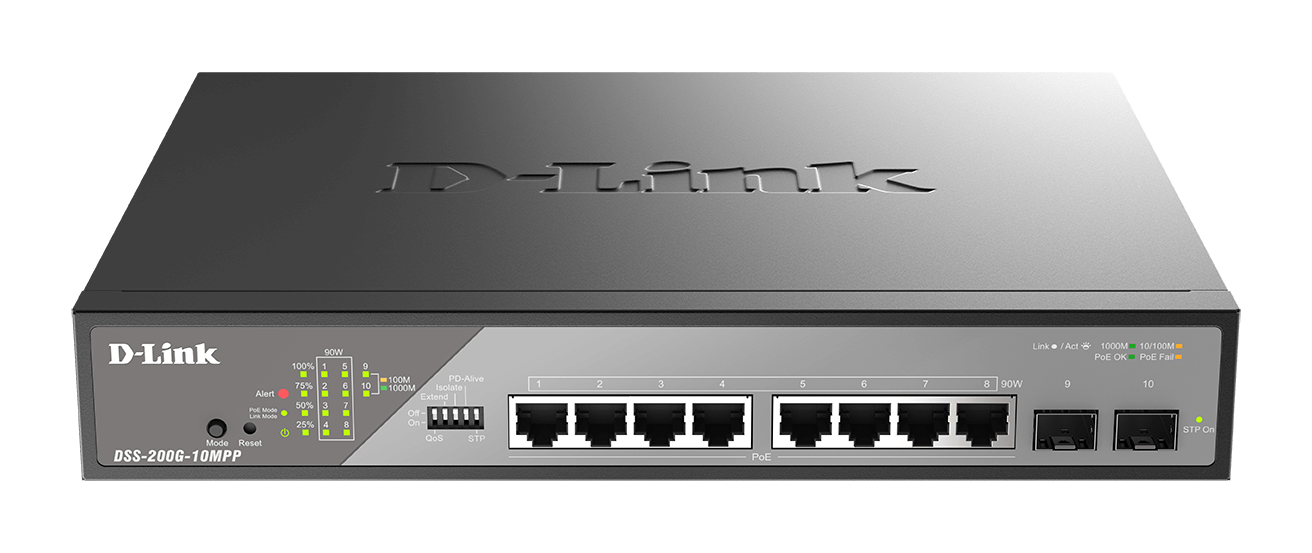

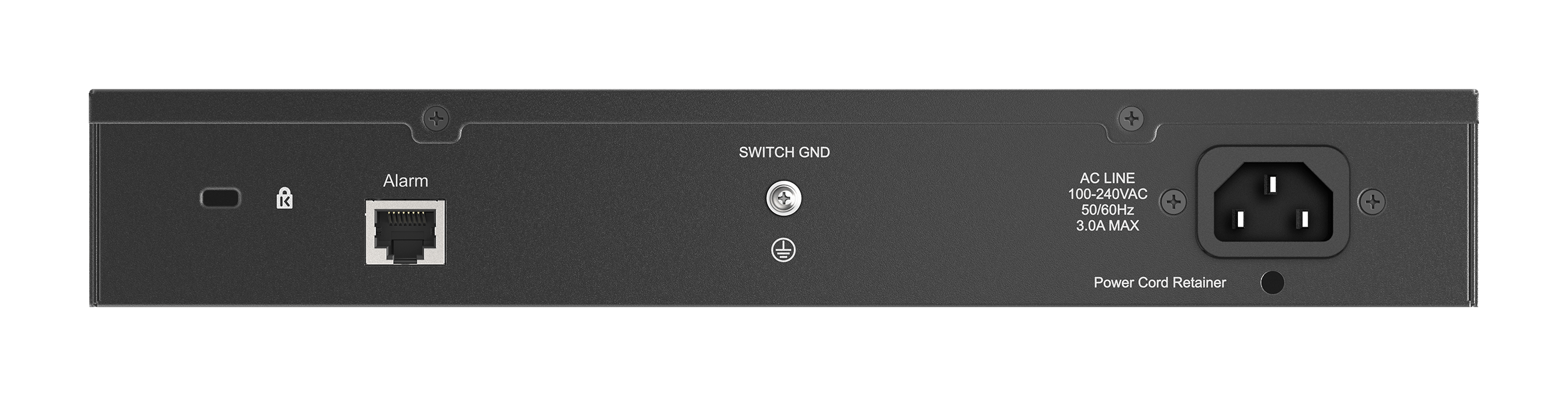

8-Port 10/100/1000 PoE Gigabit Ethernet Surveillance Switch
DSS-200G-10MPP
- Product Status (Revision A1_v102): Live
- High PoE budgets and support for IEEE 802.3bt 90 W PoE
- 6 kV surge protection on all PoE ports
- Alarm Port and four-stage PoE usage indicator light
- Smart Fan design
- Surveillance traffic optimization
- Auto-detect ONVIF devices
- Built-in SNMP MIB
- Surveillance VLAN
- Easy deployment with automatic configuration
- NDAA Compliant
Where to buy
Enjoy the Power of Next-Gen Surveillance Switch
Enhance your surveillance environment with the DSS-200G, a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.
DSS-200G Series Comparison
 DSS-200G-10MP |  DSS-200G-10MPP |  DSS-200G-28MP |  DSS-200G-28MPP | |
|---|---|---|---|---|
| Port Count |
8*GE PoE + 2*GE SFP
|
8*GE PoE + 2*GE SFP
|
24*GE PoE + 4*GE Combo
|
24*GE PoE + 4*GE Combo
|
| Dimension |
11”
|
11”
|
19”
|
19”
|
| Surge Protection |
6KV Full port & Power Supply
|
6KV Full port & Power Supply
|
6KV Full port & Power Supply
|
6KV Full port & Power Supply
|
| PoE power Budget |
130 W
|
242 W
|
370 W
|
518 W
|
| PoE Standard |
|
|
|
|
| Smart Fan |
Fanless
|
1
|
2
|
2
|
| DIP switch |
Working Modes x 4
|
Working Modes x 4
|
Working Modes x 4
|
Working Modes x 4
|
| QoS (Port priority) |
Ports 1-8
|
Ports 1-8
|
Ports 1-24
|
Ports 1-24
|
| Extend (Up to 250M) |
Ports 1-4
|
Ports 1-4
|
Ports 1-8
|
Ports 1-8
|
| Isolate |
Ports 1-8
|
Ports 1-8
|
Ports 1-24
|
Ports 1-24
|
| PD-Alive |
Ports 1-8
|
Ports 1-8
|
Ports 1-24
|
Ports 1-24
|
Specification
|
Interfaces
|
8 x 10/100/1000 Mbps PoE 2 x SFP 1000 Mbps |
|---|---|
|
Switching Capacity
|
20 Gbps |
|
Maximum Forwarding Rate
|
14.88 Mpps |
|
MAC Address Table Size
|
8K entries |
|
Packet Buffer Size
|
4.1Mbits |
|
LEDs Power (per device)
|
Yes |
|
LEDs Link/Active/Speed (per port)
|
Yes |
|
LEDs Alarm
|
Yes |
|
PoE Power Budget
|
242 W 90 W max. per PoE port for ports 1 to 8 |
|
Standby Power Consumption
|
10.7 W |
|
Max Power Consumption
|
267.5 W (PoE on) 15.4 W (PoE off) |
|
Power Input
|
100 to 240 V AC 50 to 60 Hz internal power supply |
|
MTBF
|
508,112 hours |
|
Acoustic
|
50.6 dB(A) |
|
Maximum Heat Dissipation
|
87.00 BTU/hr |
|
Dimensions
|
280 x 230 x 44 mm(11.02 x 9.05 x 1.73 in) |
|
Weight
|
2.05 kg (4.52 lbs) |
|
FAN
|
1 |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: -40 to 70 °C (-40 to 158 °F) |
|
Humidity
|
Operating: 0% to 95% non-condensing Storage: 0% to 95% non-condensing |
|
Number of Ports
|
2 x SFP 1000 Mbps 8 x 10/100/1000 Mbps PoE |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only.Specifications may be subject to change without prior notice. |
|
